Update the look of your 1978-1979 Ford Bronco 4WD truck by raising it to new heights with a 6-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes Pro-Ride coil springs, radius arm drop brackets, track bar relocation bracket for steering correction, bump stop brackets and precision tuned NX2 nitrogen charged shocks.
In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.
Pro-Ride Coil Springs
A pair of full-length, truck-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Front Lift Method: Coil Spring
Rear Lift Method: Block
Shocks Included: Yes
Front Lift Height: 6 inch
Rear Lift Height: 6 inch
Front end alignment required which may require axle inchC inch bushings.
Easy, Bolt-on installation
Pro-Ride dual rate coil springs ride smooth through any terrain
Heavy duty steel drop brackets for proper suspension geometry
Cast steel blocks provide level stance from front to rear
NX2 Nitro shocks with vehicle-specific valving for better control
Front Shock Option Staggered Front Shock
The 78-79 Bronco's came with 3 different shock configurations. The first type is the standard shock mounted behind the axle. Second, has staggered single front shocks with the drivers side shock mounted in front of the axle and the passenger side shock mounted behind the axle. The third type uses dual front shocks. Check your vehicle to make the appropriate selection.
Rear Lift Option
Leaf Springs
Eliminates any need for a lift block.
Reduces axle wrap and creates a more controlled and stable feel.
Multi-leaf progressive design for a smooth ride.
Maintains factory payload weight ratings.

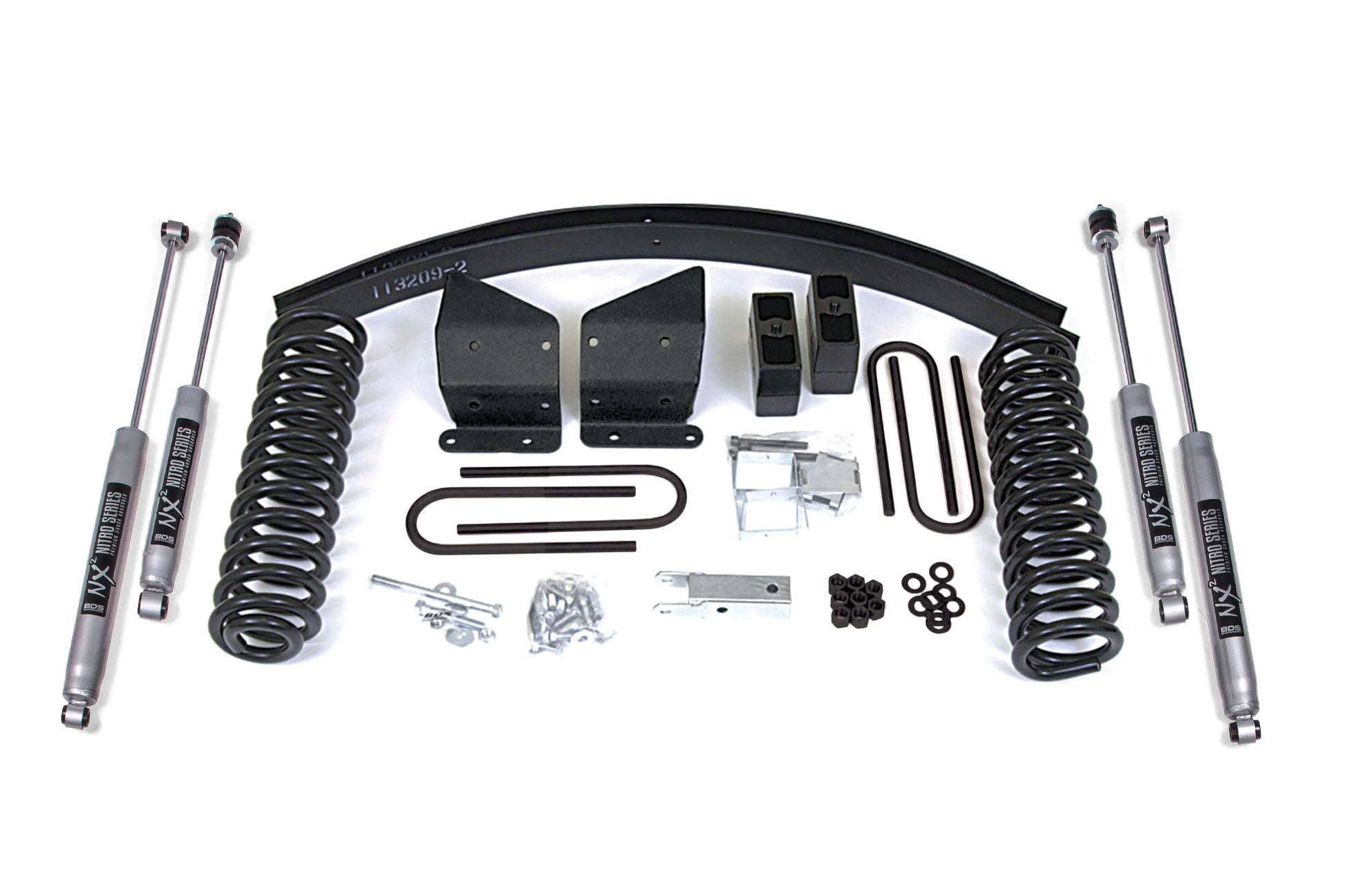

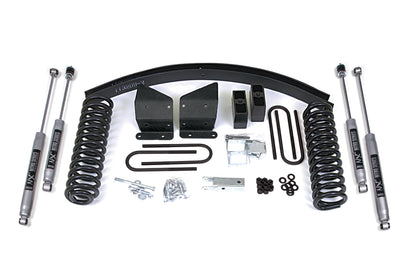

Kit Components:
Includes two BDS003408, 73-96 Ford F150 4 Inch Rear Spring 3in wide, UPC Code 658848611355
Includes one BDS013002, 73-79 Ford Radius Arm Drop Kit, UPC Code 658848612925
Includes one BDS033603, Ford F150(73-79)/Bronco(78-79) 6 Inch Coil, UPC Code 658848616565
Includes one BDS123001, 73-79 Ford Track Bar Ext Bracket, UPC Code 658848619863
Includes two BDS85650, Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1, UPC Code 711745609457
Includes one BDS85850, Shock- 26.15 x 15.55 x 2-3/8 - S1/EB1, UPC Code 711745609891
Includes one BDS85860, Shock - 29.80 x 17.57 x 2-3/8 -S1/EB1, UPC Code 711745609907
Includes four UBT4051, 9/16 x 3-1/4 x 10 Round U-bolt, UPC Code 711745613126
