Overhaul your '07 - '13 Chevy, GMC 1500 Pickup with Rough Country's jaw-dropping 5-inch Suspension Lift. Gain enough clearance to run up to 33-inch tires on factory 20-inch wheels with this all-inclusive kit.

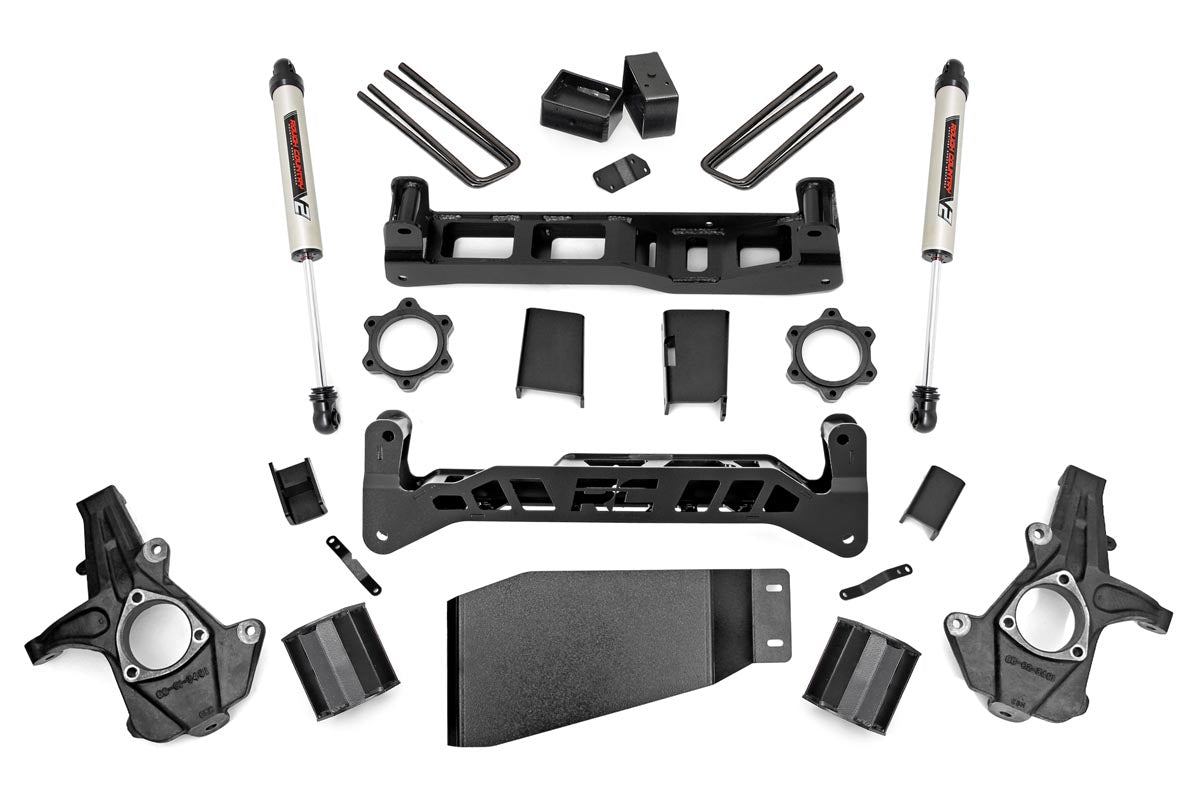

A set of lifted knuckles, front and rear crossmembers, 4. 5-inch fabricated rear blocks, and upper strut spacers help your truck achieve a monster stance.
This 1500 lif kit also ships with differential drop brackets, cv spacers, sway-bar drop brackets, and rear brake line brackets to maintain optimum angles after lifting.
A durable lower skid plate keeps crucial components protected, and our Premium N3 shocks allow for uncompromised off-road performance.
Featuring 100 percent precision laser cut materials designed by Rough Country engineers, this 1500 lift kit installs easy and fits like a glove.
Features:
Can run 33 Inch tires on factory 20 Inch wheels.
Provides highly sought level stance.
High clearance crossmember design gives unmatched ground clearance.
Requires no modification to the stock drivetrain or exhaust.
100 percent precision laser cut materials using the latest computer aided design process.
No need to disassemble your struts to install Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Notes: Requires minor cutting and drilling. Does Not fit 2007 Classic models. Does Not fit models with electric steering. AWD models will Require driveline modifications. (Must be converted to non-AWD). 18 inch or larger wheels are Required. Please view installation instructions for complete information on proper tire/wheel combinations.
Details:
Sold As Kit
Drive 4WD
Tire Info 1,2285/65 R18:Factory 18:-- 2305/65 R18:18x9:-:+12 to +18mm 1,2295/55 R20:Factory 20:-- 2305/55 R20:20x9:-:+12 to +18mm 1 Factory 18.0 inch and 20in wheels can be run but require 1/4.0 inch wheel spacers with 295 tires 2 Models equipped with Factory 18-inch or larger wheels must run 18-inch or larger wheels if changing to aftermarket wheels
Max Tire 33.0 inch
Lift Height 5.0 inch
Front Components Lifted knuckles Front crossmember Rear crossmember Upper strut spacers Brake line brackets CV spacers Differential drop brackets Differential skid plate Sway-bar drop brackets Hardware
Rear Components 4.5.0 inch fabricated lift blocks U-bolts Hardware
