Tuff Country's Performance Suspension Lift Kit for the Ram 3500 is the premium version of their 5 inch kit. This lift kit uses replacement radius arms that maintain the factory geometry, improves ride quality and eliminates loss of ground clearance.
The unique front lower 5 inch coil spring spacers prevent coil spring binding which is common on other lift kits. The rear end is lifted using 2.5 inch lower coil spring spacers (to level the truck's stance), a track bar relocation bracket, sway bar relocation brackets and bump stop relocation brackets. Once installed the Ram will have enough fender clearance for up to 37 inch tires. Details:
5 Inch Performance Lift Kit w/ SX8000 Shocks
Tubular low profile radius arms that maintain factory geometry without loss of ground clearance, while improving ride quality
Gives additional clearance for 37 inch x 13.5 inch tires
New unique lower coil spring spacers maintain a factory ride, while eliminating binding common on other lift kits
Simple Installation
Drop pitman arm and front and rear track bar relocation bracket included to maintain proper alignment and geometry
New extended shocks are required
Proudly Made in the USA
Limited Lifetime Warranty
Sold As A Kit
Fits:
2014-2018 Ram 2500 4WD
Installation Notes:
Factory length front shocks must be replaced or extended to install this lift kit properly
Excludes Power Wagon models and models with factory rear air suspension
Recommended Tire Size: 37 Inch x 13.5 Inch
Amount of Lift: 5 Inch Front / 3 Inch Rear

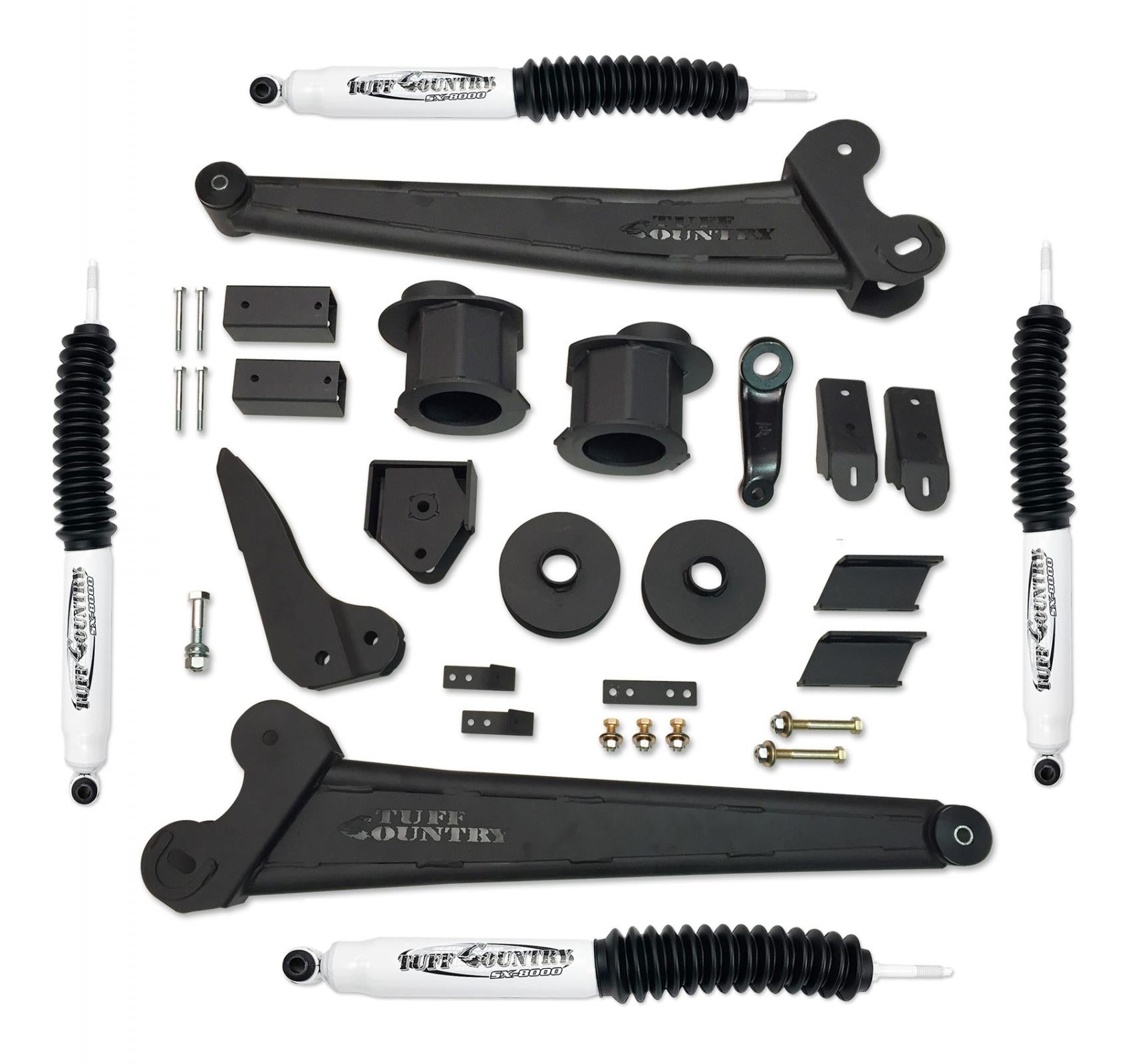

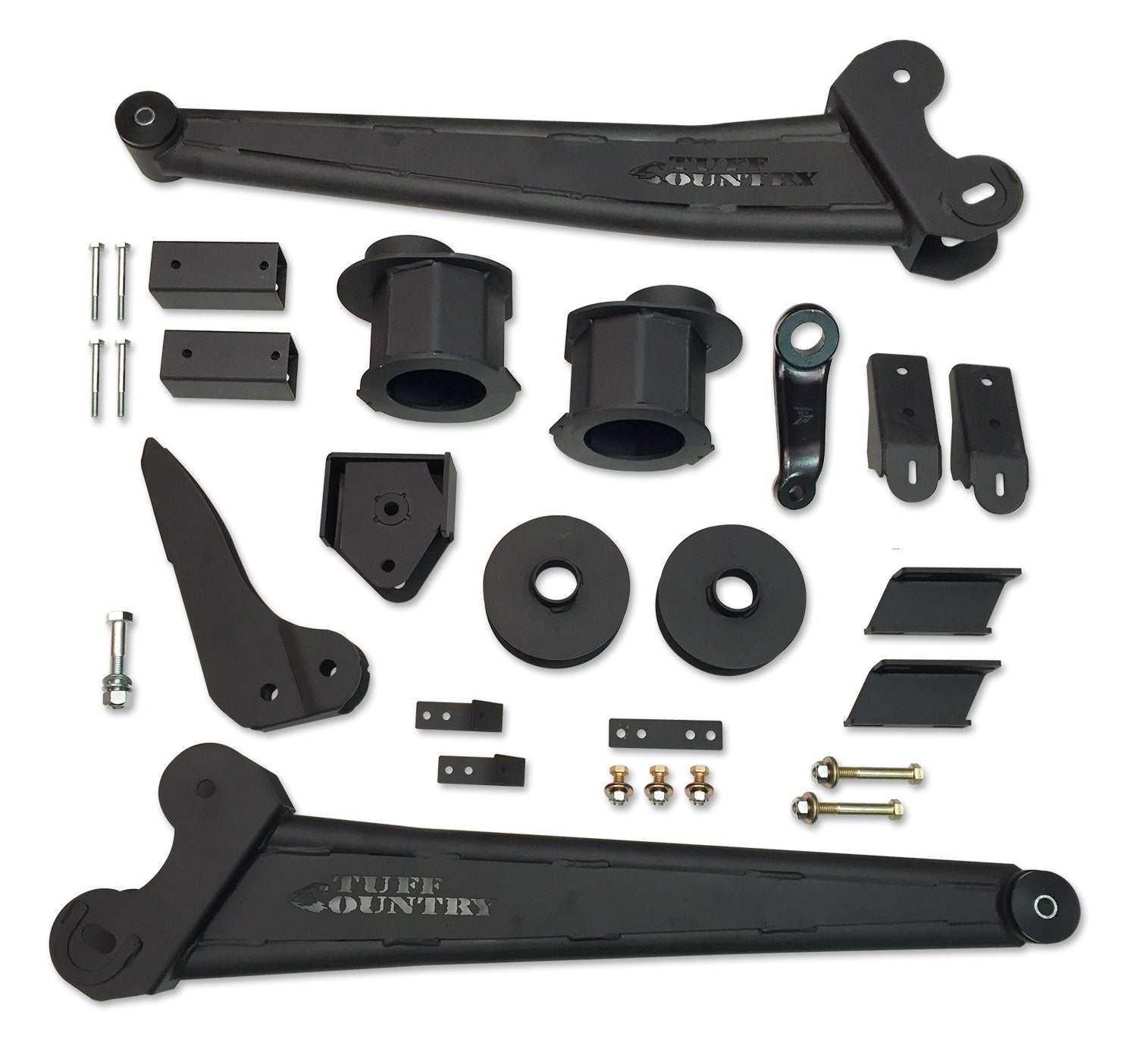

Includes: 2) 5 inch Lower Front Coil Spring Spacers, 2) Low Profile Replacement Radius Arms, 1) Front track bar relocating bracket, 1) Drop pitman arm, 2) 2.5 inch rear coil spacers, 2) Rear bump stop relocation brackets, 1) Rear track bar relocating bracket, 2) Front sway bar relocation brackets, 2) Rear sway bar relocation brackets and Hardware bags, 4) SX8000 Shocks
