Tuff Country's Performance Suspension Lift Kit for the Ram 3500 is the premium version of their 5 inch kit. This lift kit uses replacement radius arms that maintain the factory geometry, improves ride quality and eliminates loss of ground clearance.
The unique front lower 5 inch coil spring spacers prevent coil spring binding which is common on other lift kits. The rear end is lifted using 2 inch cast iron blocks and extended u-bolts. Once installed the Ram will have enough fender clearance for up to 37 inch tires. Details:
5 Inch Performance Lift Kit w/ SX8000 Shocks
Tubular low profile radius arms that maintain factory geometry without loss of ground clearance, while improving ride quality
Gives additional clearance for 37 inch x 13.5 inch tires
New unique lower coil spring spacers maintain a factory ride, while eliminating binding common on other lift kits
Simple Installation
Drop pitman arm and front and rear track bar relocation bracket included to maintain proper alignment and geometry
2 inch cast iron blocks and extended u-bolts lift the rear end
New extended shocks are required
Proudly Made in the USA
Limited Lifetime Warranty
Sold As A Kit
Fits:
2013-2018 Ram 3500 4WD
Installation Notes:
Factory length front shocks must be replaced or extended to install this lift kit properly
Excludes Power Wagon models and models with factory rear air suspension
Recommended Tire Size: 37 Inch x 13.5 Inch
Amount of Lift: 5 Inch Front / 2 Inch Rear

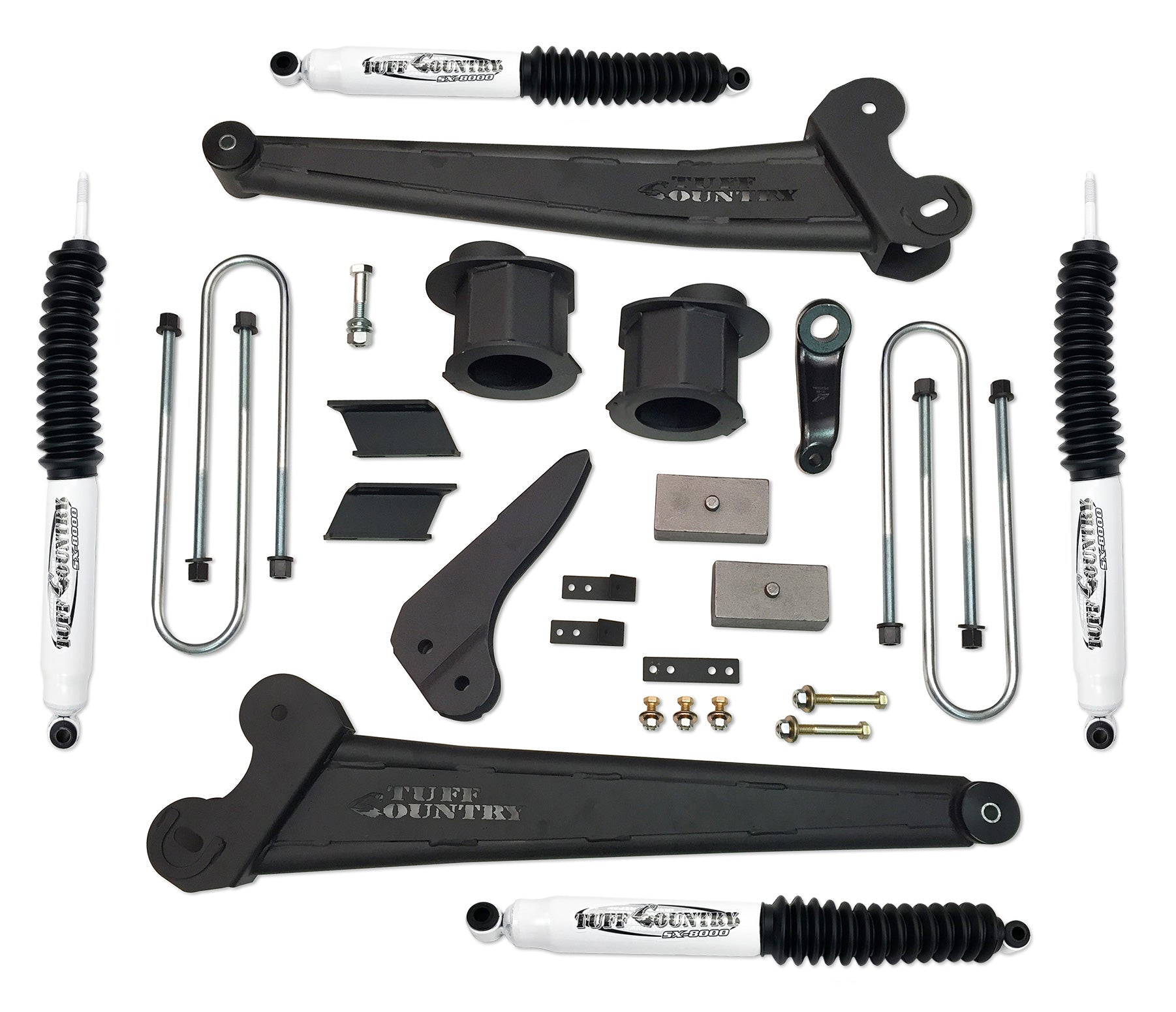

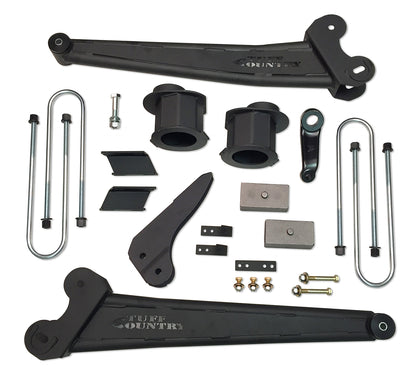

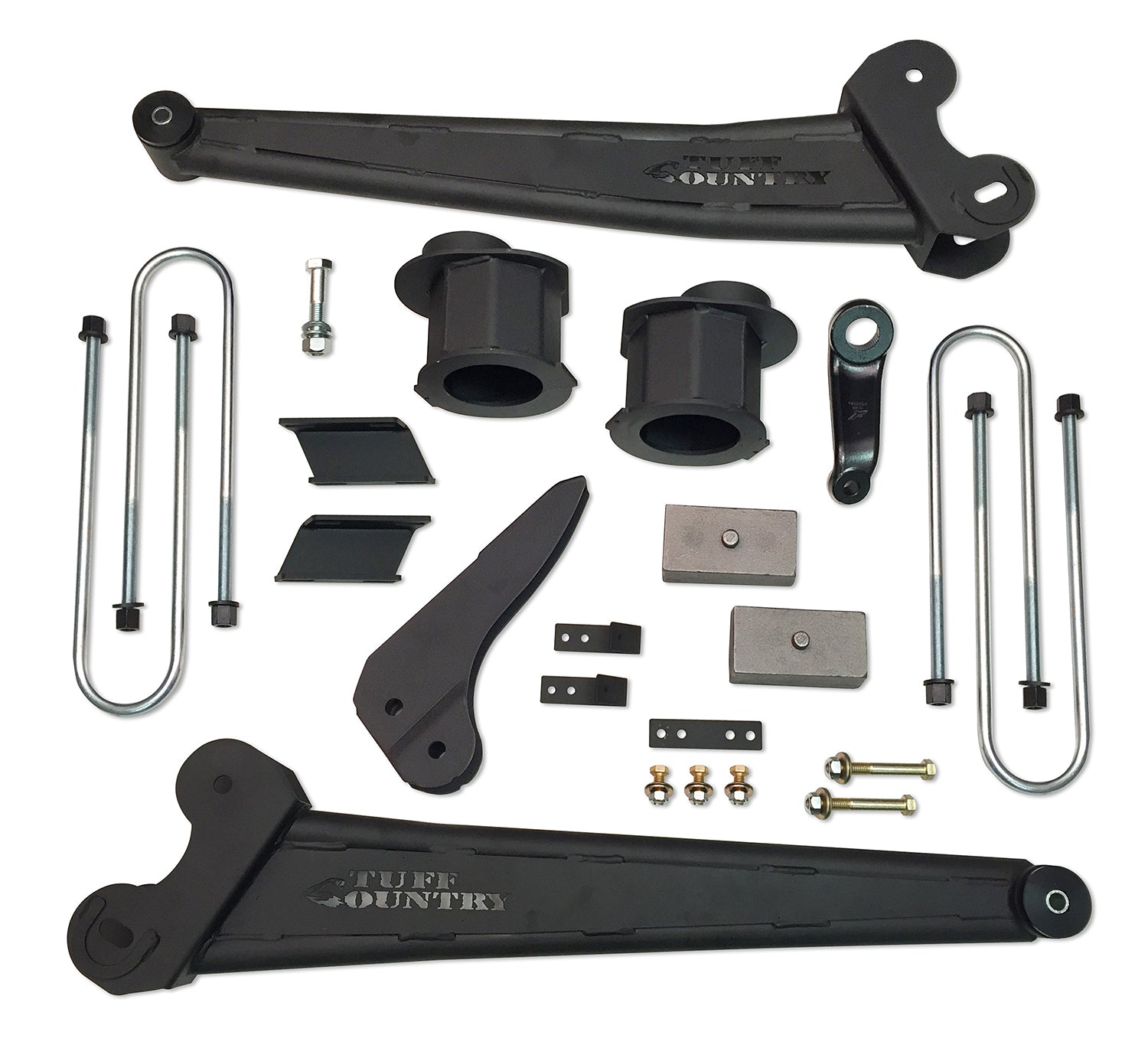

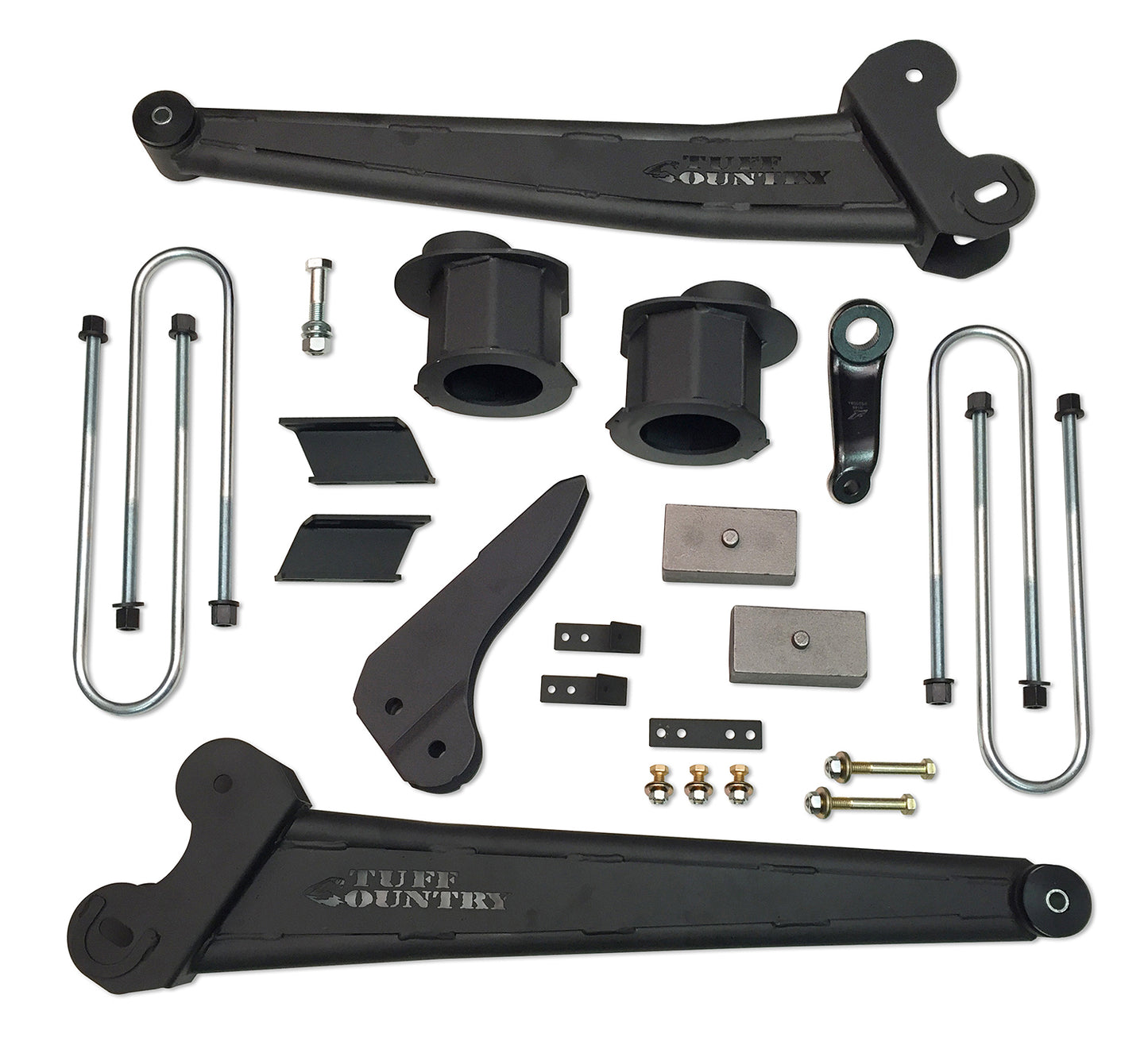

Includes: 2) 5 inch Lower Front Coil Spring Spacers, 2) Low Profile Replacement Radius Arms, 1) Front track bar relocating bracket, 1) Drop pitman arm, 2) 2 inch lift blocks, 2) Front sway bar relocation brackets, 4) Extended rear u-bolts and Hardware bags, 4) SX8000 Shocks
