Tuff Country's 5 inch suspension lift kit for the Ram 2500 is an ideal way to lift your truck to fit larger tires and get an awesome new look. Once installed the Ram will have enough fender clearance for up to 37 inch tires. Using lower front coil spring spacers and drop radius arm brackets the front end is lifted 5 inches.
While the rear end is lifted using 2.5 inch lower coil spring spacers (to level the truck's stance), a track bar relocation bracket, sway bar relocation brackets and bump stop relocation brackets. Details:
5 Inch Lift Kit w/ SX8000 Shocks
Gives additional clearance for 37 inch x 13.5 inch tires
New unique lower coil spring spacers maintain a factory ride, while eliminating binding common on other lift kits
Radius Arms drop brackets to maintain proper front end geometry
Simple installation
Drop pitman arm and track bar relocation brackets included to maintain proper alignment and geometry
New extended shocks are required
Proudly Made in the USA
Limited Lifetime Warranty
Sold As A Kit
Fits:
2014-2018 Ram 2500 4WD
Installation Notes:
Factory length front shocks must be replaced or extended to install this lift kit properly
Excludes Power Wagon models and models with factory rear air suspension
Recommended Tire Size: 37 Inch x 13.5 Inch
Amount of Lift: 5 Inch Front / 2.5 Inch Rear

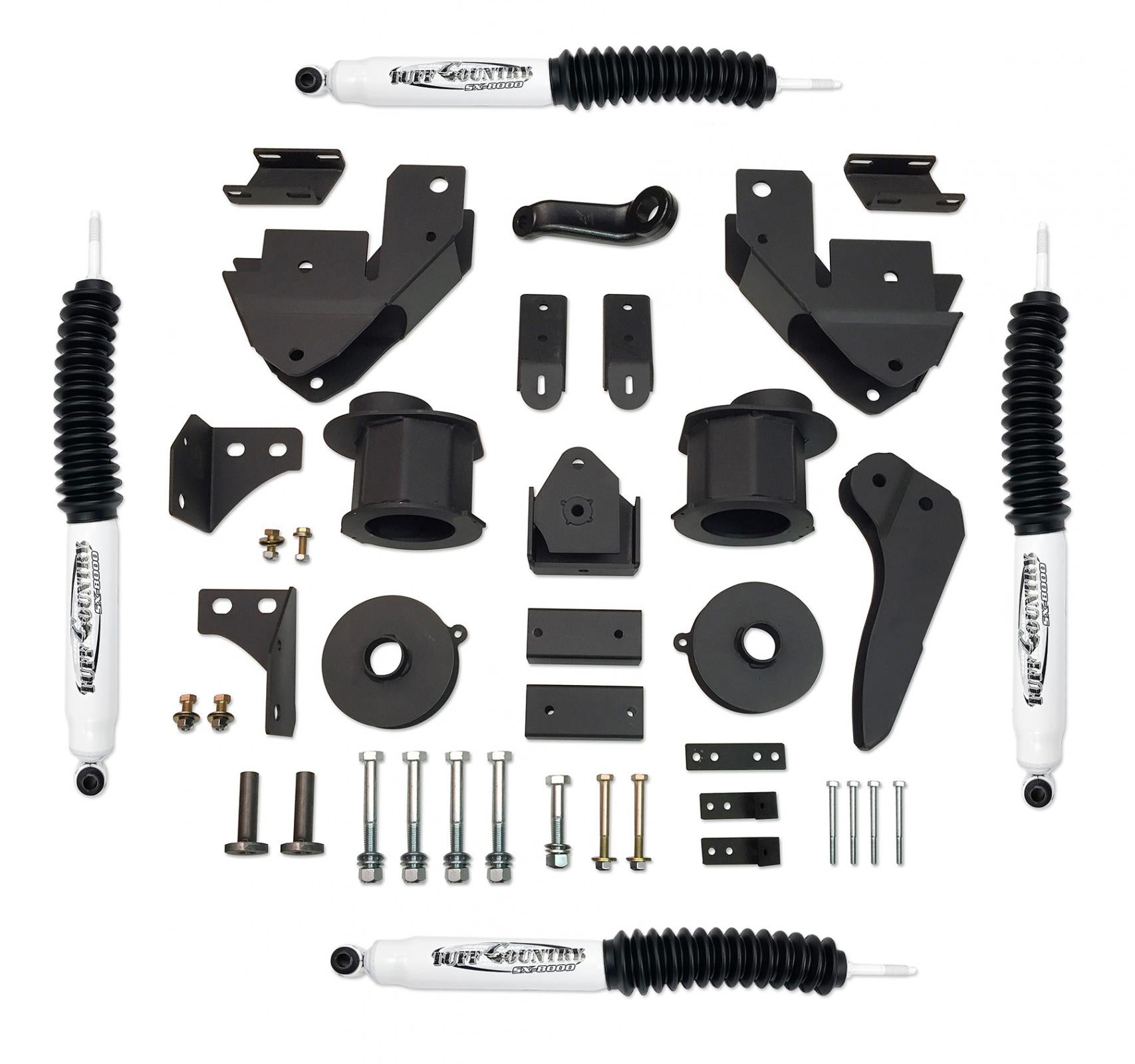

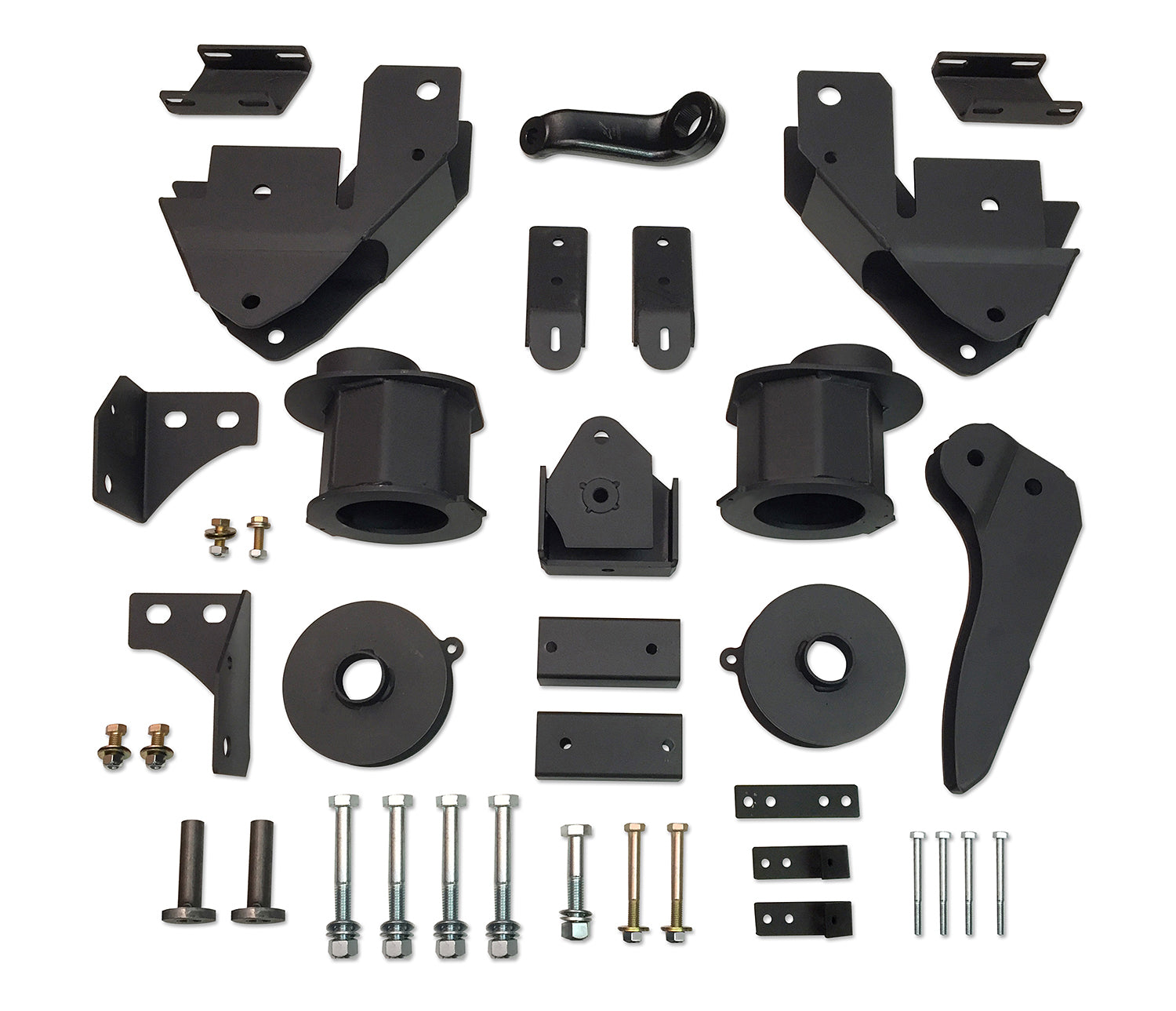

Includes: 2) 5 inch Lower Front Coil Spring Spacers, 2) Radius Arm Drop Brackets, 1) Front track bar relocating bracket, 1) Drop pitman arm, 2) 2.5 inch rear coil spacers, 2) Rear bump stop relocation brackets, 1) Rear track bar relocating bracket, 2) Front sway bar relocation brackets, 2) Rear sway bar relocation brackets and Hardware bags, 4) SX8000 Shocks
