Improve the ride and style of your 2013-2018 RAM 3500 gas powered truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes gas-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Front Lift Method: Coil Spring
Rear Lift Method: Block
Shocks Included: Yes
Front Lift Height: 4 inch
Rear Lift Height: 2 inch
The carrier-bearing drop kit is necessary for models equipped with two-piece rear drive shaft.
6.4L Gas models will require exhaust modification to clear the front driveshaft and potentially the passenger's Radius arm bracket.
5.7L Gas models may require exhaust modification - but not in all cases.
The vehicle can be driven without the front driveshaft to an exhaust shop for modification and reinstalled after modification.
Heavy duty radius arm drop brackets maintain proper suspension geometry
Front high strength progressive rate coil springs for a great ride on any terrain
Front track bar relocation bracket to re-position axle
Forged drop pitman arm to correct steering angles
Front sway bar correction to maintain handling performance
BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
2 Inch Block Kit
Tail low to level stance
Tire Size: 35 x 12.5 Tire Size 2: 37 x 13.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 17 x 9 Back Spacing: 4.5/5.625
Shock Option NX2 Nitro Series
Nitrogen-charged
Twin-tube design
10-stage velocity-sensitive valving
Dual-welded ends for increased strength
1-3/8-inch high-flow piston
Self-lubricating seals
Silver powder coat finish

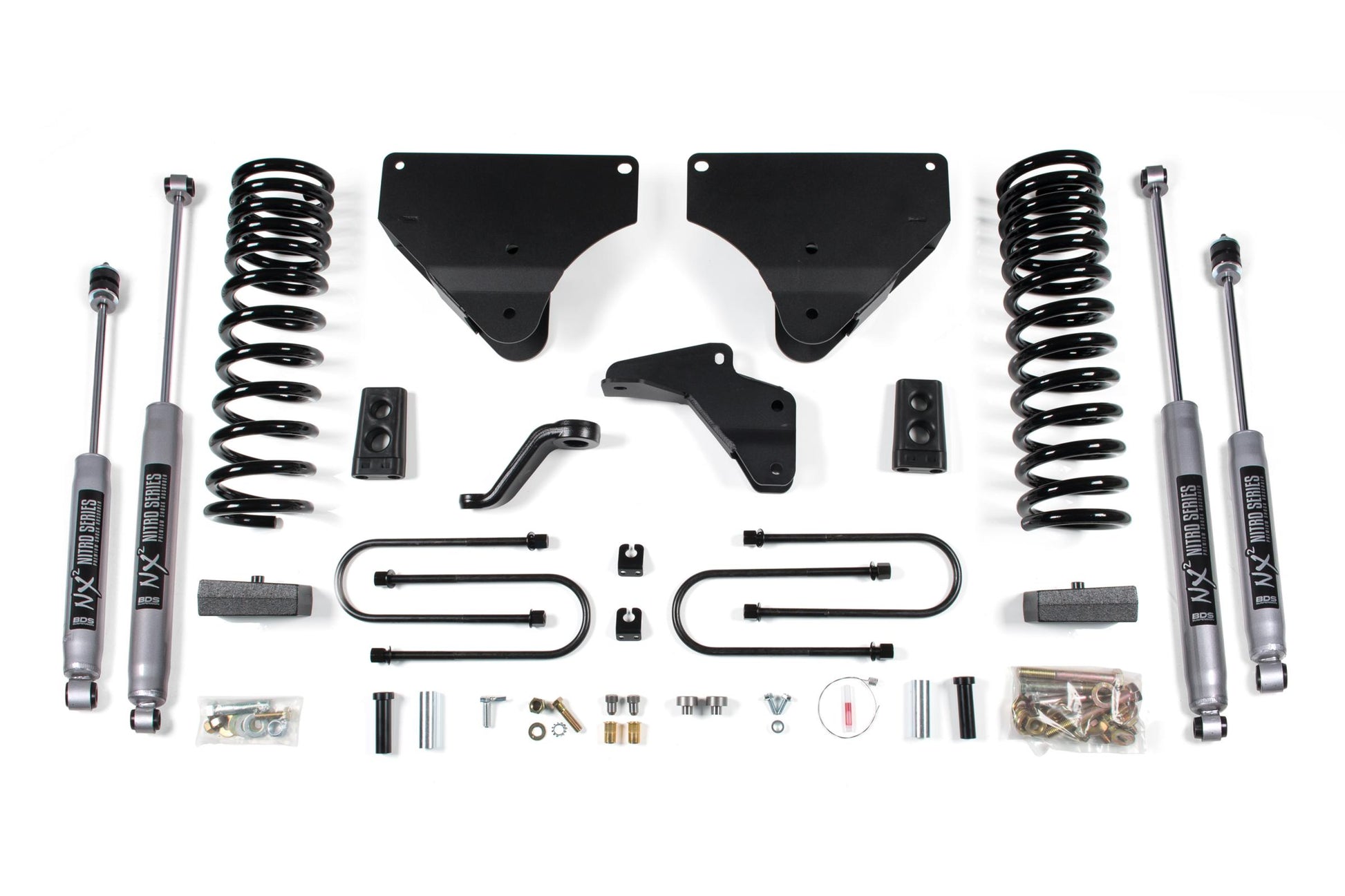

Kit Components:
Includes one BDS012207, 03-13 Dodge 2500 2 Inch Rear Box w/4, UPC Code 658848612093
Includes one BDS012401, 2013-18 Ram 2500/300 4 inch Front Box Kit, UPC Code 658848612321
Includes one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas, UPC Code 658848616343
Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
Includes two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609686
