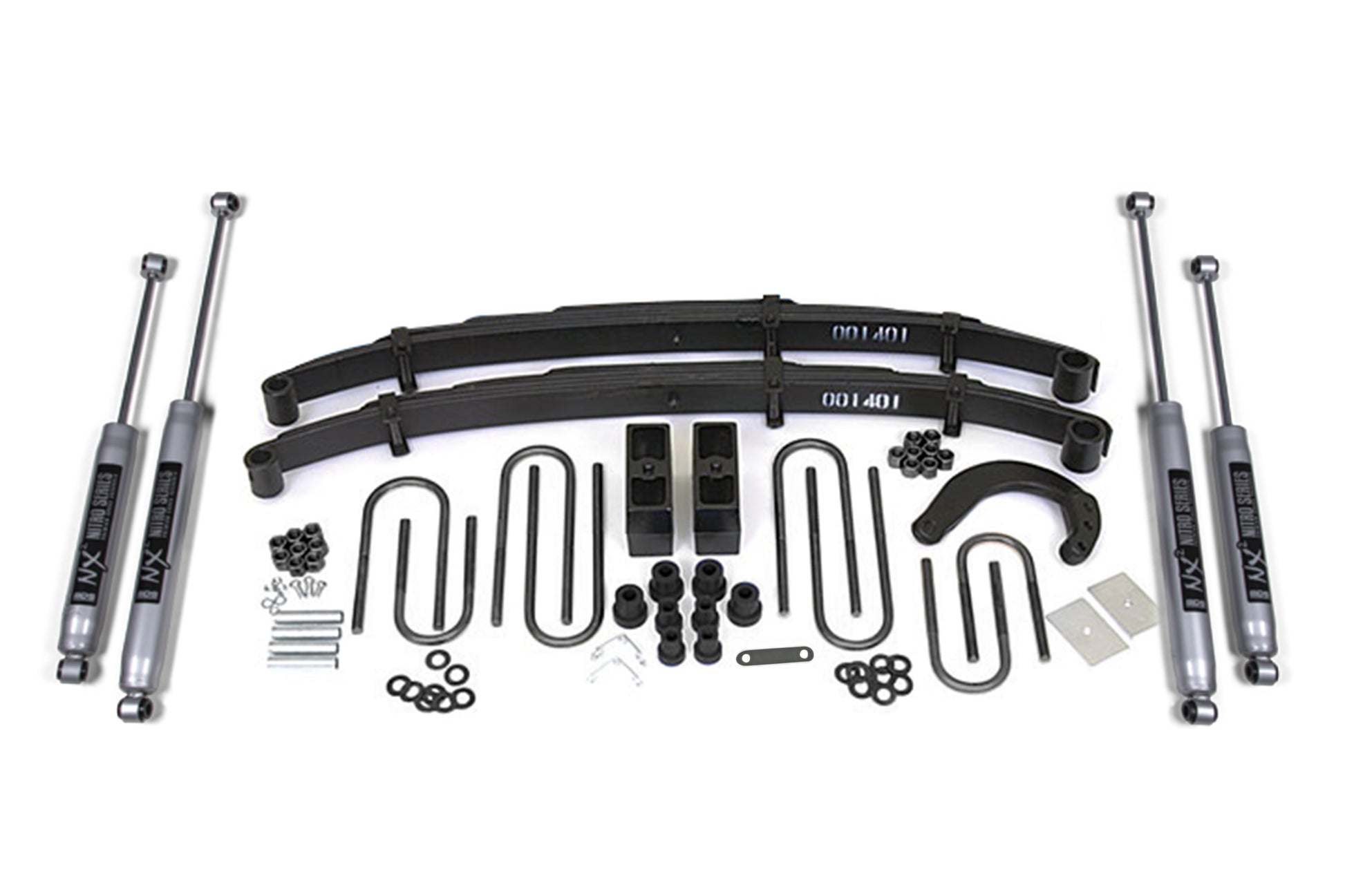

Improve the style and handling of your 1977-1987 Chevy and GMC 1/2 ton truck or SUV with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the K5 Blazer, K10 and K15, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.
Up front the lift kit includes Glide-Ride leaf springs, 4 inch steering arm for steering correction, brake line brackets and precision tuned NX2 nitrogen charged shocks. In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.
Glide-Ride Leaf Springs Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.
Features & Benefits
Easy, 100 percent Bolt-on installation
Glideride leaf springs to provide full lift height and increased capacity
New steering arm maintains proper steering angles for improved handling
Cast steel blocks and add-a-leaf provide level stance from front to rear
Standard NX2 Nitro shocks with vehicle-specific valving for better control
Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Recommended Tires & Wheels
(Trimming may be required)
35 x 12.5 with 15 x 8 and 3.5 in. Backspace
Rear Lift Option
Leaf Springs
Eliminates any need for a lift block.
Reduces axle wrap and creates a more controlled and stable feel.
Multi-leaf progressive design for a smooth ride.
Maintains factory payload weight ratings.
Shock Option NX2 Nitro Series
Nitrogen-charged
Twin-tube design
10-stage velocity-sensitive valving
Dual-welded ends for increased strength
1-3/8-inch high-flow piston
Self-lubricating seals
Silver powder coat finish
Front Lift Method : Leaf Spring
Rear Lift Method : Blocks Shocks Included : Yes Front Lift Height : 4 inch Rear Lift Height : 4 inch
Kit Components:
Includes two BDS001401, 73-91 GM 4 Inch Front Spring, UPC Code 658848611164
Includes two BDS001409, GM 1/2 ton 4 Inch Rear Spring-52 eye-to-eye, UPC Code 658848611188
Includes one BDS011001, 77-87 GM Front Box Kit (3.00 dia. front), UPC Code 658848611621
Includes one BDS011009, 73-91 GM Rear Box Kt (w/BDS 52in spring), UPC Code 658848611669
Includes one BDS081401, 69-91 GM 4 Steering Arm, UPC Code 658848618064
Includes two BDS85620, Shock- 23.10 x 14.25 x 2-3/8 - EB1/EB1, UPC Code 711745609402
Includes two BDS85639, Shock- 29.70 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609440
