Want to lift your Dodge Ram and get the best possible ride and handling? Want more suspension articulation? Tuff Country EZ-Ride Suspension's Dodge Ram Long Arm Lift Kits are your answer!
This lift kit is designed to lift your Dodge Ram 4.5 inches using the long arm suspension system and all the great benefits. By replacing the factory control arms with the longer arms this creates less of an angle on the control arms which results in a much softer ride, dramatic handling improvements (reduces bump steer significantly) and better suspension articulation.
Both upper and lower arms use greasable, rebuildable flex joints which will reduce or eliminate the front suspension from binding. Upper coil spring tower spacers mount above your factory coil springs to lift the front end and maintain a factory ride. A track bar relocating bracket, drop pitman arm and front sway bar relocating brackets ensure everything is aligned properly. All this adds up to the ultimate Dodge Ram suspension lift kit. Details:
4.5 Inch Long Arm Lift Kit w/ SX8000 Shocks
Allows use of 36 inch x 12.5 inch tires
Dramatic improvement in ride quality and handling, reduces bump steer
More suspension articulation for off-roading
Simple bolt-on installation
Greasable and Re-Buildable Flex Joints to reduce suspension binding
Upgrade kit fits all Tuff Country lift kits and a variety of other mfg's lift kits
Pitman arm and track bar relocating bracket included
Proudly Made in the USA
Limited Lifetime Warranty
Sold As A Kit
Fits:
2009-2013 Dodge Ram 2500 4WD
2009-2012 Dodge Ram 3500 4WD
Installation Notes:
Vehicles with 2 piece rear drive shafts may require carrier bearing drop P/N 20824D
Factory length shocks must be replaced with new extended shocks to install this lift kit properly
Recommended Tire Size: 36 Inch x 12.5 Inch
Amount of Lift: 4 Inch Front / 2 Inch Rear

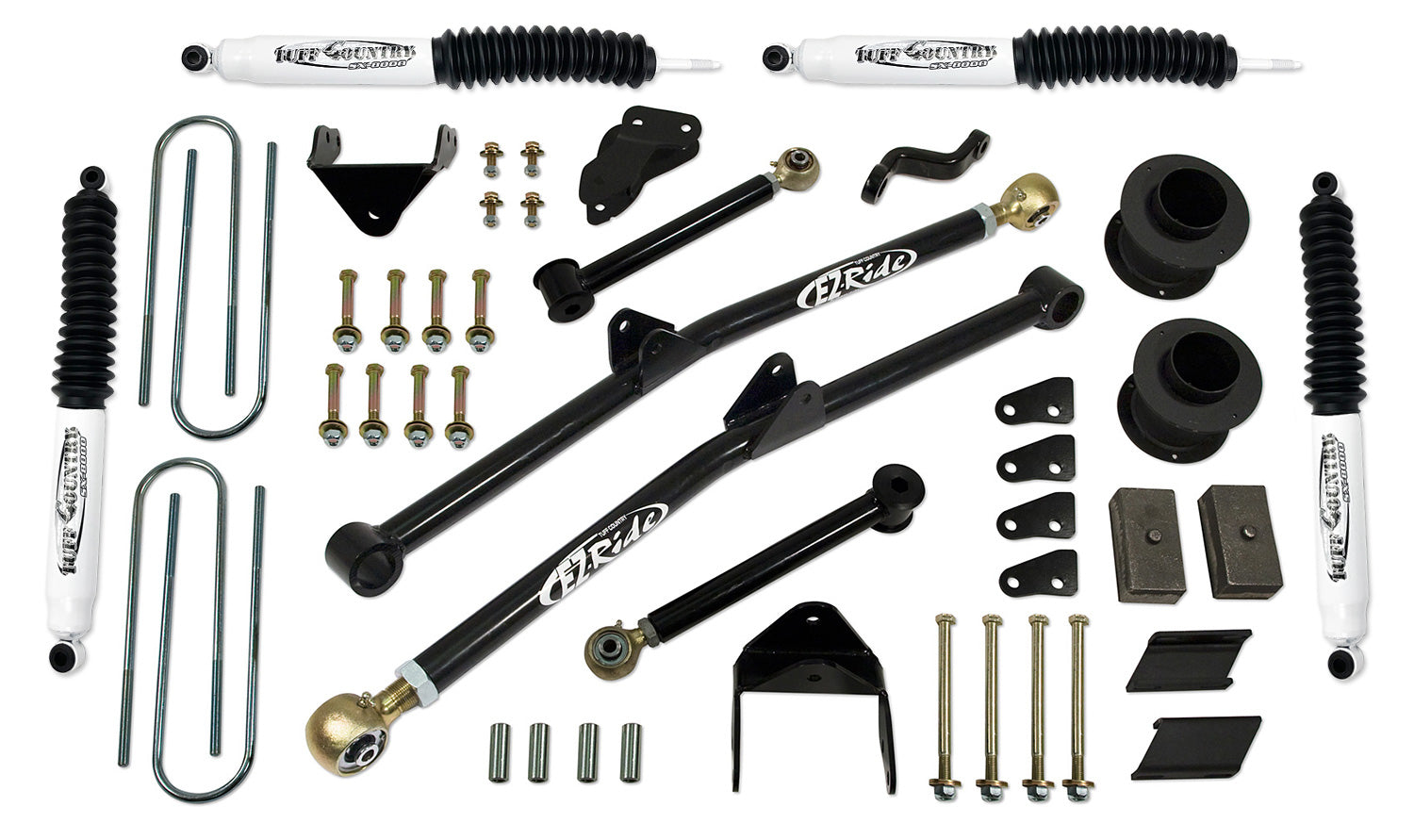

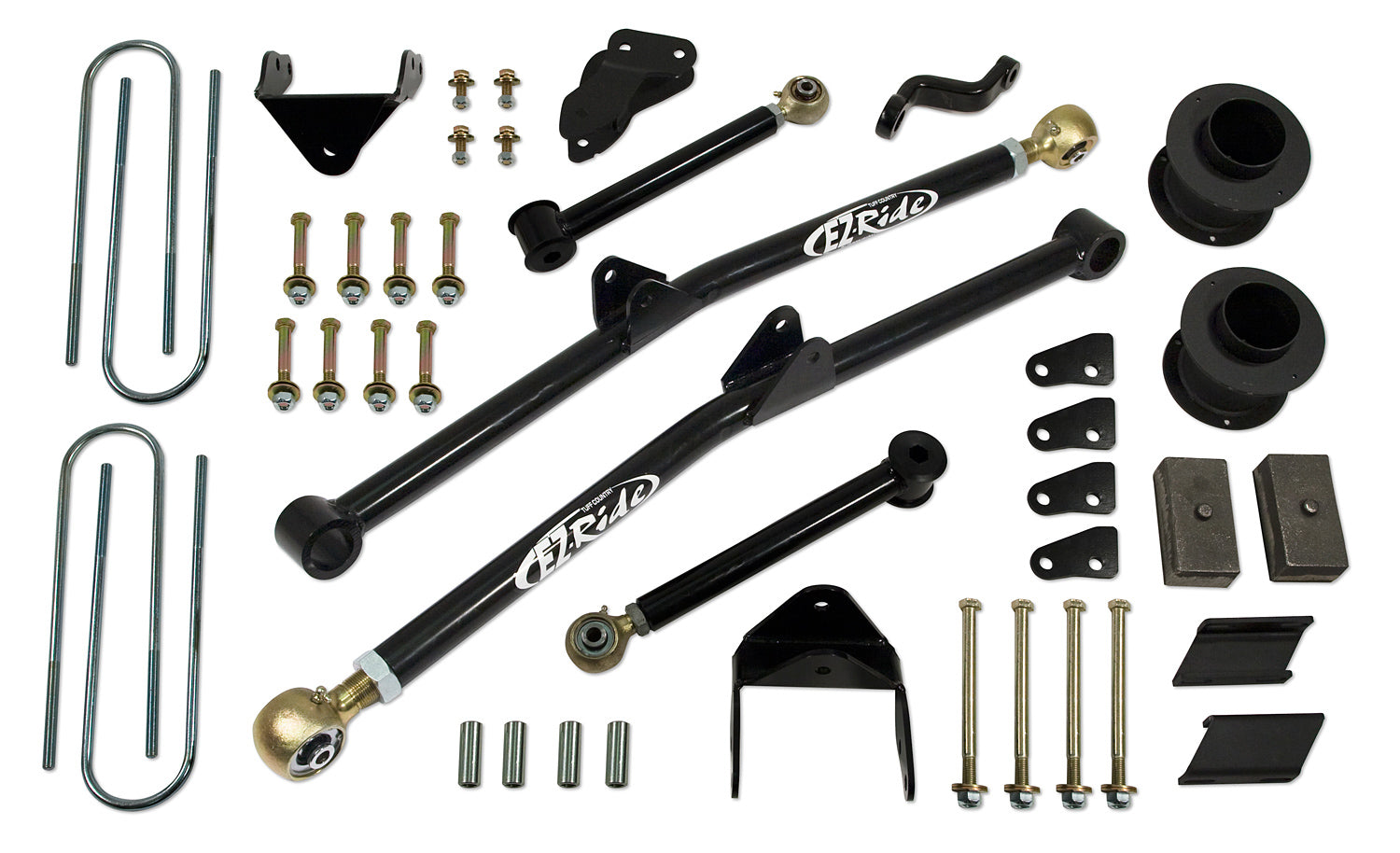

Includes: 2) 4.5 inch Upper coil spring tower brackets, 2) Lower Control Arms, 2) Upper Control Arms, 2) Long Arm Mounting Brackets, 1) track bar bracket, 2) Upper sway bar drop brackets, 2) 2 inch cast iron rear lift blocks, 4) Rear U-bolts, 1) Hardware bar, 1) Poly and sleeve kit, 1) Pitman arm, 4) SX8000 Shocks
