Designed to improve stance, performance, and capability. BDS Suspension has designed this 4.5-inch lift kit for your 1987-1995 Jeep Wrangler YJ. This kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

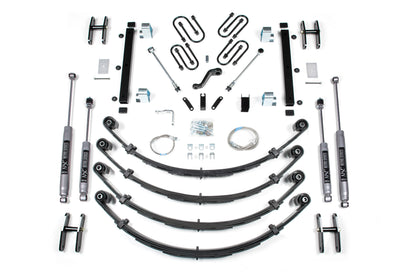

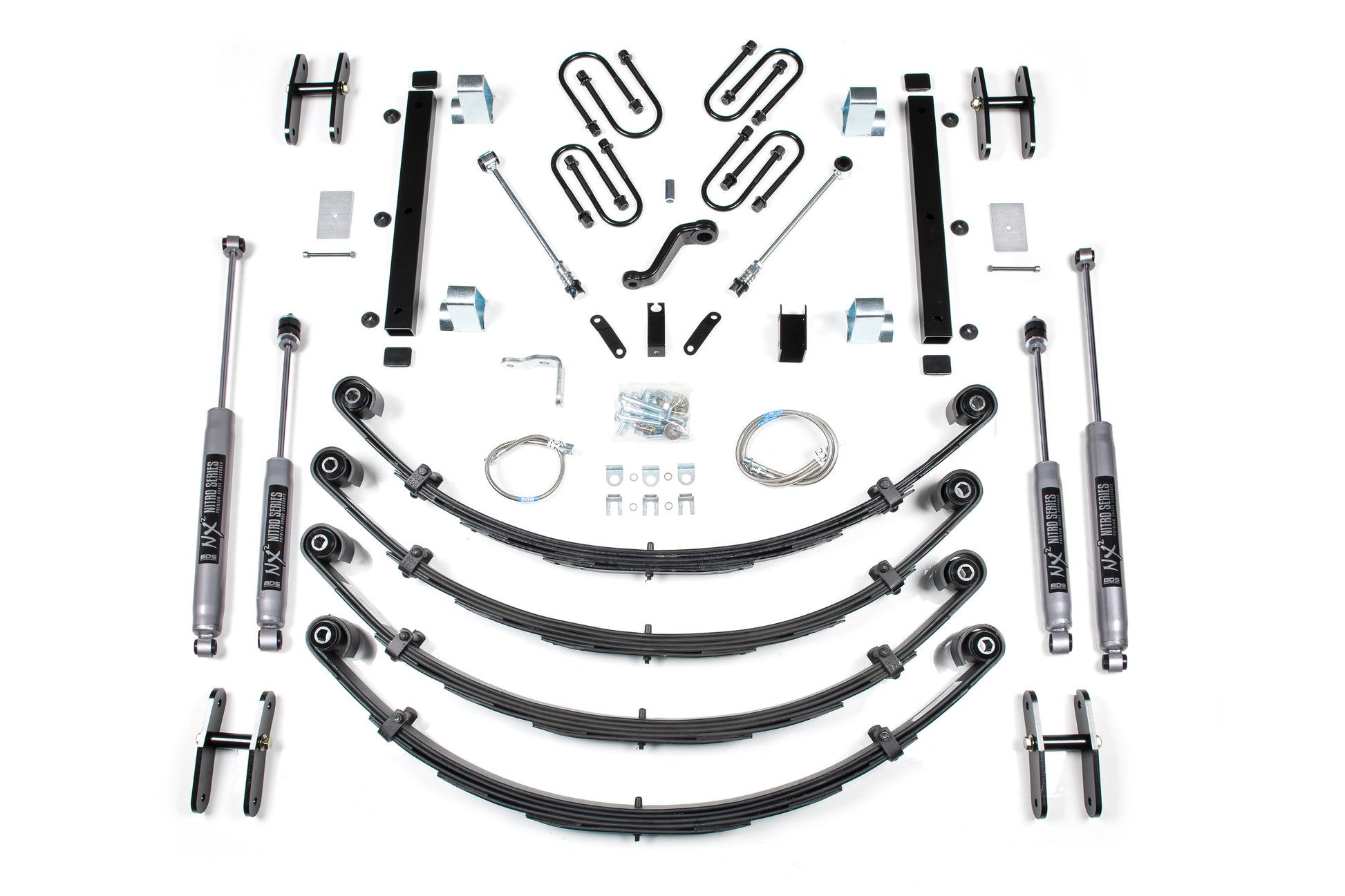

This 4.5-inch lift kit includes front and rear Glide-Ride leaf springs with new u-bolts, front and rear track bar relocation brackets to center the axle, stainless steel braided brake lines, sway bar disconnects, power steering pitman arm, bump stop extensions, a transfer case drop kit to ease the drive line angles and 1 inch xtended shackles to let your springs really flex. Round out this kit with specially tuned NX2 nitro series gas shocks to offer improved damper performance.
Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design.
These spring feature tapered leafs, anti-friction pads, bolt style leaf alignment clamps and a full military wrap to protect your spring eyes from the rocks. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.
Front Lift Method: Leaf Spring
Rear Lift Method: Leaf Spring
Shocks Included: Yes
Front Lift Height: 4.5 inch
Rear Lift Height: 4.5 inch
May require driveshaft lengthening if equipped with 13 inch( u-joint to u-joint) driveshaft.
May require larger diameter driveshaft if equipped with a 41-1/2 inch front driveshaft.
If you have a heavy Jeep (ie. Hard top with full size spare) you will want to run the front springs on both the front and rear. This selection can be made in the customize section before checking out.
A slip yoke eliminator and dual cardan style rear driveshaft may be required to eliminate drive line vibration.
Pitman arms will NOT fit Yj models equiped with manual steering.
Glideride leaf springs to provide full lift height and increased capacity
Front and rear track bar relocation brackets to center the axle
Transfer case drop kit to ease the drive line angles
Standard NX2 Nitro shocks with vehicle-specific valving for better control
Easy, 100 percent Bolt-on installation
Rear Lift Option
Select the appropriate rear springs based on the weight of your vehicle and hard top vs. soft top.
Heavy Duty Leaf Springs - Use these springs if you plan to run additional weight beyond the stock spare and a soft top. A must for hard top applications and will still ride great when you take your hard top off.
Kit Components:
Includes four BDS004351, 87-95 Jeep YJ 3.5in Front Spring, UPC Code 658848611515
Includes one BDS014461, 87-95 Jeep YJ 4.5in Box Kit, UPC Code 658848614202
Includes two BDS85950, Shock- 22.95 x 14.65 x 2 - EB1/EB1, UPC Code 711745610033
Includes two BDS85955, Shock- 28.15 x 16.45 x 2 - S1/EB1, UPC Code 711745610088
Includes one JKS9400, Quick Disconnect, UPC Code 814897010116
