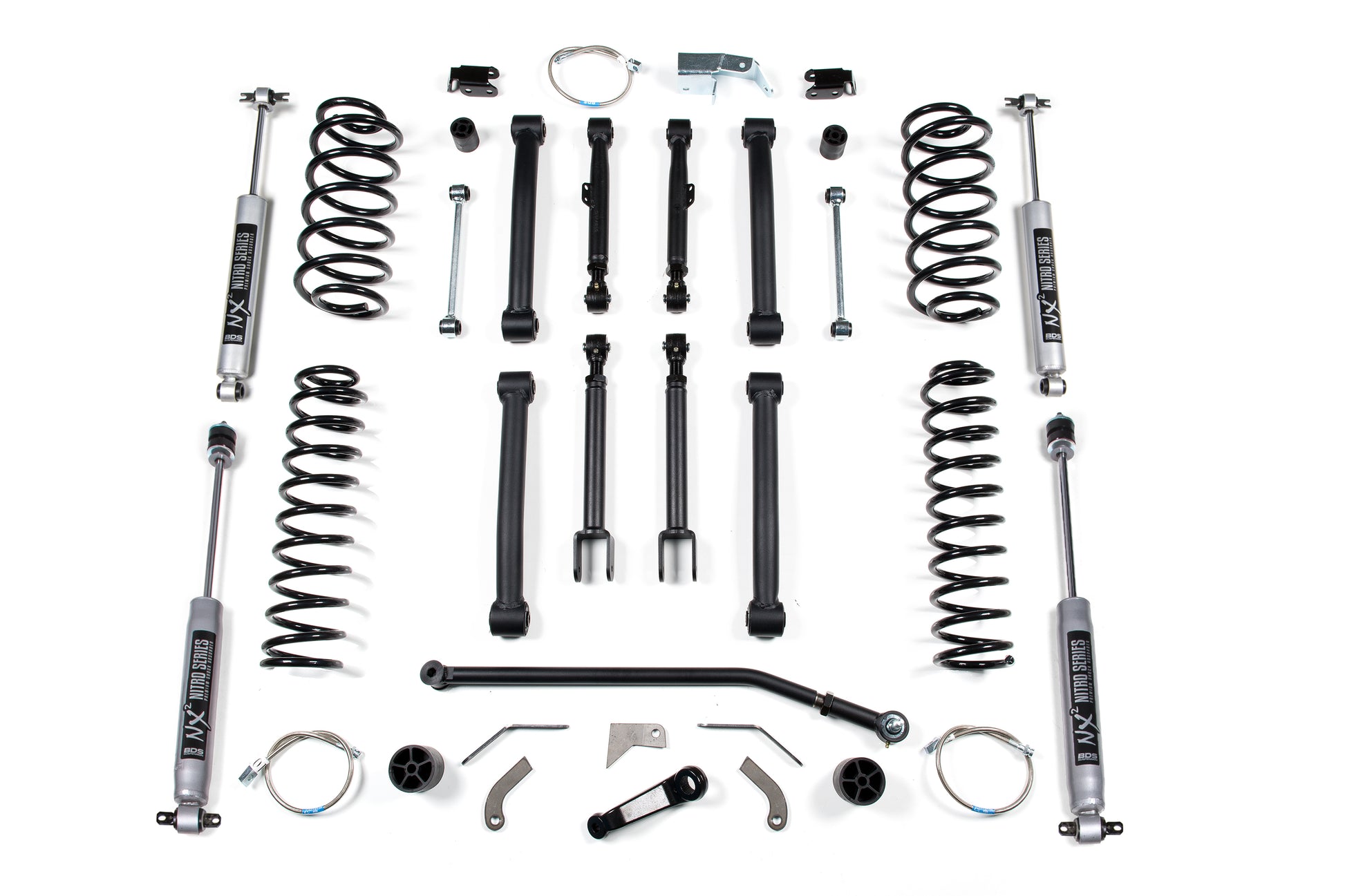

BDS steps up the performance and capability of the 1997-2006 Jeep Wrangler TJ with a 4.5-inch suspension lift kit. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.
The lift kit includes front BDS Pro-Ride Coil Springs, a heavy duty adjustable front track bar that is utilized to recenter the front axle, bump stop extensions, stainless braided brake lines, sway bar quick disconnects to unlock the front suspension's potential to flex while maintaining quiet on road operation, and heavy duty front upper adjustable and fixed length lower control arms.
The rear kit utilizes Glide-Ride coil springs for maximum travel, stainless braided brake line, rear track bar relocation bracket, BDS ultimate sway bar disconnects for the most possible articulation, and heavy duty front upper adjustable and fixed length lower control arms. Finish of the kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.
Pro-Ride Coil Springs
A pair of full-length, Jeep-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter.
This results in maximum reliability without premature coil bind.
Front Lift Method: Coil Spring
Rear Lift Method: Coil Springs
Shocks Included: Yes
Front Lift Height: 4.5 inch
Rear Lift Height: 4.5 inch
A slip yoke eliminator and a CV style rear driveshaft are required for this kit.
Some welding required.
Rubicon models may require OEM skid plate modification.
ProRide coil springs offer improved ride quality and more articulation
Sway bar quicker disconnects and extended rear link for improved offroad flex
New control arms to properly control the front and rear axle positions
Rear track bar bracket repositions rear axle under vehicle
Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
Allows clearance for 33 inch Tires
Shock Option NX2 Nitro Series
Nitrogen-charged
Twin-tube design
10-stage velocity-sensitive valving
Dual-welded ends for increased strength
1-3/8-inch high-flow piston
Self-lubricating seals
Silver powder coat finish
Kit Components:
Includes one BDS014457, 1997-2006 Jeep TJ 4.5in Box Kit, UPC Code 658848614196
Includes one BDS034451, 1997-2004 Jeep Wrangler (TJ) 4.5in Front Coil, UPC Code 658848616909
Includes one BDS034459, 1997-2004 Jeep Wrangler (TJ) 4.5in Rear Coil, UPC Code 658848616930
Includes two BDS124327, TJ/XJ Fixed LCA Kit w/rubber bushings, UPC Code 711745605084
Includes one BDS124349, TJ Adj. Rear UCA Kit, UPC Code 711745607484
Includes two BDS85967, Shock- 26.15 x 15.55 x 2-3/8 - S1/BP7, UPC Code 711745610163
Includes two BDS85976, Shock- 23.10 x 14.25 x 2-3/8 - BP18/EB1, UPC Code 711745610248
