4.5 Inch Lift Kit Jeep Grand Cherokee ZJ 93-98 BDS Suspension

BDS steps up the performance and capability of the 1993-1998 Jeep Grand Cherokee ZJ with a 4.5-inch suspension lift kit. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 31 inchTires.

The lift kit includes front BDS Pro-Ride Coil Springs, a heavy duty adjustable front track bar that is utilized to recenter the front axle, bump stop extensions, stainless braided brake lines, sway bar quick disconnects to unlock the front suspension's potential to flex while maintaining quiet on road operation, and heavy duty front upper adjustable and fixed length lower control arms.

The rear kit utilizes Glide-Ride coil springs for maximum travel, stainless braided brake line, rear track bar relocation bracket, extended sway bar links, and heavy duty front upper adjustable and fixed length lower control arms.

Finish of the kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs

A pair of full-length, Jeep-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 4.5 inch
• Rear Lift Height: 4 inch

1. If your vehicle is equipped with a CV style drive shaft mount at the front pinion, then it will need to be replaced with a Spicer style u-joint drive shaft in order to eliminate vibration. See www.4xshaft.com
2. If you desire not to drop the transfer case, a slip yoke eliminator and dual cardan style driveshaft will be required.

• ProRide coil springs offer improved ride quality and more articulation
• Sway bar quicker disconnects and extended rear link for improved offroad flex
• New control arms to properly control the front and rear axle positions
• Rear track bar bracket repositions rear axle under vehicle
• Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
• Allows clearance for 32 inch Tires

Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

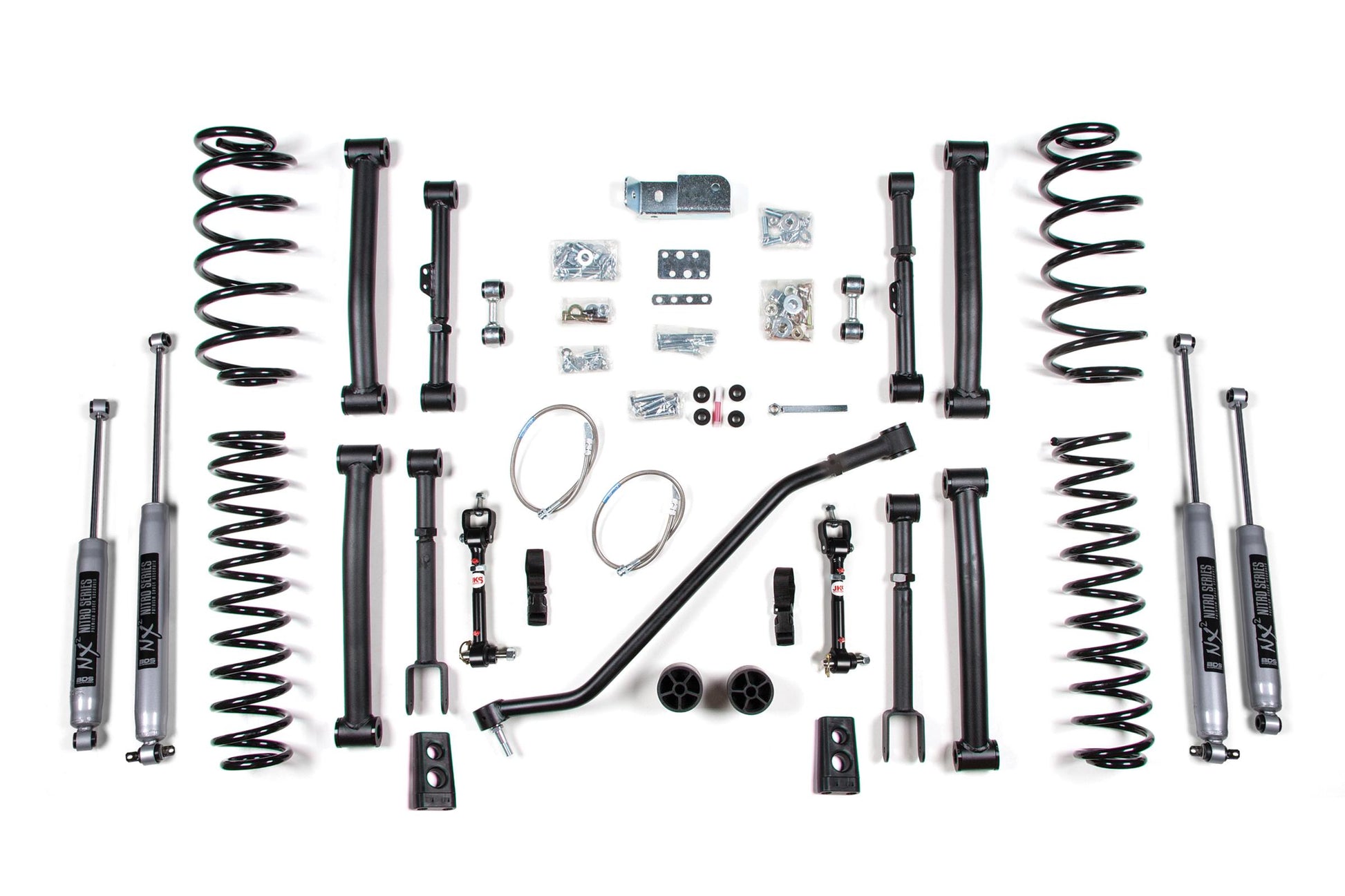

Kit Components:

• Includes one BDS014462, 93-98 Jeep ZJ 4.5 inch Box Kit, UPC Code 658848614219
• Includes one BDS034409, Jeep ZJ 4.5in Rear Coil Kit, UPC Code 658848616848
• Includes one BDS034453, Jeep ZJ 4.5in Front Coil, UPC Code 658848616923
• Includes one BDS124026, Jeep ZJ Transfer Case Drop 3/4 inch, UPC Code 711745604629
• Includes two BDS85920, Shock - 25.95 x 15.40 x 2 - EB1/EB1, UPC Code 711745609983
• Includes two BDS85965, Shock- 24.90 x 14.80 x 2-3/8 - S1/BP7, UPC Code 711745610149
• Includes one JKS2001, Quicker Disconnect, UPC Code 814897010017
