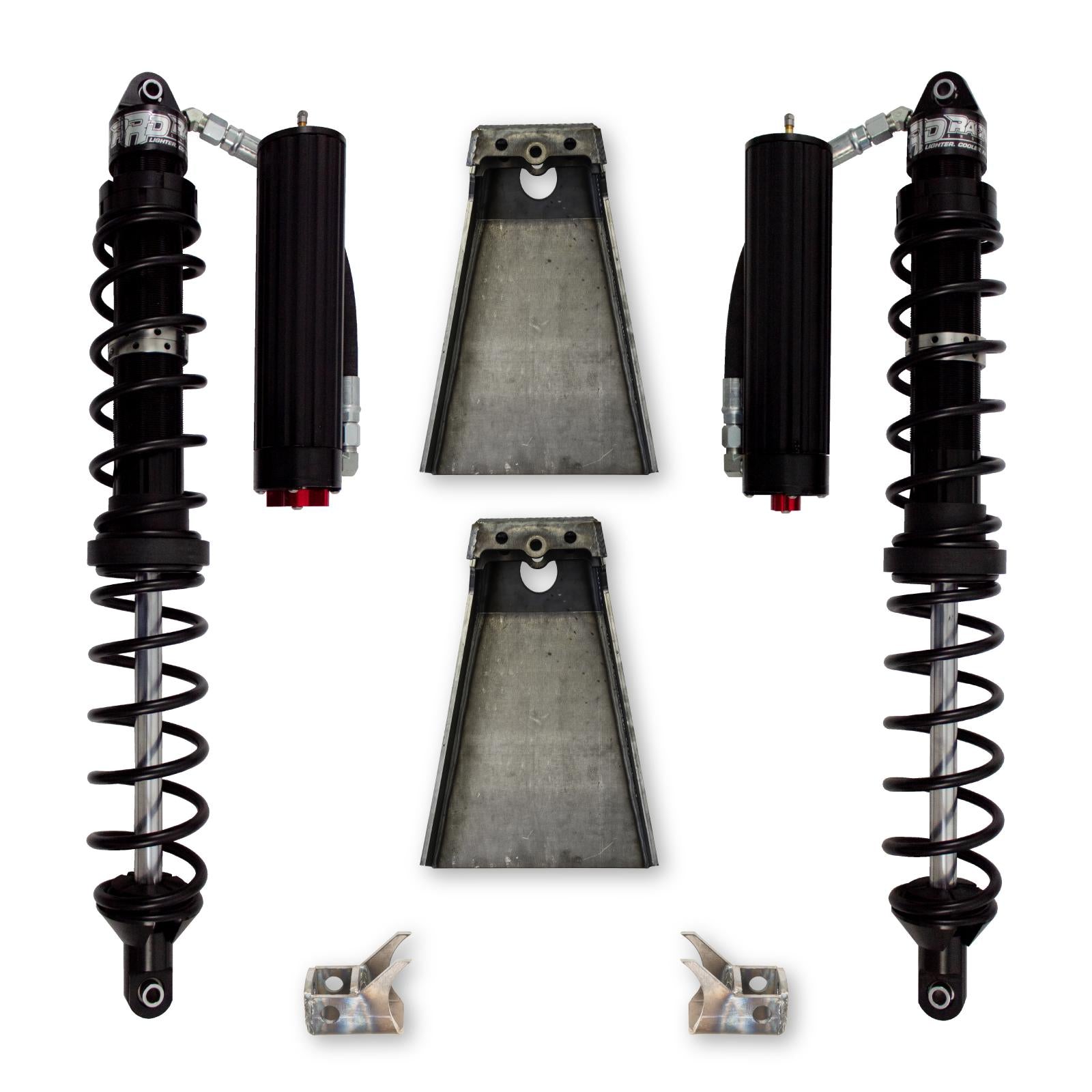

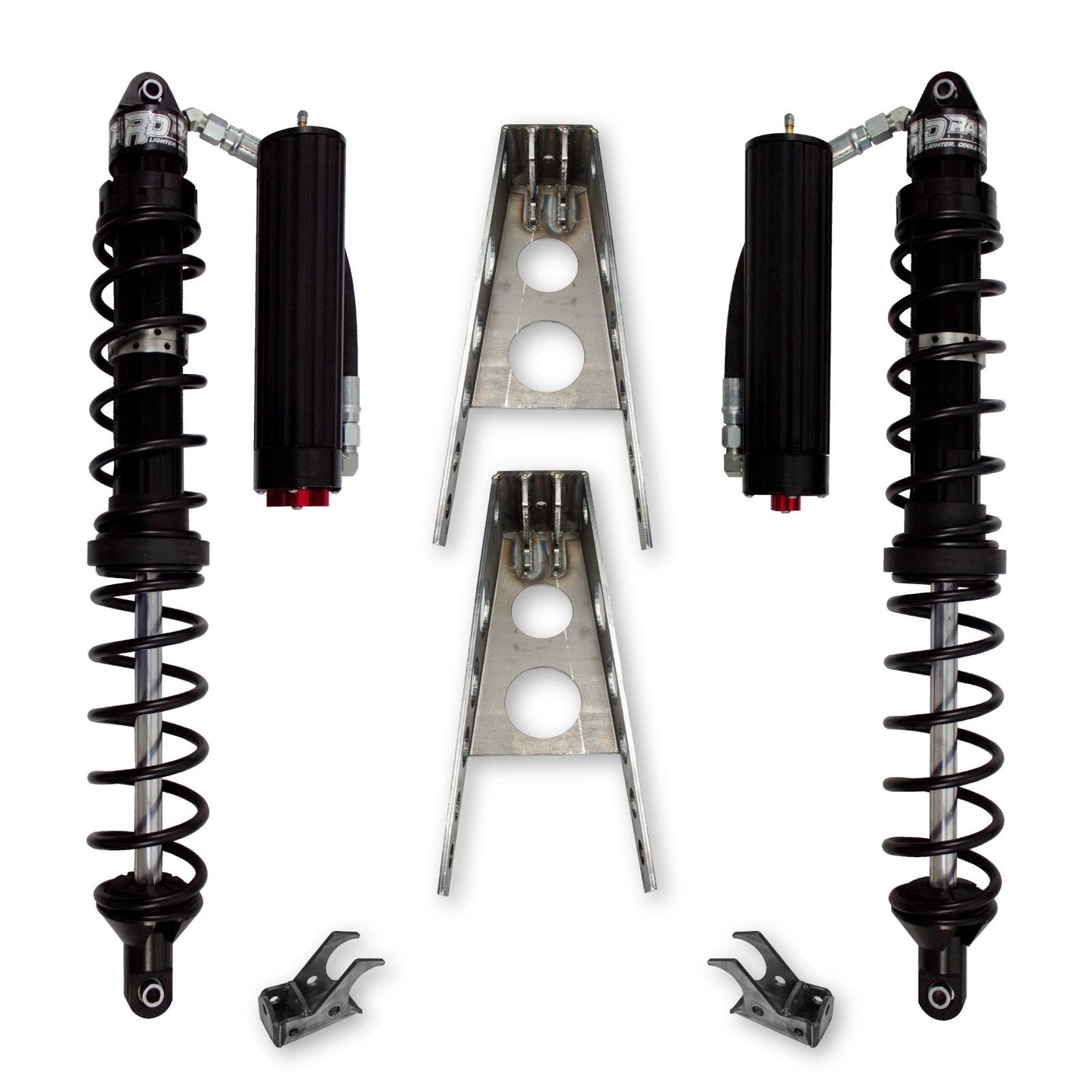

4.5 Inch FCD Coilover Upgrade For Jeep Wrangler TJ/LJ Requires 65 Inch WMS or Greater Front Axles Rock Krawler

System Includes:

• (2) 2.625 RRD Front Coilover Shocks
• (2) Bolt-on Front Frame Side Coilover Mounts

Shock Details:

• RR 2.625 RRD Coilovers
• FCD 2.625 RRD Coilovers
• 3.5 Lift Height = 13 of Shock Travel
• 4.5 Lift Height = 13-14 of Shock Travel

General Notes:

• Requires removal of OEM front frame side shock brackets
• Requires removal of OEM front axle side shock brackets
• Requires welding of the Rock Krawler coilover mounts at the axle
• Recommend installation of limiting straps to avoid over extension of suspension components
• Upgrade Requires a Minimum of 65.5 inch WMS with 3.5 inch Backspaced Wheels
• Shock Travel and Fitment Based on Having a Body Lift Similar to our X2 Flat Belly Systems or High Line Fenders.
• Other Applications, Please Call In for Custom Coilover Lengths
