4.5 Inch Coil Spring Lift Kit 2019-2024 Ram 2500 Diesel 4WD ReadyLIFT

The all-new 4.5-Inch Coil Spring Lift Kits allow for even more ground clearance while going to a 37-Inch tire. Springing up to the new 4.5-Inch lift yields all the bells and whistles of a big 6-Inch kit but at a slightly lower, garage-able stance.

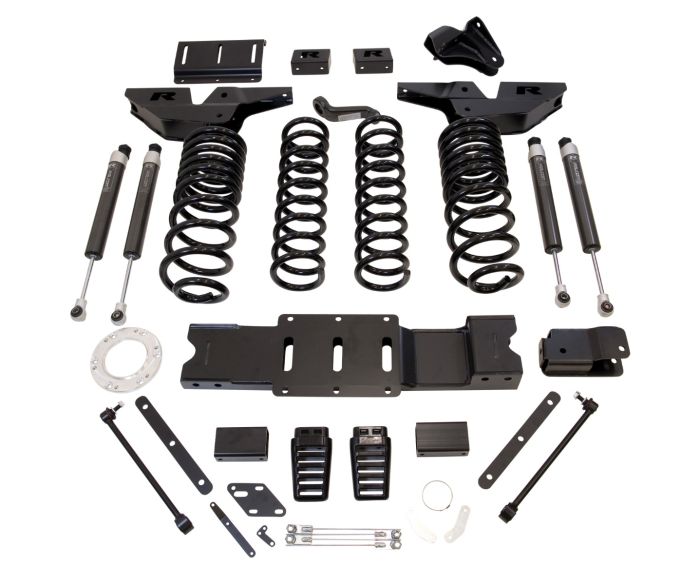

These kits come with heavy-duty steel radius arm drop brackets, heavy-duty fabricated steel front, and rear (2500 only) track bar brackets, forged dropped pitman arm, sway bar relocation brackets, and bump stop extensions preventing over-compression of the included Falcon 1.1 Monotube front and rear shocks. Both 4.5-Inch Ram HD kits include our unique CNC-machined 6061-T6 billet Aluminum Driveline Indexing System (DIS) that re-clocks the transfer case to properly align the front output shaft for improved driveline angles.

The Ram 2500 HD comes with the standard output diesel engine DIS system. Kit 49-19420 includes everything in our popular 6 lift kit as well as these new DIS re-positioning components.

Heavy duty and great riding 4.5-Inch lift front springs, 3-Inch lift rear coil spring spacers, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front, and rear track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets and bump stop extensions preventing over-compression of the new Falcon 1.1 Monotube shocks front/rear shocks are all included in this premium kit. For use on diesel 2500 trucks only.

Features and Benefits:

• All-new 2019-2023 Ram 2500 4WD HD 4.5-Inch lift kit
• 4.5inch front/3inch rear spring lift kit
• Includes all-new transfer case clocking ring and new heavy-duty transmission cross-member
• Includes 4 Falcon 1.1 Monotube shocks tuned specifically for the Ram 2500 HD
• For use on Diesel engine Ram 2500 4WD HD trucks only
• Allows for up to 37x13.50 tires on 20-Inch x 9-Inch wide wheels with 18 offset
• Does not work with Factory Air suspension or Auto Level system (factory helper bags)
• Single Cab configuration has not been validated
• 4.54.5inch front/3inch rear spring lift kit

Details:

• Fitment: Direct Fitment
• Front Lift Component: Coil Spring
• Front Lift Height: 4.5 Inch
• Front Shocks: Falcon 1.1 Monotube
• Front or Rear: Front and Rear
• Fuel Type: Diesel
• Install Difficulty: Difficult Requires Professional Installation
• Installation Time: 5+ Hours
• Lift Height: 4.5 Inch
• Max Tire Size: 37 Inch
• Rear Lift Component: Coil Spring Spacer
• Rear Lift Height: 3.0 Inch
• Rear Shocks: Falcon 1.1 Monotube
• Shocks Included: Yes
