Rock Krawler 4.0 Adventure Suspension System - 2017-2022 - F250/F350 (GAS)
The RK Suspension 4.0 Adventure Suspension System at its core is designed with a focus on enhancing both the comfort and capability of your Super Duty. Whether you're commuting on the street, towing, chasing your favorite race truck or tacking tough trails this system aims to provide a better overall driving experience.
RK Suspension Super Duty systems are designed, tested and tuned in house for optimum performance. This starts with our true multi rate coil springs and ends with all the proper geometry corrections for driving and handling both on and off road.
Our strength and durability of our components are second to none, just what your Super Duty needs! Street, Tow, Trail, RK Suspension 4.0 Adventure System has you and your Super Duty covered!
System Benefits:
Unparalleled On Highway Ride and Handling Improved Off Road Ability
Sport Tuned Multi-rate Front Coils
Allows for 38 Tires Complete Bolt In System Easily Upgradable to X-Factor or X-Factor Pro Elite Systems
Lifetime Warranty Coverage

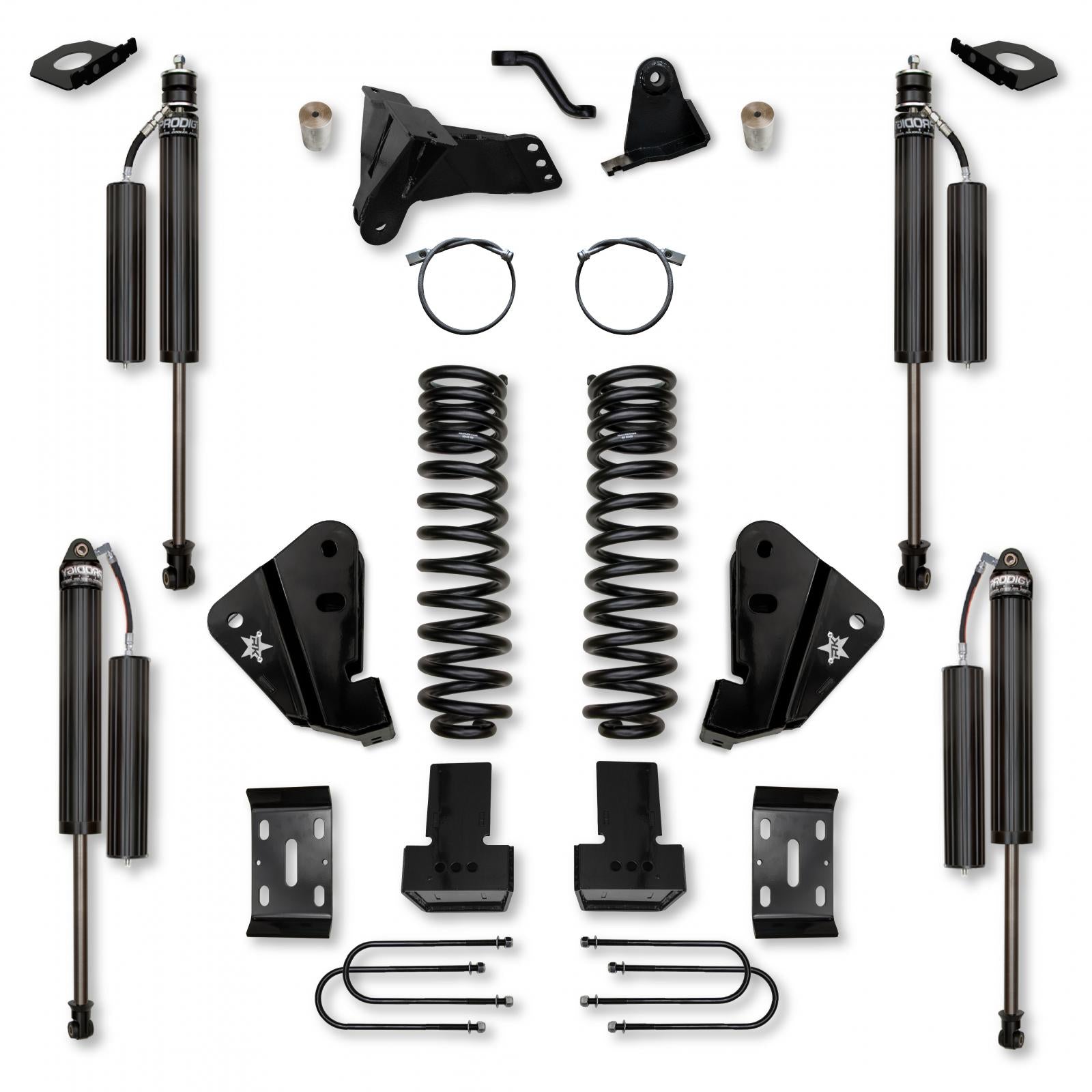

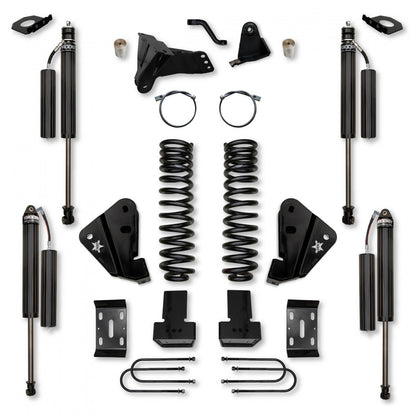

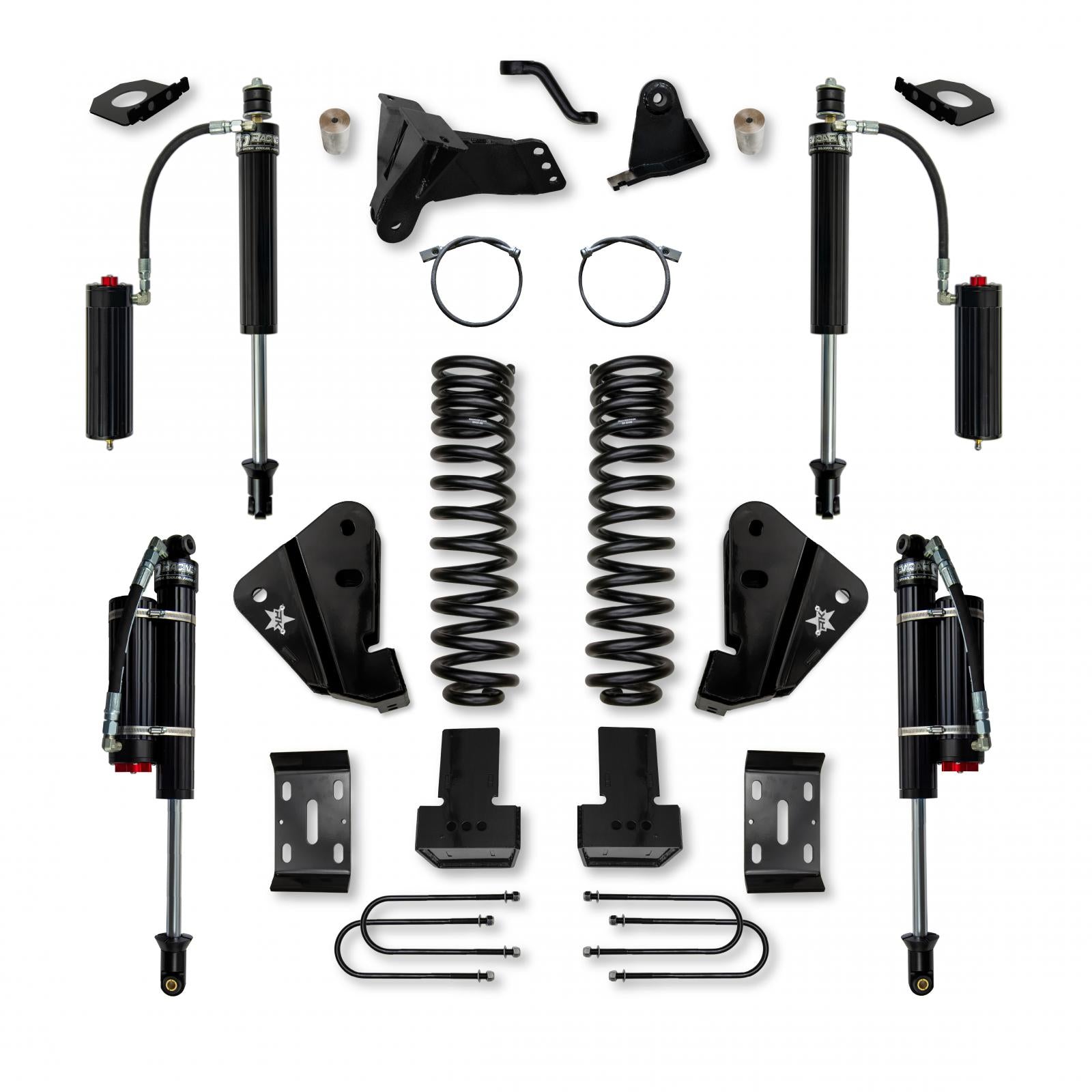

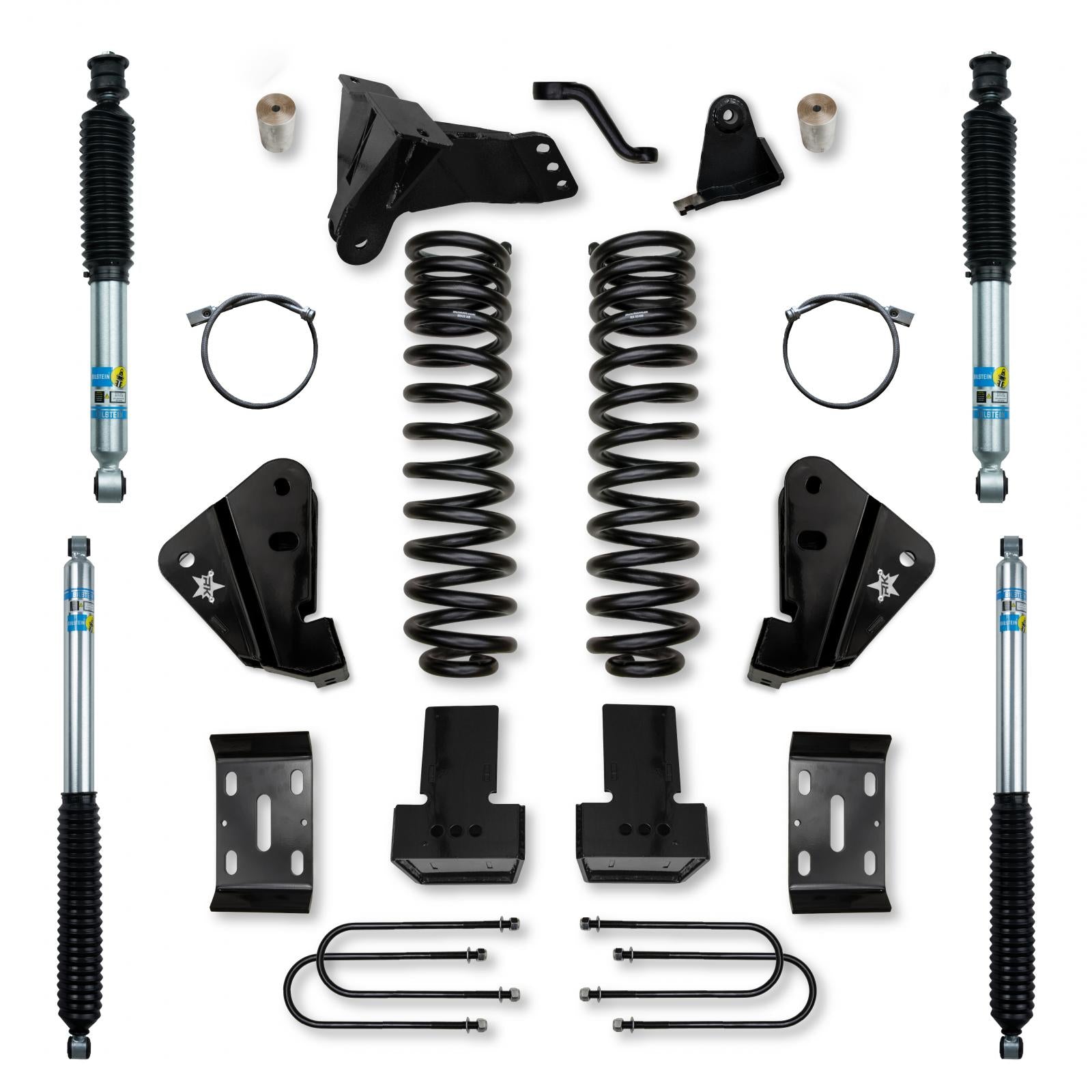

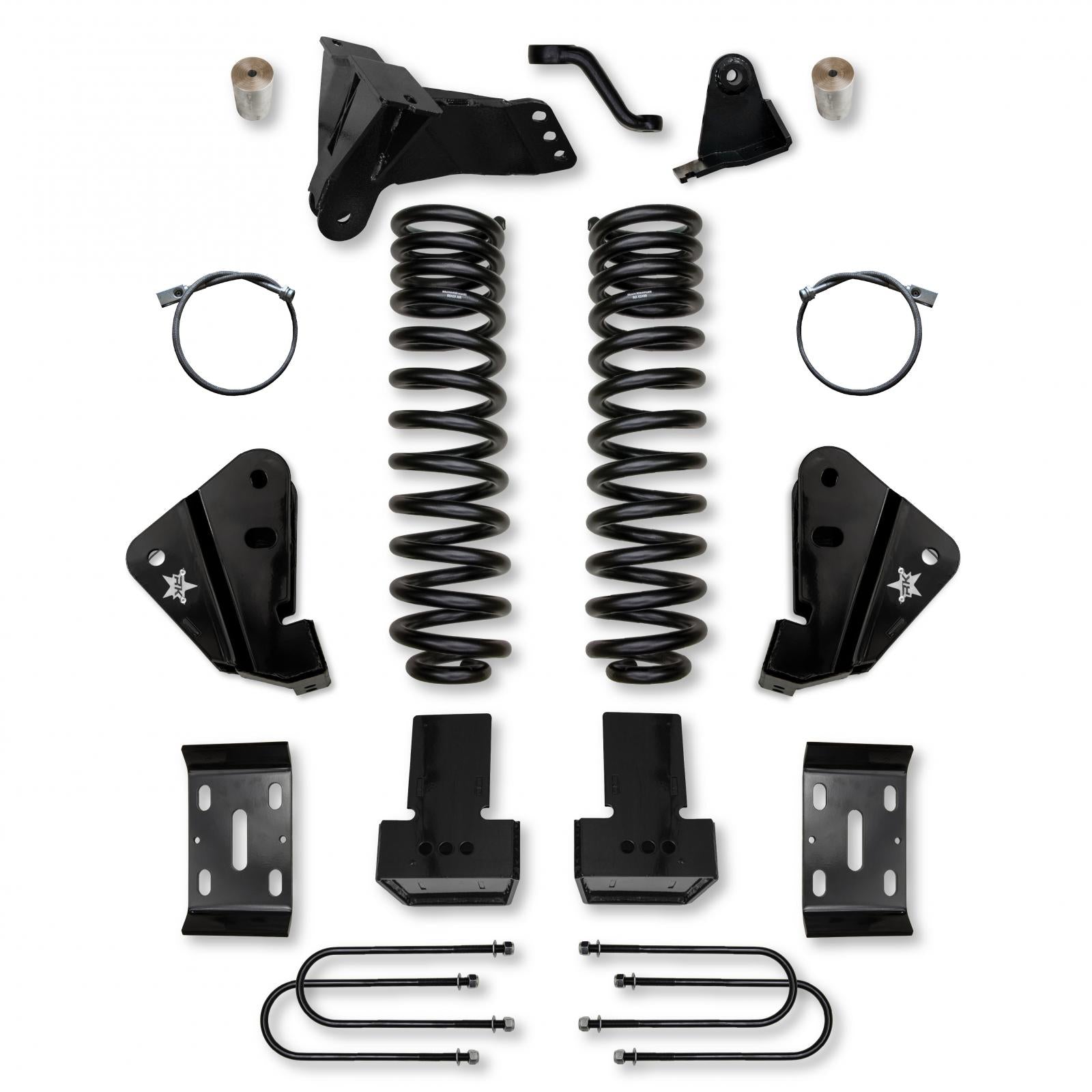

System Includes:
(2) Sport Tuned Multi-rate Front Coils
(1) Pair of Radius Arm Drop Brackets Made From 1/4 inch Thick Laser Cut Steel
(1) Track Bar Relocation Bracket Made From 1/4 inch Thick Laser Cut Steel
(1) Forged Drop Pitman Arm
(1) Steering Stabilizer Relocation Bracket
(2) Rear Fabricated Lift Blocks Made From 1/4 inch Thick Laser Cut Steel
(2) Front Shock Absorbers Of Your Choice. Bilstein 5100's, 2.625 RRD Racing Remote Reservoir Shocks or 2.625 RRD Racing Shocks with Fast CD Adjusters and 3.25 Reservoirs or Choose Your Own!
(2) Rear Shock Absorbers Of Your Choice. Bilstein 5100's, 2.625 RRD Racing Remote Reservoir Shocks or 2.625 RRD Racing Shocks with Fast CD Adjusters and 3.25 Reservoirs or Choose Your Own!
(2) Adjustable U-bolt Top Plate to Allow Proper Centering of the Rear Axle
(4) U Bolts, Misc. Hardware and Instructions (Off the Website)
General Notes:
Stance Based off Crew Cab Short Beds.
Other Cab and Bed Configuration Stances Will Vary Slightly
