Tuff Country's Uni-Ball lift kit for the Ford F150 will allow for use of up to 35 inch x 11.5 inch tires (with minor trimming) while keeping a factory ride. This performance version of their 3 inch lift kit uses upper control arms w/uni-ball joints for greater suspension travel, extreme durabilty and elimination of binding that regular ball joints can cause.
The rear end is lifted using 3 inch cast iron lift blocks and extended u-bolts (1 inch factory blocks are replaced). No drilling is required and the factory shocks and struts do not need to be replaced. Details:

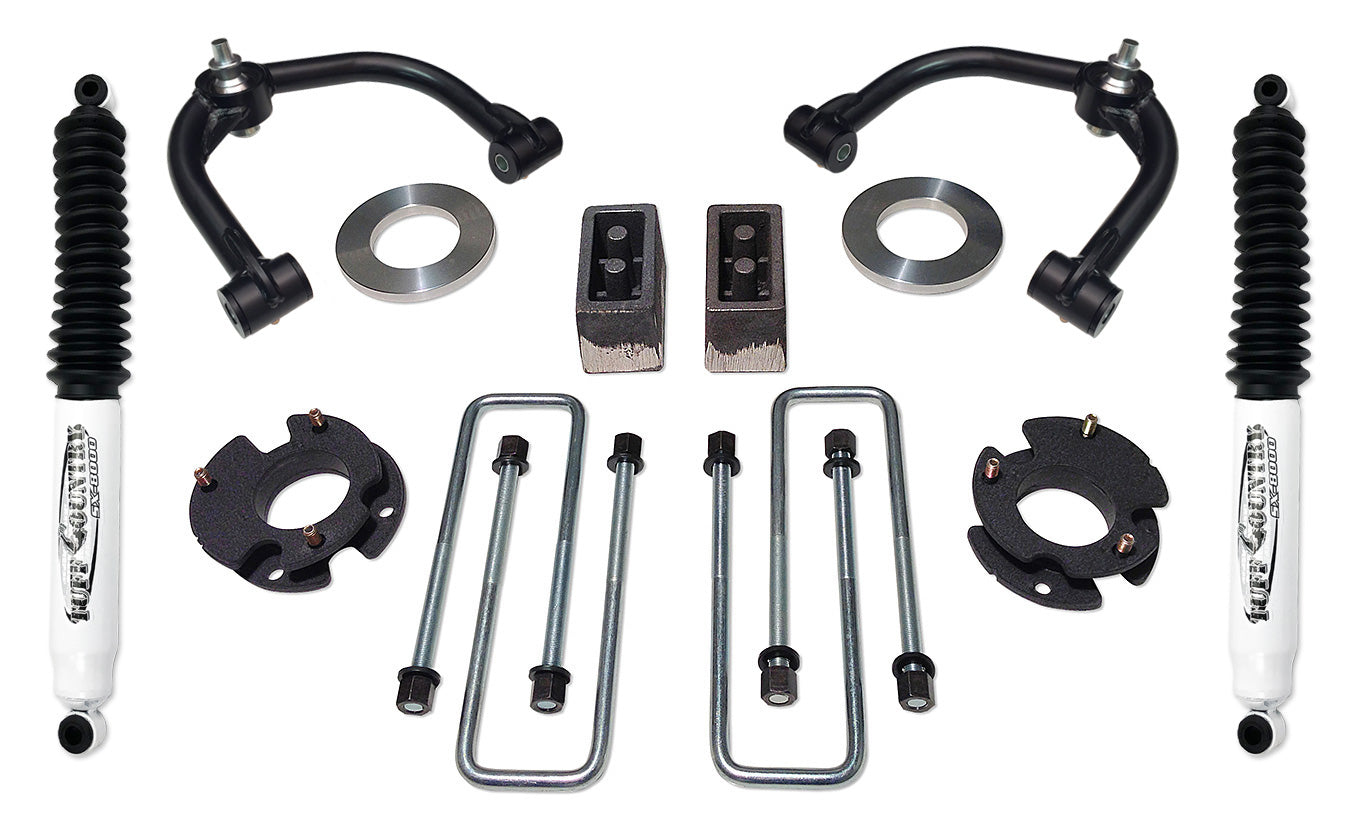

3 Inch Uni-Ball Lift Kit w/ SX8000 Shocks
Allows use of 33 x 12.5 inch tires (with no trimming required) or 35 x 11.5 inch tires (with minor trimming of front bumper plastic valance)
Upper control arms w/uni-ball joints for added suspension travel and durability
High quality teflon-lined FK uni-ball joints
30 to 35 Percent more articulation than standard ball joints
Eliminates binding caused by standard ball joints
No drilling, cutting or welding required, simple installation
Upper coil / strut spacers maintain a near factory ride
Factory front struts can be retained
Requires aftermarket wheels with 5 inch backspacing or less
Proudly Made in the USA
Limited Lifetime Warranty
Sold As A Kit
Fits:
2014 Ford F150 4WD/2WD
Installation Notes:
New extended rear shocks are not required to install this leveling kit properly, but recommended
Requires aftermarket wheels with 5 inch backspacing or less
Recommended Tire Size: 33 inch x 12.5 inch or 35 inch x 11.5 inch (with trimming)
Recommended Wheel Backspacing: 5 inches or less
Amount of Lift: 3 Inch Front / 2 Inch Rear

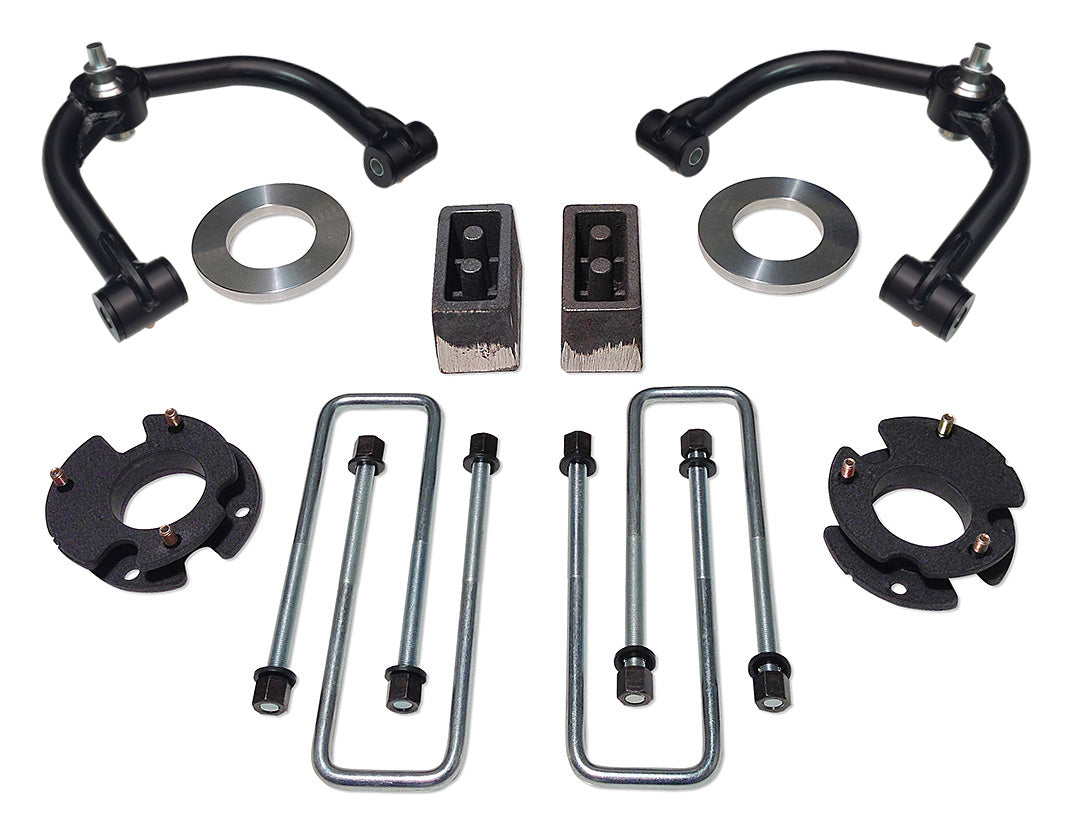

Includes: 2) Front upper coil spacers, 2) Uni-Ball Upper Control Arms, 2) Pre-load spacers, 2) 3 inch cast iron blocks, 4) Extended rear u-bolts, 2) Hardware bags, 4) SX8000 Shocks
