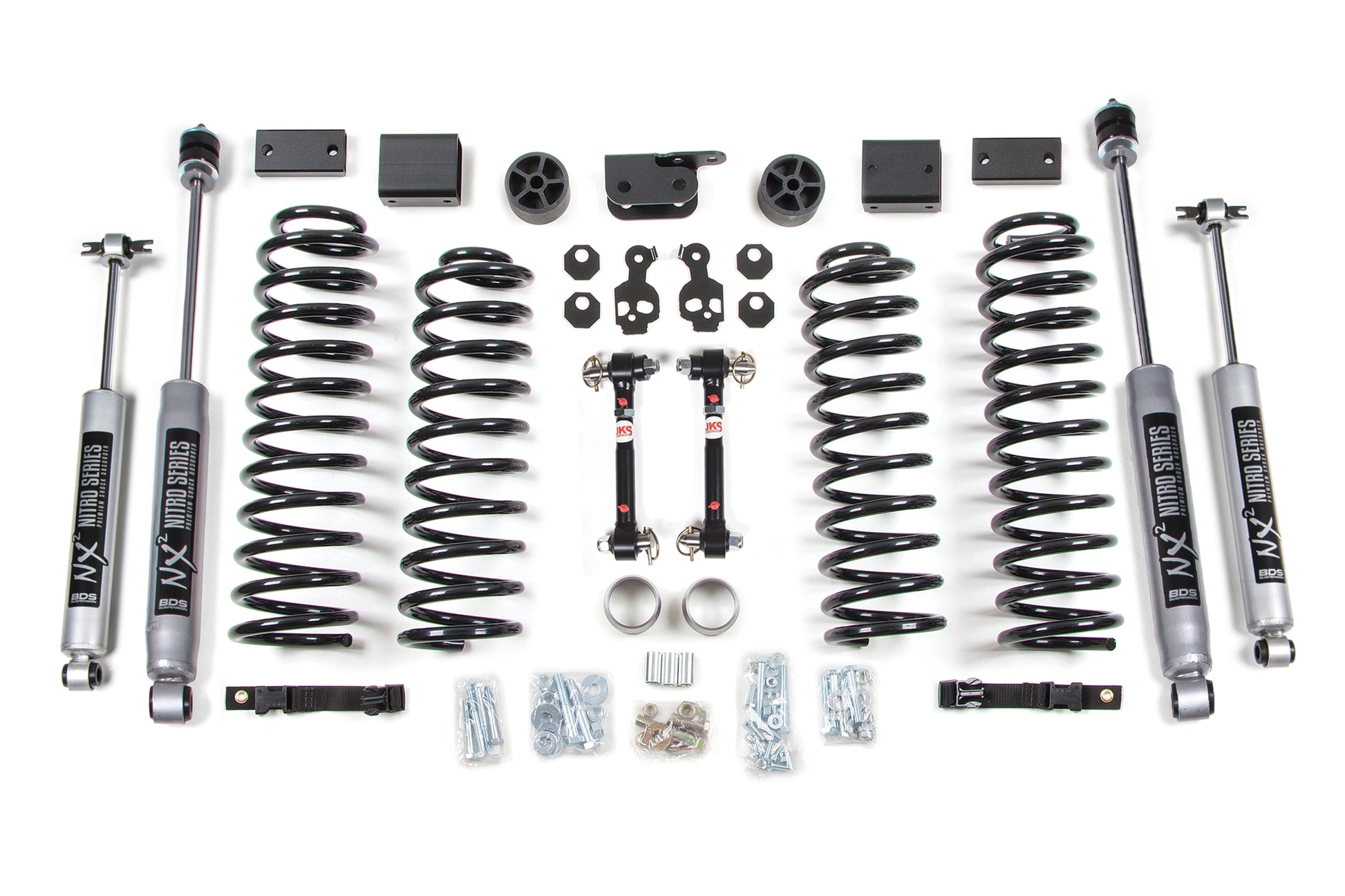

Upgrade the ride and style of your 2012-2018 Jeep Wrangler JK 4 Door with this 3-inch coil spring lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes 3 inch Pro-Ride coil springs capable of full coil bind and 2 inch bump stop extensions to control the compression travel, but increase wheel travel. Also included are brake line brackets, alignment cams to fine tune front caster angles, and sway bar links.
In the rear the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift. Round out this 3 inch lift kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter.
This results in maximum reliability without premature coil bind.
Front Lift Method: Coil Spring
Rear Lift Method: Coil Springs
Shocks Included: Yes
Front Lift Height: 3 inch
Rear Lift Height: 3 inch
Exhaust modification may be required.
This kit is FMVSS No.126 Compliant
This kit is right-hand drive compatible. Follow right-hand drive installation instructions when installing this kit on a right-hand drive vehicle.
If using these rear sway bar links, the sway bar drop will not need to be installed. This also requires a wheel with 4.5 inch backspacing or less for Tire clearance.
ProRide coil springs offer improved ride quality and more articulation
Sway bar quicker disconnects and extended rear link for improved offroad flex
Rear track bar bracket repositions rear axle under vehicle
Lower cam locks to correct caster for alignment
Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
Allows clearance for 35 inch Tires
Shock Option NX2 Nitro Series
Nitrogen-charged
Twin-tube design
10-stage velocity-sensitive valving
Dual-welded ends for increased strength
1-3/8-inch high-flow piston
Self-lubricating seals
Silver powder coat finish
Sway Bar Link Option Disconnects
Gain 30 percent more axle articulationl by disconnecting your front sway bar
