Rock Krawler 3.5 X- Factor Pro Elite Suspension System For Ram 3500 HD - 2013-Pres. (Diesel)
The Rock Krawler 3.5 inch X Factor Pro Elite System for the 3500 Ram HD is a perfectly tuned system for fitting 37 inch tall tires under your truck. To start with, the front lift is provided by true Multi-rate Coil Springs that offer an incredible ride, excellent handling and true off road performance.
The radius arms are replaced by an amazing 4 link conversion with front end geometry that smooths out highway ride, improves off road articulation, provides better axle control and removes all the negative characteristics of radius arm suspension. The PB+J (Pure Beef and Jealousy) 4 Link Arms are machined from Billet 2 inch x 3 inch 7075 Aluminum, are amazingly strong and sure do provide an awesome look.
The supplied adjustable front track bar is the strongest in the industry and used to properly recenter the front axle side to side. All front end geometry corrections are robust and perfect for your truck.
The rear of the truck is lifted with mini spring packs that turn your OEM rear leaf springs into true off-road performing leaf springs. The OEM payload is diminished by 10-15 percent based on vehicle configuration, but the smoothness of ride and off-road performance gains is significantly noticeable.
You can choose from the Bilstein 5100's or our RRD Racing Shocks or shocks of your own choosing to have a great riding, great performing truck both on and off road.
When we design a system, our goal is to provide you with the most comprehensive solution and the best geometry, install exceptional value, and be the foundation for every adventure whether it be on the Street, in tow or down a trail. Thank you for considering Rock Krawler Suspension. The art of suspension tuning.
System Benefits:
- Smooth on Highway Ride
- Improved Off-Road Ability
- Sport Tuned Multi-rate Front Coils Mini Pack Rear Lift 4 Link Front Conversion Complete Bolt In System Easily Fits 37 inch x 13.5 Tires
- Lifetime Warranty Coverage

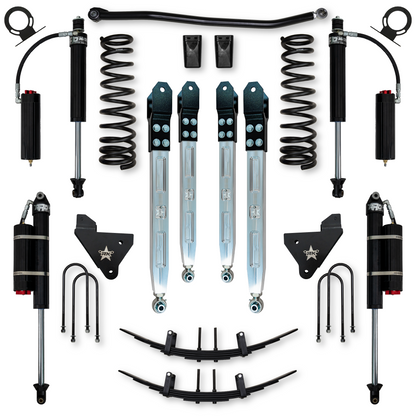

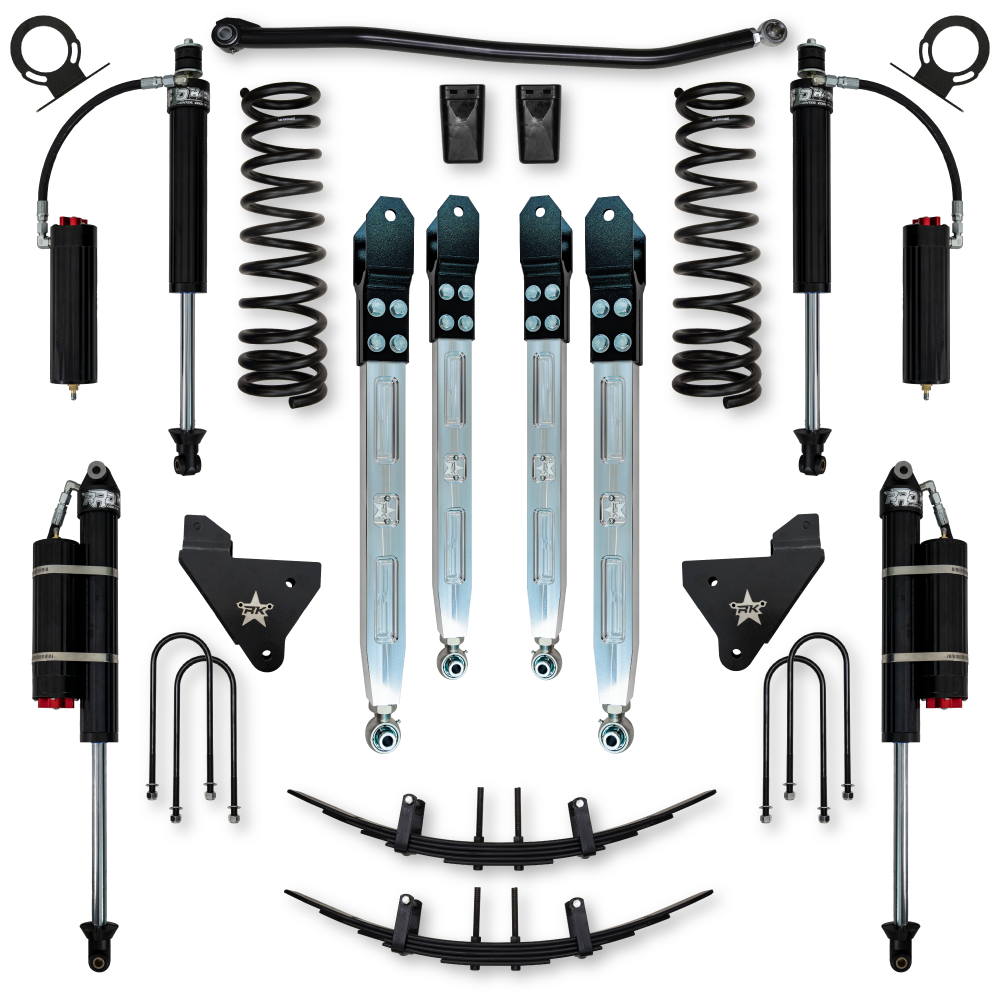

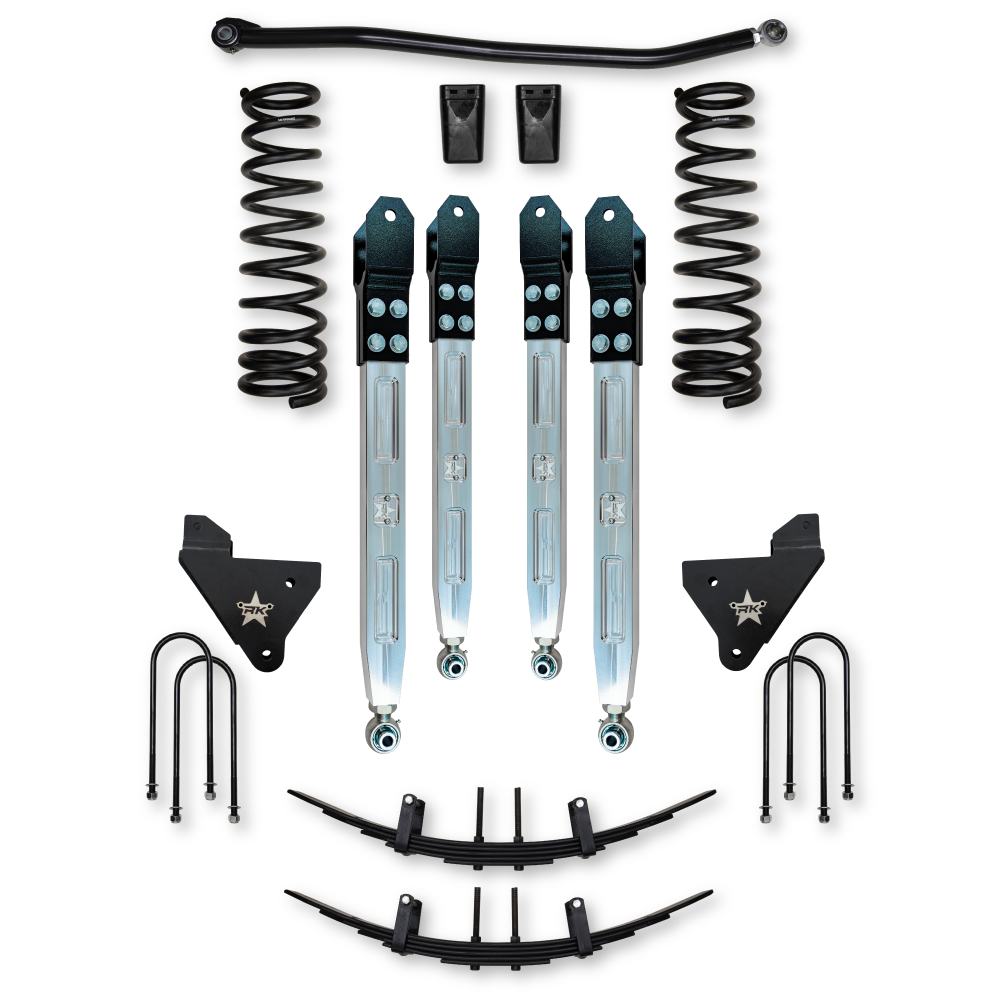

System Includes:
- (1) HD Adjustable Front Track Bar made from 1.5 inch O. D. Solid Chromoly Steel w/adjustable rebuildable anti-wobble Joint at the frame connection and a custom 1 inch shank FK rod end at the axle connection.
- (2) Sport Tuned Multi-rate Coils
- (4) Heavy Duty 4 Link Front Adjustable 4 Link Control Arms billet machined from 2 inch x 3 inch 7075 Al with Heavy Duty Forks Fabricated Forks
- (2) Fabricated 4 Link Brackets w/Skids made from 1/4 inch Thick Laser Cut Steel
- (2) Mini Spring Packs
- (4) U-Bolts
- (4) Shock Absorbers (If Configured)
Shock Information:
- Bilstein 5100 Shocks
- A great pairing with our multi-rate coil springs Maintenance Free RRD 2.625 Remote Reservoir Shocks
- More Info RRD 2.625 Fast CD Adjustable Shocks
- More Info
General Notes:
- The OEM payload capacity is slightly reduced by 10 percent to 15 percent depending on OEM leaf spring configuration.
- You can add air bags to return to the stock payload capacity or more.
- Since the PB+J 4 Link Arms are Billet Machined Raw Aluminum we recommend adding some sort of finish or clear coat to ensure they do not oxidize.
