Get your Chevy/GMC Silverado/Sierra 2500HD/3500/3500HD in the air with this affordable 3.5 inch suspension lift kit from Tuff Country EZ-Ride Suspension. Once installed this kit will allow you to fit up to 33 inch tall tires (35 inch with minor trimming). This performance version of their 3.5 inch lift kit uses upper control arms w/uni-ball joints for greater suspension travel, extreme durabilty and elimination of binding that regular ball joints can cause.
Also included in this suspension lift are re-indexed torsion bar keys, front shock extension kit, front differential drop kit along with cast iron blocks and extended u-bolts for the rear. New shock absorbers are not required. Details:
3.5 Inch Uni-Ball Lift Kit w/ SX8000 Shocks
Get Additional Tire Clearance to fit up to 35 inch tires (w/ minor trimming)
Upper control arms w/uni-ball joints for added suspension travel and durability
High quality teflon-lined FK uni-ball joints
30 to 35 percent more articulation than standard ball joints
Eliminates binding caused by standard ball joints
Heavy duty tubular upper control arms maintain factory geometry
Simple Bolt-on Installation
Cast iron lift blocks designed specifically for the GM 2500HD/3500/3500HD
Powder coated for lasting durability
Front shock extenders let you maintain your factory shocks
No cutting or welding required
Proudly Made in the USA - (many other brands are not)
Limited Lifetime Warranty
Sold As A Kit
Fits:
2011-Present Chevrolet Silverado 2500HD 4WD/2WD
2011-Present Chevrolet Silverado 3500/3500HD 4WD/2WD (Includes Dually)
2011-Present GMC Sierra 2500HD 4WD/2WD
2011-Present GMC Sierra 3500/3500HD 4WD/2WD (Includes Dually)
Installation Notes:
Factory shocks can be used with this suspension lift kit
The stock tires and wheels can be used in conjunction with this lift kit. If a wider tire is installed on the stock wheel, contact with the upper control arm will occur, and is not recommended
Rims with backspacing of 5.5 inches or less are required for installation of tires wider than stock width
Average Install Time: 8-10 Hours
Recommended Tire Size: 33 inch x 12.5 inch or 35 inch x 11.5 inch (with trimming)
Recommended Rim Backspacing: 5.5 inches or less
Amount of Lift: 3.5 Inch Front/1 Inch Rear

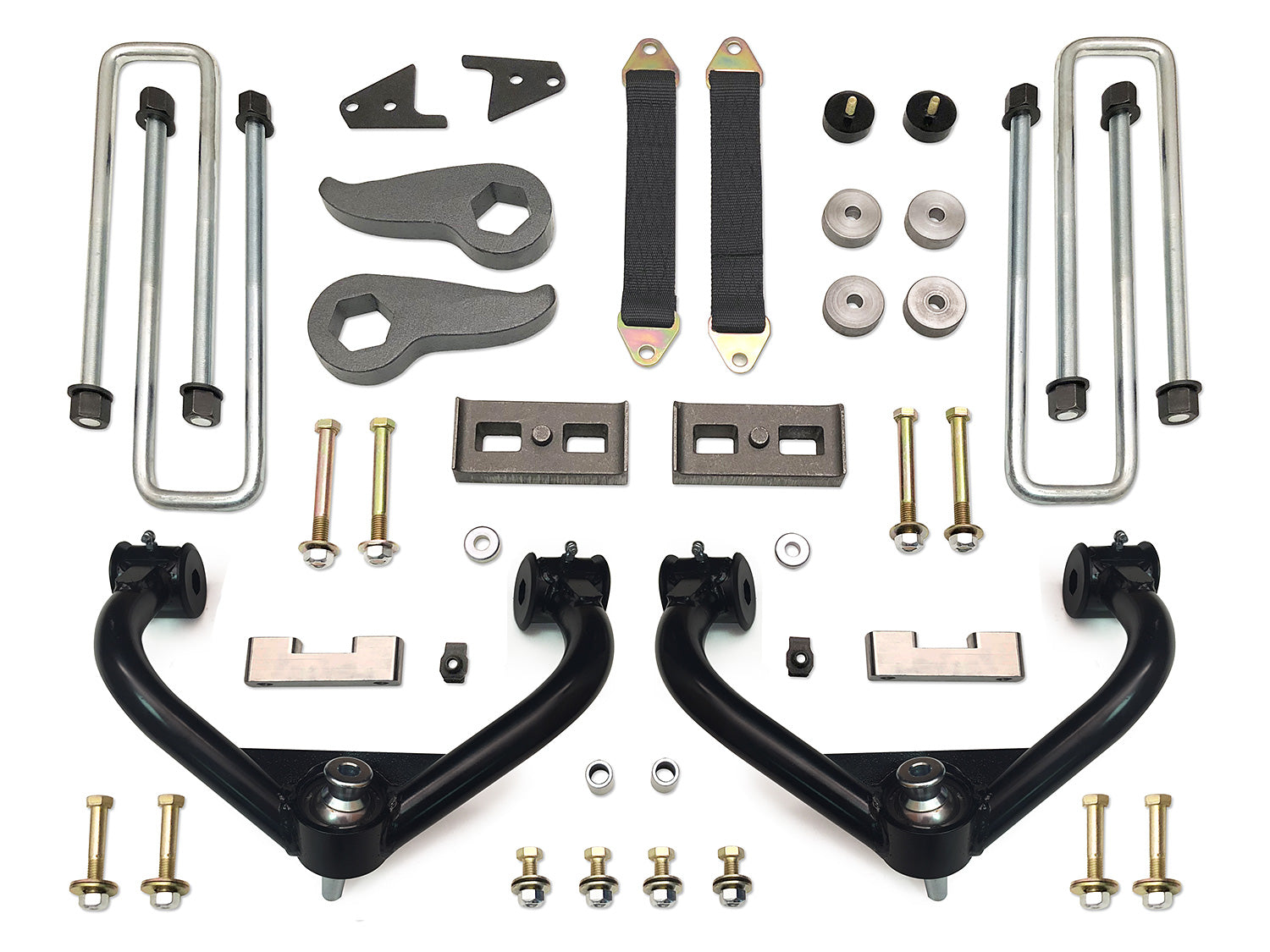

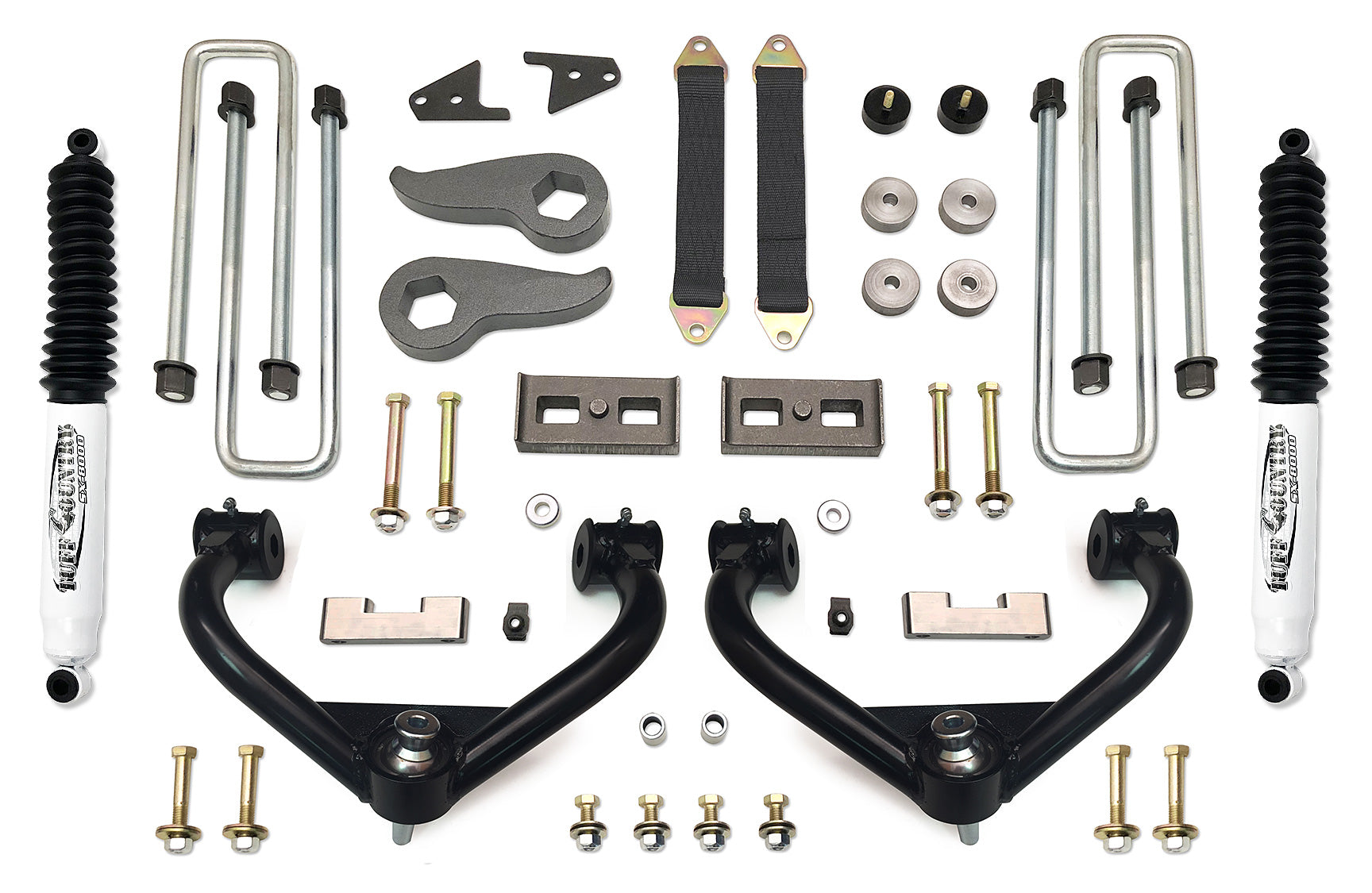

Includes: 2) Uni-Ball Upper control arms w/poly bushings, 2) Front Torsion Bar Keys, 2) Rear Cast Iron 1 inch Lift Blocks, 4) Extended Rear U-bolts, 2) Front shock extension brackets, 4) front differential drop spacers and hardware, Hardware bags, 4) SX8000 Shocks
