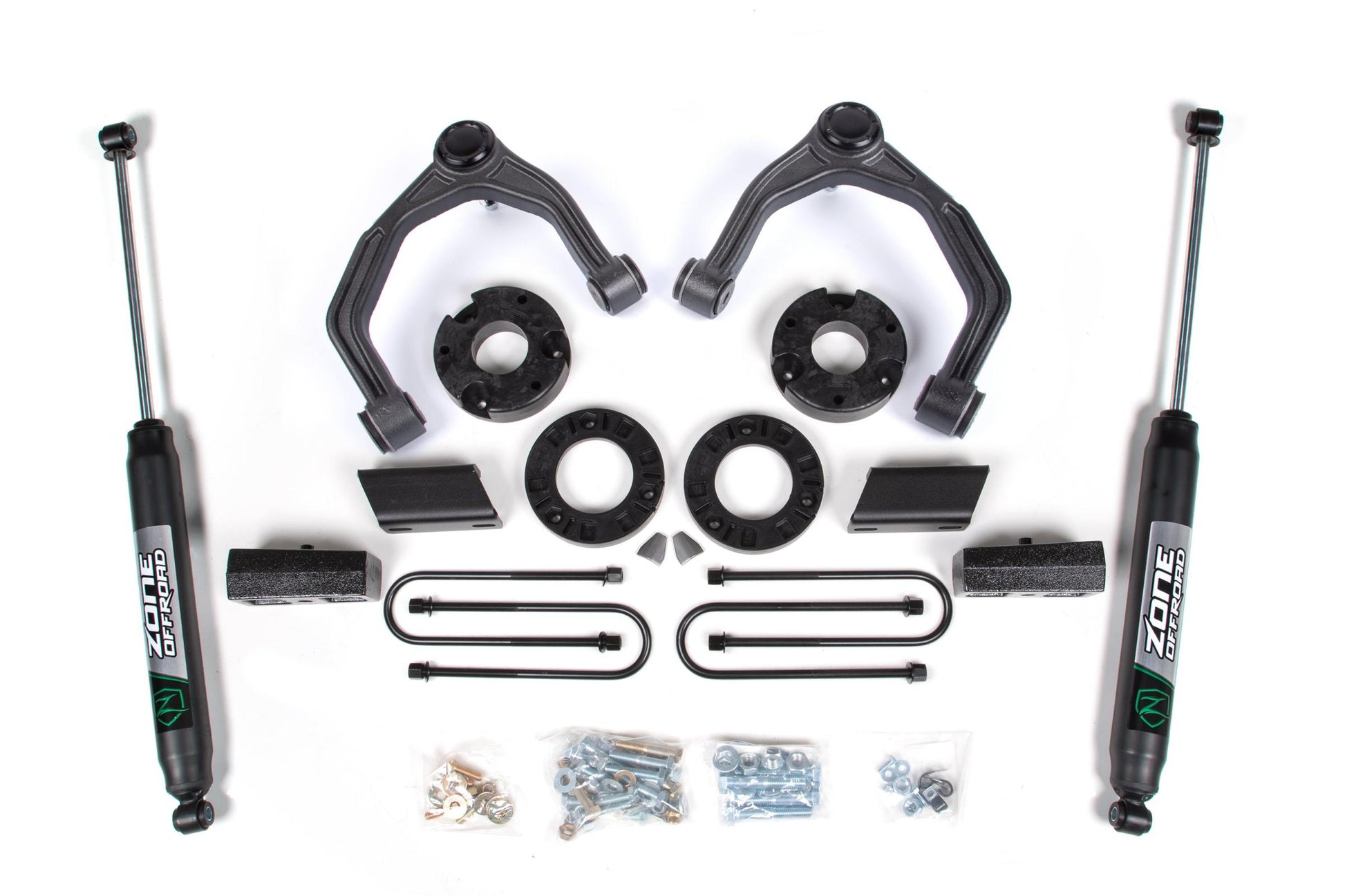

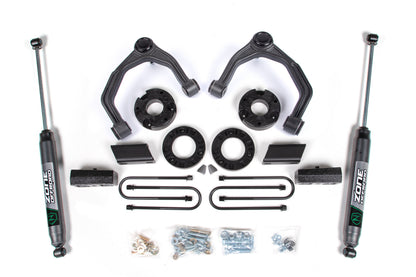

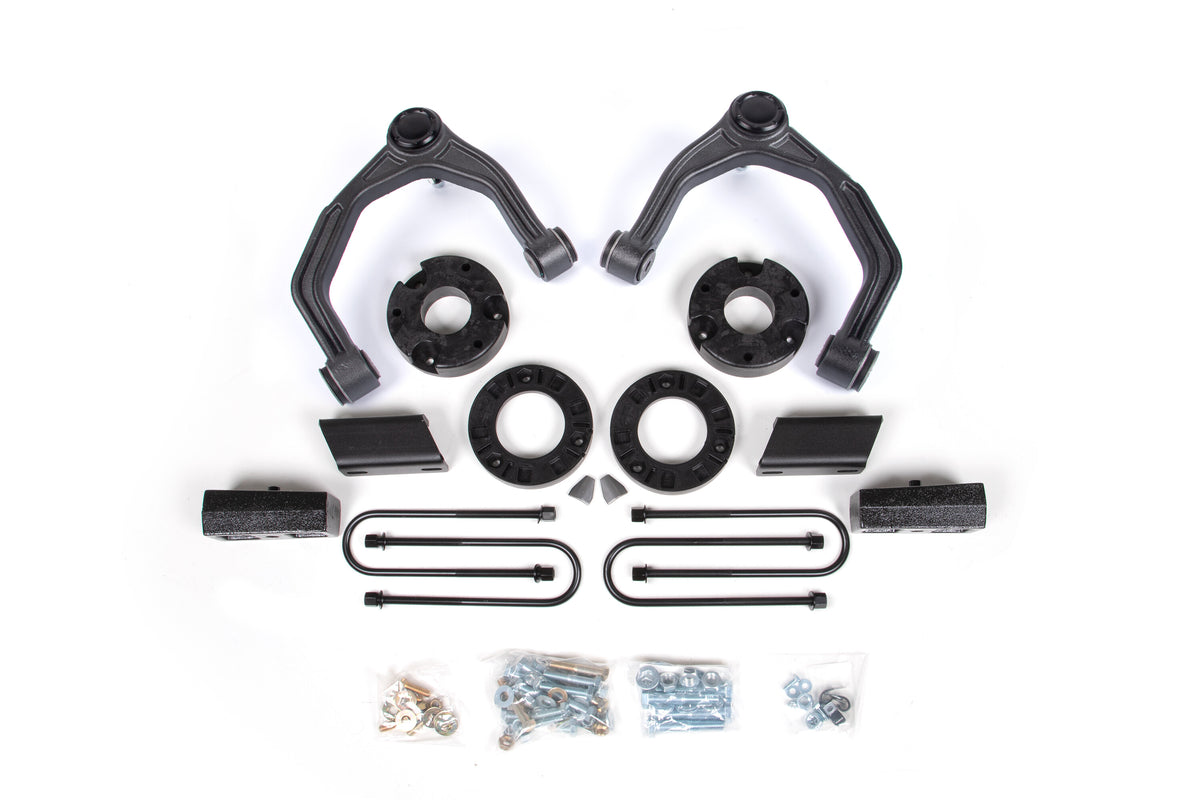

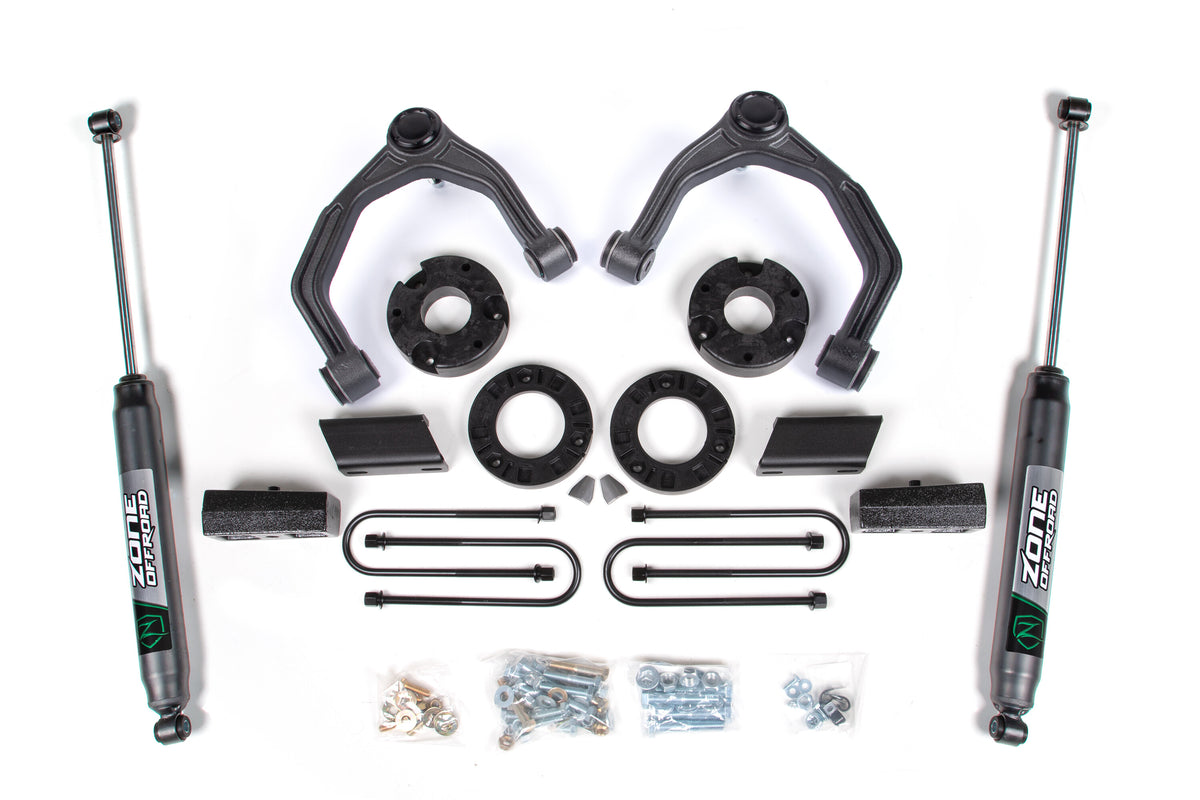

More than a leveling kit, this 3.5 inch Adventure Series kit takes advantage of Adventure Series upper control arms to offer improved performance and off-road capability with clearance for up to 35 inch tires.
These high strength UCAs allow for increased suspension travel, improved strength and durability, and easy maintenance. Lift is provided by a 2-piece, combination top-mount and preload strut spacers design to provide a full 3.5 inch of lift without overextending the suspension at full droop (as is the case with kits using just a top mounted spacer).
Optional weld-in steering stops are supplied allowing clearance for up to 35 inch tires. In the rear of this kit, a cast 2 inch lift block lifts and levels. Features and Benefits
Maintains on-road handling while improving off-road performance.
Top mounted front strut spacer retains factory ride quality.
Adventure Series upper control arms for additional strength and durability.

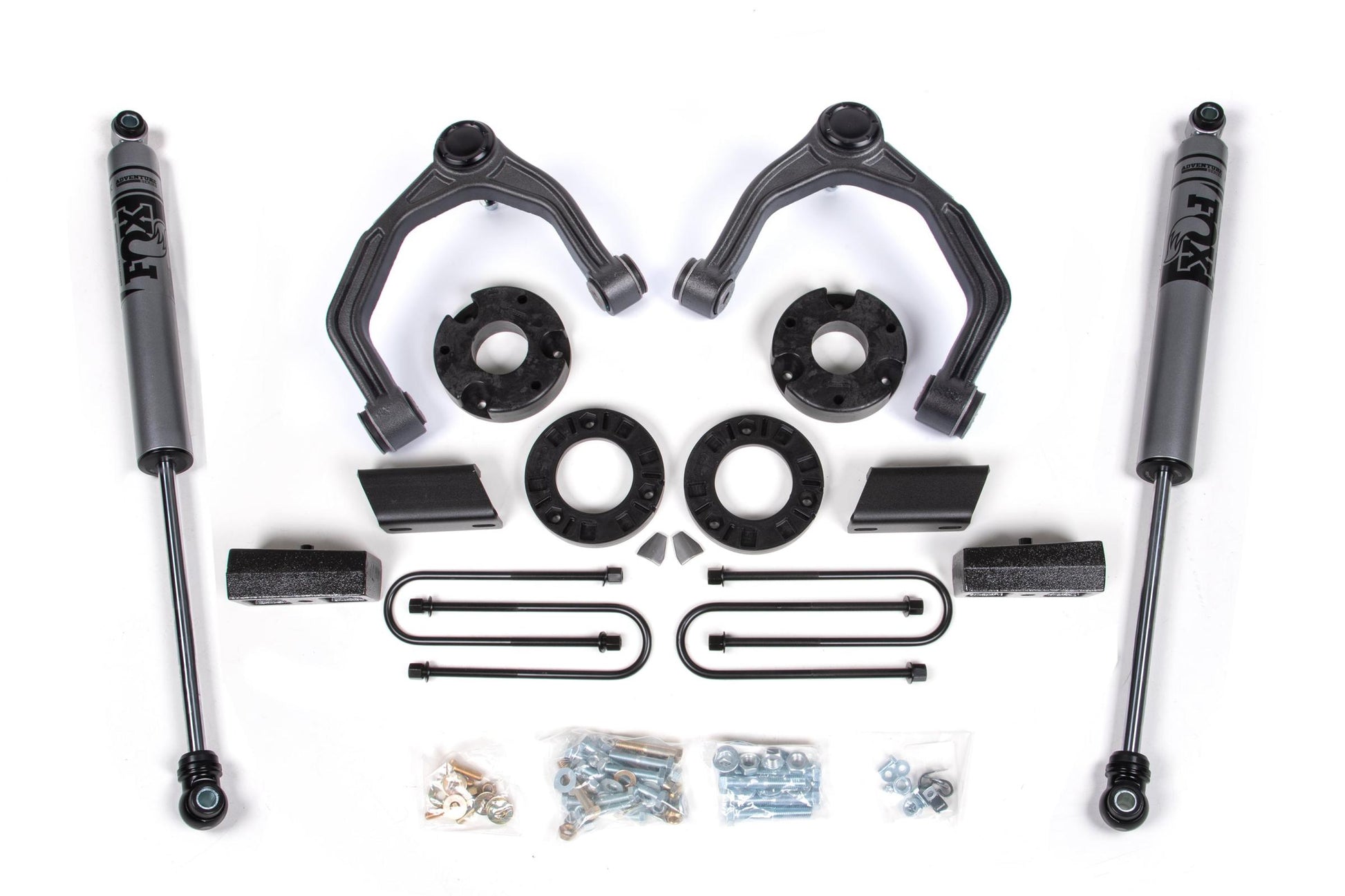

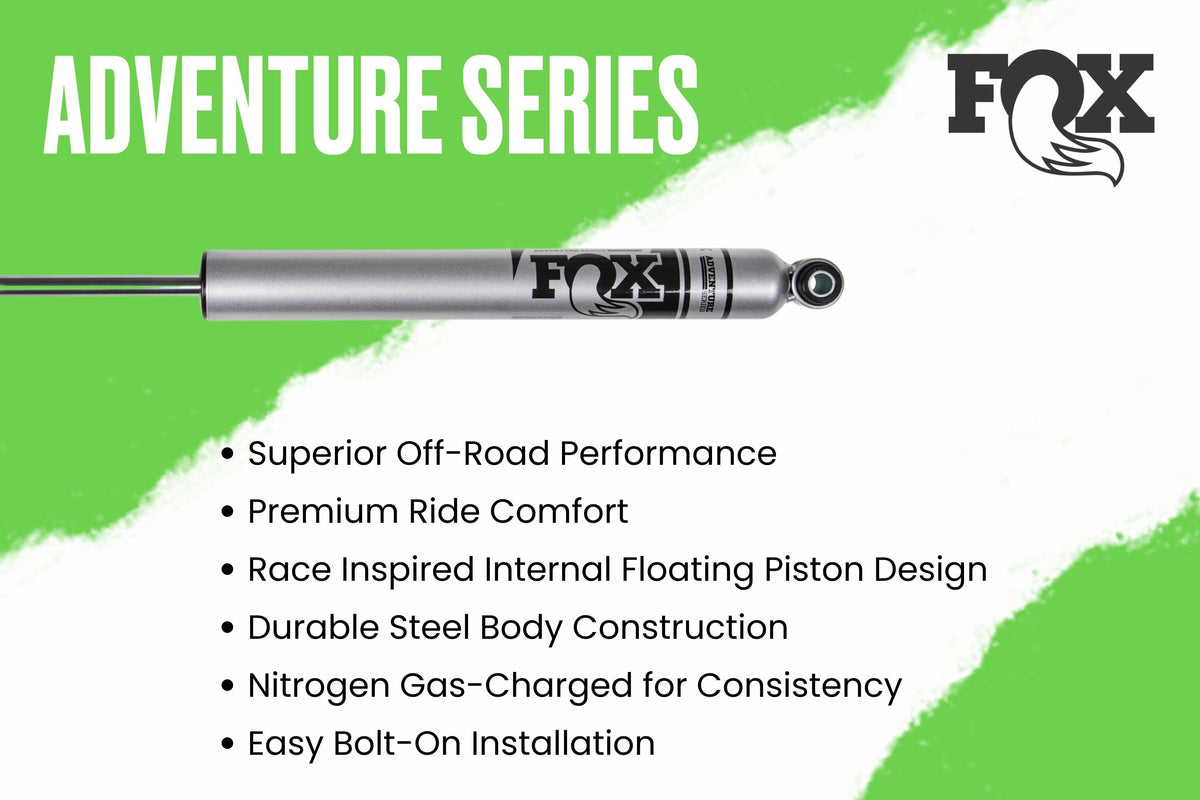

Optionl FOX Adventure Series 2.0 rear shocks.
Recommended Tires and Wheels
(Trimming may be required)
33 x 12.5 with 18 x 9 and 5.5 in. Backspace
33 x 12.5 with 20 x 9 and 5.5 in. Backspace

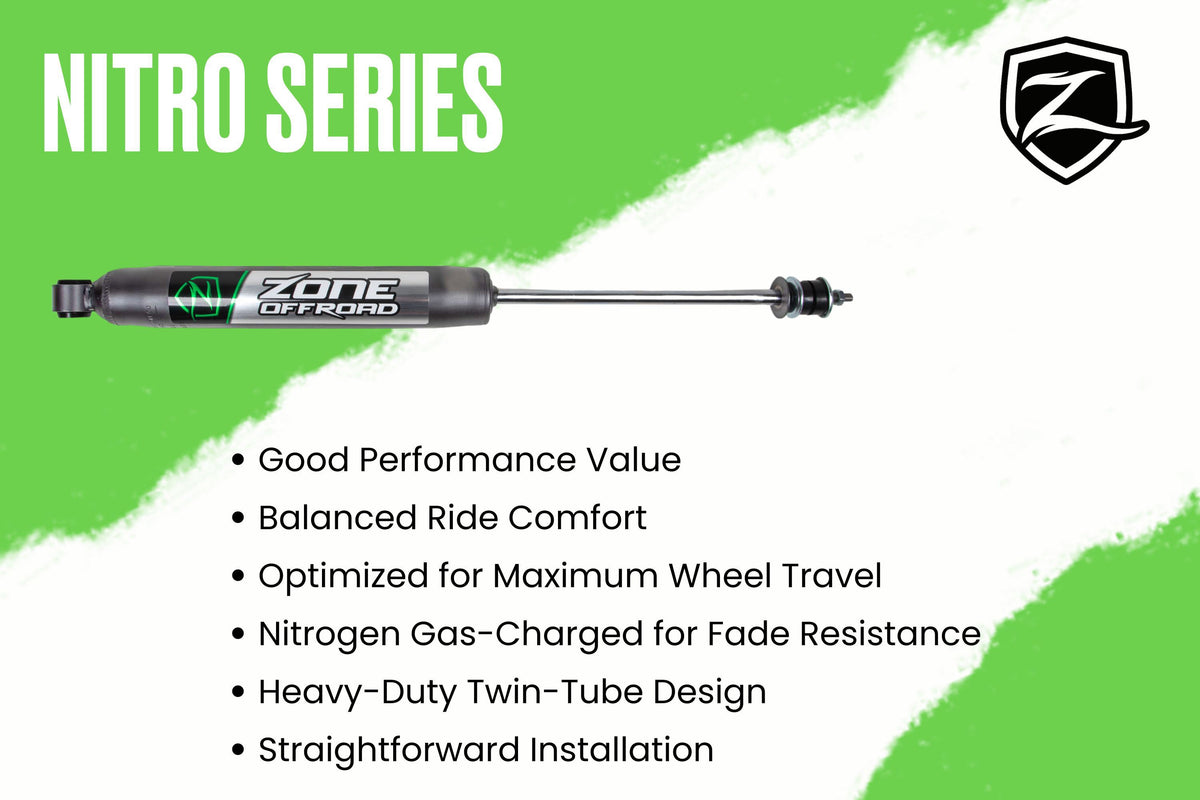

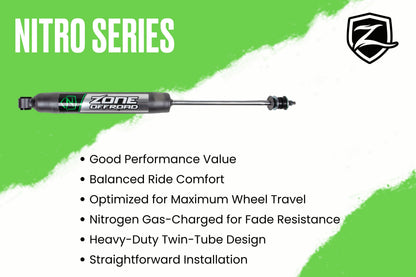

Rear Shock Option Nitro Series
Nitrogen-charged
Twin-tube design
10-stage velocity-sensitive valving
Dual-welded ends for increased strength
Self-lubricating seals
Black powder coat finish
Notes:
All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper.+ Will Not work with ZR2 and AT4X models.
Fits Gas and Diesel Models.
5.5 inch max wheel backspacing
Will fit Trailboss and AT4 but will net 1.5 inch of lift.
Lifting of bed required for shock install.
Front Lift Method : Strut Spacer
Front Lift Height : 3.5
Rear Lift Method : Block
Rear Lift Height : 2 inch
Shocks Included : Yes
Lift Height : 2-3.5 inch
ZON7719 2 Nitro- 26.20 x 15.65 x 2-3/8 - EB1/EB1 ZONC2413 1 2025 Chevy/GMC 1500 3.5 Inch Adventure Series Suspension System
