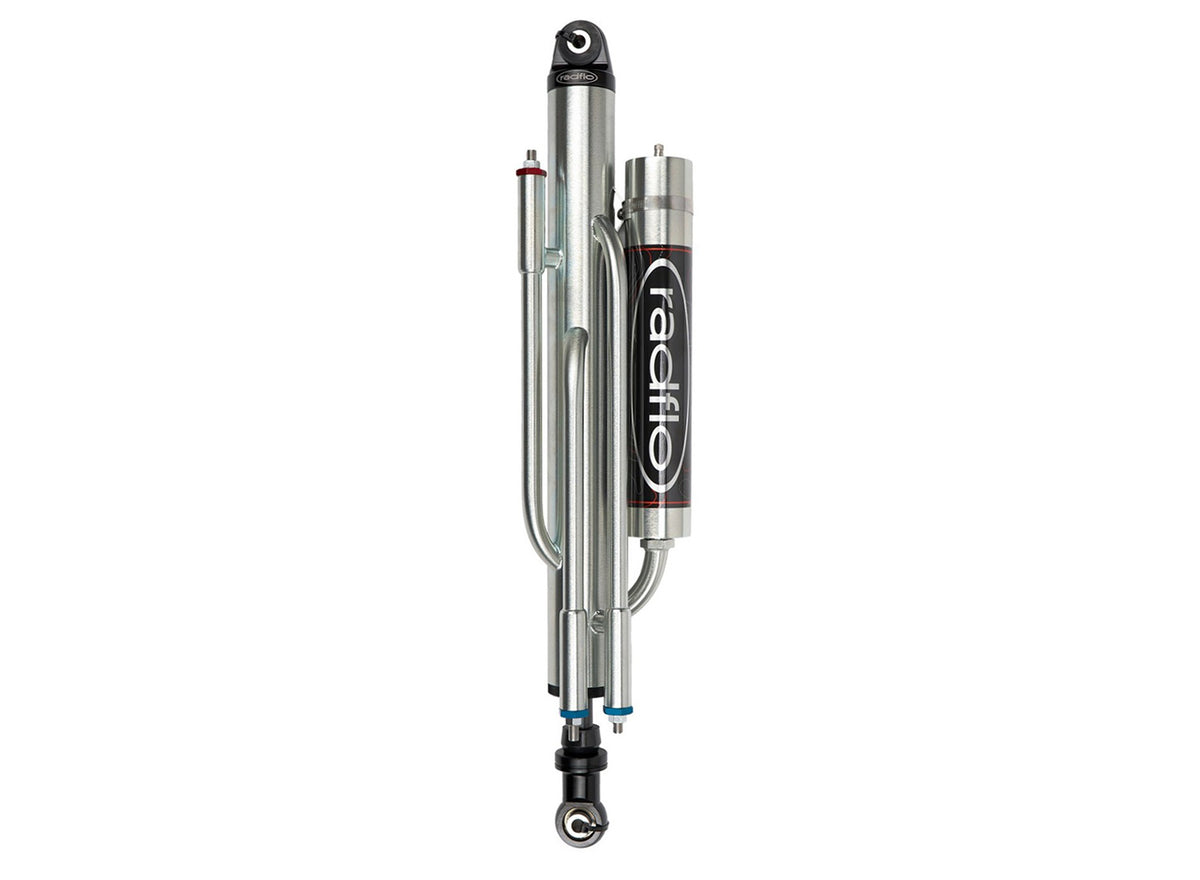

3.0 x 10 Inch External Bypass 3 Tube With Piggy Back Reservoir Black Radflo

This External Bypass Shocks is built to support stable handling and a controlled ride, helping your vehicle stay composed on and off road. Bypass shock absorbers by Radflo provide the highest level of damping customization for the most demanding off-road conditions. Nothing responds to terrain changes faster or more effectively than our specialized range of bypass shock absorbers.

They offer the most advanced tuning capabilities and unique performance characteristics required to compete at the highest ranks of professional off-road racing. Only bypass shocks blend the advantages of Velocity sensitive and position sensitive valving for a seamless integration of damping technology you simply have to experience to believe.

To ensure proper setup, our highly trained shock technicians are standing by to customize damping characteristics for your application. Dual shock performance in a single shock configuration.

Features and Benefits:

• Built for reliable use as a external bypass shocks option
• Designed for a clean, service-friendly installation
• Helps support consistent performance over time

Details:

• Series: External Bypass
• Finish: Zinc Plated w/Clear Coat
• Warranty: 1 Year Limited Warranty
• Color: Black
• Position: Front/Rear
• Shaft Size: 1.0 Inch
• Shock Style: External Bypass
• Shock Type: Reservoir
• Adjust Type: Self-Adjusting
• Bearing Size: 0.75 Inch
• Body Cap Eyelets: CNC Machined 6061 Aluminum Black Anodized
• Body Cap Finish: Anodized
• Body Cap Material: 6061 Aluminum
• Body Material: SSID Alloy Steel
• Body Style: SSID Alloy Steel Tube
• Diameter: 3.0 Inch
• Mount: Universal Spherical Bearing And Hardware
• Oil: Radflo High-Temp Foam Resistant Suspension Fluid
• Piston: Radflo Freeflo Racing Piston
• Piston Material: Aluminum
• Pressurization: Nitrogen Gas
• Reservoir Type: Piggy Back Reservoir
• Rod: Nitro Steel
• Rod Finish: Mirror Polished
• Rod Guide: PTFE Coating CNC Machined Bronze
• Rod Guide Finish: PTFE Coating
• Rod Material: Machined Bronze
• Seal: Rebuildable Combination Quad Ring And Lip Seal
• Service: Consumer or factory serviceable
• Style: Universal
• Tuning: Consumer Or Factory Tunable
• Valving: Velocity-Sensitive Deflective Disc, Self-Adjusting
• Top: Eye
• Bottom: Eye
• PSI: Starting at 200 psi Based On Application
• Rod Guide Material: Machined Bronze
• Shock Mount: Universal Spherical Bearing And Hardware
• Shaft Diameter: 1 Inch
• Travel Length: 10.0 Inch
• Collapsed Length: 19.53 Inch
• Extended Length: 29.53 Inch
• Bypass Tubes: 3
