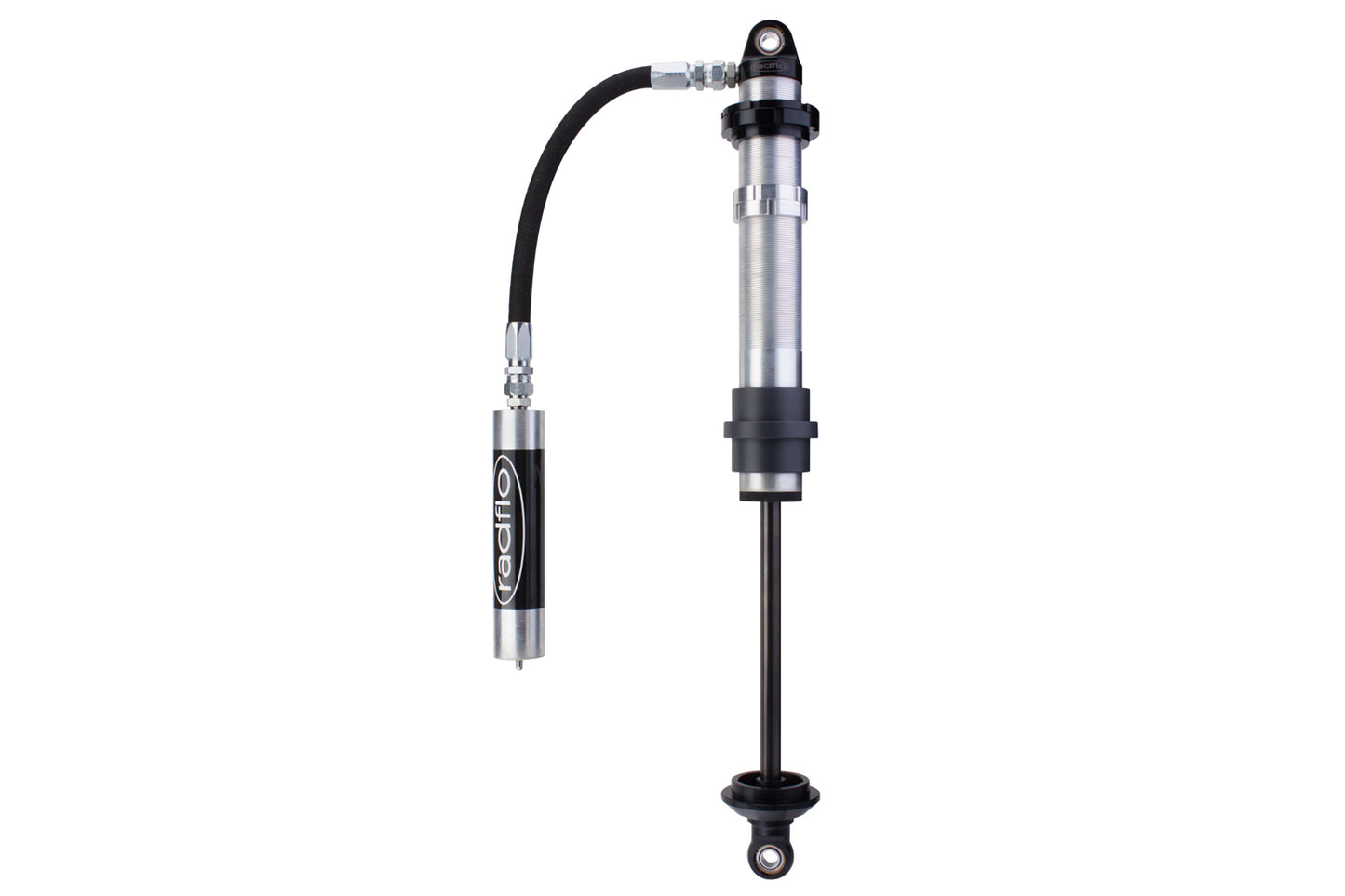

3.0 Inch Coilover With Reservoir 90 DEG Fitting Radflo

This Coil-Over Shocks helps keep critical systems protected by supporting clean flow and reliable operation.

For those that require even more tuning capability, we offer a full line of coil-over shocks to suit the most advanced suspension setups. Start by choosing the ideal spring specifications from our expansive selection of single or multiple-rate coil combinations.

Then we will independently set rebound and compression valving to complement your spring selection and vehicle specifications. Once installed, you can adjust ride height, prelo'd and travel to suit your application and performance requirements.

Integrated spring and shock performs better and requires less space. Make fast, easy and extremely precise coil spring adjustments without removing from vehicle.

Features and Benefits:

• Built for reliable use as a coil-over shocks option
• Designed for a clean, service-friendly installation
• Helps support consistent performance over time

Details:

• Adjust Type: Self-Adjusting
• Top: Eye
• Bottom: Eye
• Travel Length: 16.0 Inch
• Bearing Size: 0.75 Inch
• Body Cap Finish: Anodized
• Body Cap Material: 6061 Aluminum
• Body Material: SSID Alloy Steel
• Body Style: SSID Alloy Steel Tube
• Coil-Over Springs: Dual Spring Hardware Included. Springs Sold Separately.
• Color: Black
• Diameter: 3.0 Inch
• Finish: Polished Clear Cadmium Plating
• Location: Front/Rear
• Mount: Universal Spherical Bearing And Hardware
• Oil: Radflo High-Temp Foam Resistant Suspension Fluid
• Piston: Radflo Freeflo Racing Piston
• Piston Material: Aluminum
• Pressurization: Nitrogen Gas
• PSI: 200 psi
• Reservoir Type: Remote Reservoir
• Rod: Nitro Steel
• Rod Finish: Mirror Polished
• Rod Guide Finish: PTFE Coating
• Rod Guide Material: Machined Bronze
• Rod Material: Machined Bronze
• Seal: Rebuildable Combination Quad Ring And Lip Seal
• Service: Consumer or factory serviceable
• Shaft Diameter: 1 Inch
• Shock Type: Coil-Over
• Springs: Dual spring hardware included. Springs sold separately.
• Style: Universal
• Tuning: Consumer Or Factory Tunable
• Country of Origin: USA
