Zone Offroad now offers 5 Inch radius arm lift kits for the 23-24 Ford F250/F30 Super Duty 4WD diesel trucks. These new 5 Inch lift kits are designed to be complete with everything needed to properly lift your new Super Duty to allow clearance for up to 37 Inch tires.
As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty. Quick Specs:
Radius or Square U-bolts Is equipped with radiused U-bolts
Rear Block Height 3 Inch
Front Lift Height 5 Inch
Rear Lift Height 3 Inch
Material Steel
Front Lift Method Coil Springs
Rear Lift Method Block Kit
Lift Type Lift Kit
Wheel Size 20 x 9
Back Spacing 4.5 Inch
Max Tire Size 3 Inch x 12.5
Finish Powdercoat
Cutting Required No
Features:
Heavy duty fabricated steel radius arms that correct caster alignment while maximizing ground clearance.
Forged pitman arm to correct steering angles.
Heavy duty fabricated track
bar relocation bracket to re-center the front axle.
Full length specific coil springs which are gas or diesel specific.

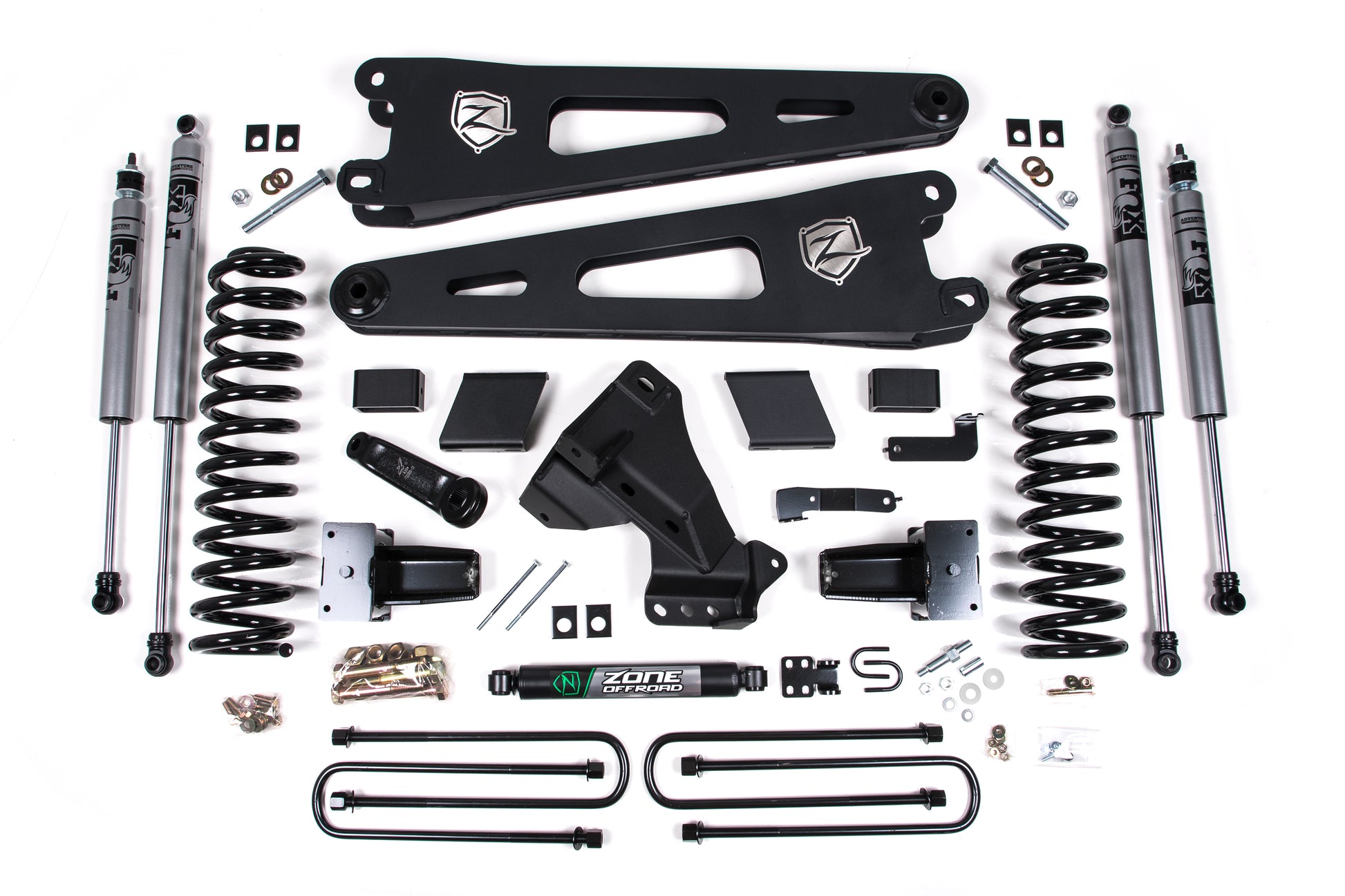

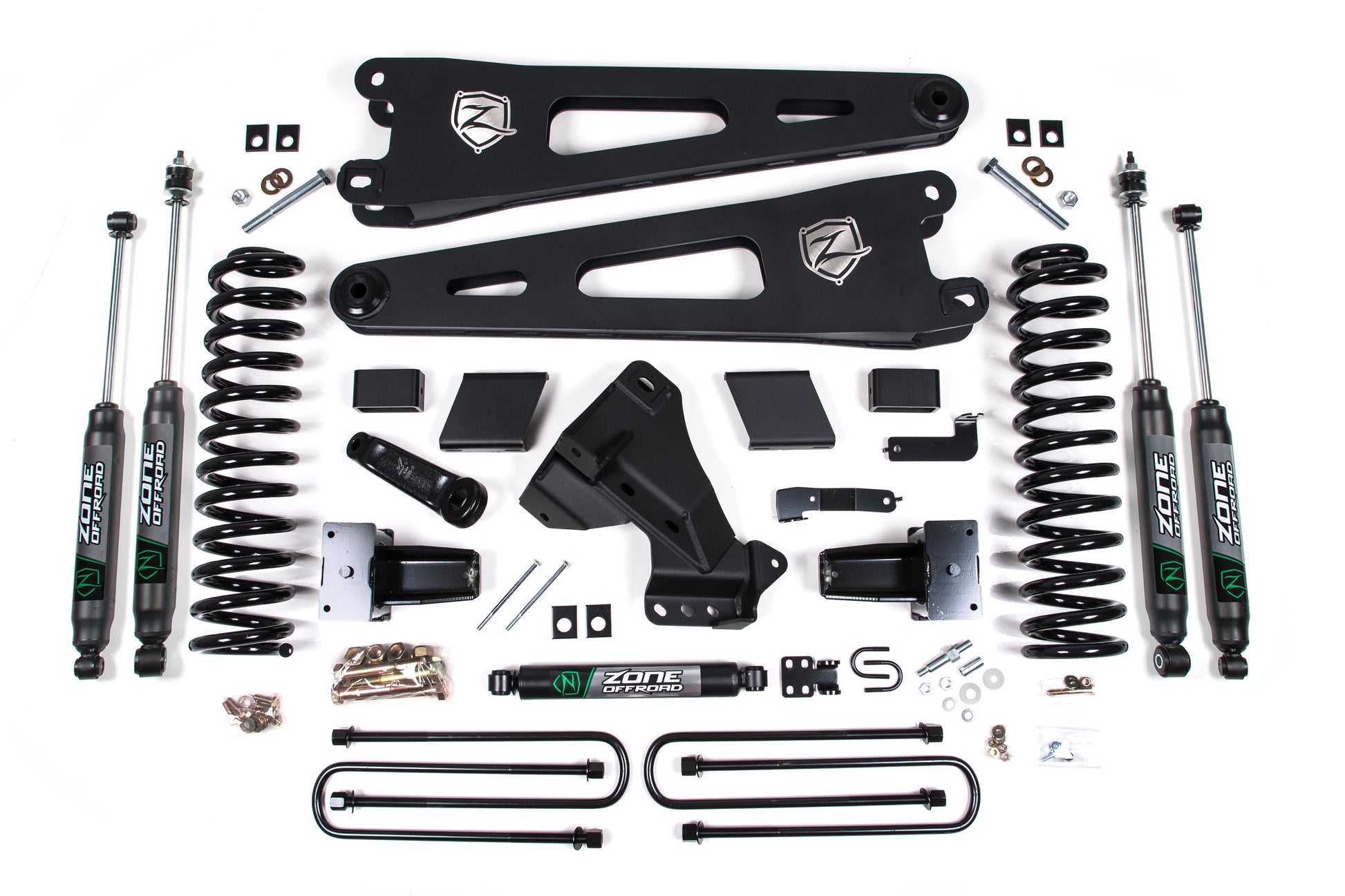

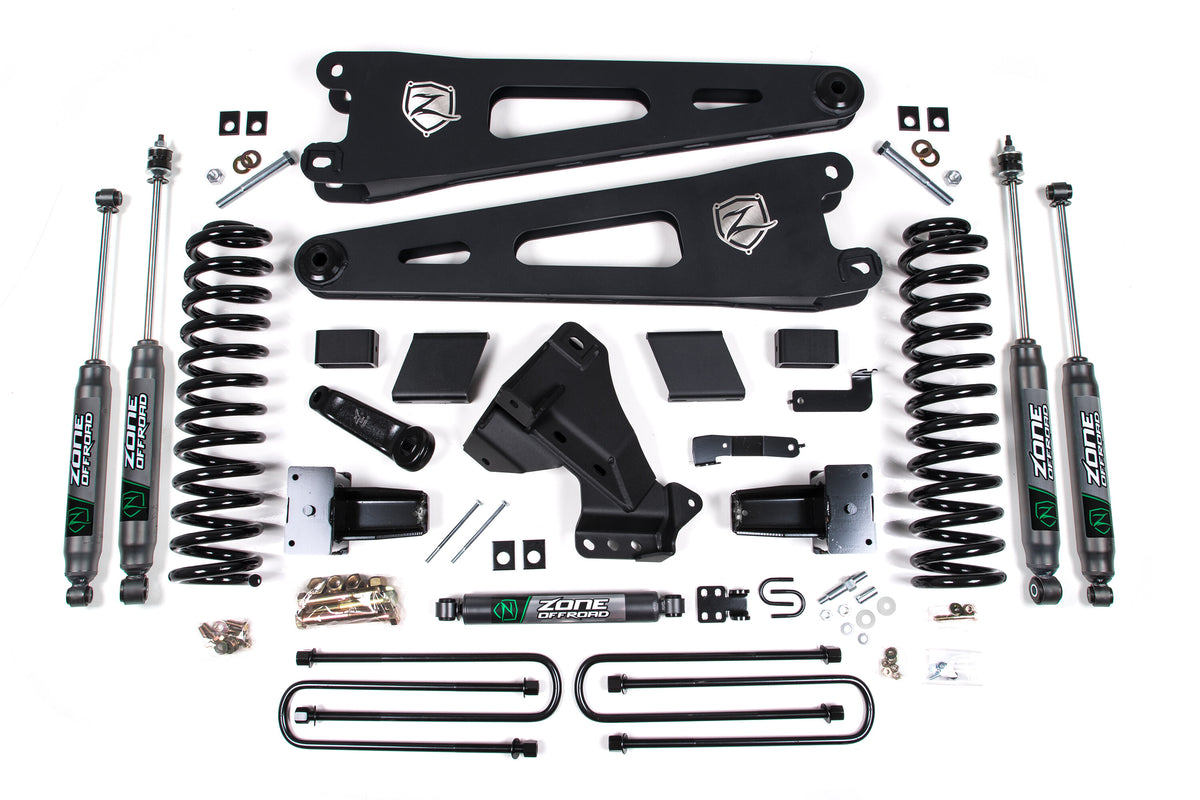

Kit Components:
ZON7302 2017-2024 F250 Single Stabilizer Zone 1 711745595194
ZON7700 Nitro- 25.20 x 15.20 x 2-3/8 S50/EB2 2 711745595484
ZON7718 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595590
ZONF1317 2017-2024 F250 5.0 Inch Rear Block 2 Leaf Main 1 711745599123
ZONF1413 2005-2022 Ford F250/350 4 Inch Front Coil Diesel (One) 2 711745599215
ZONF1432 2023 Ford F250/350 4WD Drivers Side Radius Arm Drv 1 810156368042
ZONF1433 2023 Ford F250/350 4WD Passengers Side Radius Arm Pass 1 810156368059
ZONF1614 2017-2024 Ford F250/F350 4-6 Inch Radius Arm Front Box Kit 1 711745599376
