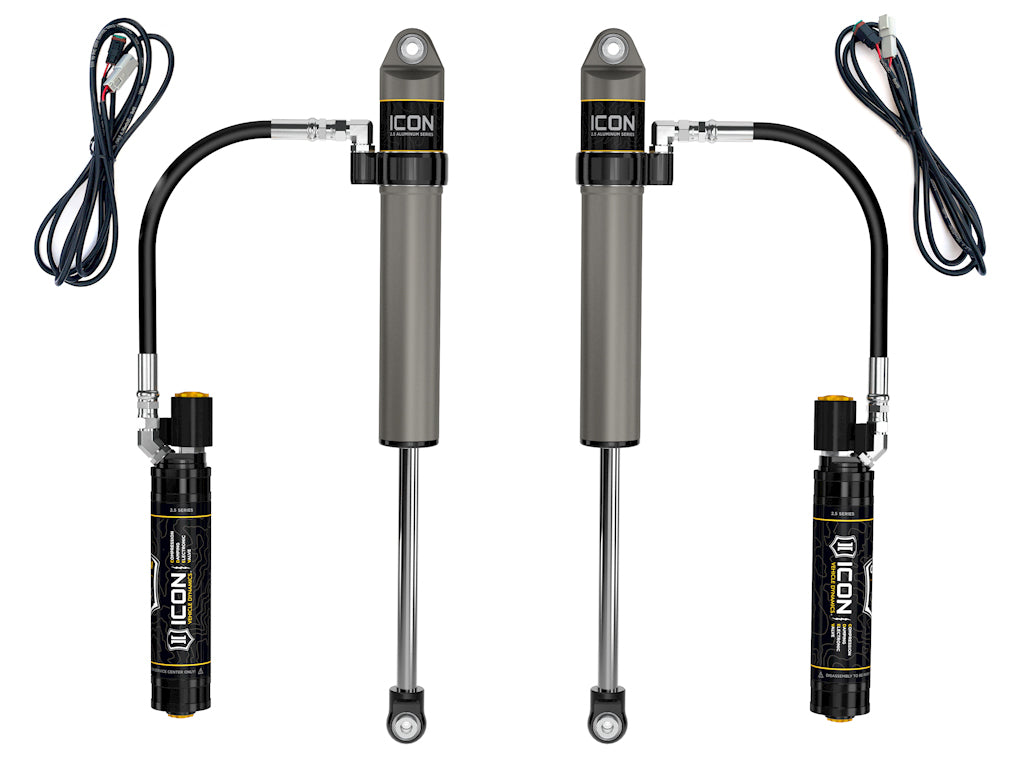

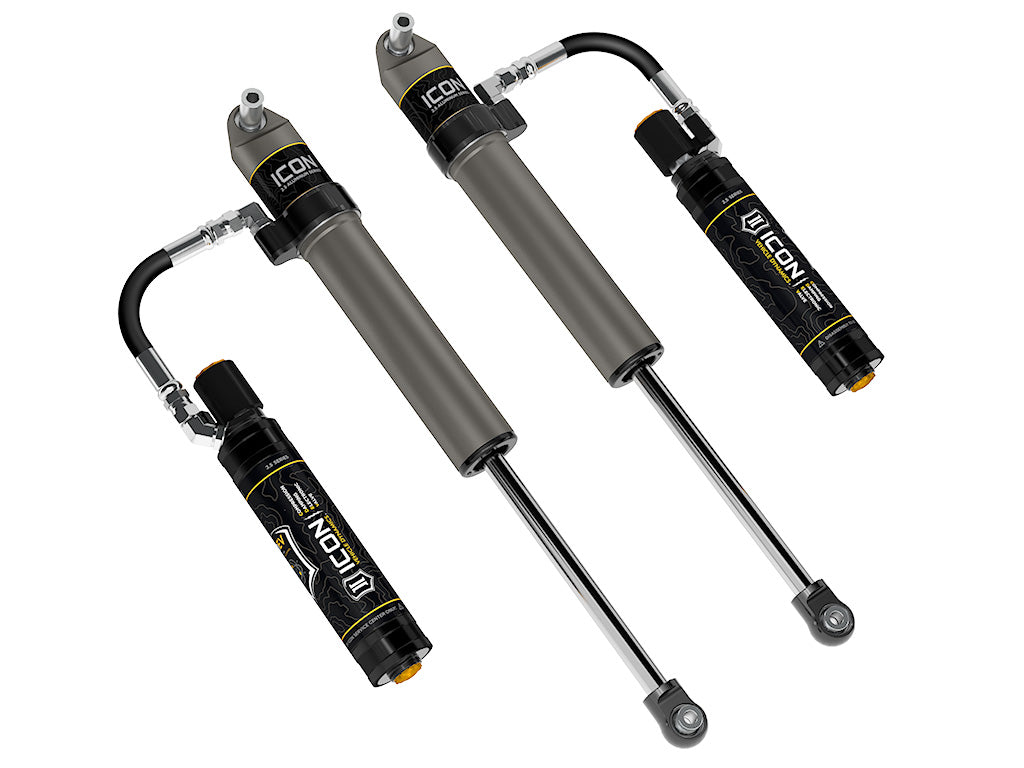

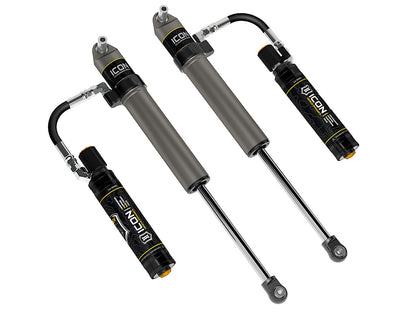

2020-2023 Jeep Gladiator 2018-2023 Jeep Wrangler JL 2.5 Inch Lift Front V.S. 2.5 Aluminum Series Shock Absorbers Remote Reservoir W/ CDEV Pair ICON Vehicle Dynamics

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.

For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.

Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are 100 Percent rebuildable and 100 Percent revalveable.

Features and Benefits:

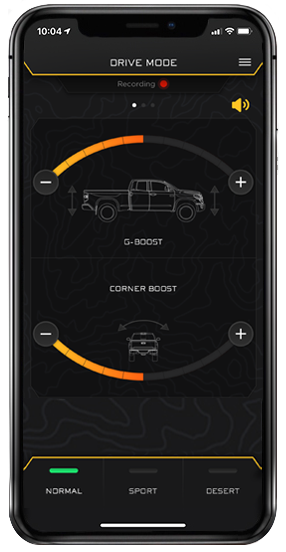

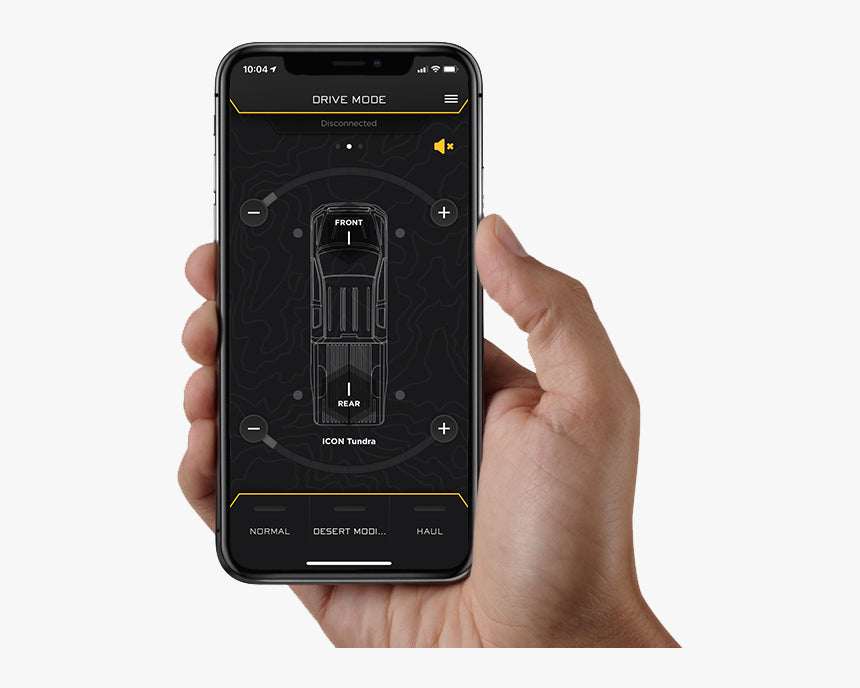

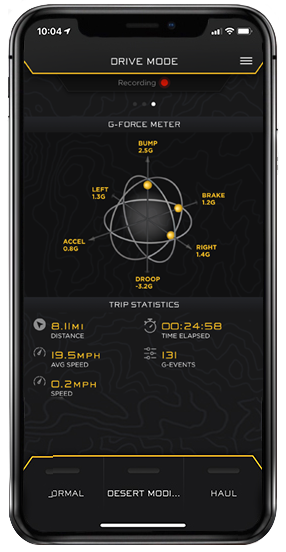

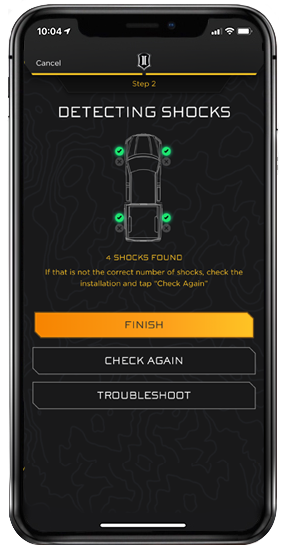

• Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV's hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compression
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with piggyback reservoir
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8 Inch diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• 100 Percent Rebuildable
• 100 Percent Revalveable

Details

• Adjustable: Yes
• Adjustable Damping: Yes
• Boot Included: No
• Bore Diameter: 2.25
• Cylinder Color: Gray
• Cylinder Diameter: 2.5
• Cylinder Material: Aluminum
• Damping Adjustment Type: Electronic
• Damping Type: Oil
• External Reservoir: Yes
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: Eyelet
• Mounting Hardware Included: Yes
• Service Parts: 252001 - 2.5 Fixed Spanner Wrench, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252003 - Seal Install Tool 2.5/3.0, 257341S - 7/8 Shaft 15.25 Oal, 11.00 Travel Short, 254100G - 1 Gallon Icon Performance Shock Oil, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit
• Shaft Diameter: 0.875
• Shaft Material: Chrome
• Shock Absorber Body End Measuring Point: Center Of Eylet
• Shock Absorber Rod End Measuring Point: Center Of Eylet
• Tube Outside Diameter: 2.5
• Upper Mount Type: Eyelet
• Add On Part: 252012 - -4 To -10 Hose Shield Kit, 611070 - 20-Up JT Mojave Front 2.5 Misalignment Spacer Kit, 27727EP - 20-23 JT 1.5 Inch Rear 2.5 Vs Pb CDEV Pair, 27726EP - 18-Up JL 2.5 Inch Rear 2.5 Vs Pb CDEV Pair, 23502 - 20-23 JT/18-23 JL Iic Install Kit
