2018-2023 Jeep Wrangler JL 3 inch Suspension Lift System 4 Dynatrac

The Dynatrac 3 inch Suspension Lift System 4 for the 2018-2023 Jeep Wrangler JL is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. System 4 builds off of System 1 but with upgraded 2.5 EnduroSport shocks for improved shock damping and heat dissipation.

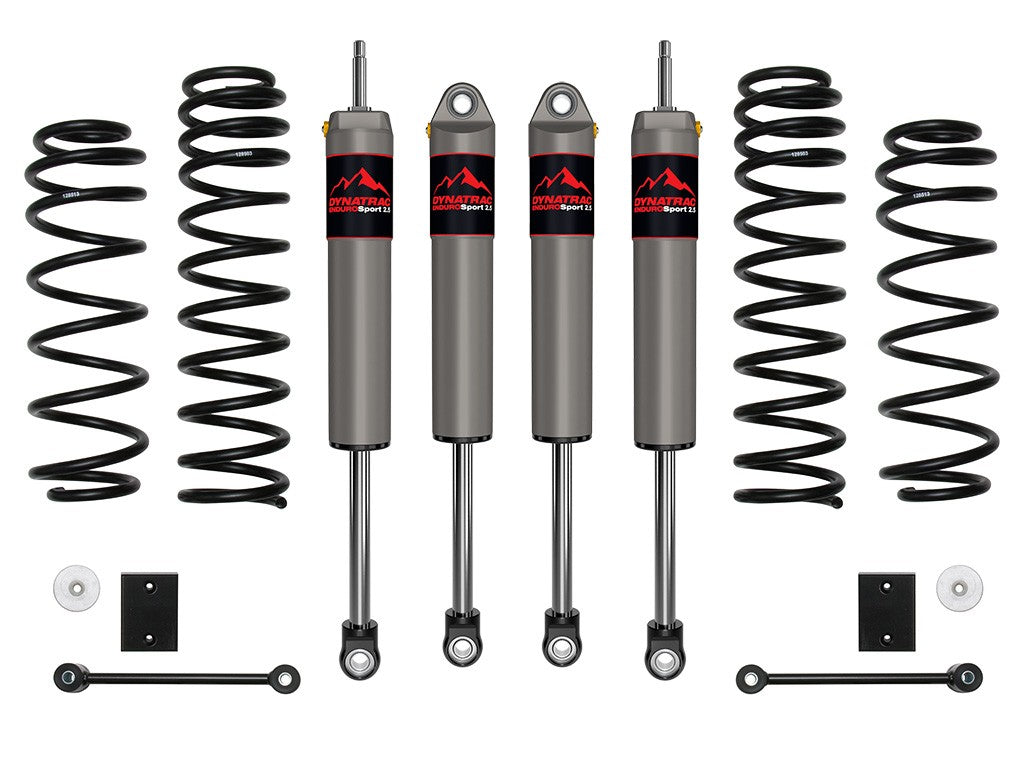

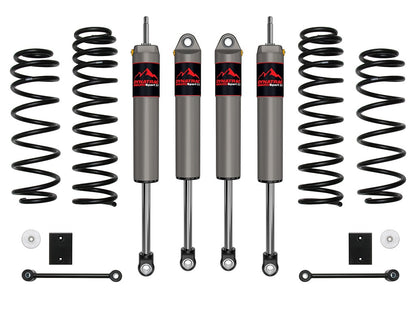

This system includes 3 inch lift dual rate coil springs, 2.0 EnduroSport shocks, bump stop spacers, sway bar links, and all necessary hardware to complete the installation. With this combination of components, Dynatrac was able to increase wheel travel numbers by 3 inch in front and 2 inch in the rear, significantly improving the performance of the 2018-2023 JL.

The 3.0 Lift System allows or fitment of 35 inch tires when used with Dynatrac's recommended wheel specifications. For users looking to install 37 inch tires, an optional extended bump stop spacer kit (Part # DT922029) is available.

The Dynatrac 3 inch Suspension Lift System 4 is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. Made for adding lift height, wheel travel and shock damping to the JL.

Features and Benefits:

• 100 percent bolt-on system makes for an easy install
• 2.5 EnduroSport shocks with JEEP JL specific valving offer greater shock damping and performance
• 3 inch front, 2 inch rear increase in wheel travel
• 3 inch lift height over stock
• Dual rate coil springs with lifetime guarantee against sagging/breakage
• Fits 35 inch tires (37 inch with optional extended bump stop spacer kit, Part # DT922029)
• Improves on and off-road ride quality over stock
• Tested under rigorous off-road conditions to validate tune, performance, strength, and durability

Details:

• Bushings Included: No
• Coil Spring End 1 Type: Closed
• Coil Spring End 2 Type: Closed
• Coils Quantity Front: 2
• Coils Quantity Rear: 2
• Front Spring Rate Type: Progressive Dual Rate
• Grade Type: Performance
• Maximum Lift: 3 Inch
• Maximum Lift Front: 3 Inch
• Maximum Lift Rear: 3 Inch
• Mounting Hardware Included: Yes
• Rear Spring Rate Type: Progressive Dual Rate
• Reservoir Style: Internal
• Shock Body Diameter: 2.5 Inch
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• Lift Height: 3.0 Inch
• Sold As: Each

Application Notes:

• 2018-2020 Jeep Wrangler Unlimited Moab Unlimited Rubicon Deluxe Unlimited Rubicon Xtreme (Front and Rear) (Qualifier: Use Up To 35 (in) x 12.50 (in) Tires, For 37x12.50 (in) Tires Use Bump Stop Spacer Kit, Raises Front 3 (in), Raises Rear 3 (in), -6 (mm) Offset Wheels Recommended)

OEM Wheels & Tires Fitment: Yes|Recommended Aftermarket Tires: 35 x 12.50 (37 x 12.50 with optional extended bump stop spacer kit PN: DT922029)|Recommended Aftermarket Wheels: 17x8.5 inch w/ 4.5 Backspace / -6mm Offset|Tech Note: Not compatible with Wrangler JL 4xe or Unlimited Rubicon 392 trims.|Tech Note: Springs are NOT rated for use with models equipped with EcoDiesel engines.
