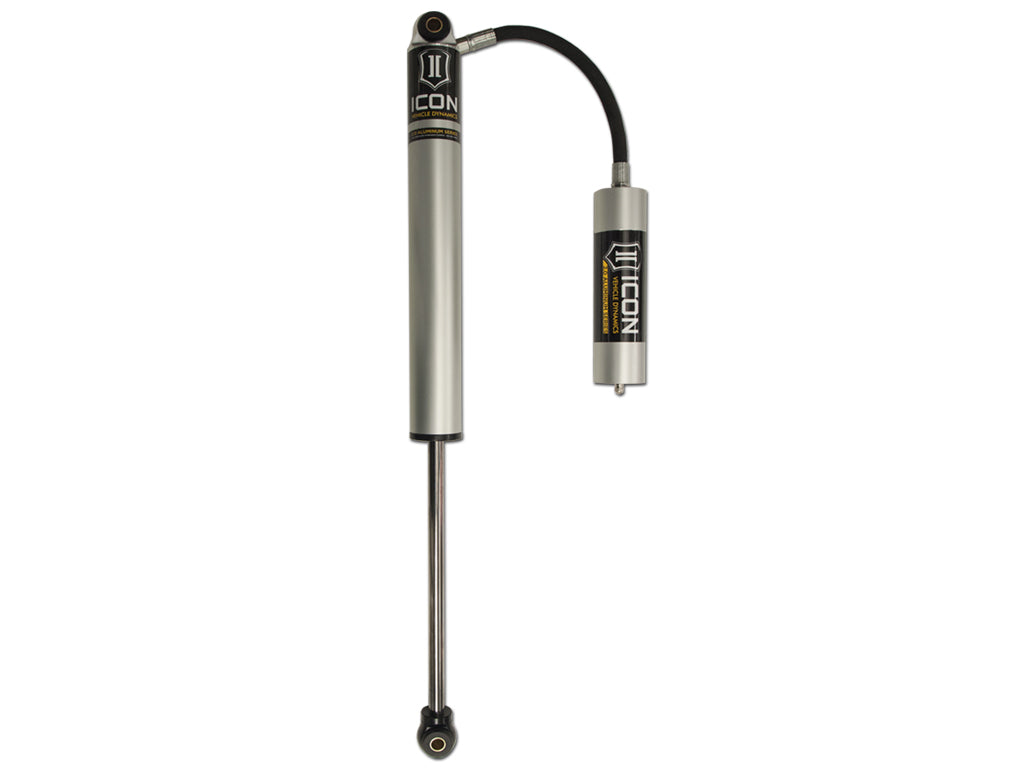

2015-2024 Colorado/Canyon 0-2 Inch Lift Rear 2.0 Aluminum Series Remote Reservoir Shock ICON Vehicle Dynamics

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance.

Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable.

For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shocks to handle extra abuse and punishment your suspension will need to endure.

Features and Benefits:

• Nitrogen charged monotube design with remote reservoir
• One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 5/8 Inch chrome plated hardened steel shaft resists corrosion and pits
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• 6061 aluminum rod end, top cap, and internals ensure strength and durability
• Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
• 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
• Nitrile rubber top out bumper for noise free operation
• Fully rebuildable and re-tunable

Details

• Color: Silver, Gray, Black
• Material: Aluminum, Steel
• Finish: Anodized
• Active Or Passive Suspension: Passive
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Adjustable Ride Height: No
• Body Color: Gray
• Body Diameter: 2 Inch
• Body Material: Aluminum
• Boot Included: No
• Bore Diameter: 1.75
• Bushing Color: Black
• Bushing Included: Yes
• Bushing Material: Polyurethane
• Coil Over Springs Included: No
• Cylinder Color: Gray
• Cylinder Finish: Anodized
• Cylinder Material: Aluminum
• Cylinder Outside Diameter: 2.0
• Damping Type: Oil
• Dust Boot Included: No
• Dust Shield: No
• Dust Shield Included: No
• External Reservoir: Yes
• Gas Charged: Yes
• Grade Type: Performance
• Hydraulic Lockout: No
• Includes Bump Stop: No
• Internal Construction Type: Single Tube
• Internal Rebound Bumper: Yes
• Internal Rebound Spring: No
• Lower Mount Type: Eyelet
• Maximum Ride Height Raising Distance: 2.0
• Mounting Hardware Included: No
• Remote Reservoir: Yes
• Rod Diameter: 0.625
• Self Leveling: No
• Service Parts: 254101G - 1/2 Gallon Icon Performance Shock Oil, 202003 - 2.0 Remote Resi Rebuild Kit, 252002 - Universal Spanner Wrench (2.0/2.5/3.0)
• Shaft Diameter: 0.625
• Shaft Material: Chrome
• Shock Absorber Body End Measuring Point: Center Of Eyelet
• Shock Absorber Bore Size: 1.75
• Shock Absorber Rod End Measuring Point: Center Of Eyelet
• Upper Mount Type: Eyelet
• Valving Type: Digressive, Linear
• Add On Part: 614700 - 2.0 Shock Boot Kit (Each), 614600 - 2.0 Icon Billet Resi Clamp Kit
