Take your F150 to new heights with this 4 Inch lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance.
Get the look, performance, and capability your truck deserves with clearance for up to 35 Inch tires. Quick Specs:
Front Lift Height 4 Inch
Rear Lift Height 4 Inch
Front Lift Method Knuckle & Strut Spacer
Rear Lift Method Cast Blocks
Lift Type Lift Kit
Wheel Size 18 x 9
Back Spacing 5 Inch
Max Tire Size 35 x 12.5
Wheel Size 2 20 x 9
Back Spacing 2 5.5 Inch
Max Tire Size 2 35 x 12.5
Is Adjustable No
Finish Powdercoat
Cutting Required No
Accommodates Factory Wheels See Notes
Welding Required No

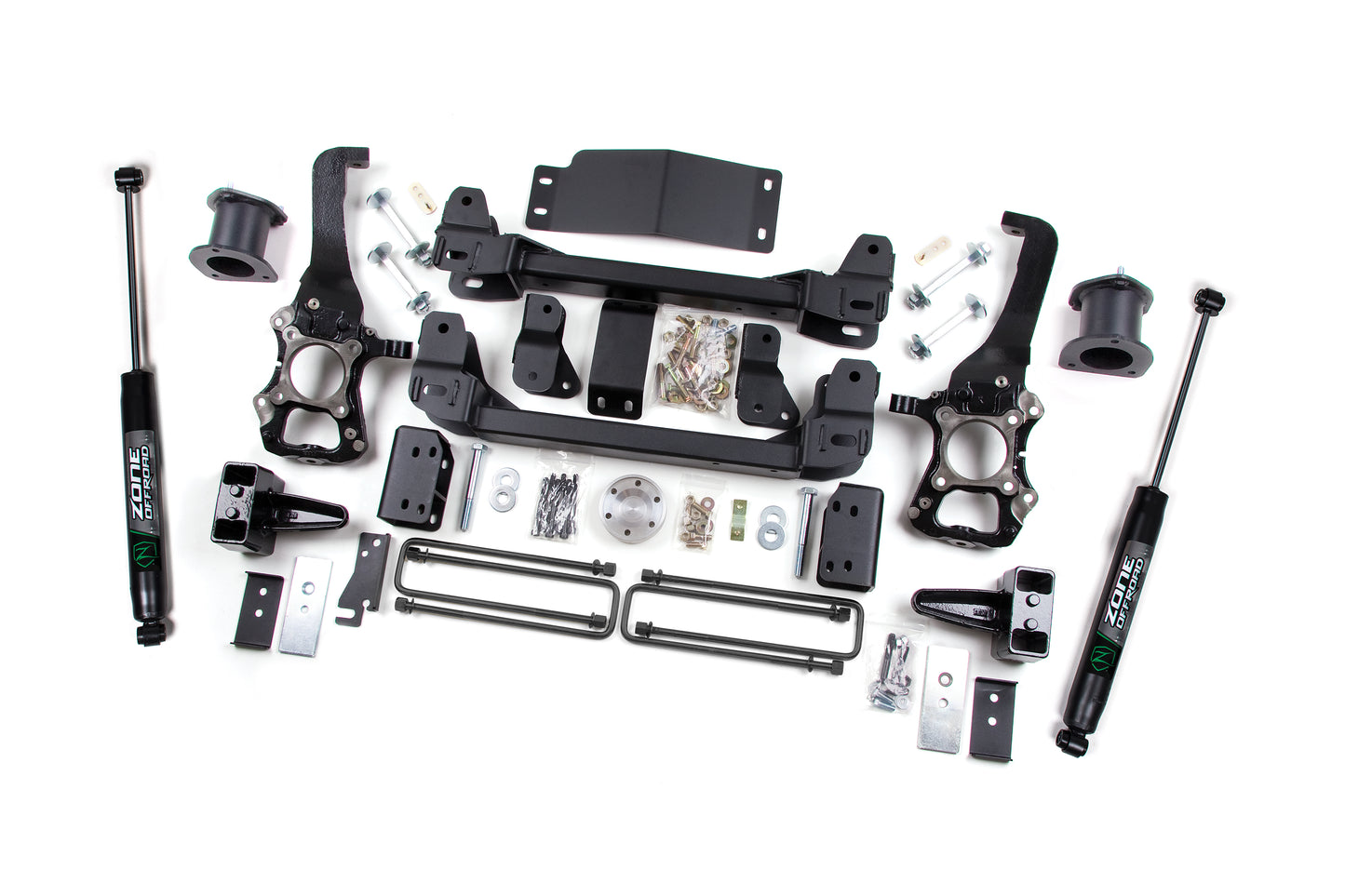

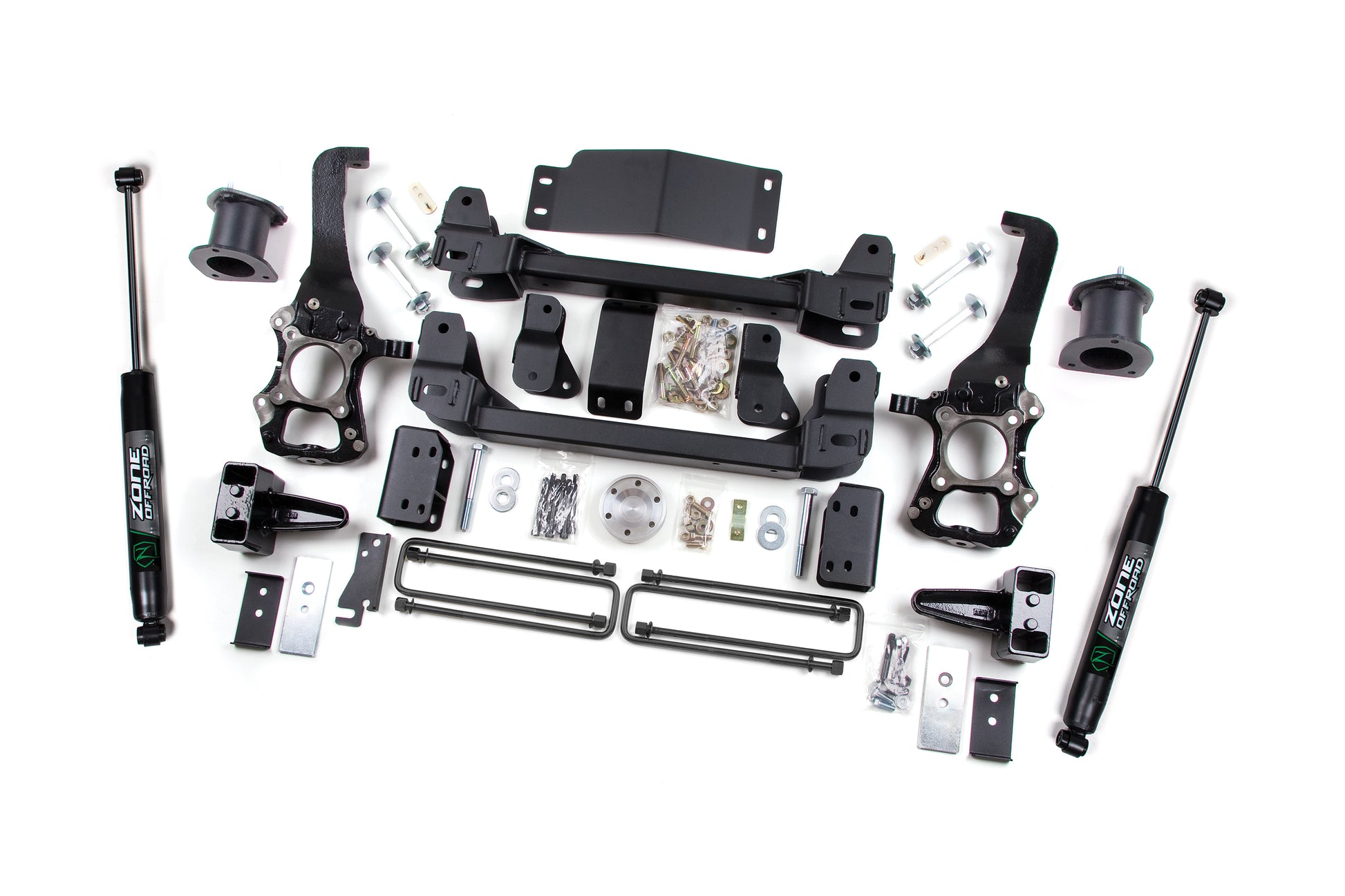

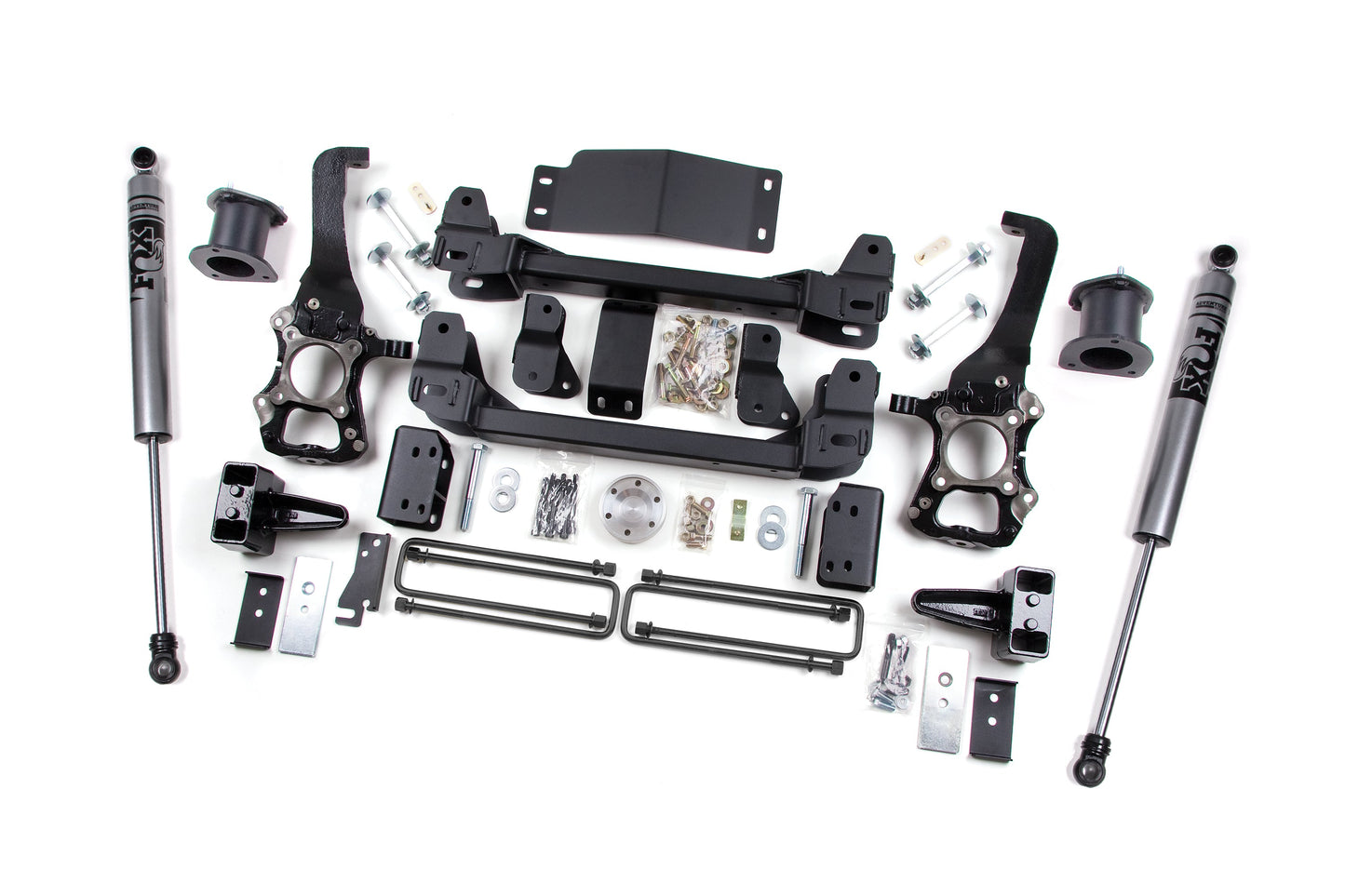

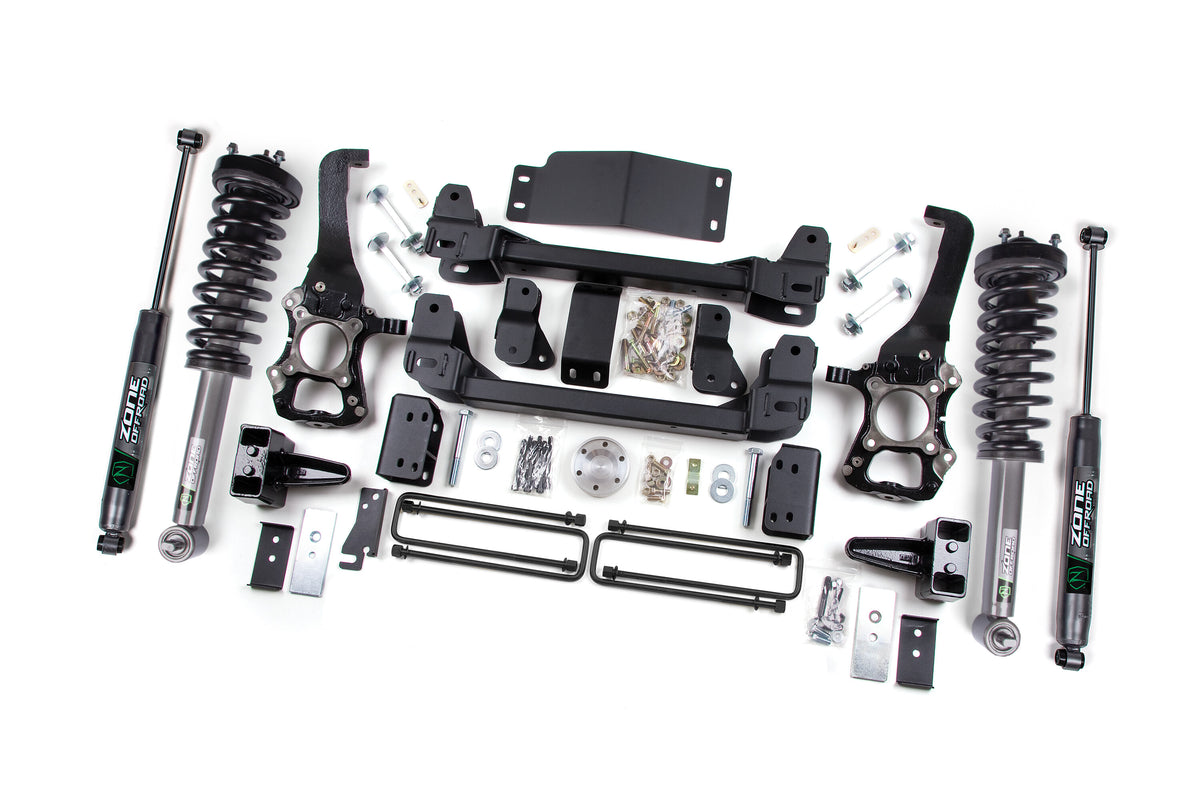

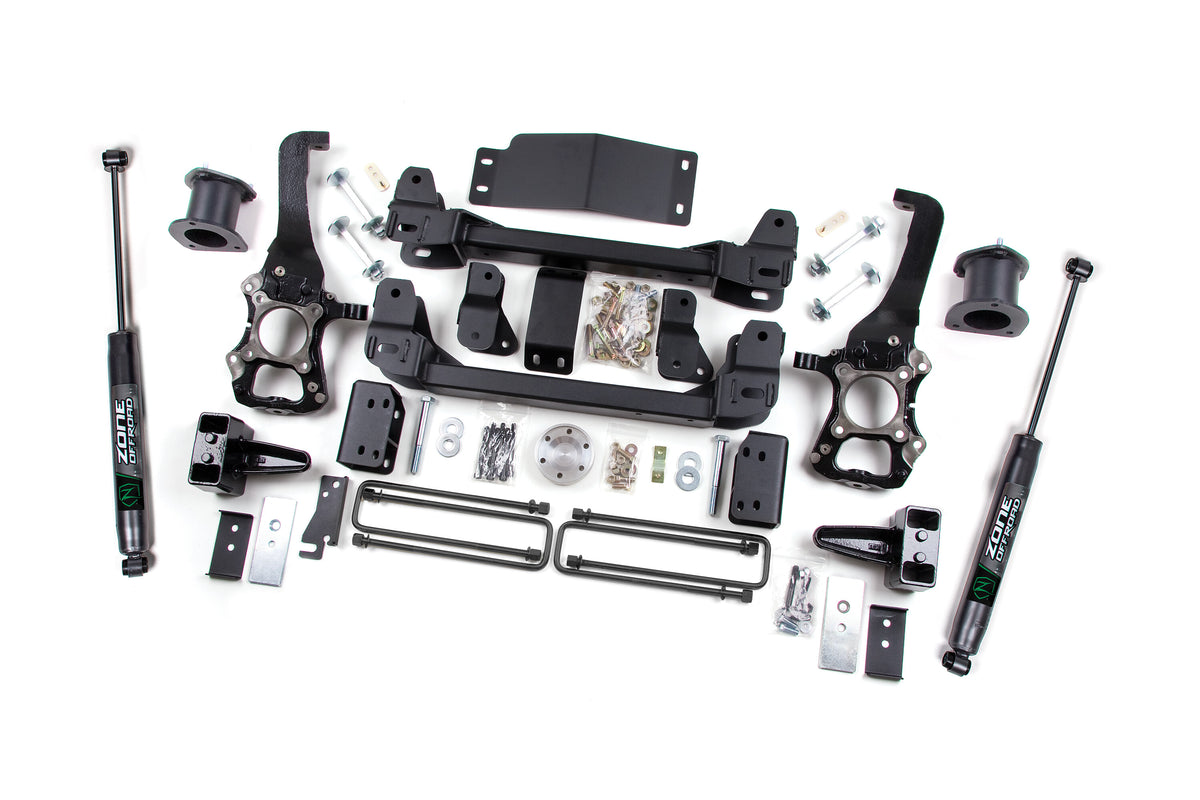

In The Box:
All Necessary Mounting / Installation Hardware
Differential Drop Brackets
Frame Crossmembers
Rear Lift Block & U-Bolt Kit
Skid Plate
Steering Knuckles
Strut Spacers
Features:
High strength crossmembers to correct lower control arm positioning
Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
Top mounted strut spacers to provide lift and install easily
Differential skid plate for improved offroad protection
Rear lift blocks and u-bolts to lift and level the stance
Sway bar, brake line and bump stop relocation brackets to correct operating angles
Kit Components:
ZON7828 Nitro- 31.00 x 18.20 x 2-3/8 EB1/EB1 2 711745595934
ZONF2419 09-14 F150 Rear 4 Inch Block Kit 1 711745599475
ZONF2432 2014 Ford F150 4 Inch Front Box Kit (3of4) 1 711745599482
ZONF2615 09-14 Ford F150 6 Inch Front Box Kit (1of4) 1 711745599604
ZONF2616 09-14 Ford F150 6 Inch Front Box Kit (2of4) 1 711745599611
ZONF2633 2014 Ford F150 6 Inch Front Box Kit (4of4) 1 711745599741
