Take your F150 to new heights with this 6 Inch lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance.
Get the look, performance, and capability your truck deserves with clearance for up to 37 Inch tires. Quick Specs:
Front Lift Height 6 Inch
Rear Lift Height 5 Inch
Front Lift Method Knuckle & Strut Spacer
Rear Lift Method Cast Blocks
Lift Type Lift Kit
Wheel Size 18 x 9
Back Spacing 5 Inch
Max Tire Size 37x 12.5
Wheel Size 2 18 x 9
Back Spacing 2 5 Inch
Max Tire Size 2 37 x 13 Inch5
Wheel Size 3 20 x 9
Back Spacing 3 5.5 Inch
Max Tire Size 3 37 x 12.5
Finish Powdercoat
FMVSS Certification Yes
Accommodates Factory Wheels See Notes

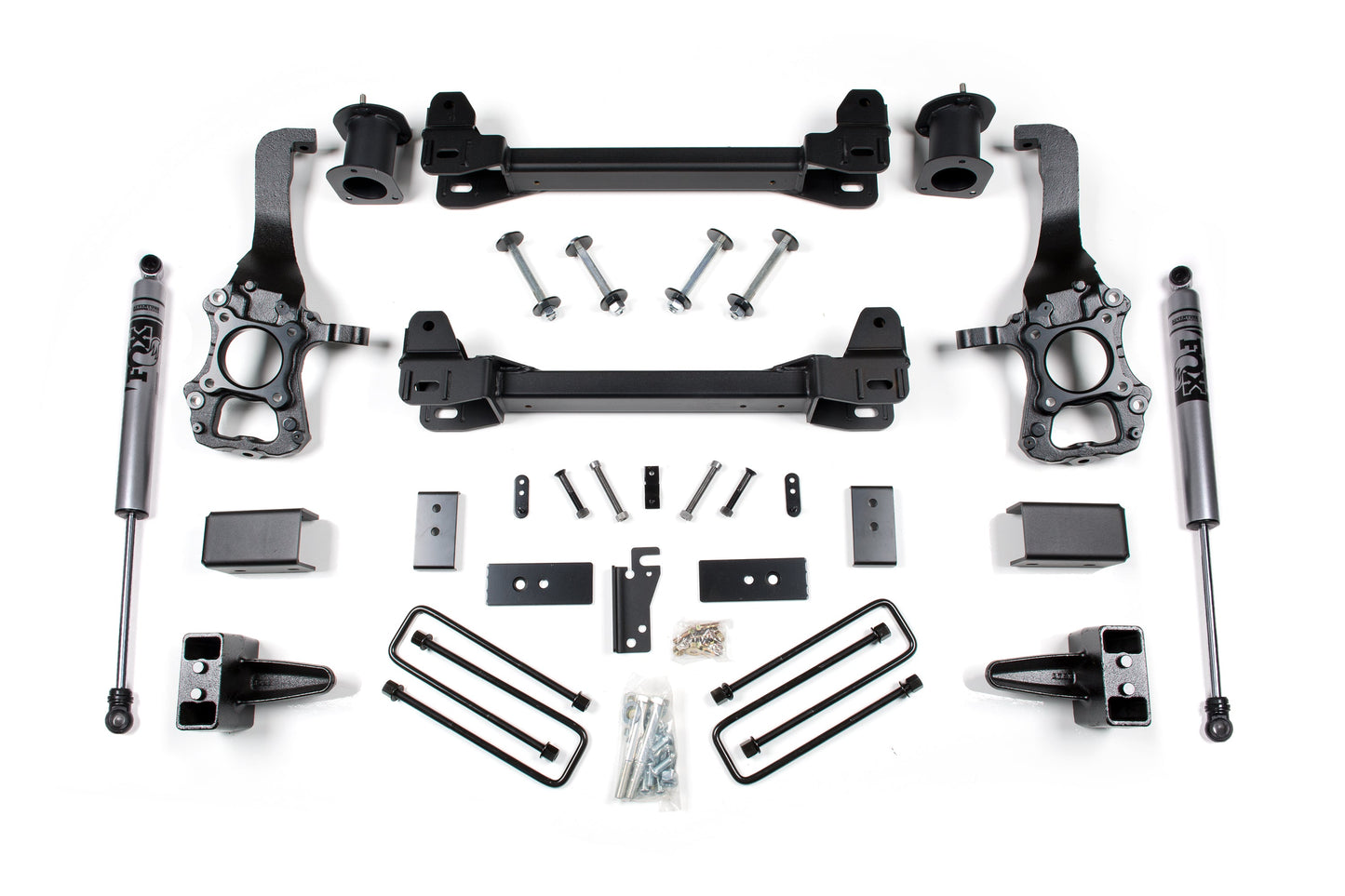

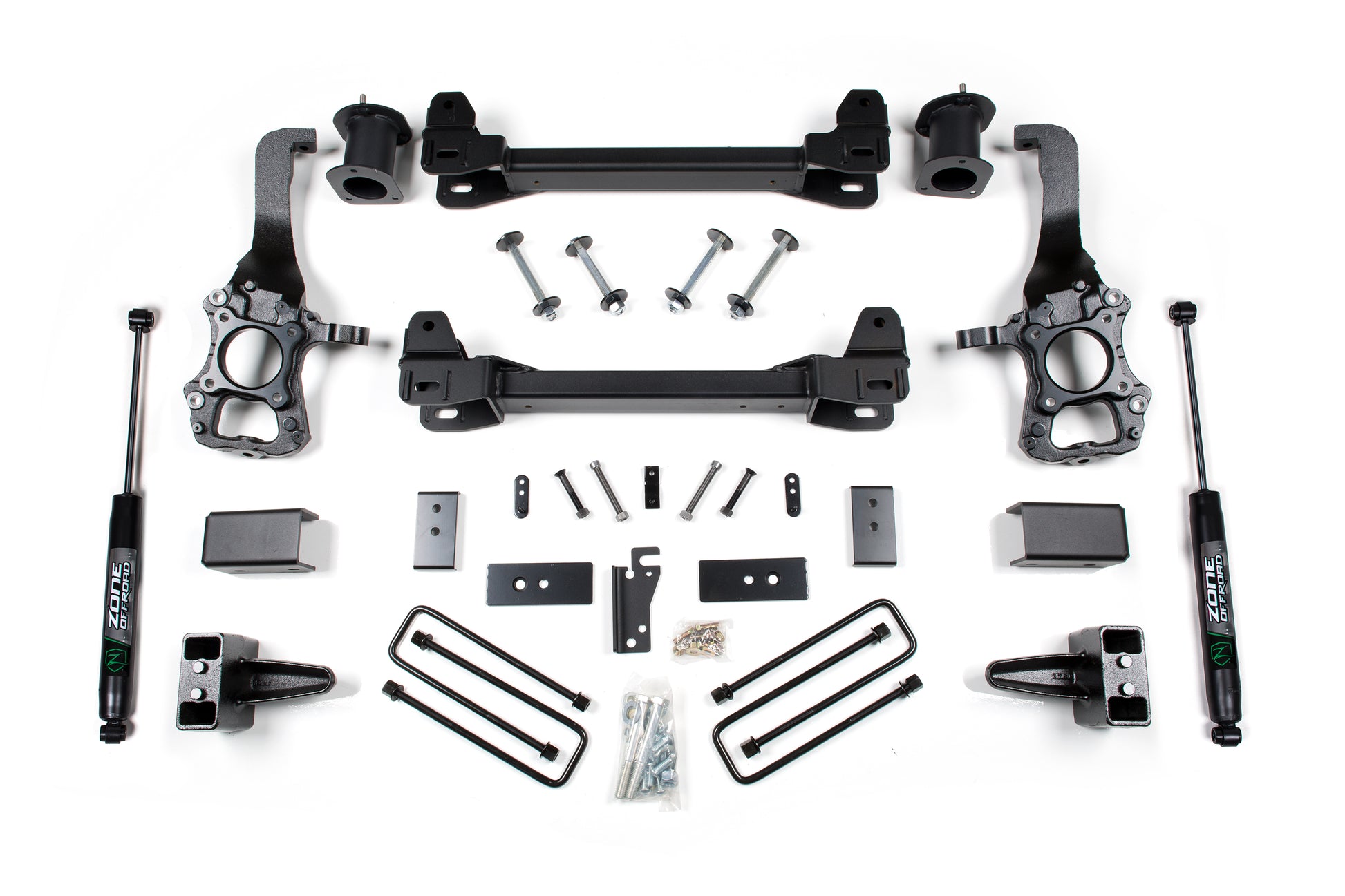

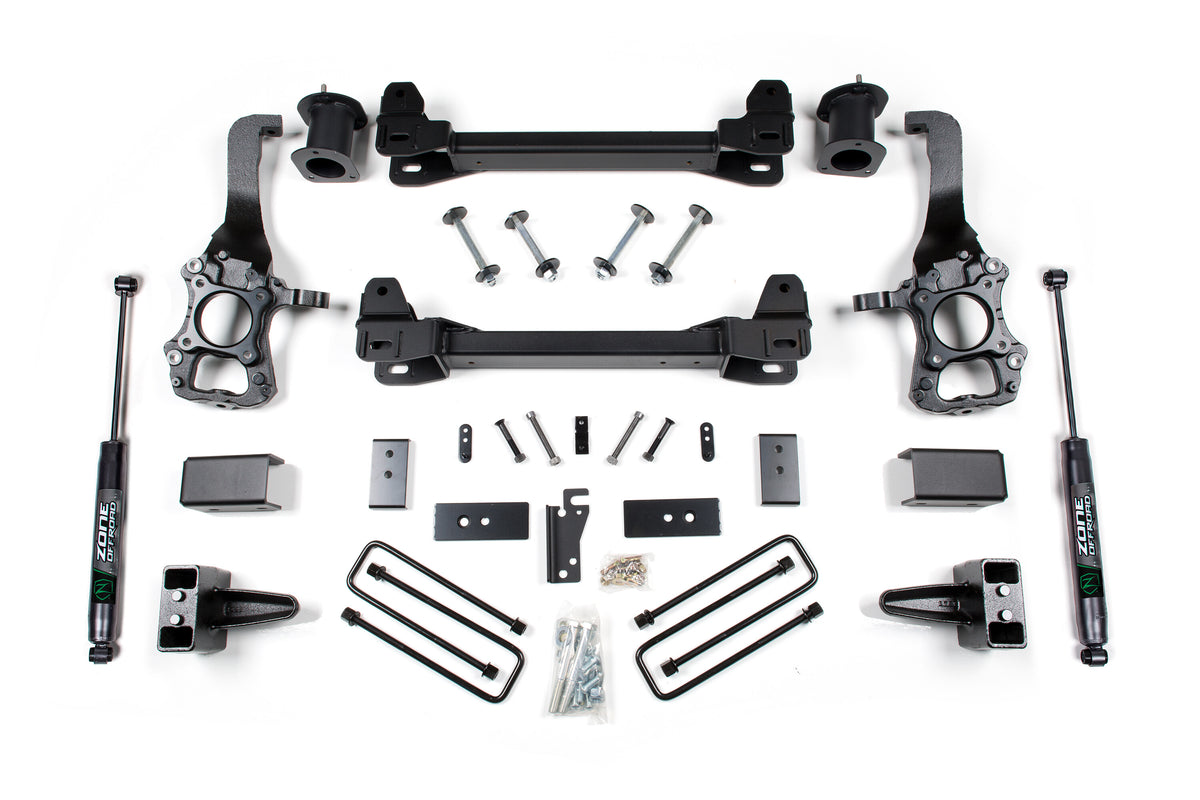

In The Box:
All Necessary Mounting / Installation Hardware
Frame Crossmembers
Rear Lift Block & U-Bolt Kit
Steering Knuckles
Strut Spacers
Features:
High strength crossmembers to correct lower control arm positioning
Ductile iron steering knuckles to corect steering geometry and maintain ESC system compatibility
Top mounted strut spacers to provide lift and install easily
Crossmember supports add rigidity and offroad protection
Rear lift blocks and u-bolts to lift and level the stance
Sway bar, brake line and bump stop relocation brackets to correct operating angles
Kit Components:
ZON7763 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595798
ZONF2614 09-14 Ford F150 2WD 6 Inch Kit 1 711745599598
ZONF2615 09-14 Ford F150 6 Inch Front Box Kit (1of4) 1 711745599604
ZONF2616 09-14 Ford F150 6 Inch Front Box Kit (2of4) 1 711745599611
ZONF2619 09-14 Ford F150 5.0 Inch Rear Block Kit 1 711745599628
