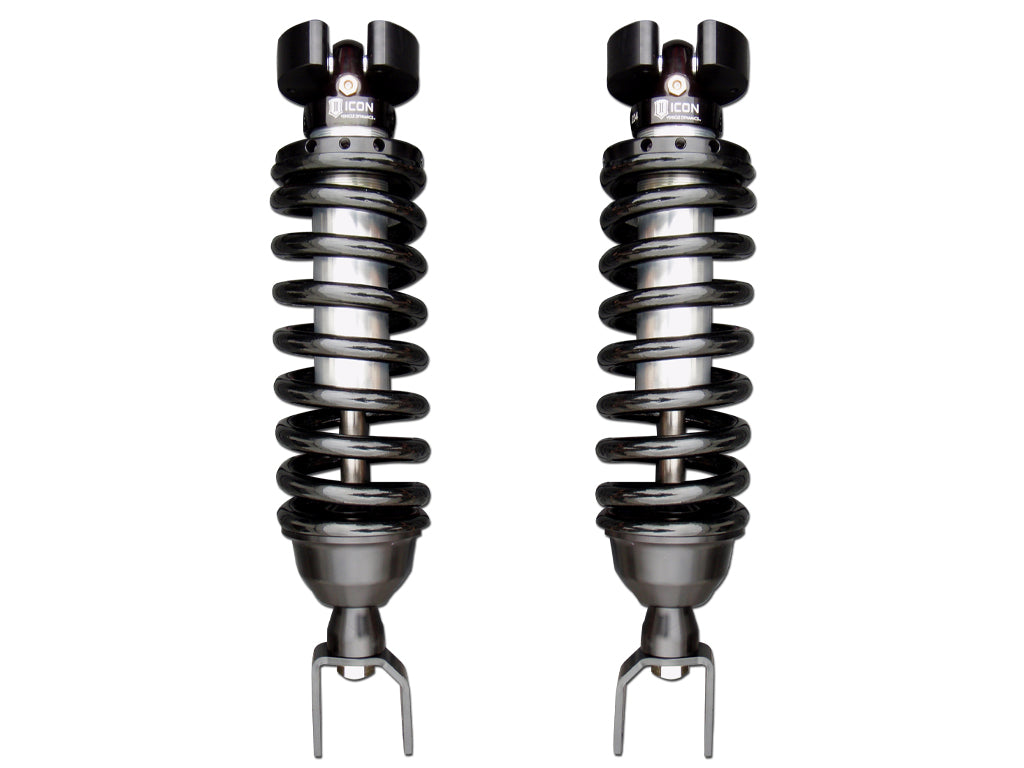

2009-2018 RAM 1500 4WD W/ BDS 4.5 Inch Lift Front V.S. 2.5 Series Coilover Kit Internal Reservoir ICON Vehicle Dynamics

2009-2018 RAM 1500 4WD W/ BDS 4.5 Inch Lift Front V.S. 2.5 Series Coilover Kit Internal Reservoir Icon Vehicle Dynamics.

Details

• Material: Steel
• Active Or Passive Suspension: Passive
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Adjustable Ride Height: Yes
• Assembled: Yes
• Body Diameter: 2.5 Inch
• Coil Over Springs Included: Yes
• Compressed Length: 19.59
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Cylinder Material: Steel
• Damping Type: Oil
• Dust Shield Included: No
• Extended Length: 25.32
• Front Spring Rate: 650 Inch
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: Clevis
• Remote Reservoir: No
• Reservoir Style: Internal
• Self Leveling: No
• Service Parts: 252001 - 2.5 Fixed Spanner Wrench, 252003 - Seal Install Tool 2.5/3.0, 254100G - 1 Gallon Icon Performance Shock Oil, 611019 - Coilover Hardware Kit Pair, 252004 - Economy Needle Charging Tool, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252010 - 2.5 Ifp Rebuild Kit, 257339 - 7/8 Shaft 13.25 Oal, 9.00 Travel
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center Of Clevis Holes
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear
• Travel Length: 5.73
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive
• Add On Part: 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit
