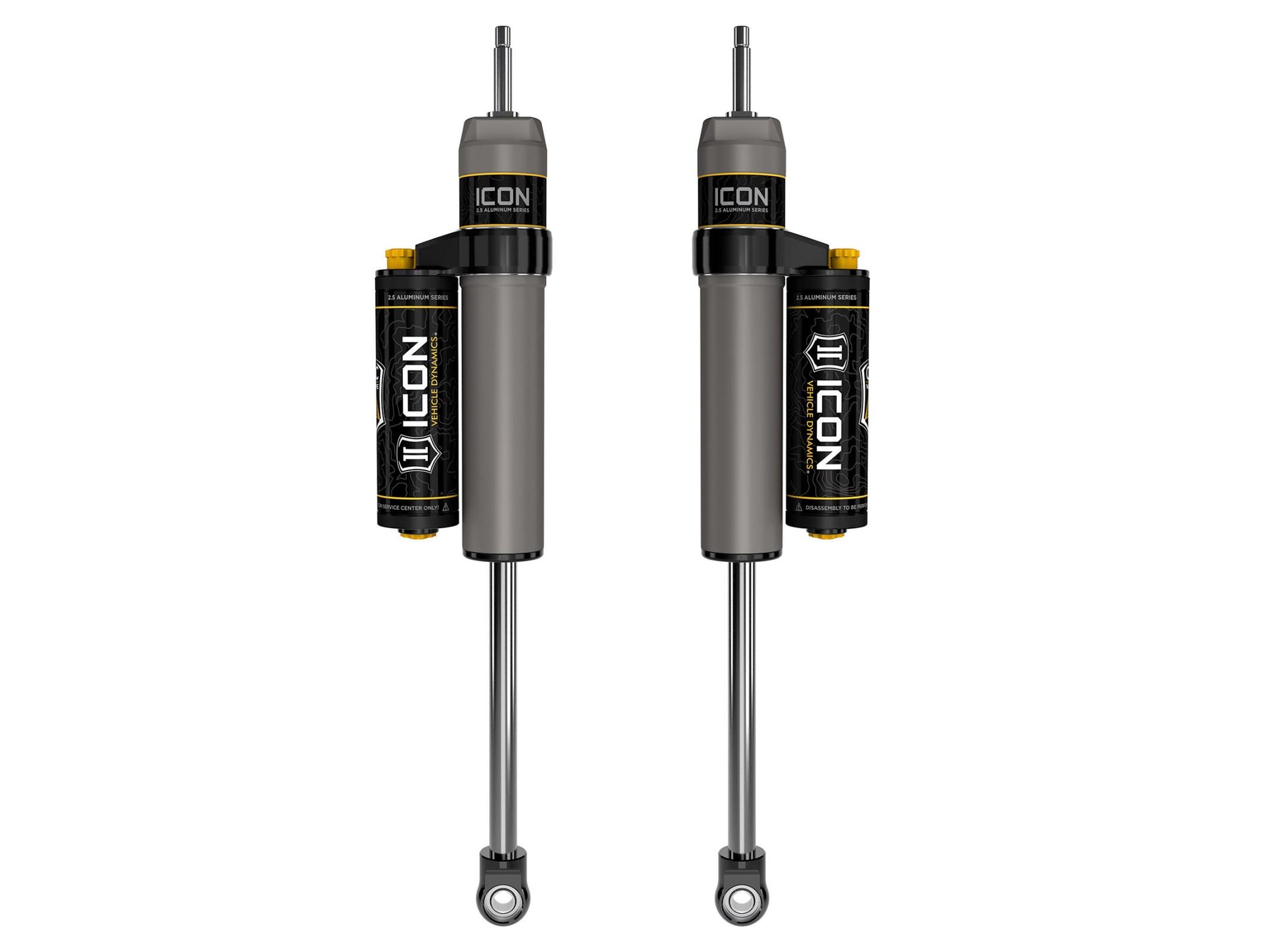

2005-2025 Ford F-250/F-350 Super Duty 4WD 7 Inch Lift Front V.S. 2.5 Aluminum Series Shock Absorbers Piggyback Reservoir W/ CDCV Pair ICON Vehicle Dynamics

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.

Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force.

This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

Features and Benefits:

• ICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compression
• Nitrogen charged monotube design with piggyback reservoir
• 6061 aircraft grade aluminum CNC machined components
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8 Inch diameter induction hardened, chrome plated shock shaft
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• PTFE lined spherical bearings and application specific mounting hardware
• 100 Percent Rebuildable
• 100 Percent Revalveable

Details

• Active Or Passive Suspension: Passive
• Adjustable: Yes
• Adjustable Compression: Yes
• Adjustable Damping: Yes
• Adjustable Rebound: No
• Boot Included: No
• Bore Diameter: 2.25
• Cylinder Color: Gray
• Cylinder Diameter: 2.5
• Cylinder Material: Aluminum
• Damping Adjustment Type: Manual
• Damping Type: Oil
• External Reservoir: Yes
• Gas Charged: Yes
• Grade Type: Performance
• Includes Bump Stop: No
• Lower Mount Type: Eyelet
• Mounting Hardware Included: Yes
• Oem Wheels & Tires Fitment: Not Compatible With All Available OE Wheel/Tire Combinations. Aftermarket Wheels With Lower Offset/Less Backspace Recommended.
• Reservoir Type: Piggyback
• Service Parts: 252003 - Seal Install Tool 2.5/3.0, 252001 - 2.5 Fixed Spanner Wrench, 254100G - 1 Gallon Icon Performance Shock Oil, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 191016 - 7.5 Inch Finned Resi Upgrade Kit, 257341S - 7/8 Shaft 15.25 Oal, 11.00 Travel Short
• Shaft Diameter: 0.875
• Shaft Material: Chrome
• Shock Absorber Body End Measuring Point: Shoulder Of Stem
• Shock Absorber Rod End Measuring Point: Center Of Eylet
• Tube Outside Diameter: 2.5
• Upper Mount Type: Stem
• Valving Type: Digressive
