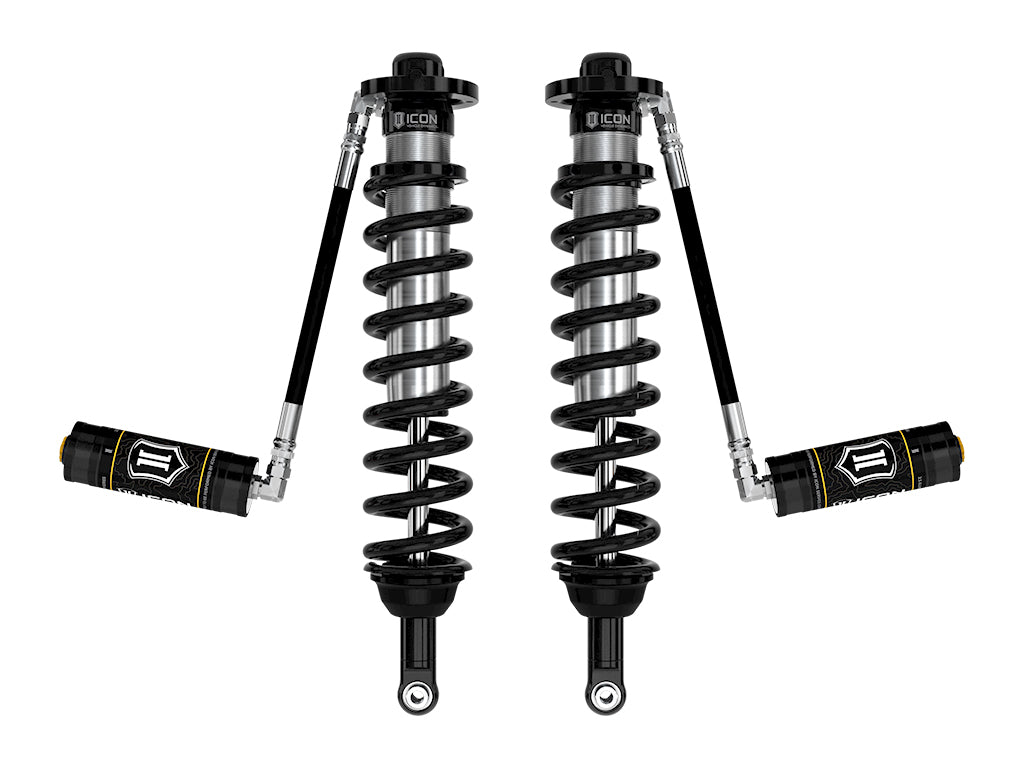

2005-2023 Toyota Tacoma 2003-2024 Toyota 4Runner 2007-2014 Toyota FJ Cruiser 2.5 Vs Remote Reservoir Long Travel Coilover Kit ICON Vehicle Dynamics

The ICON Vehicle Dynamics V.S. Series 2.5 Inch remote reservoir coilover shocks an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma, 2003-2024 4Runner, or 2007-2014 FJ Cruiser equipped with long travel front suspension.

ICON's Vehicle-specific valving and custom, long travel length provide a sport tuned feel on and off-road while offering 0-3.5 Inch of lift height adjustability on most models or 0-2.75 Inch of front lift height adjustment on 2016-2023 Tacomas. ICON's larger 2.5 Inch shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.

Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.

Features and Benefits:

• Vehicle specific tuned for superior shock damping and control
• Custom length for pairing with many common long travel front suspension kits
• Adjustable ride height for customization of vehicle stance
• ICON engineered Eibach Springs
• External reservoirs to attain cooler operating temperatures during extended off-road use
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8 Inch induction hardened, chrome plated shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

Details

• Material: Aluminum, Steel
• Active Or Passive Suspension: Passive
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Adjustable Ride Height: Yes
• Assembled: Yes
• Body Diameter: 2.5 Inch
• Coil Over Springs Included: Yes
• Compressed Length: 17.2
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Cylinder Material: Steel
• Damping Type: Oil
• Dust Shield Included: No
• Extended Length: 24.65
• Front Spring Rate: 600 Inch
• Gas Charged: Yes
• Grade Type: Performance
• Includes Bump Stop: No
• Internal Construction Type: Single Tube
• Lower Mount Type: Eyelet
• Maximum Lift: 3.5 Inch
• Maximum Ride Height Raising Distance: 3.5
• Minimum Lift: 0.0 Inch
• Remote Reservoir: Yes
• Reservoir Style: Remote
• Self Leveling: No
• Service Parts: 254100G - 1 Gallon Icon Performance Shock Oil, 252001 - 2.5 Fixed Spanner Wrench, 611019 - Coilover Hardware Kit Pair, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 611067 - Tacoma/FJ Cruiser 4RNR Lower Co Brg/Spcr Kit, 257304 - 7/8 Shaft 14.75 Oal, 10.50 Travel, 191016 - 7.5 Inch Finned Resi Upgrade Kit, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252003 - Seal Install Tool 2.5/3.0
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center Of Eylet
• Spring Color: Black
• Spring Material: Steel
• Spring Rate: 600.0
• Spring Rate Type: Linear
• Travel Length: 7.46
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive
• Add On Part: 198001 - Billet Spanner Wrench Kit, 252012 - -4 To -10 Hose Shield Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5), 198000 - 2 Pin Coilover Spanner Wrench Kit
