Zone Offroad now offers a suspension lifts for the 2020-21 Ford F30 Super Duty 4WD DRW trucks. These kits are based on the kits for the 2005-2021 Ford Super Duty, updated specifically for use on the DRW models.
These new 4 Inch lift kits are available for gas and diesel applications, as well as offered in standard (radius arm drop bracket) as well as replacement HD radius arm configurations to allow clearance for up to 37 Inch tires.
As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty. Quick Specs:
Front Lift Height 4 Inch
Rear Lift Height 3 Inch
Material Steel
Front Lift Method Coil Springs
Rear Lift Method Block Kit
Lift Type Suspension
Wheel Size 22 x 9
Back Spacing 4.5 Inch
Max Tire Size 37 x 12.5
Wheel Size 2 20 x 9
Back Spacing 2 4.5 Inch
Max Tire Size 2 37 x 12.5
Is Adjustable No
Finish Powdercoat
Cutting Required No
Welding Required No
In The Box:
Coil Springs
Features:
Heavy duty fabricated steel replacement radius arms that correct caster alignment while maximizing ground clearance
Forged pitman arm to correct steering angles
Heavy duty fabricated track bar relocation bracket to re-center front axle
Full length Diesel/ Gas specific coil springs for a smooth ride
Rear lift is specific to dually trucks using U-bolts that are sized correctly for length as well as block height to level the truck and a bump stop extension on the frame.
Kit Components:
ZON7302 2017-2024 F250 Single Stabilizer Zone 1 711745595194

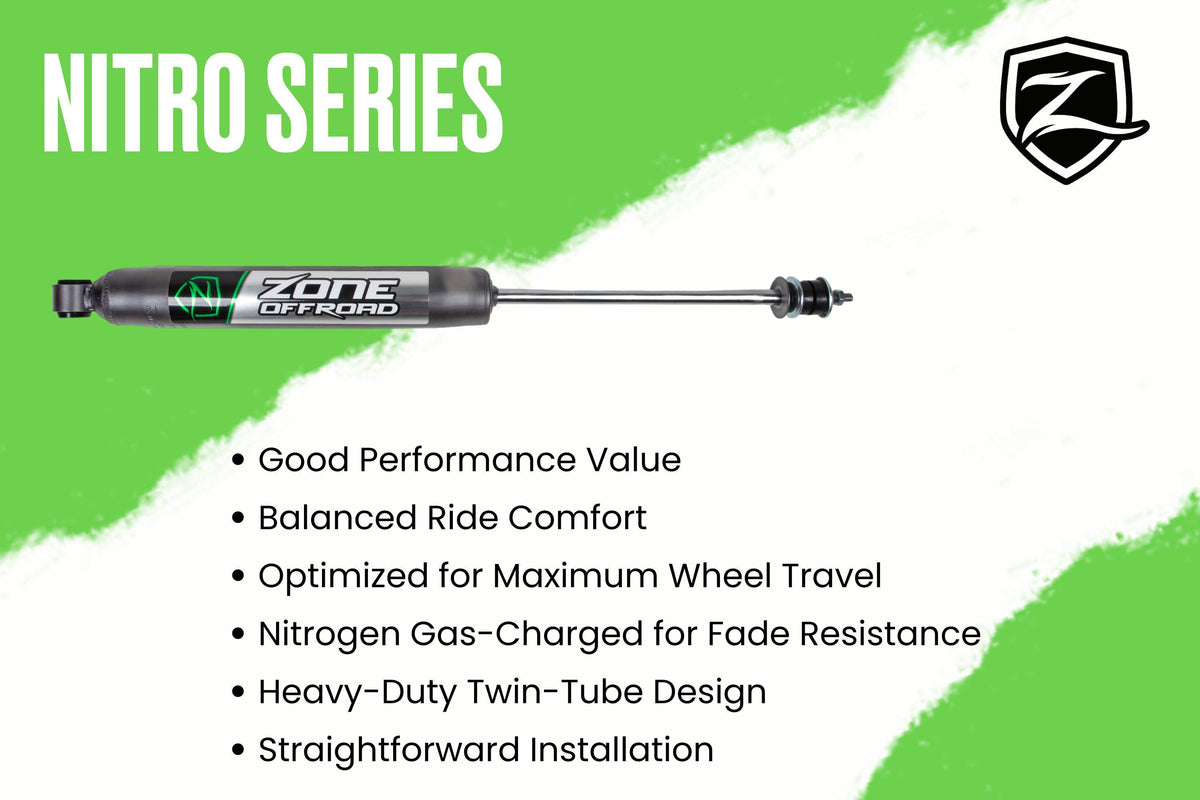

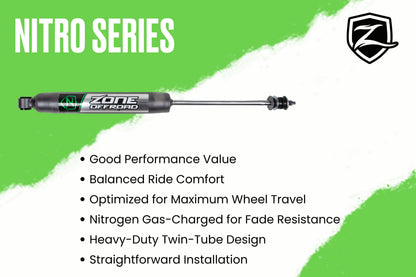

ZON7700 Nitro- 25.20 x 15.20 x 2-3/8 S50/EB2 2 711745595484
ZON7718 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595590
ZONF1307 20-21 Super Duty 3 Inch Rear Box Kit 1 711745602380
ZONF1410 2017-2022 Super Duty 4 Inch Front Box Kit 1 711745599185
ZONF1413 2005-2022 Ford F250/350 4 Inch Front Coil Diesel (One) 2 711745599215
