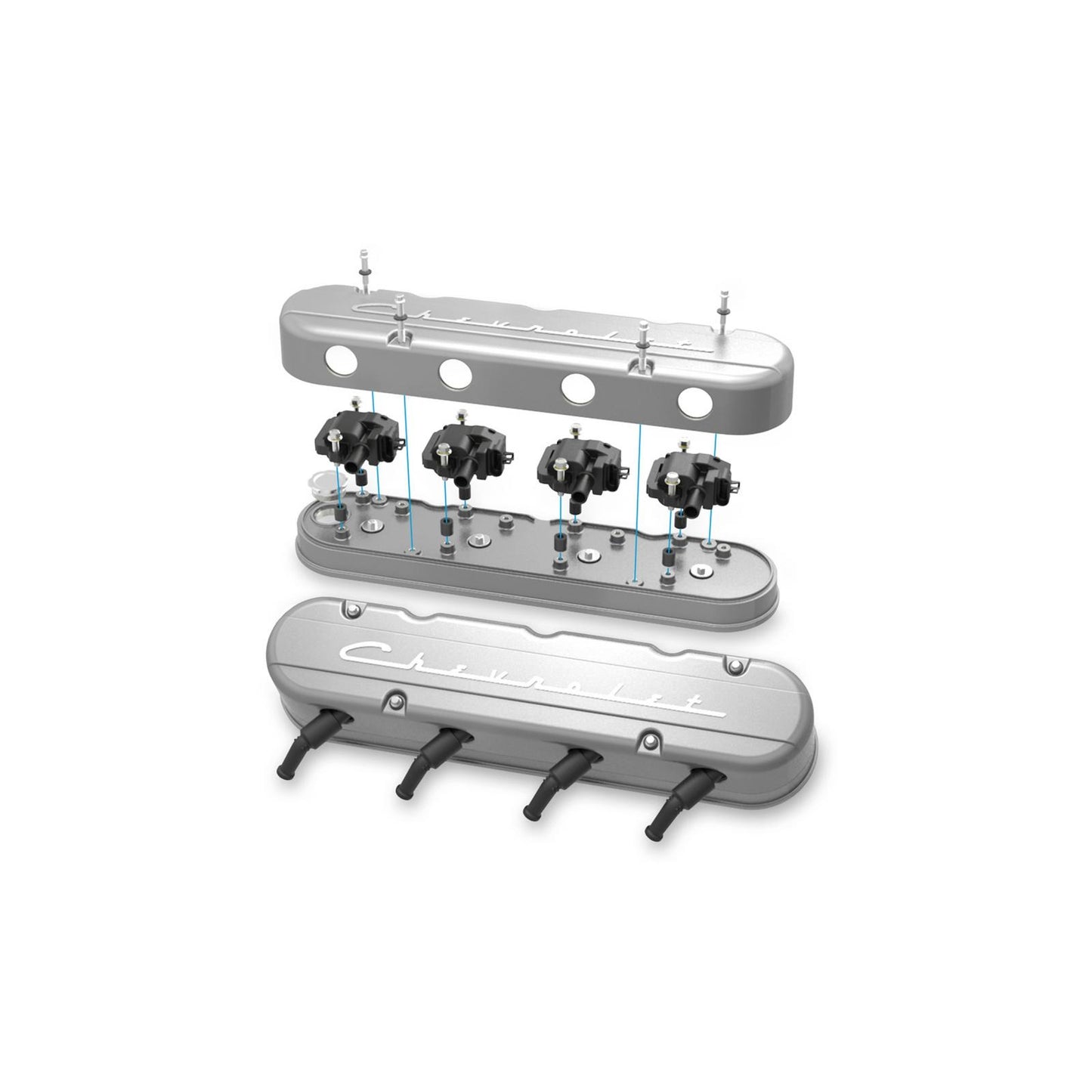

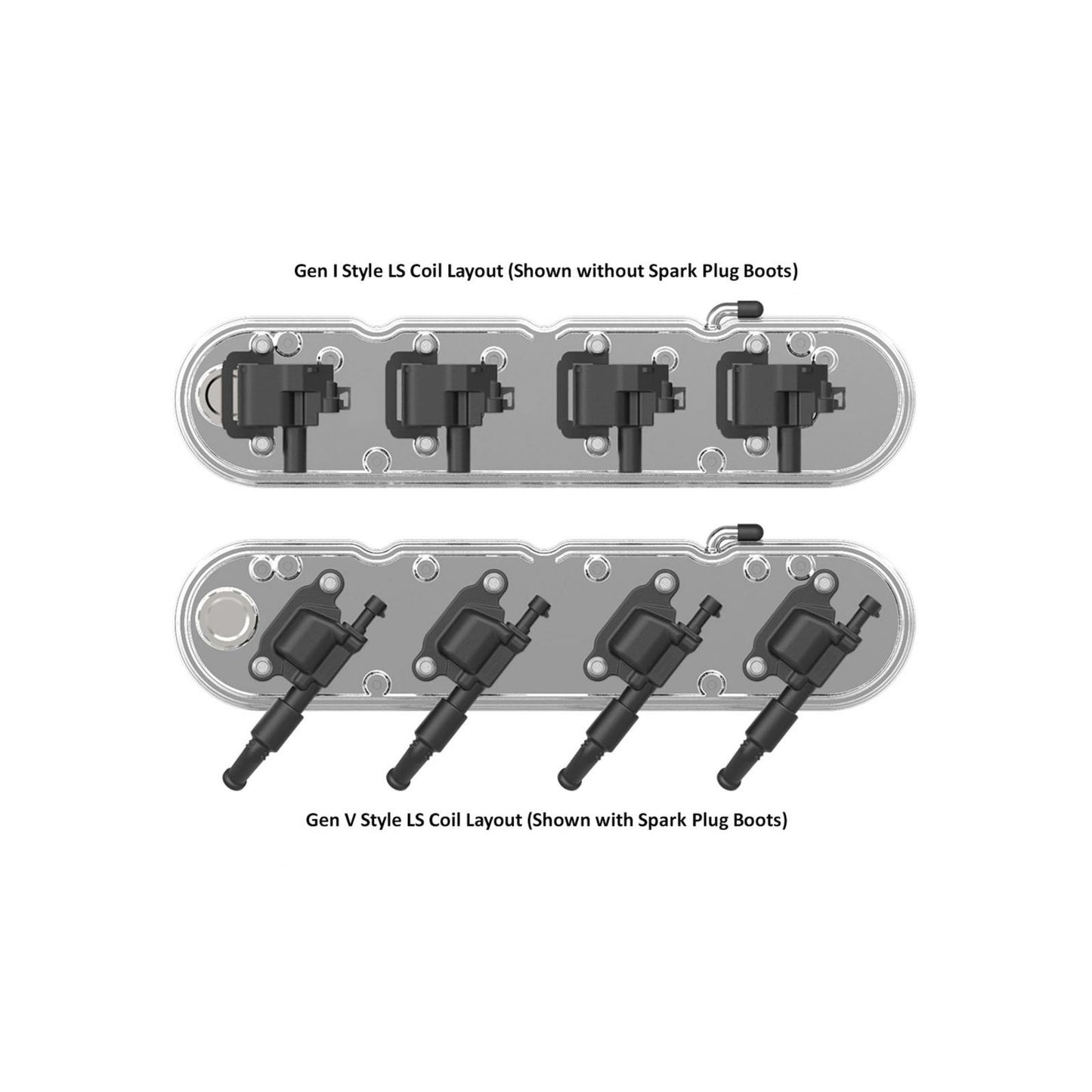

Holley's new 2-Piece Ls valve covers are a great way to update the look of your Ls engine without the use of complicated adapter systems or the hassle of remote coil relocation. These modular Ls valve covers feature an Oe height, internally baffled Ls valve cover base with integrated coil mounts for popular Gen I and Gen V style Ls coil bodies (coils not included), and a Chevrolet branded overcover that hides the unsightly Ls coils and messy wiring harness - allowing the full performance benefits of coil-on-cover ignition setups without the robotic styling.
Each modular coil cover features a prominent vintage Chevrolet logo that matches various other Gm licensed Holley products. The coil cover also features cast-in provisions for the spark plug boots and coil wiring harness so no extensions or custom wiring is required.
Each 2-Piece Ls valve cover set includes a low-profile billet oil fill cap, hardware and spacers for mounting both versions of Ls coil bodies, and 12-point dress up hardware and rubber grommets for the coil covers. These modular Ls valve covers are available in 5 unique finishes: natural cast, polished, satin black, factory orange, and gloss red (black, factory orange and gloss red sets feature machined fins).
Features and Benefits:
Cast aluminum 2-Piece Ls valve covers designed to mount and hide both Gen I and Gen V style Ls coil bodies Retain the performance of factory coil-on-cover ignition without the unsightly styling Coil cover features vintage valve cover styling with a prominent Gm Licensed Chevrolet script logo and cast-in wiring provisions Base fits LS1, LS2, LS3, LS6 and LS7 engines with clearance for .750 inch lift cam with stock style rocker arms Base features internally baffled ventilation system No coil relocation, wire harness extensions, or custom spark plug wires required Includes low-profile billet oil fill cap Includes all necessary coil mounting and dress-up hardware
Associated Comments:
The Oe Camaro and Corvette accessory brackets may need to be clearanced when installing Holley 2-Piece Ls and Tall Ls valve covers and coils.
Details:
Application: Gm Ls Engines
Baffle Included: Yes
Bolt Pattern: Center Bolt
Breather Cap Included: No
Breather(s) Included: No
Coil Mounting Studs: Yes, on Baseplate
Coil Options: with Coil Stands
Color: Gloss Red
Construction: Die Cast Aluminum
Design Type: 2-Piece Ls
Finish: Gloss Red
Gasket Included: No
Gaskets Included: No
Grade Type: Performance
Grommets Included: No
Height: 3.75 Inch
Hold Down Tabs Included: No
Logo: Chevrolet Script
Material: Cast Aluminum
Mounting Hardware Included: Yes
Oil Fill: Yes
Oil Fill Cap Included: Yes
Oil Filler Cap Included: Yes
Overall Height: 3.61 Inch
Quantity: Pair
Style: Chevrolet Script
Type of Component: Valve Cover
Valve Cover Gasket Included: No
Valvetrain Clearance: .750 Inch lift cam with stock style rocker arms
