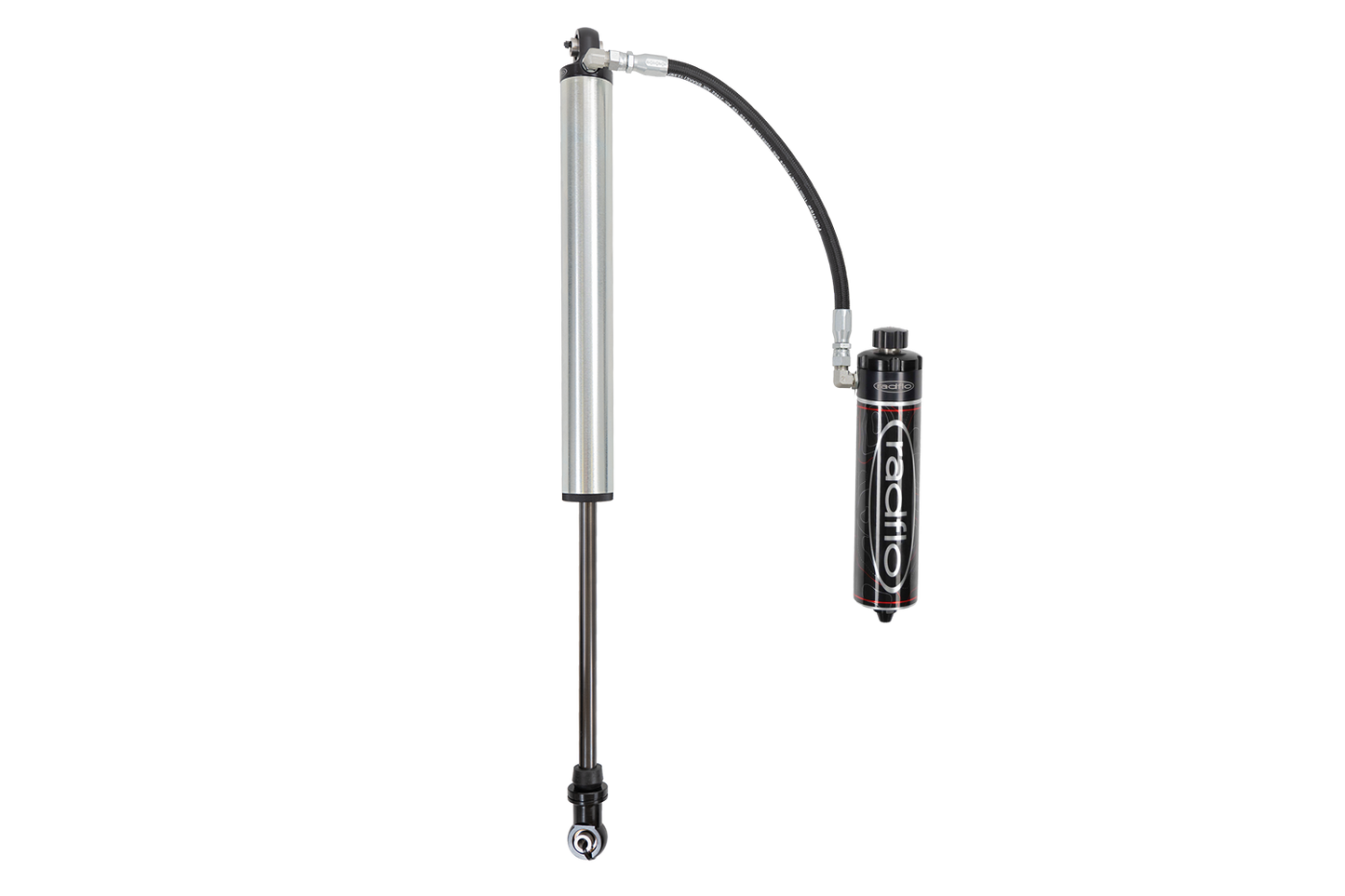

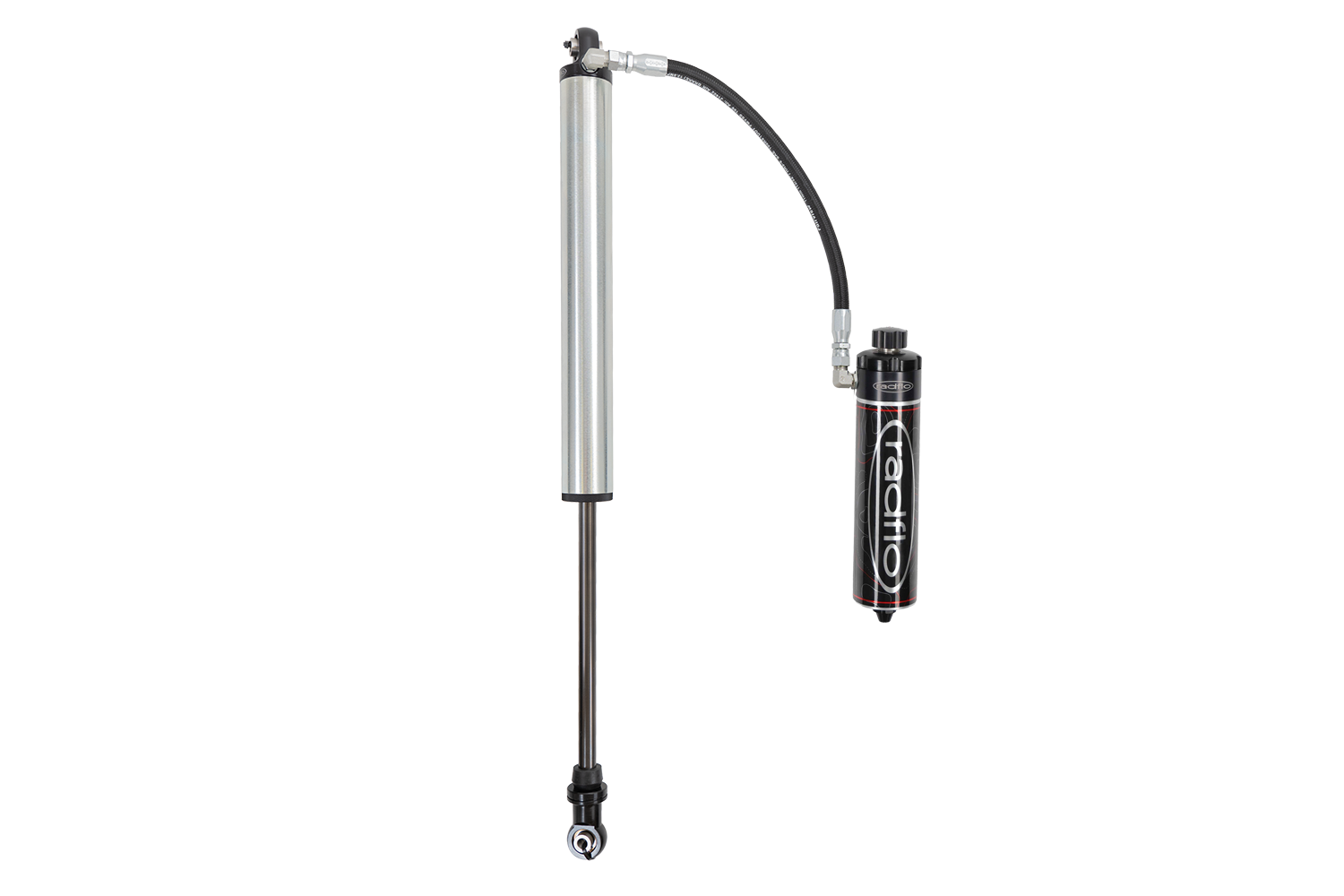

2.5 x 16 Inch Coilover With Dual Adjuster Radflo

The Radflo 2.5 x 16 inch Coilover Shock, Dual-Speed Compression Adjuster is a performance damper for custom coilover suspension systems that carry the coil spring around the damper. It combines a 2.5 inch shock body with 16 inches of shock travel.

Separate high-speed and low-speed compression adjustment lets the user refine support for different suspension events without opening the shock. Radflo can configure valving around the vehicle weight, suspension geometry, terrain, speed, and intended use when complete build information is supplied.

Fitment Notes:

• This product is selected by dimensions, not vehicle name alone. Confirm compressed length, extended length, upper and lower mount types, mounting widths, bolt sizes, reservoir placement, hose clearance, and chassis clearance before ordering. Also confirm spring inside diameter, free length, rate, hardware, and available preload range.

Features:

• Shock body: 2.5 inch
• Travel: 16 inch
• Configuration: Coilover
• Damping hardware: Dual-Speed Compression Adjuster

Details:

• Diameter: 2.5 Inch
• Shock Type: Dual Comp. Adjuster
• Shock Style: Coilover
• Size: 2.5 Inch
• Extended Length: 42.52 Inch
• Collapsed Length: 26.54 Inch
• Bearings: CNC Machined 6061 Aluminum Black Anodized
• Body Cap Eyelets: Anodized
• Body Cap Material: 6061 Aluminum
• Body Material: SSID Alloy Steel Tube
• Oil: Radflo High-Temp Foam Resistant Suspension Fluid
• Piston: Radflo Aluminum Freeflo Piston
• Piston Material: Aluminum
• Pressurization: Nitrogen Gas
• Rod Finish: Mirror Polished Chrome Plated
• Rod Guide: PTFE Coating CNC Machined Bronze
• Rod Guide Finish: PTFE Coating
• Rod Guide Material: Machined Bronze
• Rod Material: Machined Bronze
• Seal: Rebuildable Combination Quad Ring And Lip Seal
• Service: Consumer or Factory Serviceable
• Travel Length: Consumer Or Factory Tunable
• Valving: Velocity-Sensitive Deflective Disc, Self-Adjusting
• Warranty: 1 Year Limited Warranty
