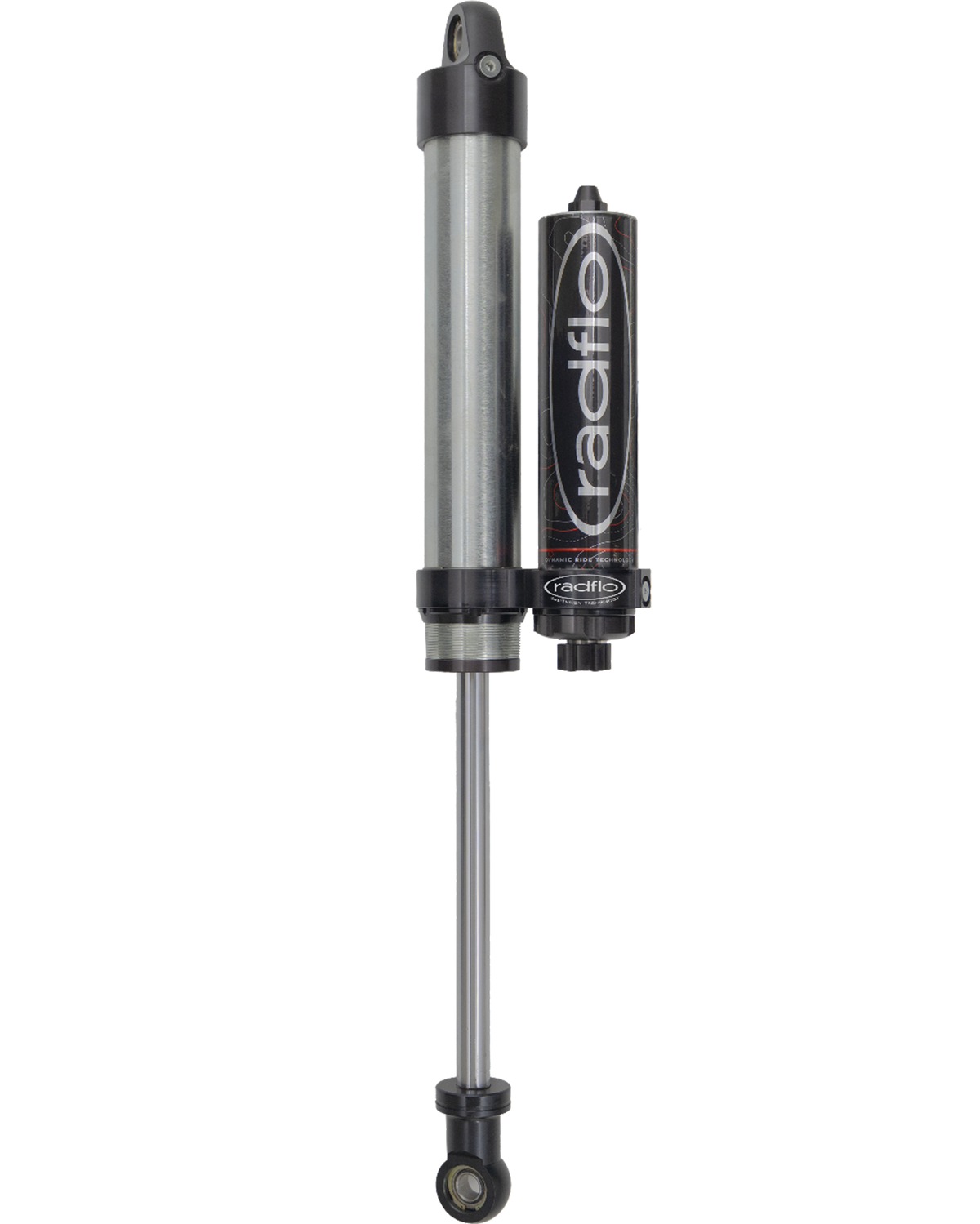

2.5 Inch DRT Internal Bypass Rear Ineos Grenadier 24-26 with Adjuster Black/Silver Radflo

Your Grenadier is built to explore. Give it suspension that feels composed on the way there and stays controlled when the trail gets demanding. Radflo's 2.5-inch DRT Internal Bypass shocks combine custom valving, external compression adjustment and position-sensitive damping to balance everyday comfort with serious off-road capability.

Support That Builds Through The Travel
Dynamic Ride Technology responds to both shock shaft speed and piston position. Around ride height, internal bypass channels let oil flow more freely, helping absorb small bumps, washboard chatter and sharp trail edges. As the suspension compresses farther, damping builds progressively to support larger impacts and resist harsh bottoming.

Features and Benefits:

• External compression adjustment: Refine compression damping as terrain and driving conditions change.
• Reservoir performance: Additional oil capacity helps manage heat during extended off-road use.
• Tuned for your vehicle: Main-piston and internal-bypass valving can be matched to vehicle weight, spring setup and intended terrain.
• Rebuildable and revalvable: Service and retune your shocks as your vehicle and needs evolve.

Details:

• Fits: 2024-2026 INEOS Grenadier
• Series: 600R Pro
• Finish: Polished Clear Cadmium Plating
• Warranty: 1 Year Limited Warranty
• Color: Black/Silver
• Position: Rear
• Shock Style: Smooth Body
• Shock Type: Compression Adjuster
• Adjust Type: Self-Adjusting
• Bearing Size: OE Determined
• Body Cap Eyelets: CNC Machined 6061 Aluminum Black Anodized
• Body Cap Finish: Anodized
• Body Cap Material: 6061 Aluminum
• Body Material: SSID Alloy Steel
• Body Style: SSID Alloy Steel Tube
• Diameter: 2.5 Inch
• Lift Height: 2.0 Inch
• Mount: OE Location And Hardware
• Oil: Radflo High-Temp Foam Resistant Suspension Fluid
• Piston: Radflo Aluminum Freeflo Piston
• Piston Material: Aluminum
• Pressurization: Nitrogen Gas
• Reservoir Type: Remote Reservoir
• Rod: Steel
• Rod Finish: Mirror Polished Chrome Plated
• Rod Guide: PTFE Coating CNC Machined Bronze
• Rod Guide Finish: PTFE Coating
• Rod Material: Machined Bronze
• Seal: Rebuildable Combination Quad Ring And Lip Seal
• Service: Consumer or factory serviceable
• Style: OE Replacement
• Tuning: Consumer Or Factory Tunable
• Valving: Velocity-Sensitive Deflective Disc, Self-Adjusting
• PSI: 250 psi
