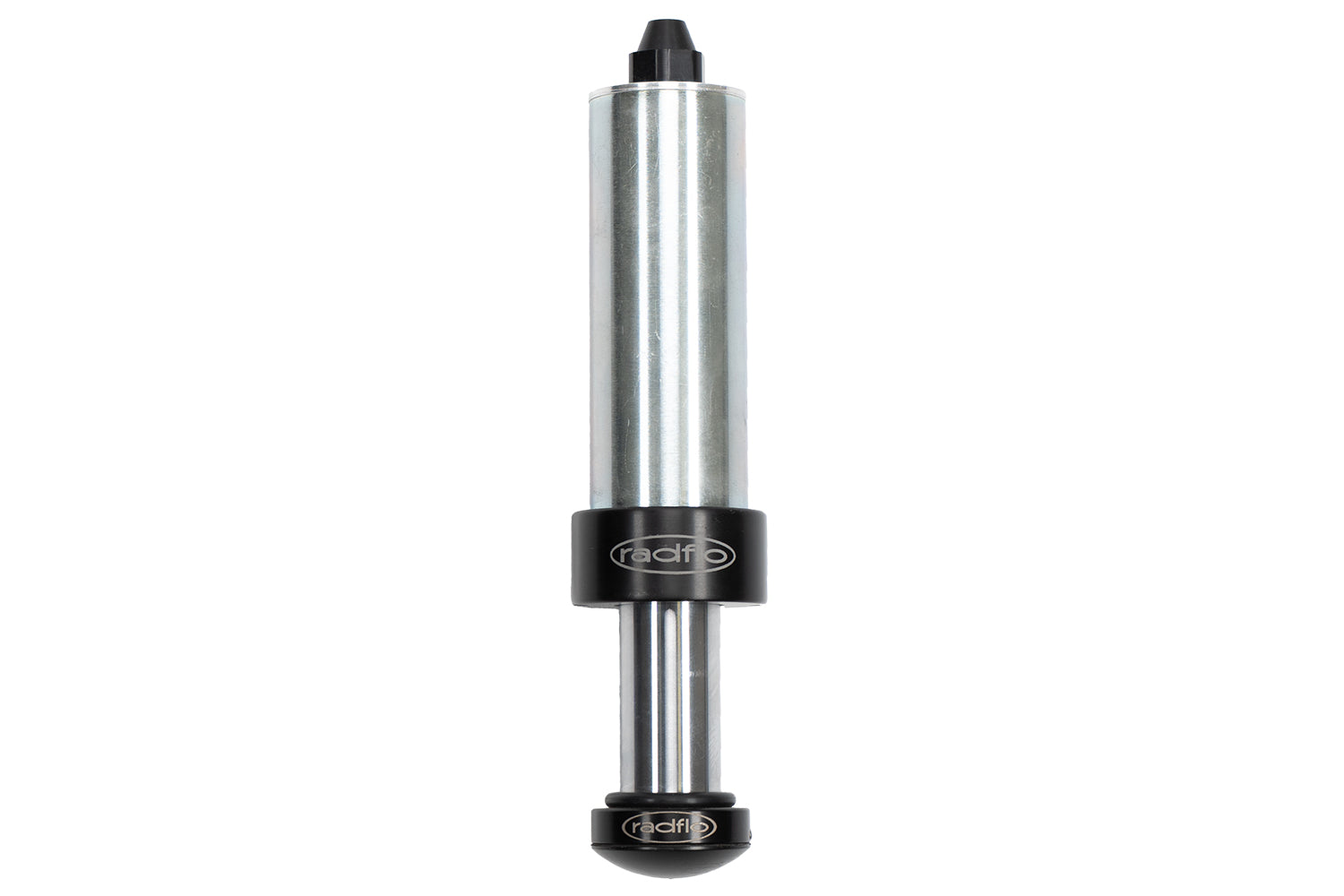

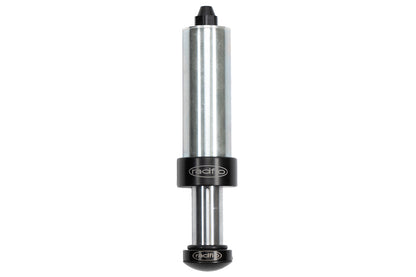

2.0 Inch Hydraulic Pinch Mount Bump Stop Radflo

This Bump Stop is built to help you get a clean, dependable install and consistent performance where it matters.

Our hydraulic bump stops are the perfect solution for vehicles that experience suspension bottoming at high speeds or when heavily laden. As the suspension reaches maximum compression, this secondary shock progressively increases damping resistance for maximum impact control.

As a result, the vehicle and occupants are protected from high stress lo'ds. Protects vehicle and driver from high stress lo'ds caused by severe suspension impacts.

Radflo bump stops are engaged during the last few inches of compression travel to help cushion heavy impacts. When used correctly, they can significantly reduce dangerous stress lo'ds that could otherwise harm the vehicle and driver.

Features and Benefits:

• Built for reliable use as a bump stop option
• Designed for a clean, service-friendly installation
• Helps support consistent performance over time

Details:

• Adjust Type: Self-Adjusting
• Travel Length: 4.0 Inch
• Body Cap Finish: Anodized
• Body Cap Material: 6061 Aluminum
• Body Material: SSID Alloy Steel
• Body Style: SSID Alloy Steel Tube
• Color: Black
• Diameter: 2.0 Inch
• Finish: Polished Clear Cadmium Plating
• Location: Front/Rear
• Mount: Pinch Mount Can
• Oil: Radflo High-Temp Foam Resistant Suspension Fluid
• Piston: Radflo Freeflo Racing Piston
• Piston Material: Aluminum
• Pressurization: Nitrogen Gas
• PSI: 200 psi
• Reservoir Type: Emulsion
• Rod: Steel
• Rod Finish: Mirror Polished Chrome Plated
• Rod Guide Finish: PTFE Coating
• Rod Guide Material: Machined Bronze
• Rod Material: Machined Bronze
• Seal: Rebuildable Combination Quad Ring And Lip Seal
• Service: Consumer or factory serviceable
• Shaft Diameter: 1.25 Inch
• Shock Type: Bump Stop
• Style: Universal
• Tuning: Consumer Or Factory Tunable
• Warranty: 1 Year Limited Warranty
• Country of Origin: USA
