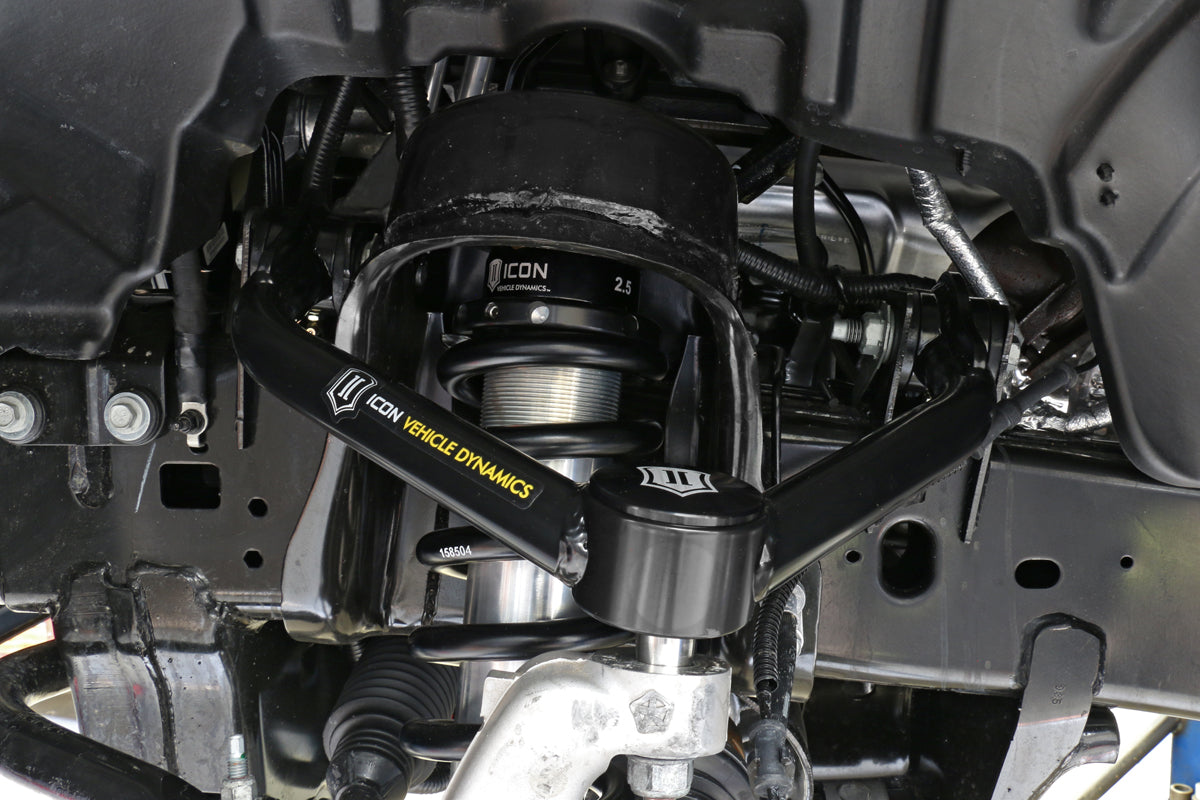

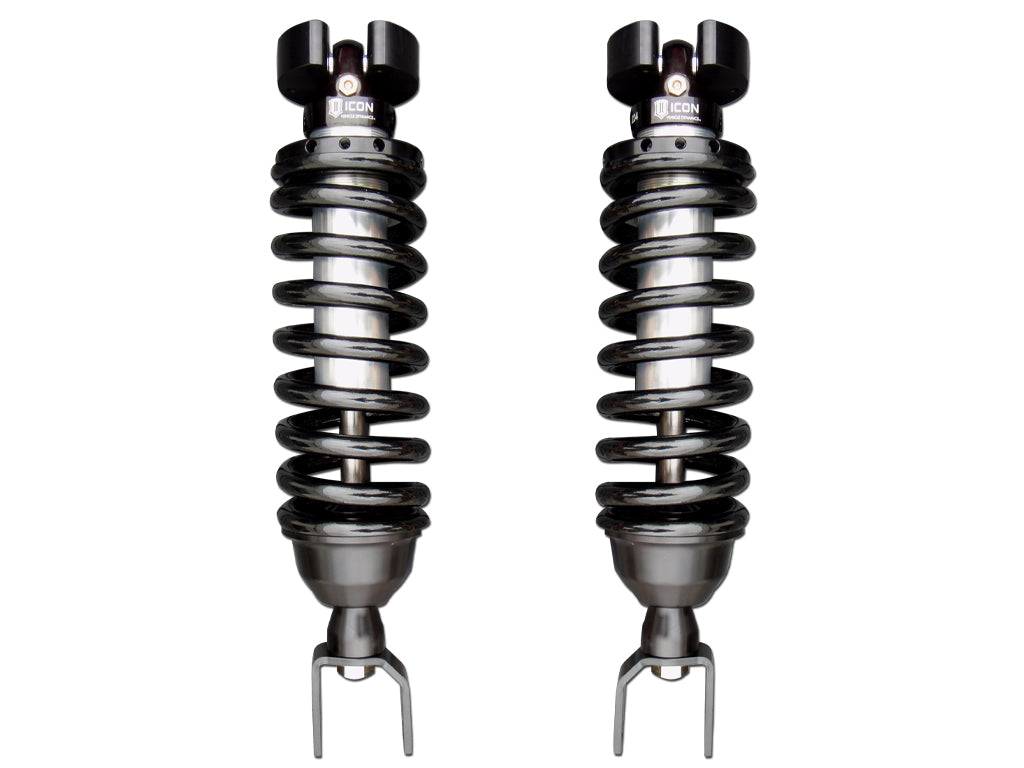

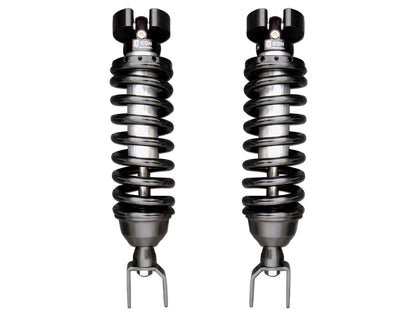

19-Up RAM 1500 2/4Wd 09-18 RAM 1500 4Wd 2.5 VS IR Coilover Kit ICON Vehicle Dynamics

ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.

Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100 Percent rebuildable and 100 Percent revalveable.

Features and Benefits:

• Adjustable coilovers yield .75-2.5 Inch of front lift height on '09-'18 models or 0-1.5 Inch of lift on '19-Up models
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• Superior low speed control reduces body roll and increases on-road stability
• High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
• Corrosion resistant CAD plated shock body with 7/8 Inch shaft
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Bolt-in design makes for an easy install into OEM shock location

Details

• Material: Aluminum, Steel
• Active Or Passive Suspension: Passive
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Adjustable Ride Height: Yes
• Assembled: Yes
• Body Diameter: 2.5 Inch
• Coil Over Springs Included: Yes
• Compressed Length: 17.17
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Cylinder Material: Steel
• Damping Type: Oil
• Dust Shield Included: No
• Extended Length: 22.51
• Front Spring Rate: 650 Inch
• Gas Charged: Yes
• Grade Type: Performance
• Includes Bump Stop: Yes
• Internal Construction Type: Single Tube
• Lower Mount Type: Clevis
• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
• Recommended Aftermarket Wheels: (2019-Up Models) Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, (2009-Up Models) Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, (2009-Up Models) Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset, (2019-Up Models) Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset, (2009-Up Models) Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset
• Remote Reservoir: No
• Reservoir Style: Internal
• Self Leveling: No
• Service Parts: 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 254100G - 1 Gallon Icon Performance Shock Oil, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252003 - Seal Install Tool 2.5/3.0, 252001 - 2.5 Fixed Spanner Wrench, 611019 - Coilover Hardware Kit Pair, 257301 - 7/8 Shaft 10.25 Oal, 6.00 Travel, 252004 - Economy Needle Charging Tool
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center Of Clevis Holes
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear
• Travel Length: 5.34
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive
• Add On Part: 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit
