Take your Chevy Trail Boss / GMC AT4 to new heights with this 4 Inch lift kit from Zone Offroad. This kit nets 4 Inch over stock, so due to the 2 Inch factory lift will sit similar to a standard truck with 6 Inch of lift.
Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers, upper control arms and differential relocation brackets to maintain driveline angles.
Get the look, performance, and capability your truck deserves with clearance for up to 37 tires. Quick Specs:
Front Lift Height 4 Inch
Rear Lift Height 3 Inch
Material Steel Plate
Front Lift Method Knuckle & Strut Spacer
Rear Lift Method Block Kit
Lift Type Lift Kit
Wheel Size See Notes
Back Spacing See Notes
Max Tire Size See Notes
Is Adjustable No
Finish Powdercoat
Cutting Required Yes
Accommodates Factory Wheels See Notes
Welding Required No

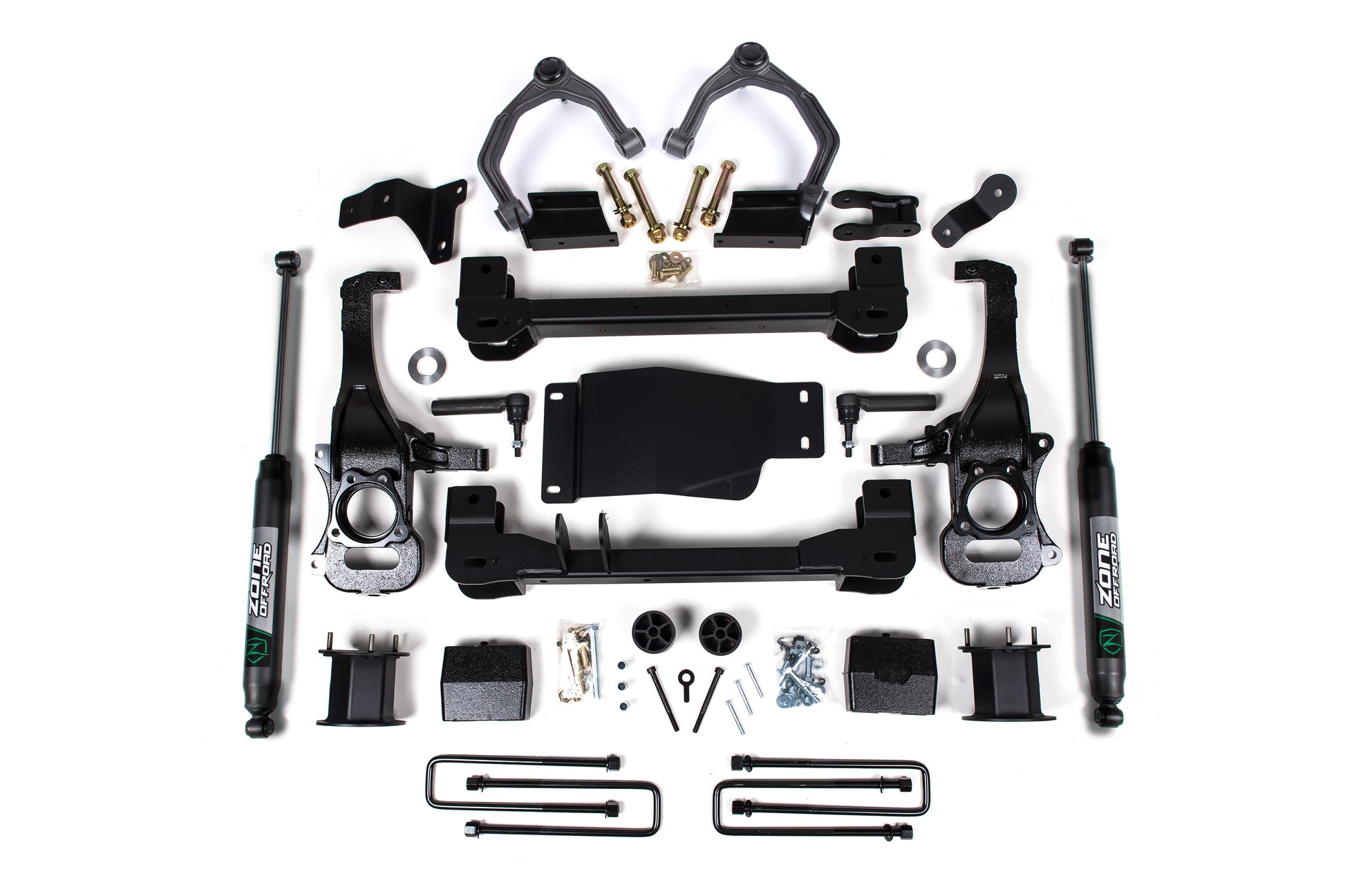

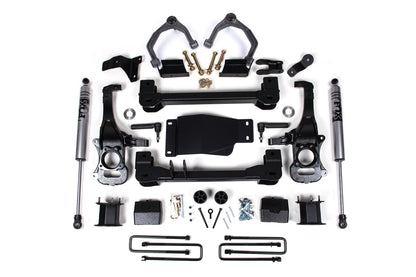

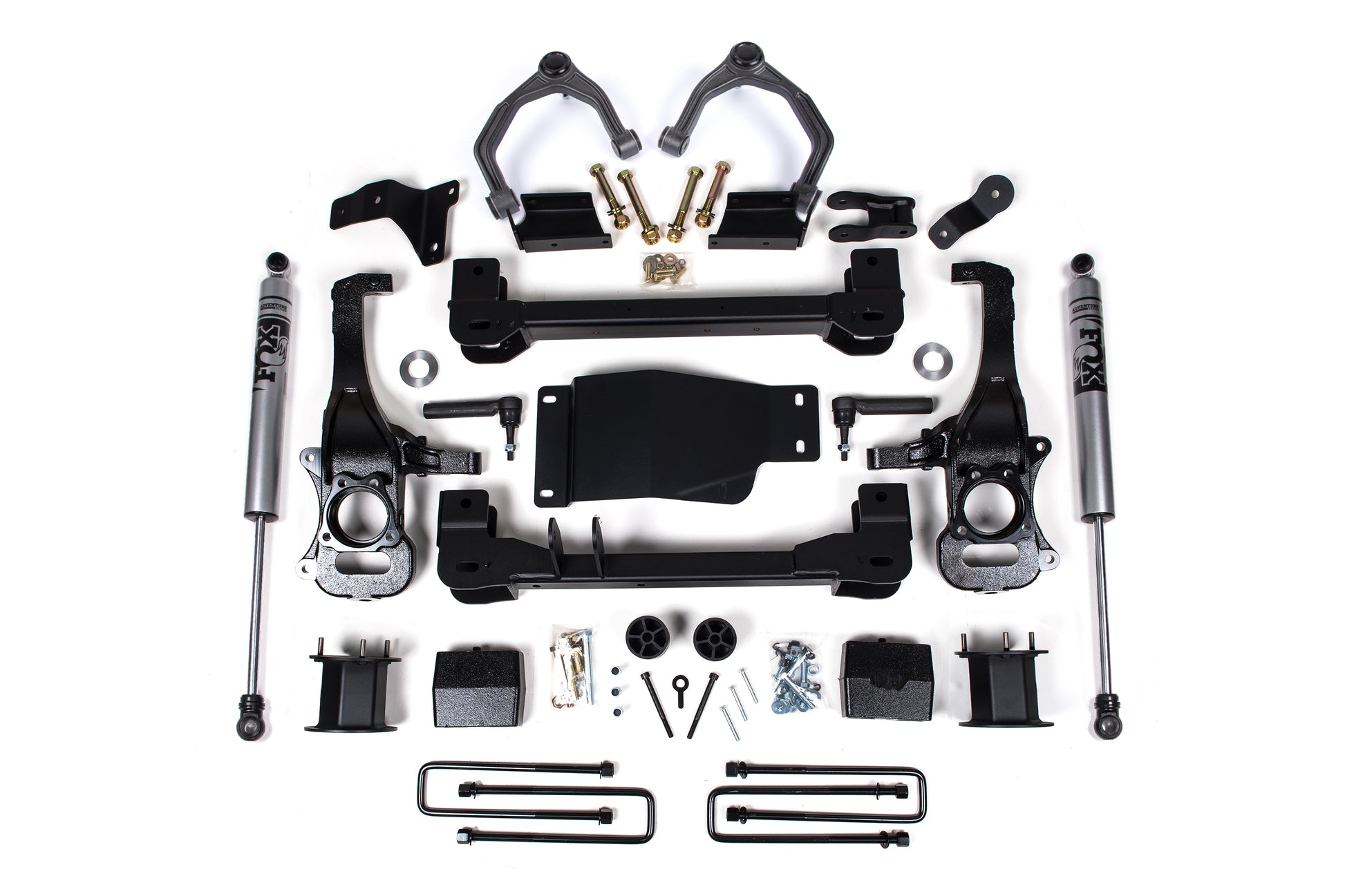

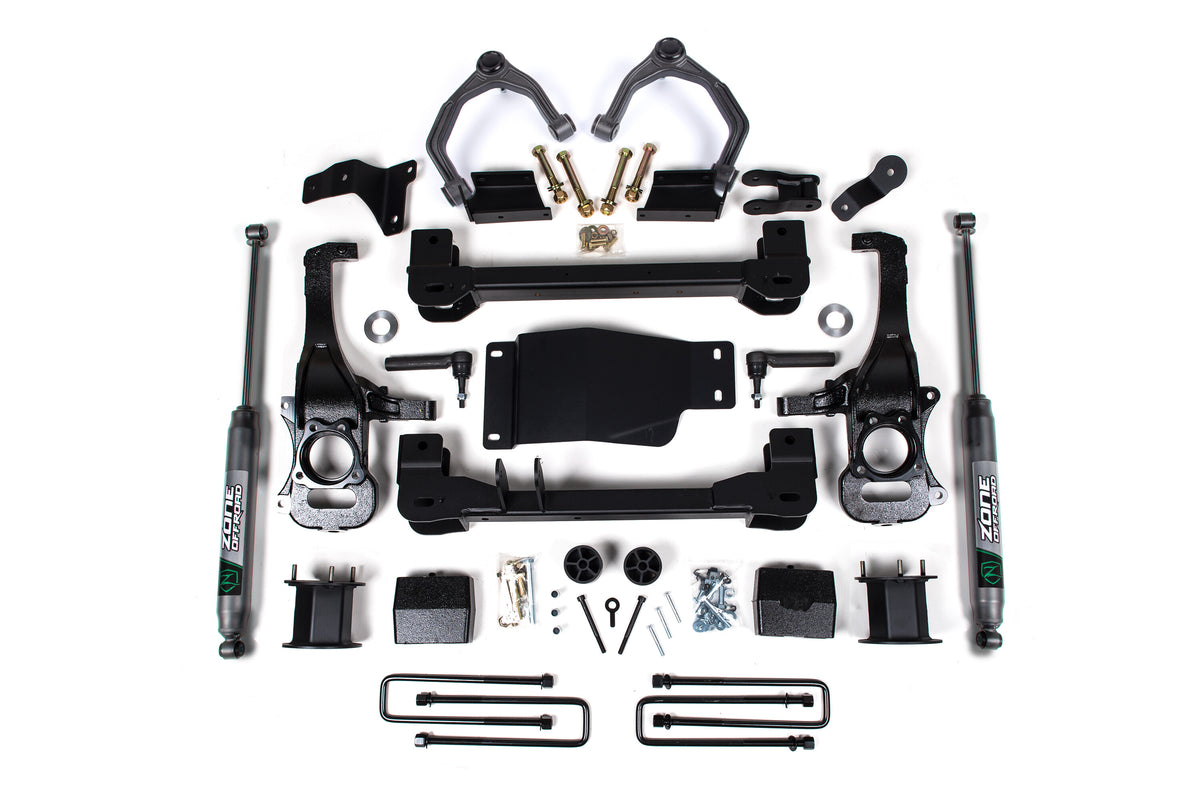

In The Box:
Differential Relocation Brackets
Frame Crossmembers - Front and Rear
Rear Lift Block & U-Bolt Kit
Skid Plate
Steering Knuckles
Upper Control Arms
Features:
Maintains on-road handling while improving offroad performance
Heavy duty crossmembers and skid plates for protection New steering knuckles add strength and allow ESC system compatibility
Top mounted front strut spacer retains factory ride quality
Adventure Series upper control arms for additional strength and durability
Allows fitment of 35-37 Inch tires
Kit Components:
ZON7759 Nitro 29.80 x 17.60 x 2-3/8 EB1/EB1 2 711745595750
ZONC2403 2019-2024 Chevy/GMC 1500 4 Inch Box Kit 1 711745594173
ZONC2662 2019-2024 Chevy/GMC 1500 Front Box Kit 1 711745597372
ZONC2672 2019-2024 Chevy/GMC 1500 Knuckle Box Kit 1 w/UCA (4 Inch and 6 Inch Compatible) 1 711745612686
ZONC2673 2019-2024 Chevy/GMC 1500 Knuckle Box Kit 2 w/UCA (4 Inch and 6 Inch Compatible) 1 711745612693
