More than a leveling kit, this 3.5 Inch Adventure Series kit takes advantage of Adventure Series upper control arms to offer improved performance and off-road capability with clearance for up to 35 Inch tires.
These high strength UCAs allow for increased suspension travel, improved strength and durability, and easy maintenance. Lift is provided by a 2-piece, combination top-mount and preload strut spacers design to provide a full 3.5 Inch of lift without overextending the suspension at full droop (as is the case with kits using just a top mounted spacer).
Optional weld-in steering stops are supplied allowing clearance for up to 35 Inch tires. In the rear of this kit, a cast 2 Inch lift block lifts and levels. Quick Specs:
Front Lift Height 3.5 Inch
Material Steel
Front Lift Method Strut Spacers
Rear Lift Method Cast Blocks
Lift Type Lift Kit
Wheel Size 20 x 9
Back Spacing 5.5 Inch
Max Tire Size 35x12.50 (Chevy)
Max Tire Size 2 35x12.50 (GMC)
Finish Powdercoat
Cutting Required No
Accommodates Factory Wheels No
Welding Required No

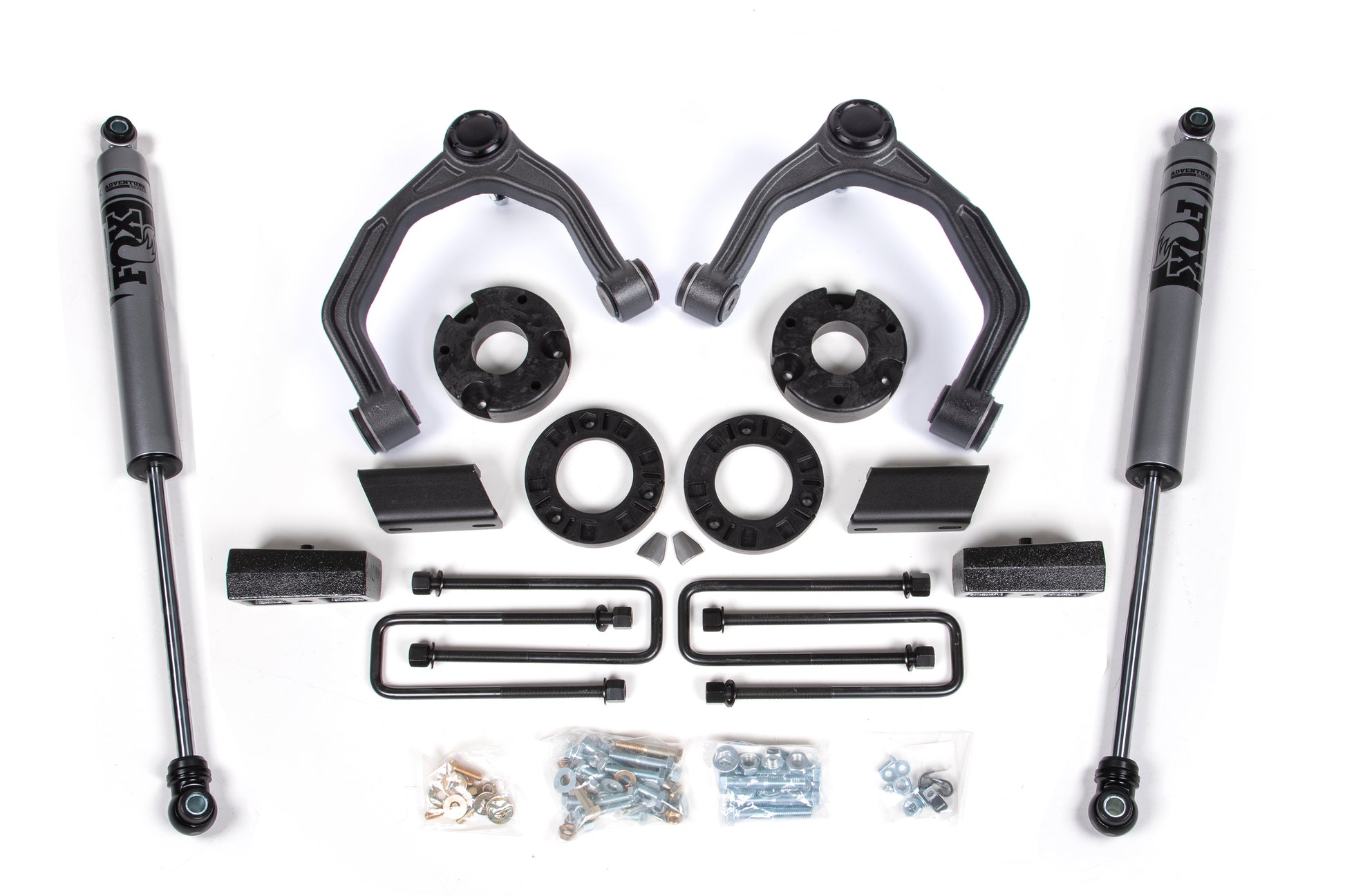

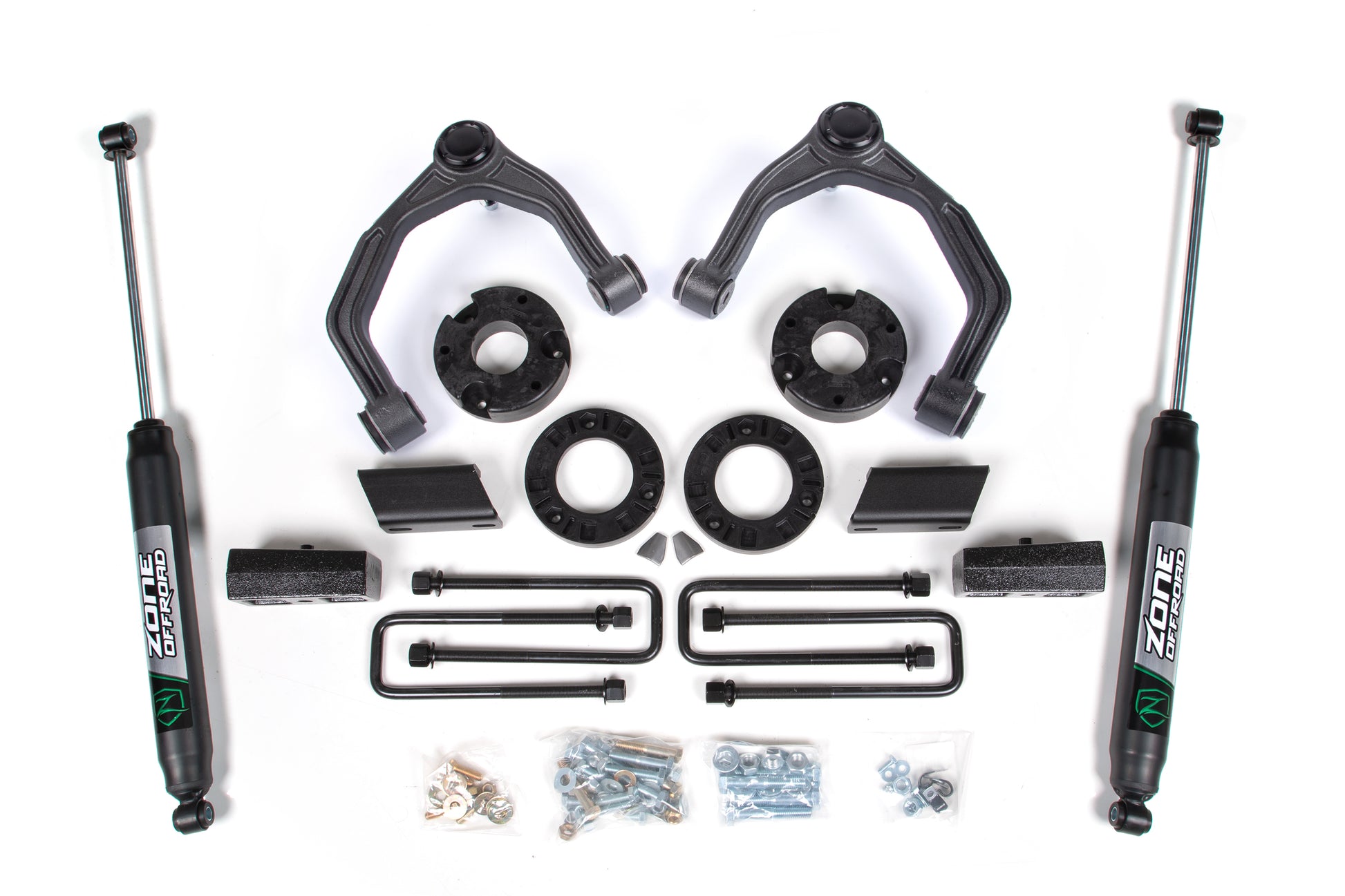

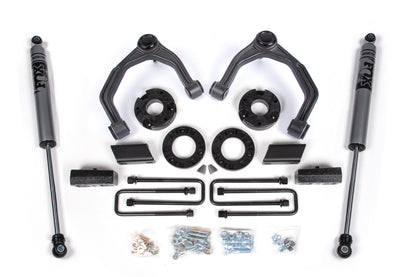

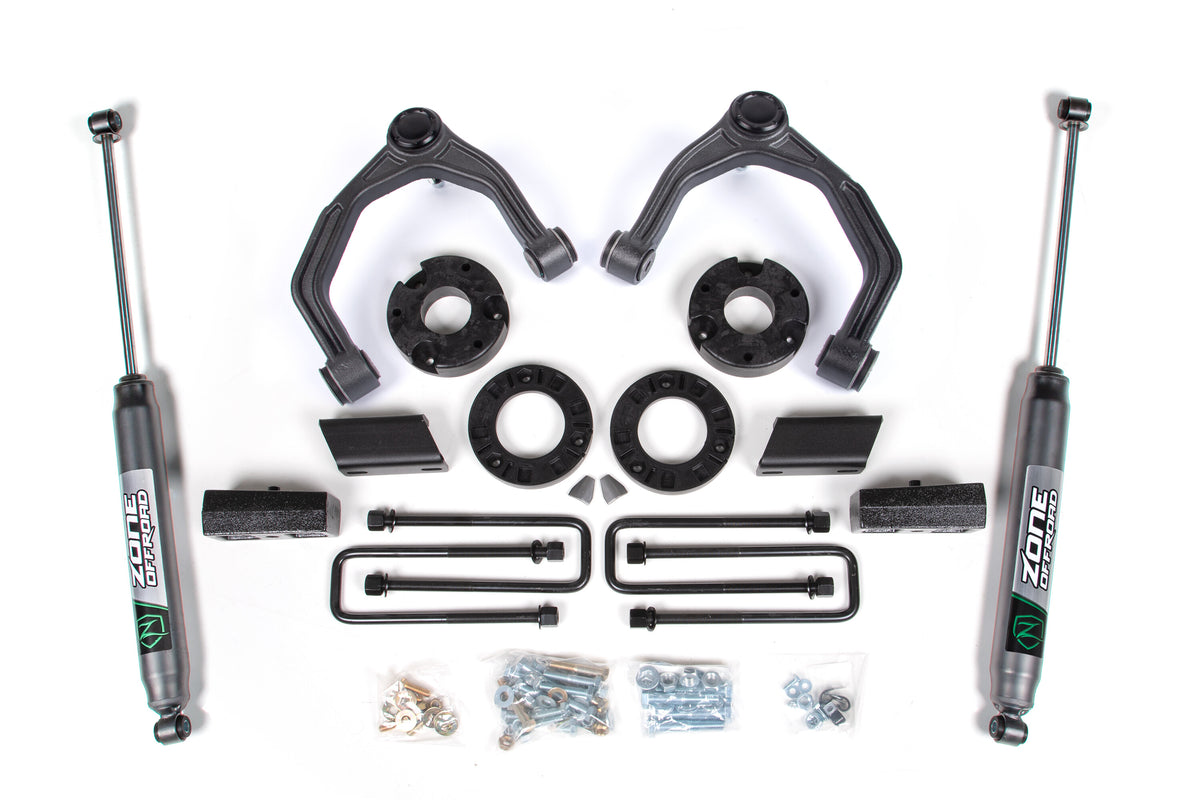

In The Box:
Rear Lift Block & U-Bolt Kit
Strut Spacers
Upper Control Arms
Features:
High strength UCAs are cast, ductile iron and specially designed with an indexed ball joint cup to correct ball joint operating angle for more suspension travel.
Utilizes a combination top-mount and preload strut spacers to correctly lift vehicle.
Retain factory ride quality without over extending suspension/drivelines at full suspension droop.
Maintains ride and handling characteristics with clearance for larger tires.
2 Inch rear lift blocks and heavy duty u-bolts to level the stance.
Nitro series gas or FOX 2.0 adventure series gas shocks to improve performance.
Optional Steering Stops included for larger wheel/tire combinations
Kit Components:
ZON7719 Nitro- 26.20 x 15.65 x 2-3/8 EB1/EB1 2 711745595613
ZONC2353 2019-2024 Chevrolet Silverado/GMC Sierra 1500 3.5 Inch Adventure Series Box Kit 1 711745612679
