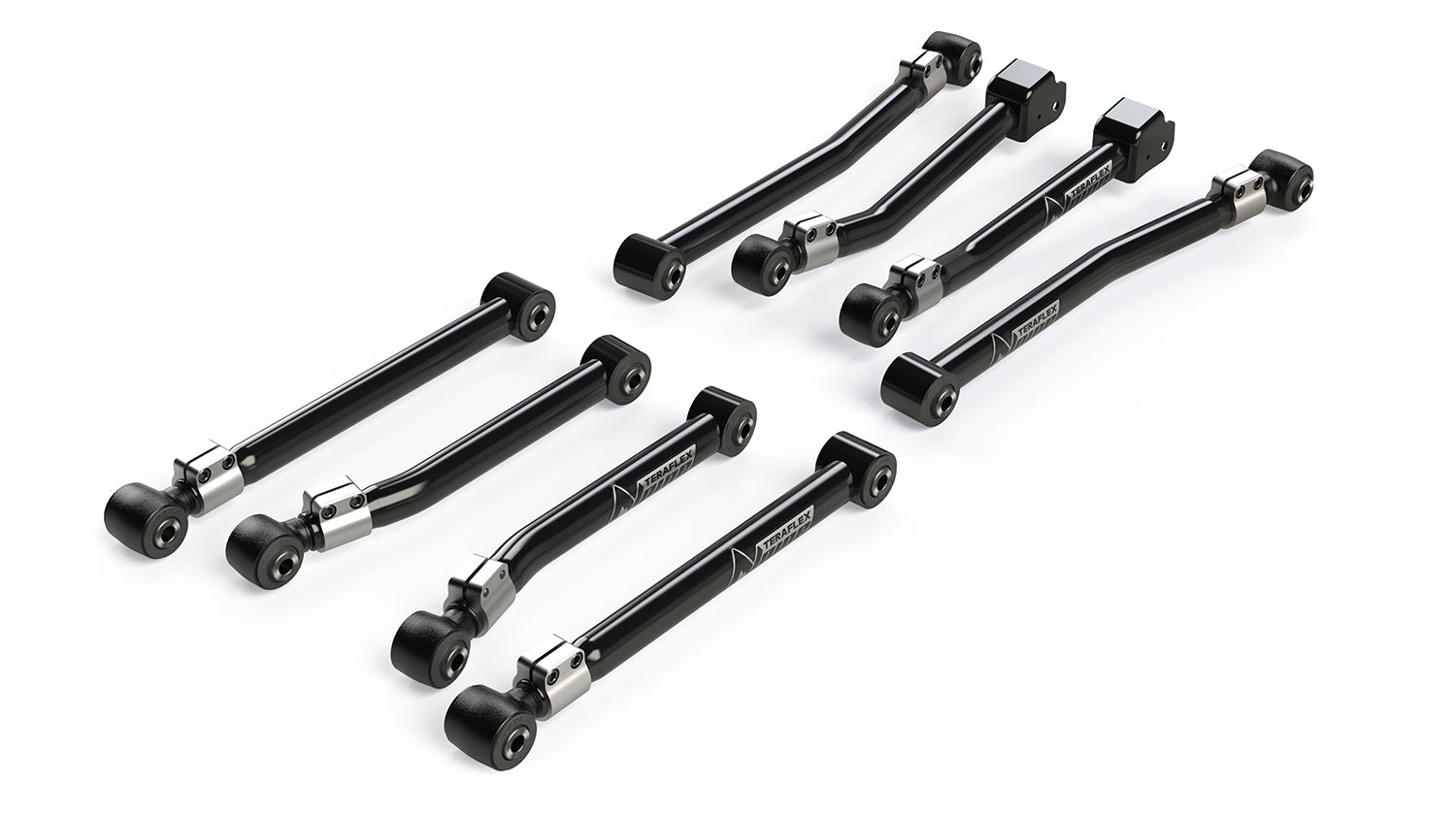

18-Up Wrangler JL Alpine Short Arm Kit 8-Arm 0-4.5 Inch Lift TeraFlex

TeraFlex JL: Alpine Short Arms provide complete alignment adjustability and dependability for maximum performance on JL Wrangler/Unlimited models with 0-4.5 Inch Lifts. Bolts to the factory control arm mounting brackets.

High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality.
Can be added to any existing suspension lift.

Includes:

• Alpine Short Arm Pairs:
  • Arm Pair - Front Upper (# 1416520)
  • Arm Pair - Front Lower (# 1416500)
  • Arm Pair - Rear Upper (# 1416560)
  • Arm Pair - Rear Lower (# 1416540)

Fitment:

• JL Wrangler (2-door)
• JL Wrangler Unlimited (4-door)

Specs:

• Lift Height: 0-4.5 Inch

Control Arm Specs:

• JL / JT: Alpine Short Arm Pair - Front Upper (# 1416520):
  • Tube Diameter & Wall: 42mm x 4mm
  • Factory Length: 20.185 Inch
  • Min. Length: 20 Inch
  • Max. Length: 21 Inch
  • Bolt - Both: 12mm
  • Bushing - Axle: OEM
  • Bushing - Frame: # 611014
• JL / JT: Alpine Short Arm Pair - Front Lower (# 1416500):
  • Tube Diameter & Wall: 42mm x 4mm
  • Factory Length: 24 Inch
  • Min. Length: 24 Inch
  • Max. Length: 25-1/4 Inch
  • Bolt - Both: 16mm
  • Bushing - Both: # 09-01-201-001
• JL: Alpine Short Arm Pair - Rear Upper (# 1416560):
  • Tube Diameter & Wall: 42mm x 4mm
  • Factory Length: 17.425 Inch
  • Min. Length: 17-3/8 Inch
  • Max. Length: 18-1/2 Inch
  • Bolt - Both: 14mm
  • Bushing - Both: # 611012
• JL: Alpine Short Arm Pair - Rear Lower (# 1416540):
  • Tube Diameter & Wall: 42mm x 4mm
  • Factory Length: 19-3/4 Inch
  • Min. Length: 19-13/16 Inch
  • Max. Length: 21-1/16 Inch
  • Bolt - Both: 14mm
  • Bushing - Both: # 611011
