18-26 Jeep Wrangler JL J-Krawl 2.5 Inch 4 Door w/Fox Adventure Series Shocks Diesel JSPEC JKS Manufacturing

Build the ultimate rock crawling Diesel 4-Door Jeep Wrangler JL with a J-Krawl 2.5 inch lift kit suspension system. The complete system is designed for maximum articulation, strength and adjustability.

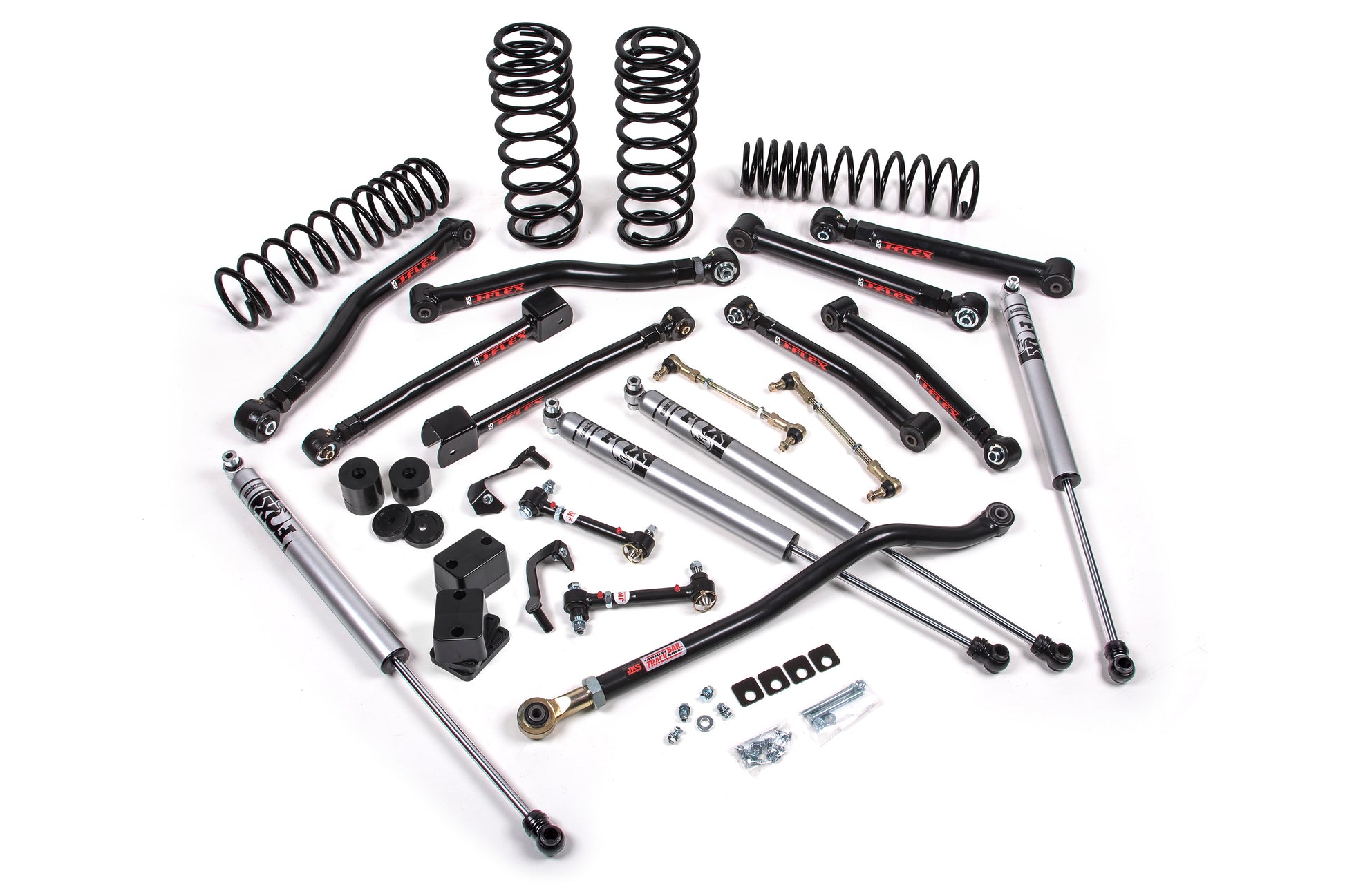

Components include J-Flex Upper and Lower Control Arms, JSPEC dual rate coil springs, custom-valved FOX 2.0 IFP Performance Series IFP shocks, an adjustable front track bar, a rear track bar bracket, Quicker Disconnect front sway bar end links, and bump stop extensions.

J-Krawl builds off Jeep's factory suspension mounting points and upgrades everything front to rear. Adjustability is important for fine tuning suspension geometry. J-Krawl delivers.

Dial in front caster, rear pinion and overall vehicle wheelbase. The JKS Engineering team spent a lot of time dialing in the FOX shock valving and spring rates to suit J-Krawl's combination of parts as well as oversized wheels and tires.

You'll be impressed with the stability and compression/rebound response. Take your Jeep's off-road performance and strength to the next level. It should be noted that an aftermarket front driveshaft is strongly recommended due to potential additional travel.

Features & Benefits

• Fox Adventure Series Shocks
• Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
• Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased off-road articulation.
• Front/Rear Bump Stop Extensions to properly limit suspension up travel.
• Front/Rear J-Flex Upper Control Arms to add strength and adjustability.
• Front/Rear J-Flex Lower Control Arms to add strength and adjustability.

Tire Specs

Rubicon Models (all kits)

• Tire: 37x12.50
• Wheel: 17x9, 18x9, 20x9
• Backspacing: 5 inch
• Non-Rubicon Models (all kits)
• Tire: 35x12.50
• Wheel: 17x9, 18x9, 20x9
• Backspacing: 5 inch

Other tire/wheel sizes can be used, however may require additional modification.

Important Notes

• Factory wheels cannot be reinstalled without wheel spacers
• HD front springs recommended for applications with aftermarket winch/bumper combo
• HD rear springs recommended for applications with rear mounted full size spare tire
• Front aftermarket driveshaft strongly recommended due to additional travel capability
• Will not fit 4xe models
• Will not fit Rubicon 392 models

Kit Components

Includes two FOX98450323, 2018-2024 Fox Adv Shock 26.86 x 16.76 x 2 EB1/EB1, UPC Code 814897017764 Includes two FOX98450328, 2018-2024 Fox Adv Shock 31.06 x 18.96 x 2 EB1/EB1, UPC Code 814897017771 Includes one JKS1616, 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) Adjustable Front UCA, UPC Code 814897012547 Includes one JKS1625, 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) Front Lower J-Flex Control Arm Kit, UPC Code 814897012462 Includes one JKS1661, 2018-2024 Jeep Wrangler JL Rear Adjustable LCA, UPC Code 814897012479 Includes one JKS1666, 2018-2024 Jeep Wrangler JL/2007-2024 Jeep Wrangler JK Rear Adjustable UCA, UPC Code 814897012561 Includes one JSPEC1252, 2018-2024 Jeep Wrangler JL 2.5 inch Front Coil Spr inchg Kit - HD, UPC Code 814897012295 Includes one JSPEC1259, 2018-2024 Jeep Wrangler JL 2.5 inch Rear Coil Spr inchg Kit - STD, UPC Code 814897012318 Includes one JSPEC1312, 2018-2024 Jeep Wrangler (JL) J-Krawl Ma inch Box Kit, UPC Code 814897012592
