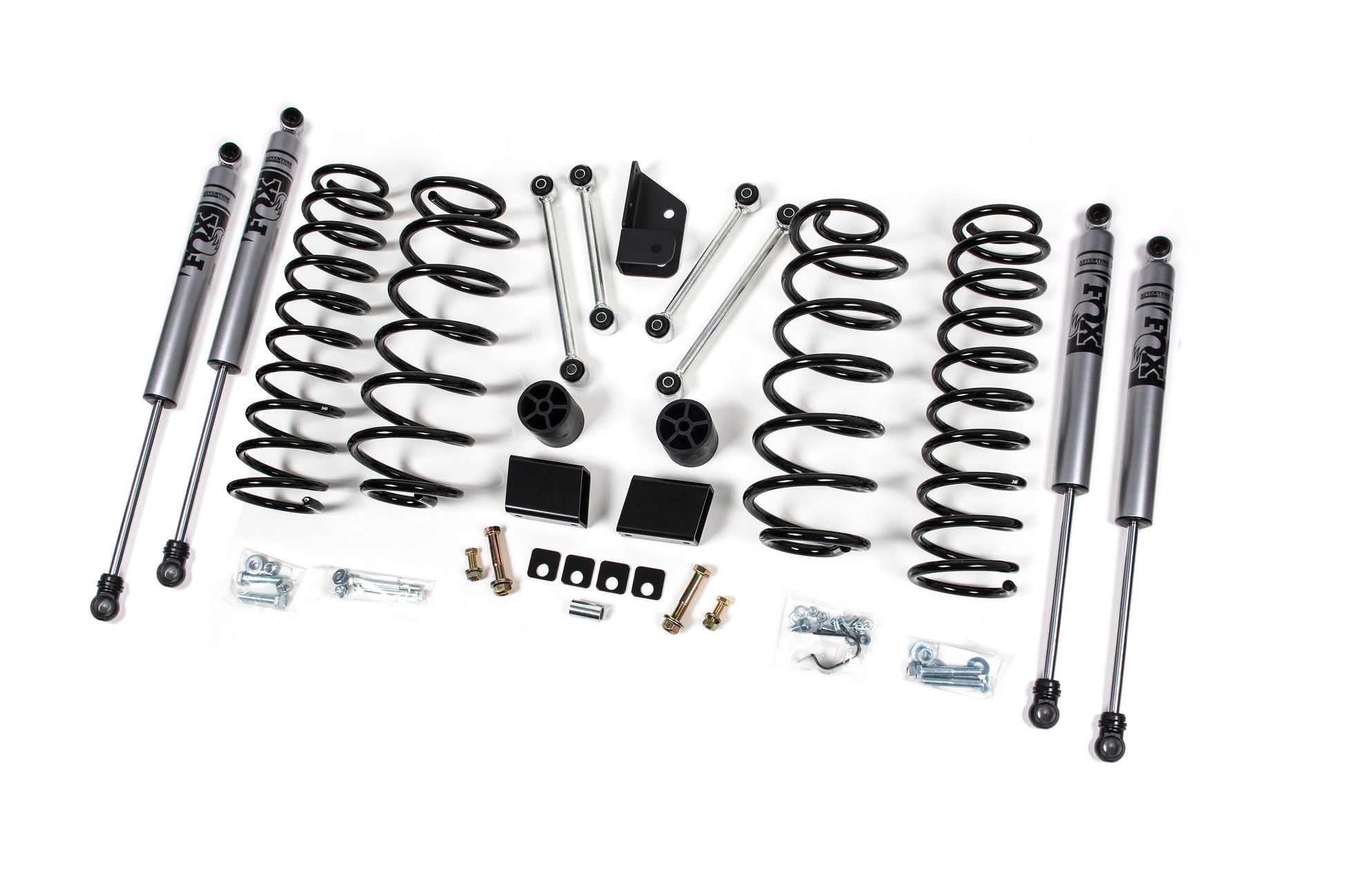

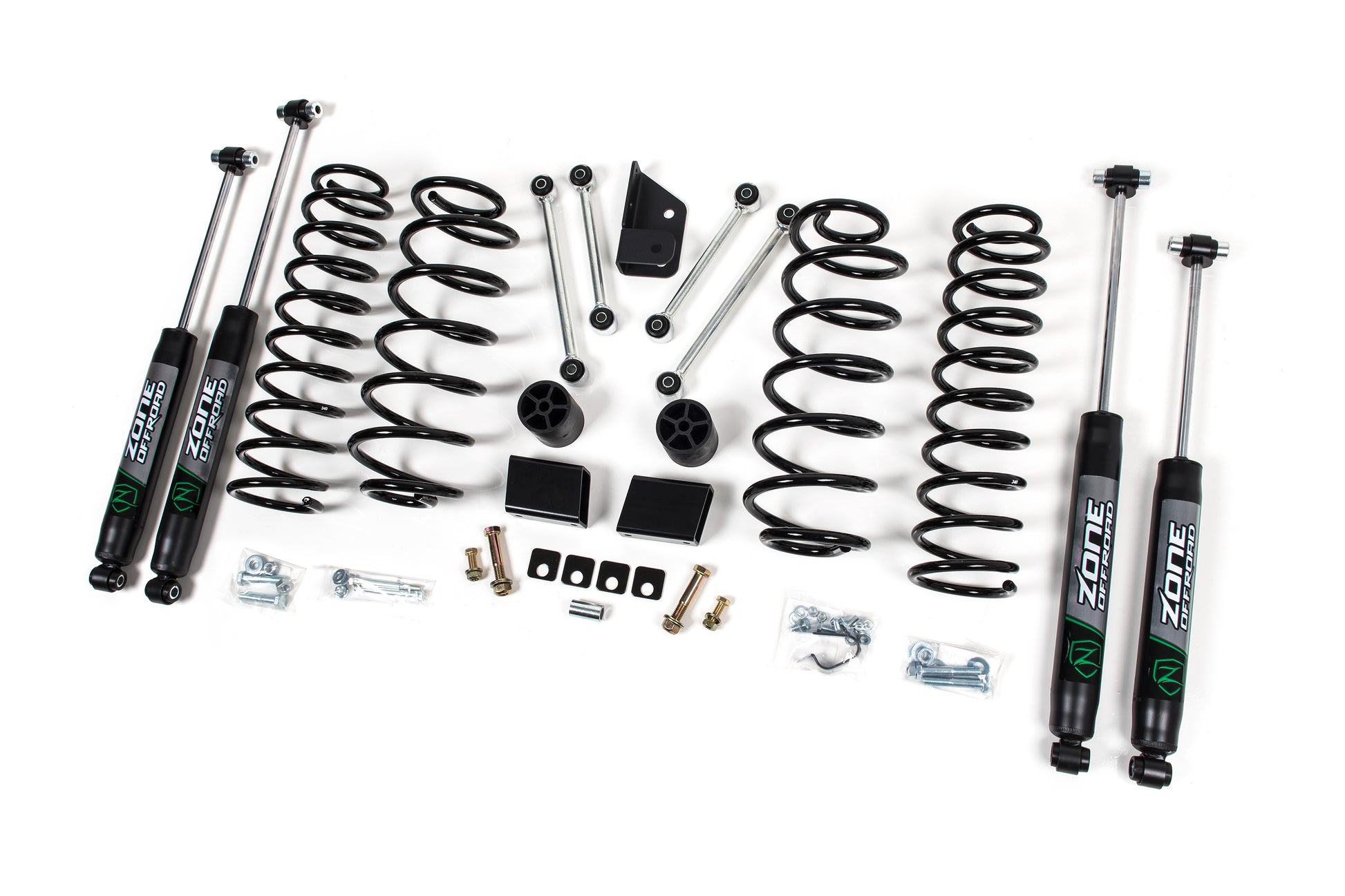

Designed as a complete system, this 3 Inch lift includes everything necessary to properly lift your new Wrangler JL while allowing clearance for 35-37 Inch tires. The extra ride height comes from a set of replacement JL-specific coil springs at each corner.
These springs are engineered for additional ride height, improved suspension articulation, and to provide an custom-tailored Inchspring rate Inch to compensate for the mass of aftermarket wheels/tires and extra gear / off-roading equipment.
In additional to replacement coil springs and shocks, this kit includes front lower control arm cam washers to correct caster alignment. Extended-length, heavy-duty front and rear sway bar links are supplied to correct sway bar geometry, while bump stop extensions limit suspension up-travel.
Wrapping up this kit is a heavy-duty rear track bar bracket, used to re-center the rear axle and all the necessary hardware required to complete the full install. Quick Specs:
Front Lift Height 3 Inch
Rear Lift Height 3 Inch
Material Steel
Front Lift Method Coil Springs
Rear Lift Method Coil Springs
Lift Type Lift Kit
Wheel Size 17 x 9
Back Spacing 4.5 Inch
Max Tire Size 35 x 12.5
Finish Powdercoat
Cutting Required No
Accommodates Factory Wheels No
Welding Required No
In The Box:
Coil Springs - Rear
Coil Springs - Front
Bump Stop Extensions
Sway Bar Links - Front and Rear
Features:
F/R coil springs to set ride height, maintain ride and improve articulation
Nitro-series gas shocks for smooth on/off-road performance
F/R extended sway bar links to correct sway bar operating angle
F/R bump stop extensions to properly limit suspension up travel
Front LCA cam washers to correct front end caster
Rear track bar bracket to recenter rear axle
Allows clearance for 35-37 Inch tires
Kit Components:
ZON7780 18-24 Nitro- 26.20 x 15.65 x 2-3/8 EB1/EB1 2 711745595835
ZON7785 18-24 Nitro- 29.80 x 17.60 x 2-3/8 EB1/EB1 2 711745595873
