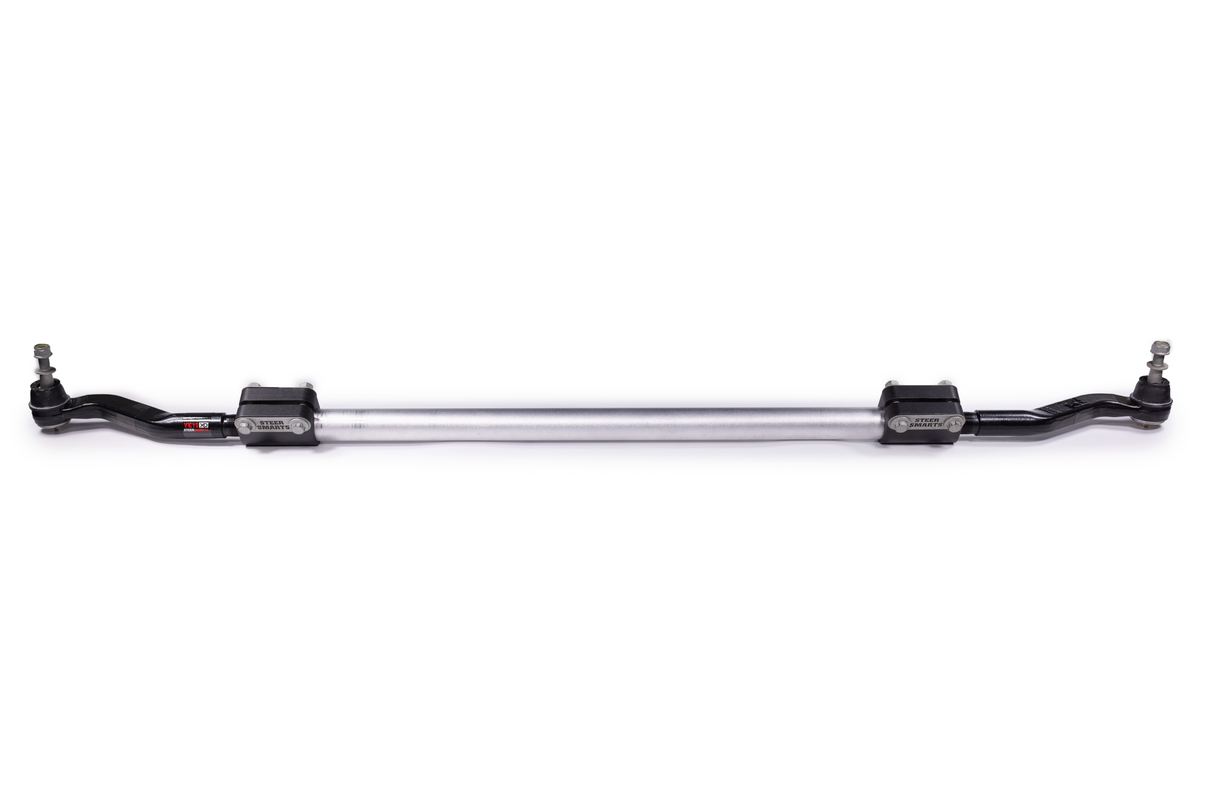

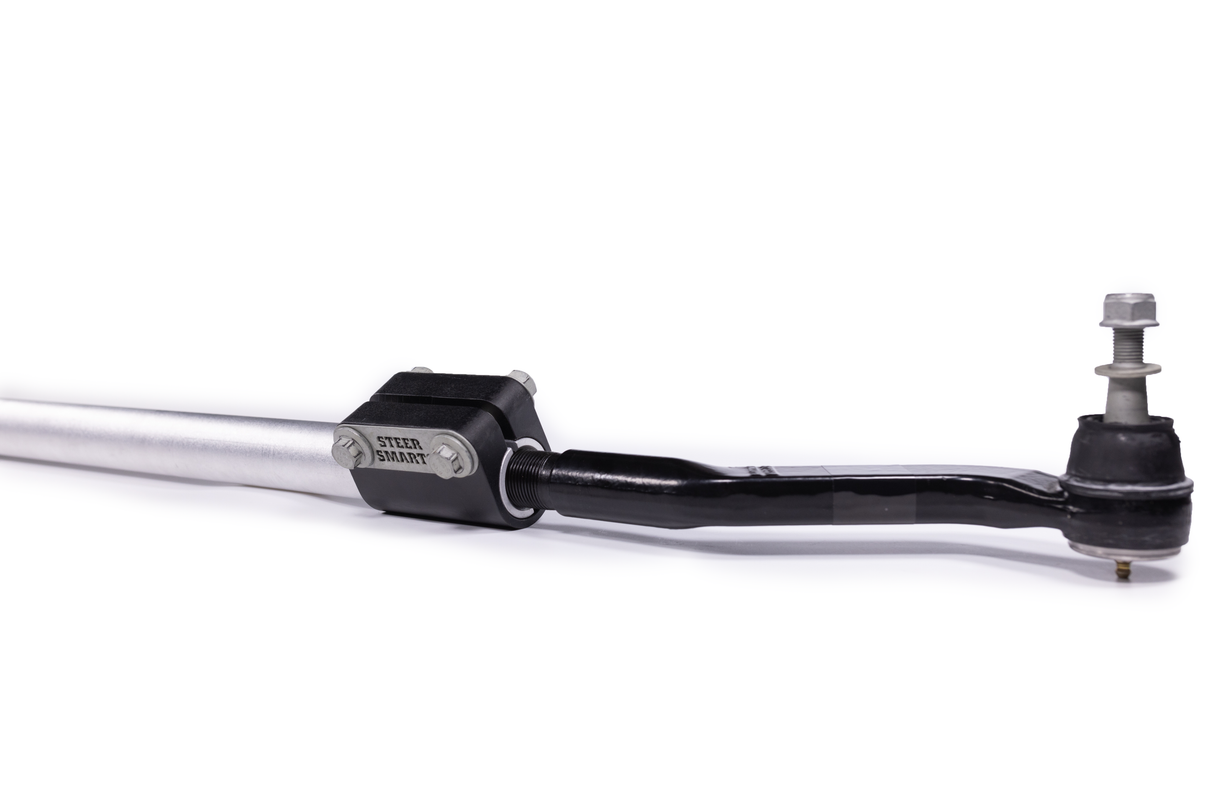

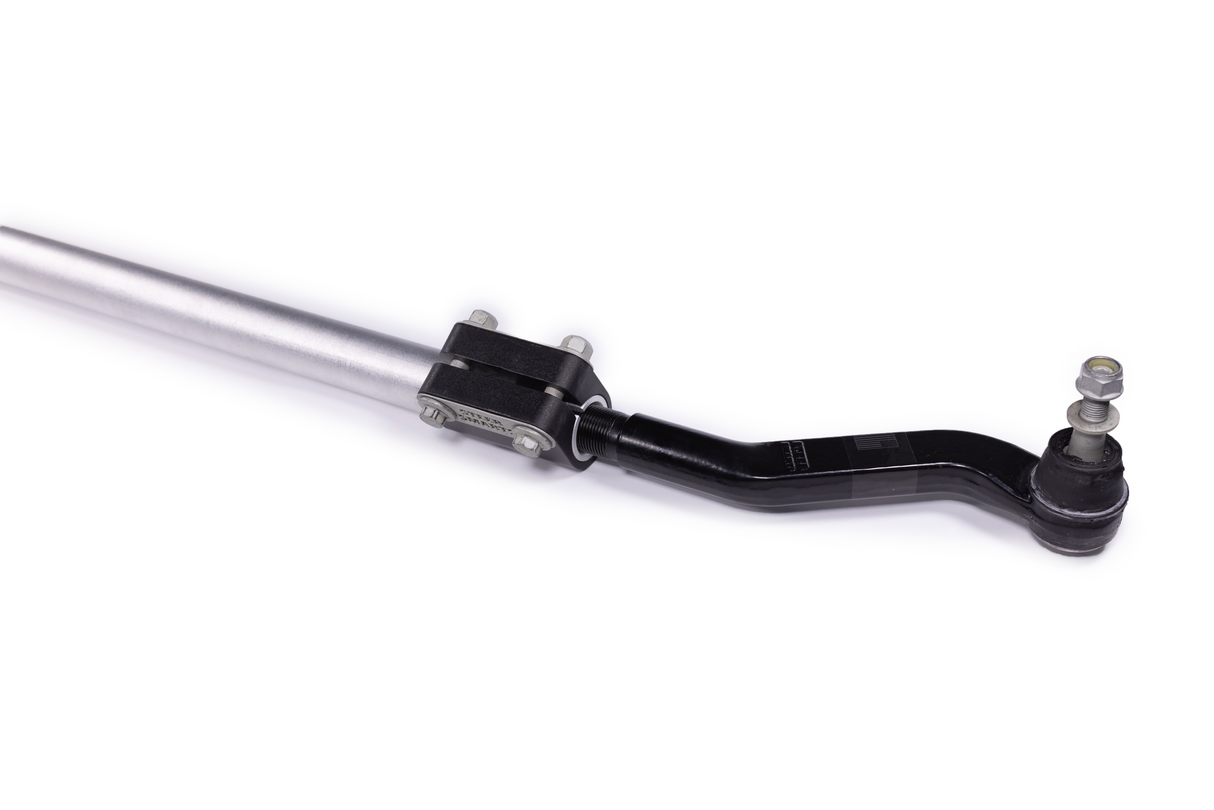

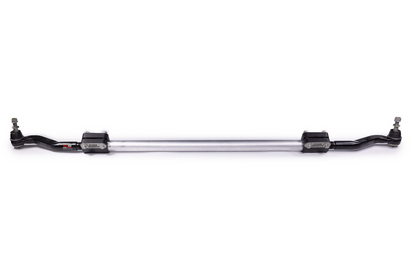

18-24 Jeep Wrangler/Gladiator JL/JT Yeti XD Pro-Series Aluminum Tie Rod Assembly - Silver Adjuster Tube (Non Rubicon Trim) Steer Smarts

Steer Smarts presents our most extreme steering linkage The Yeti XD Pro-Series linkage for your Jeep JL/JT Wrangler/Gladiator. We applied our 85 years of steering lessons learned to develop the strongest most durable linkage ever built for the Wrangler.

The Yeti XD Tie Rod is a direct bolt-on for any JL Wrangler or JT Gladiator. The Yeti XD Tie Rod is a quick and easy install and there is no need to modify or alter Jeep.
Features:

Yeti XD Tie Rod Assembly:

• Easy bolt-on installation.
• Engineered for proper clearance to other chassis components to eliminate interferences.
• Made In The USA

Ball Joints:

• 30mm 2 1/2 Ton ball joints designed specifically for the JL.
• Cold-headed medium carbon alloy steel ball studs provide incredible impact toughness for extreme duty usage.
• Induction heat-treated ball studs provide ultimate fatigue strength and superior off-road durability.
• Steel on steel bearings provide exceptional ball joint wear resistance and robustness.
• High-quality seals ensure long ball joint life. Our superior seals have been rigorously tested to minimize leakage between grease service intervals, which greatly improves our ball joint reliability over our competition.
• Fully greaseable.

Tie Rod Ends:

• Powder coat over E-coat for a long-lasting appearance under harsh conditions.
• External threads are e-coated for durability and long-term serviceability.
• Forged from medium carbon high hardenability steel and heat-treated for even greater buckling, impact, and fatigue strength.
• Large 1 1/4 inch rolled threads at tie rod adjuster and draglink ends provide significantly increased strength over the original equipment threads.
• Unique Reverse Pin technology prevents our linkage from flopping or rocking. This technology is built into the socket, unlike the weak external supports on some competitor linkages.

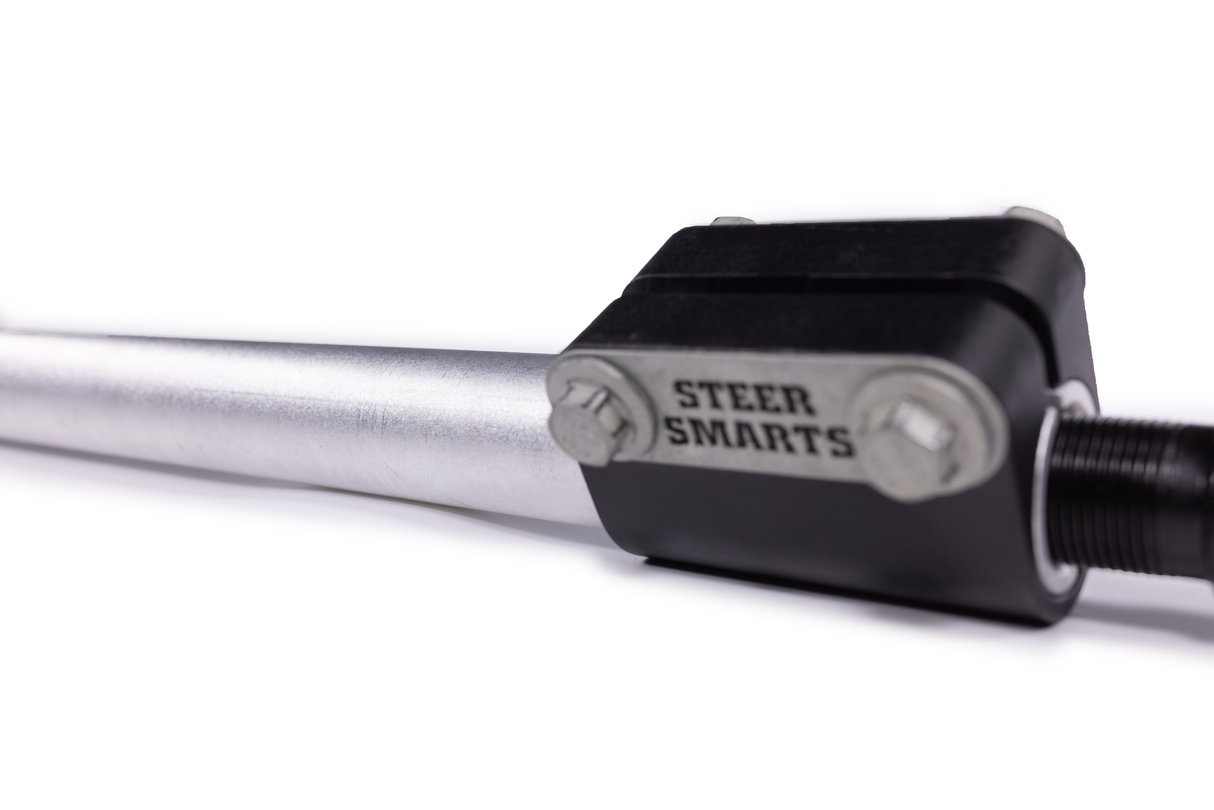

Adjuster Sleeve:

• Easy bolt-on installation.
• Engineered for proper clearance to other chassis components to eliminate interferences.
• Tie Rod adjuster is manufactured from large 1-3/4 inch diameter solid high strength T6 7075 Aluminum for maximum strength.
• Pro-Series Adjuster clamps ensure proper clamp force using conventional tools without the possible risk of loosening like large jam nuts.
• Designed with right-hand and left-hand threads for quick and easy adjustment when installed on the vehicle.

Torque Specs:
Clamps need to be torqued to 80-85 ft lbs, and should be oriented so that they do not interfere with anything else (generally facing forward or down). Clamp torque needs to be checked at 500 miles and then again at 2000 miles. After that, every oil change the torque specs should be checked as well as after any hard wheeling/off-roading.
