Take your Super Duty to new heights with this 6 Inch lift kit from Zone Offroad. Kits include everything needed to reliably lift your truck and the capability to run up to 37 Inch tires, including coil springs, radius arm drop brackets, steering correction and rear lift blocks or optional add-a-leafs to get the stance and performance you want.
Upgrade your stock shocks with Nitro Series Gas Shocks, or Fox 2.0 Adventure Series for even greater performance and control.
As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.
Get the look, performance, and capability your truck deserves! Quick Specs:
Front Lift Height 6 Inch
Material Steel
Front Lift Method Coil Springs
Rear Lift Method Add-a-Leaf & Block
Lift Type Lift Kit
Wheel Size 20 x 9
Back Spacing 4.5 Inch
Max Tire Size 37x 12.5
Wheel Size 2 18 x 9
Back Spacing 2 4.5 Inch
Max Tire Size 2 37 x 12.5
Wheel Size 3 Inch17 x 9
Back Spacing 3 4.5 Inch
Max Tire Size 3 37 x 12.5
Features:
High strength front coil springs improve ride quality
Radius arm drop brackets to correct caster and maintain suspension geometry
Forged pitman arm and track bar relocation bracket to correct steering angles and re-center front axle
Bump stop relocation, sway bar relocation and brake line relocation to maintain factory-like operating angles
Replacement 3 Inch rear lift block for a leveled stance, or optional upgrade to rear add-a-leaf for 4 Inch net lift and improved performance

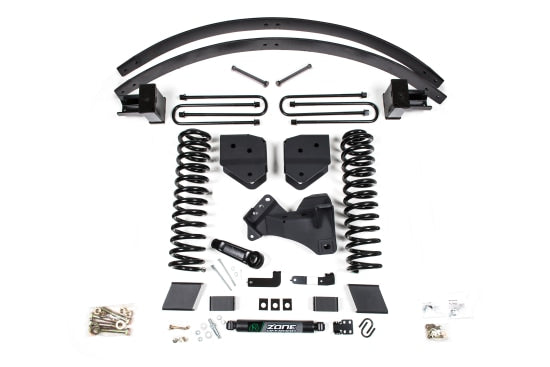

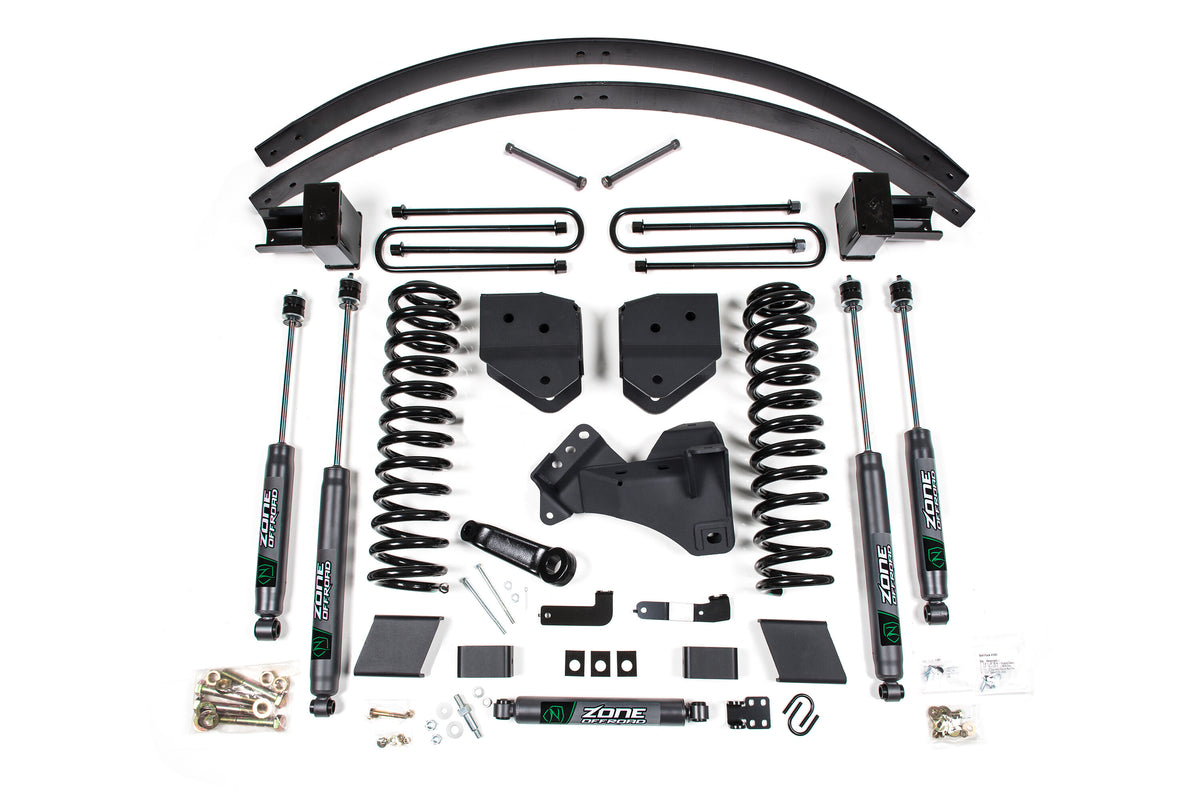

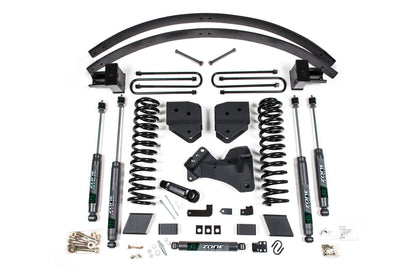

Kit Components:
ZON7302 2017-2024 F250 Single Stabilizer Zone 1 711745595194
ZON7718 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595590
ZON7752 Nitro- 26.20 x 15.60 x 2-3/8 S1/EB1 2 711745595699
ZONF1605 20-22 F250/F350 6 Inch Radius Arm Drop Front Box Kit 1 711745606067
ZONF1609 2017 F250 Rear 6 Inch Block Kit 1 711745599338
ZONF1623 2005-2024 Super Duty 6 Inch Gas Coil (one) 2 711745599406
