Take your Super Duty to new heights with this 6 Inch lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arms to steering correction and rear lift to level the stance.
Get the look, performance, and capability your truck deserves with clearance for 38 Inch tires. Quick Specs:
Front Lift Height 6 Inch
Rear Lift Height 5 Inch
Front Lift Method Coil Springs & Replacement Radius Arms
Rear Lift Method Add-A-Leaf & Cast Block
Lift Type Lift Kit
Wheel Size 17 x 10
Back Spacing 5 Inch
Max Tire Size 38x13.5
Wheel Size 2 18 x 10
Back Spacing 2 5 Inch
Max Tire Size 2 38x13.5
Wheel Size 3 20 x 10
Back Spacing 3.5 Inch
Max Tire Size 38x13.5
Cutting Required No
Welding Required No

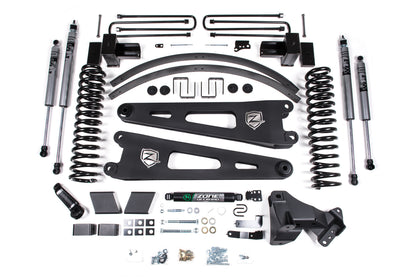

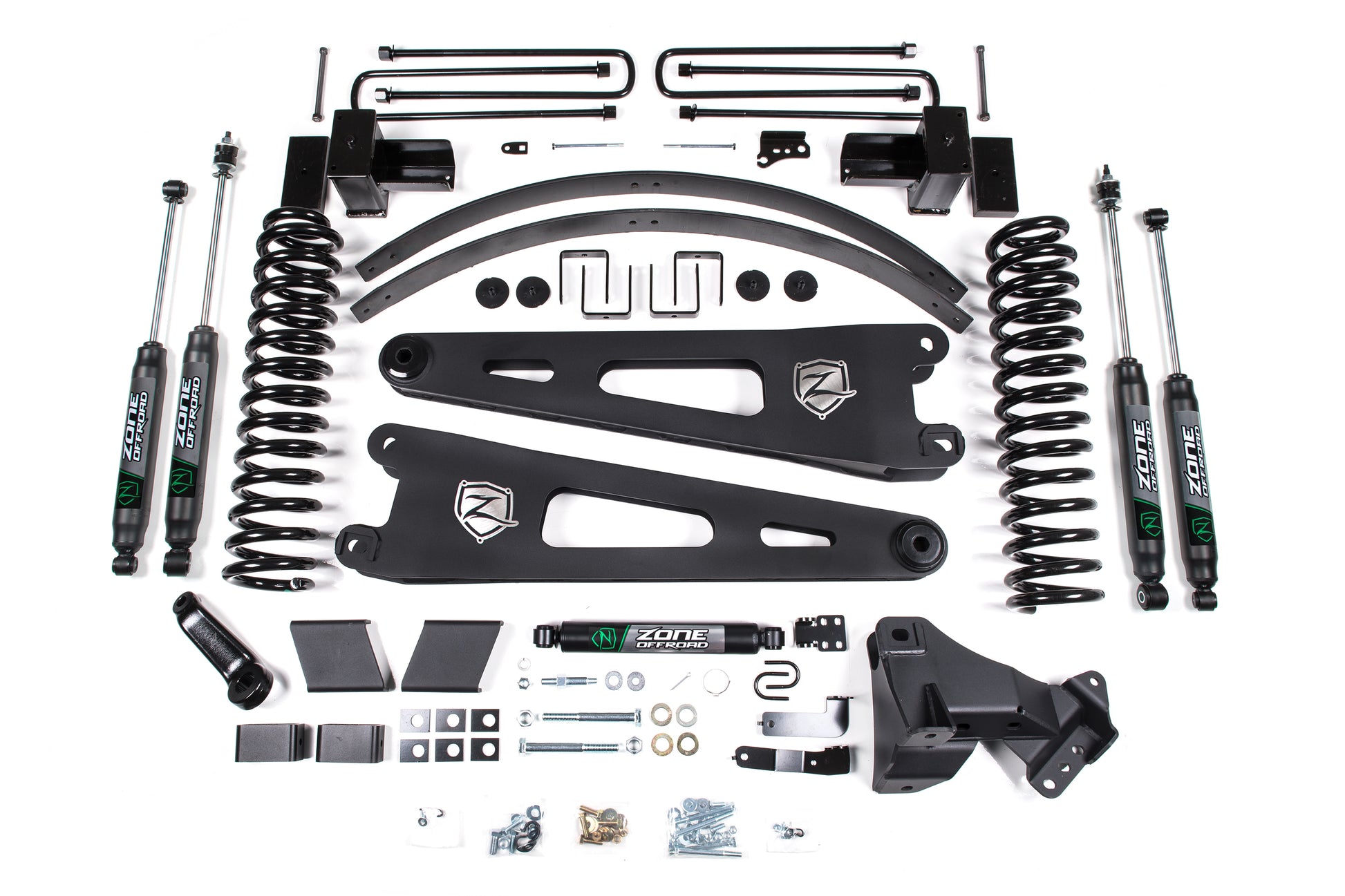

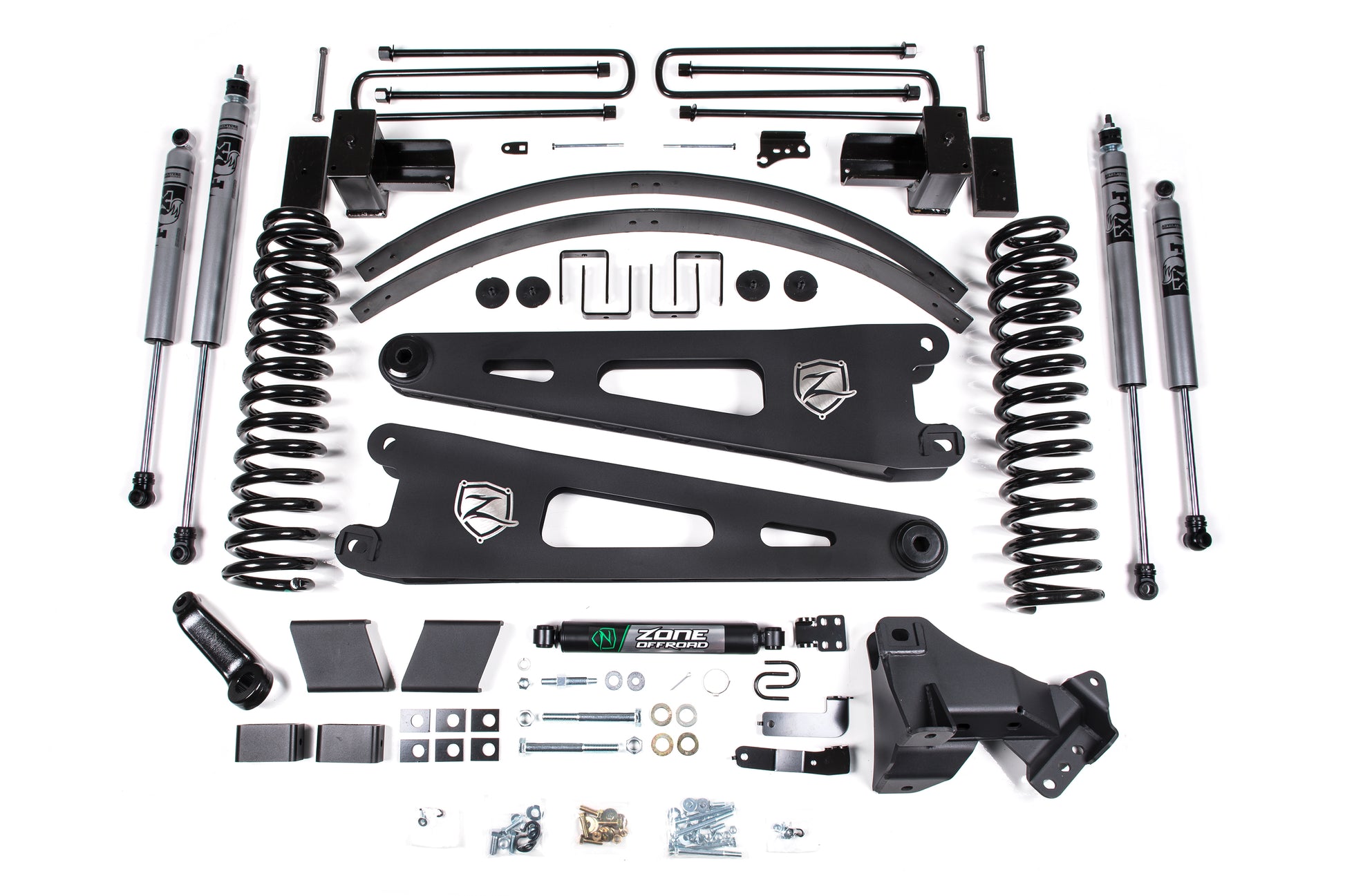

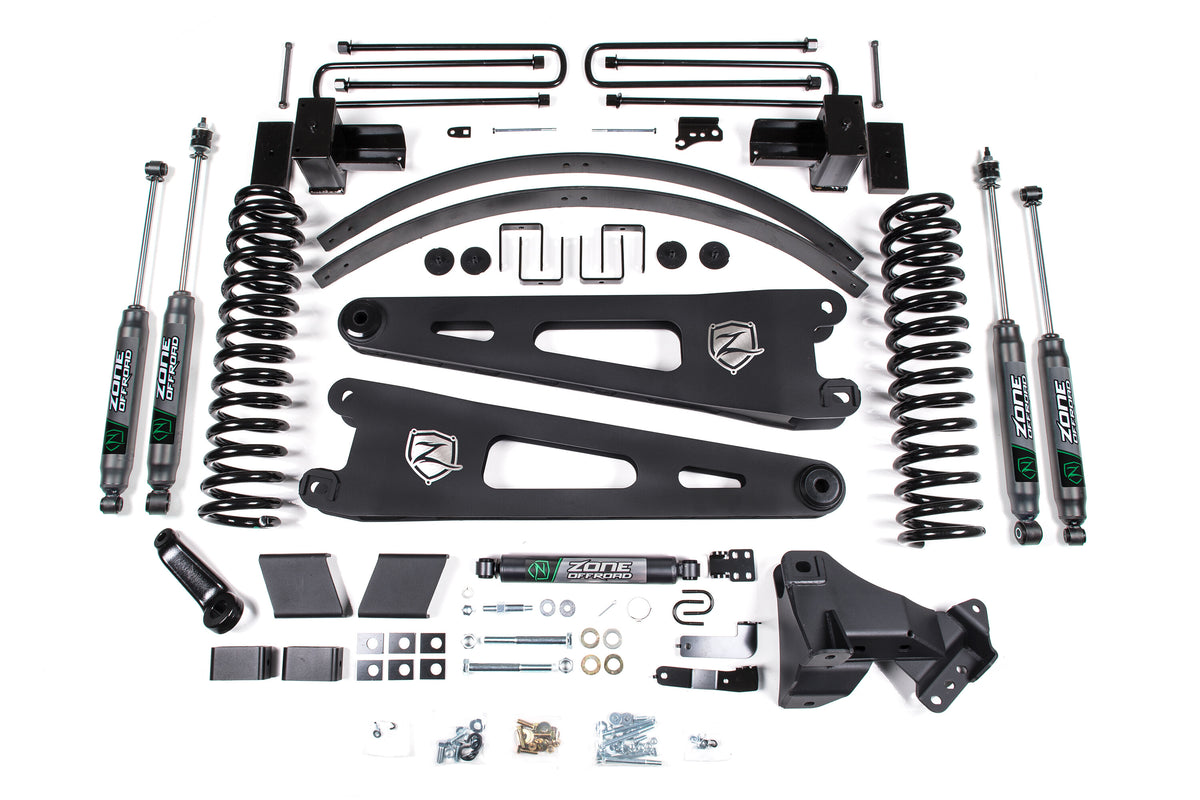

In The Box:
Add-A-Leaf's
All Necessary Mounting / Installation Hardware
Coil Springs
Dropped Pitman Arm
Rear Lift Block & U-Bolt Kit
Sway Bar Relocation Brackets
Radius Arms
Features:
High strength front coil springs improve ride quality
HD radius arm to correct caster while maximizing ground clearance
Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
Bump stop relocation, sway bar relocation and brake line relocation to maintain factory-like operating angles
Replacement rear lift blocks, add-a-leafs and u-bolts to lift and level the stance
Kit Components:
ZON7302 2017-2024 F250 Single Stabilizer Zone 1 711745595194
ZON7718 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595590
ZON7752 Nitro- 26.20 x 15.60 x 2-3/8 S1/EB1 2 711745595699
ZONF1601 2005-2022 Ford Super Duty Radius Arm (One) 2 711745599291
ZONF1609 2017 F250 Rear 6 Inch Block Kit 1 711745599338
ZONF1613 2005-2024 Super Duty 6 Inch Diesel Coil(one) 2 711745599369
ZONF1614 2017-2024 Ford F250/F350 4-6 Inch Radius Arm Front Box Kit 1 711745599376
