Take your Super Duty to new heights with this 4 Inch lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arm relocation brackets to steering correction and rear lift to level the stance.
Get the look, performance, and capability your truck deserves with clearance for 37 Inch tires. Quick Specs:
Front Lift Height 4 Inch
Rear Lift Height 3 Inch
Material 1/4 Inch Steel
Front Lift Method Coil Springs
Rear Lift Method Cast Blocks
Lift Type Lift Kit
Wheel Size 17 x 9
Back Spacing 5 Inch
Max Tire Size 37 x 12.5
Wheel Size 2 18 x 9
Back Spacing 2 5 Inch
Max Tire Size 2 3 Inch x 12.5
Wheel Size 3 20 x 9
Back Spacing 3.5 Inch
Max Tire Size 3 37 x 12.5
Finish Powdercoat
Cutting Required No
Accommodates Factory Wheels Yes
Welding Required No

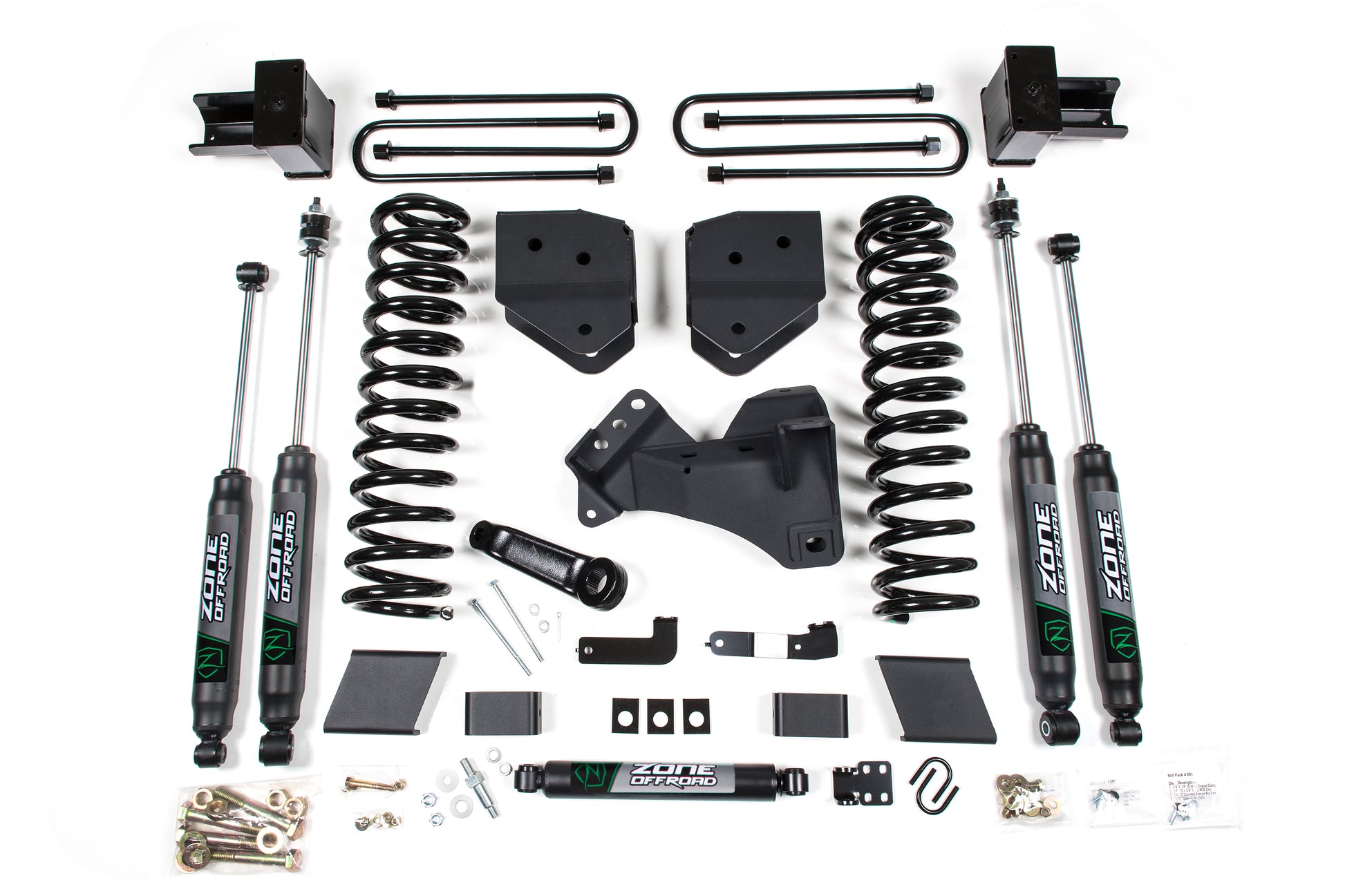

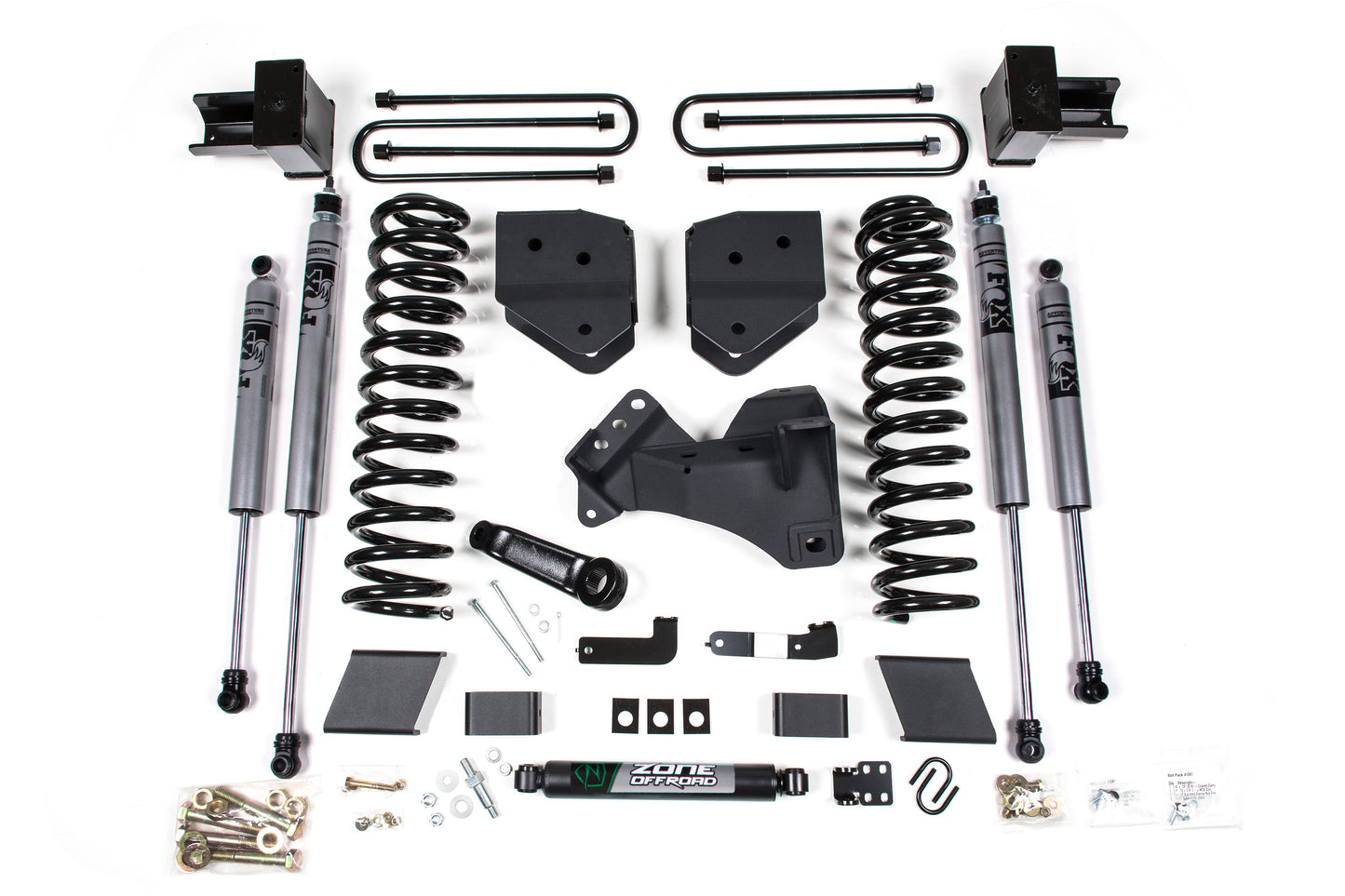

In The Box:
Brake Line Brackets - Front and Rear
Coil Springs
Radius Arm Drop Brackets
Sway Bar Relocation Brackets
Track Bar Bracket
Lift Block and U-Bolt Kit - Rear
Pitman Arm
Features:
High strength front coil springs improve ride quality
Radius arm drop brackets to correct caster and maintain suspension geometry
Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
Bump stop relocation, sway bar relocation and brake line relocation to maintain factory-like operating angles
Replacement 5 Inch rear lift blocks and u-bolts to lift and level the stance
Kit Components:
ZON7302 2017-2024 F250 Single Stabilizer Zone 1 711745595194
ZON7700 Nitro- 25.20 x 15.20 x 2-3/8 S50/EB2 2 711745595484
ZON7718 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595590
ZONF1318 2017-2024 F250 5 Inch Rear Block 3 Leaf Main 1 711745599130
ZONF1410 2017-2022 Super Duty 4 Inch Front Box Kit 1 711745599185
ZONF1413 2005-2022 Ford F250/350 4 Inch Front Coil Diesel (One) 2 711745599215
