Take your Tundra to new heights with this 5 Inch lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to lower strut extensions and rear block kit to level out the stance.
Get the look, performance, and capability your truck deserves with clearance for up to 35 Inch tires. Quick Specs:
Front Lift Height 5 Inch
Rear Lift Height 3 Inch
Front Lift Method Knuckle & Drop Cross-Member
Rear Lift Method Fabricated Blocks
Lift Type Lift Kit
Wheel Size 18 x 9
Back Spacing 5.5 Inch
Max Tire Size 35 x 12.5
Wheel Size 2 20 x 9
Back Spacing 2 6.25 Inch
Max Tire Size 2 35 x 12.5
Wheel Size 3 22 x 9
Back Spacing 3 6.25 Inch
Max Tire Size 3 35 x 12.5
Is Adjustable No
Finish Powdercoat
Cutting Required No
FMVSS Certification N/A (See notes)
Accommodates Factory Wheels No
Welding Required No

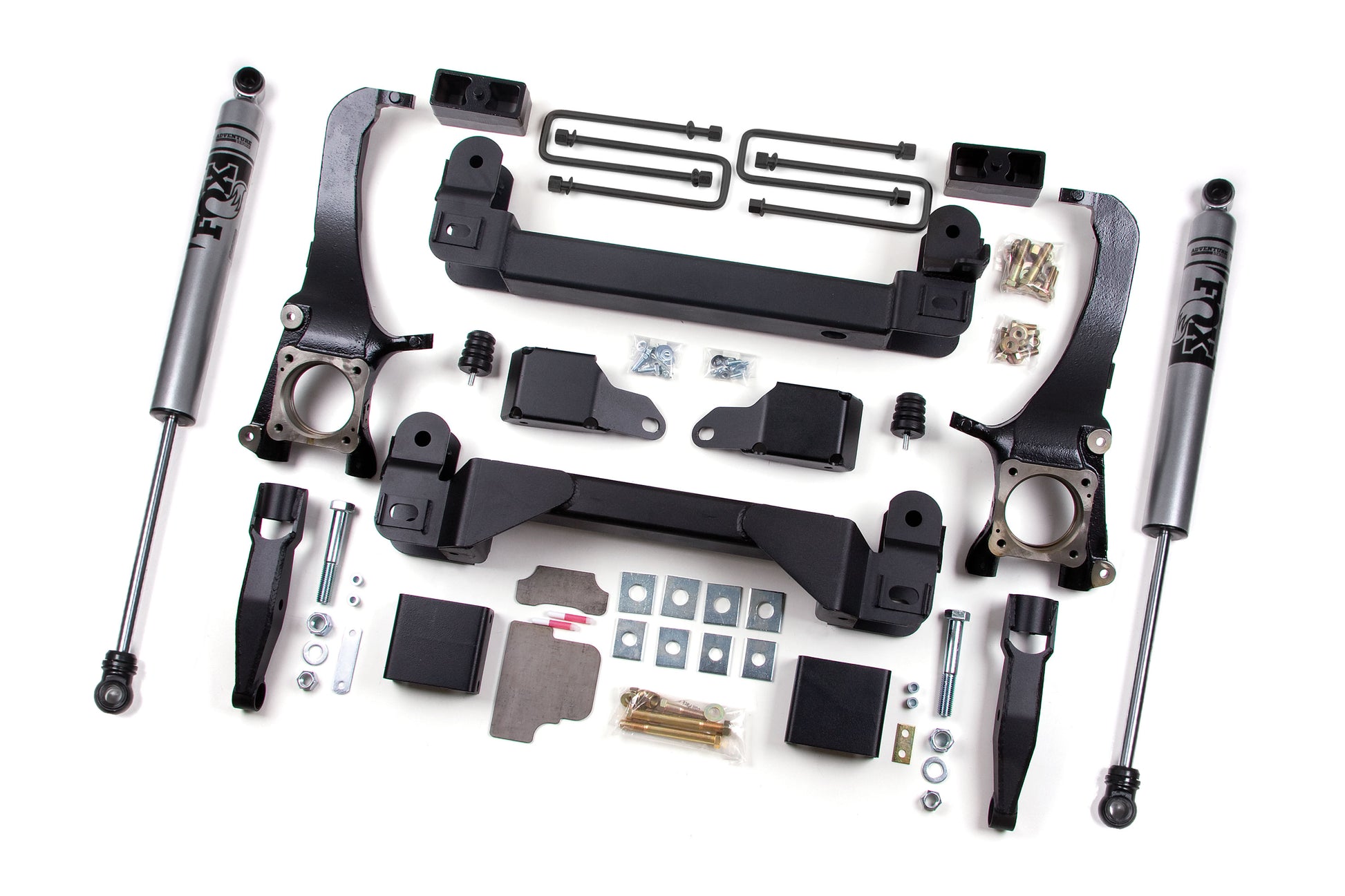

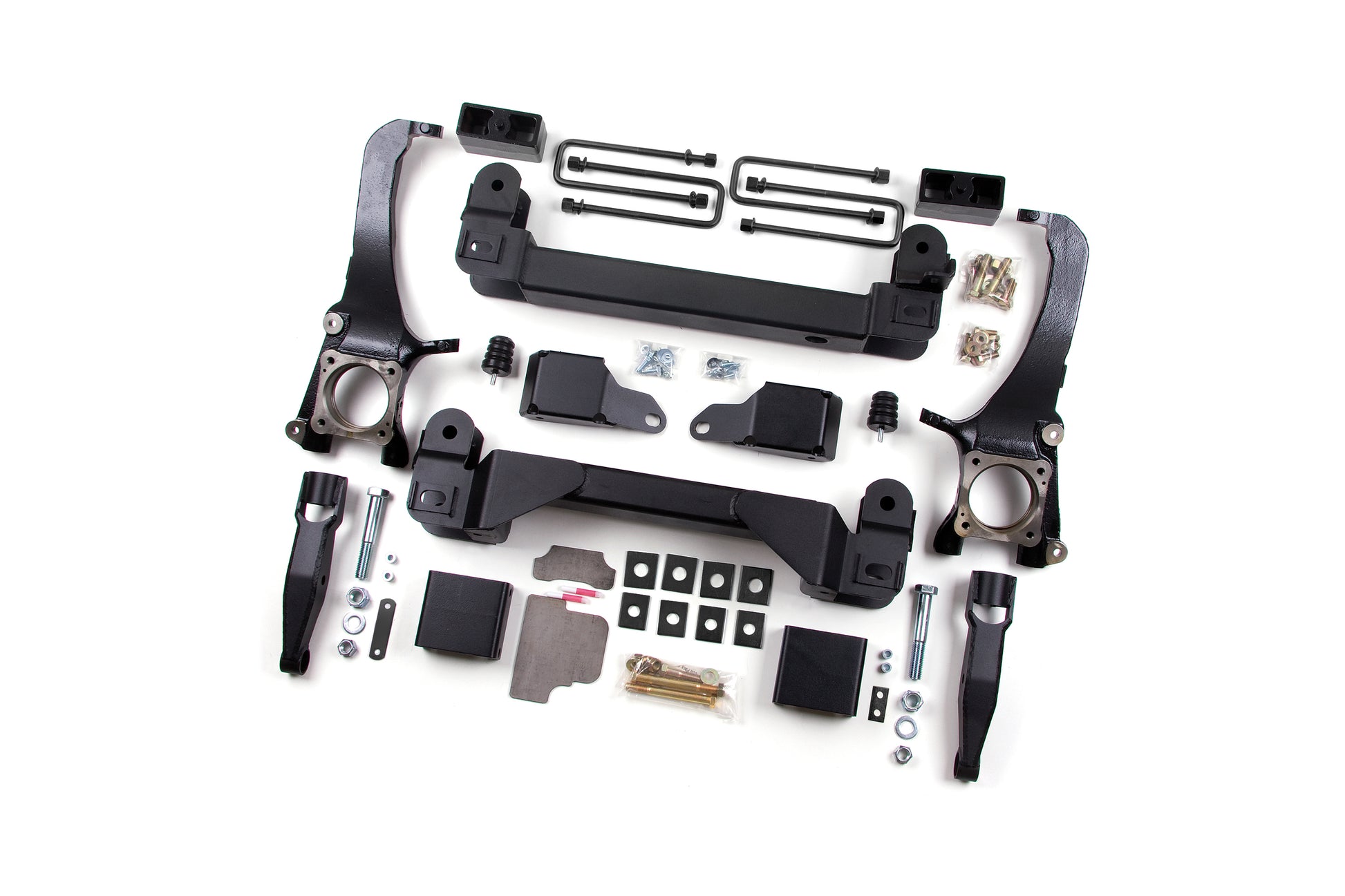

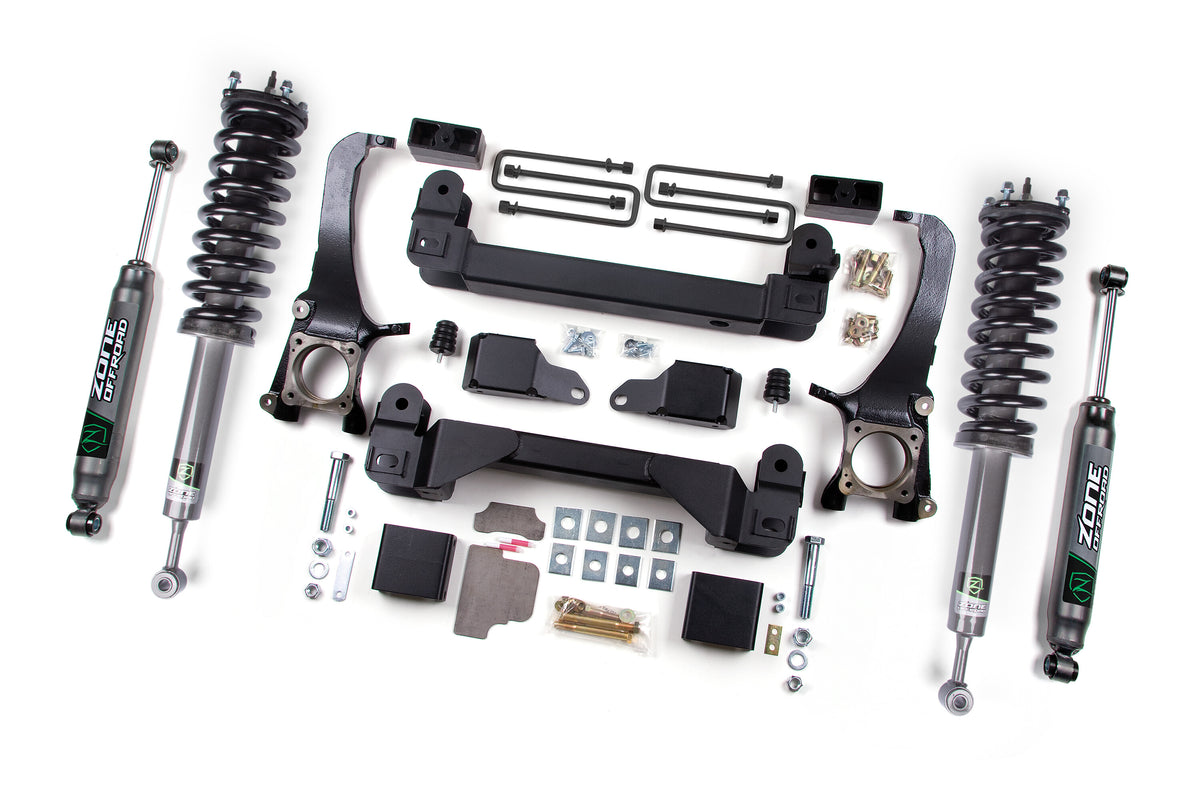

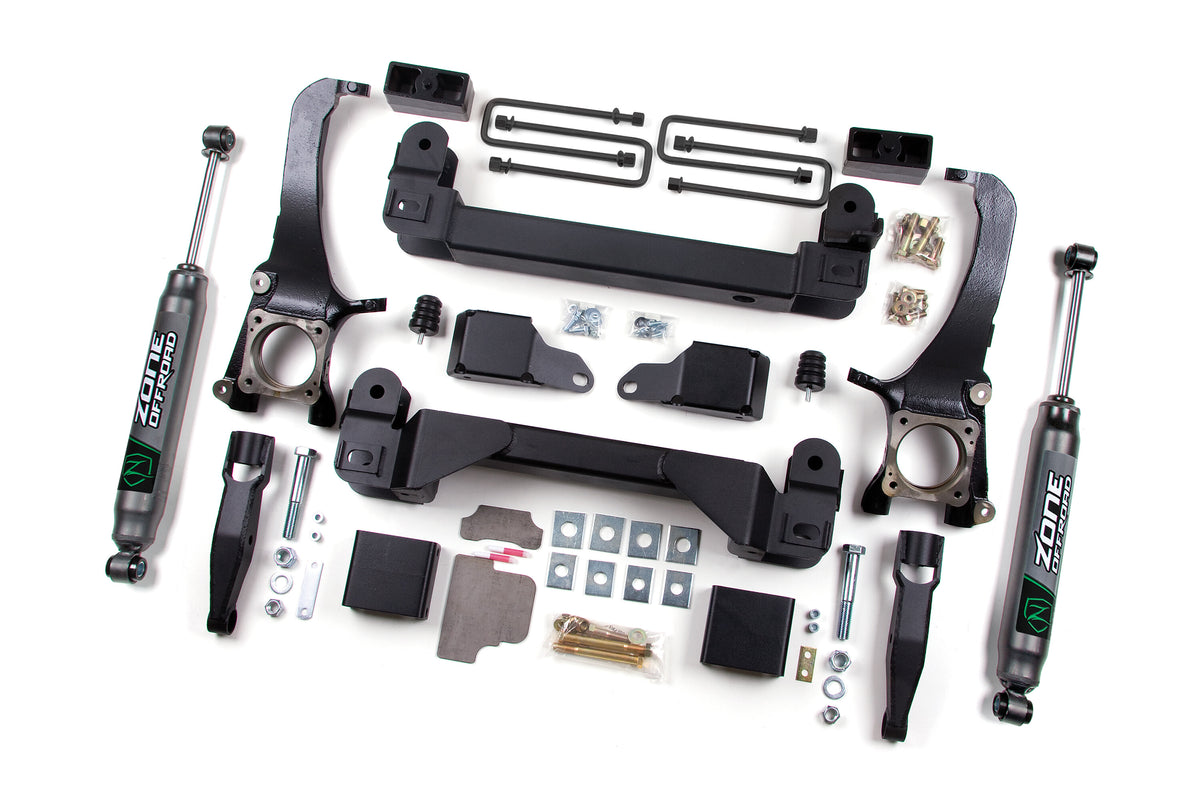

In The Box:
All Necessary Mounting / Installation Hardware
Crossmembers
Lower Strut Extensions
Rear Lift Block & U-Bolt Kit
Steering Knuckles
Tie Rod End(s)
Features:
High strength crossmembers to correct lower control arm positioning
Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
Lower strut extensions to provide lift and install easily
Weld-in chassis plates add strength and rigidity
Rear lift blocks and u-bolts to lift and level the stance
Sway bar, brake line, and bump stop relocation brackets to correct operating angles
Kit Components:
ZON7952 Nitro- 27.50 x 16.20 x 2-3/8 S50/EB2 2 711745596078
ZONT2501 07-21 Toyota Tundra 5.0 Inch Box Kit (2of4) 1 711745601840
ZONT2502 07-21 Toyota Tundra 5.0 Inch Box Kit (3of4) 1 711745601857
ZONT2503 07-21 Toyota Tundra 5.0 Inch Box Kit (4of4) 1 711745601864
ZONT2510 2016-2021 Toyota Tundra 5.0 Inch Box Kit (1of4) 1 711745601871
