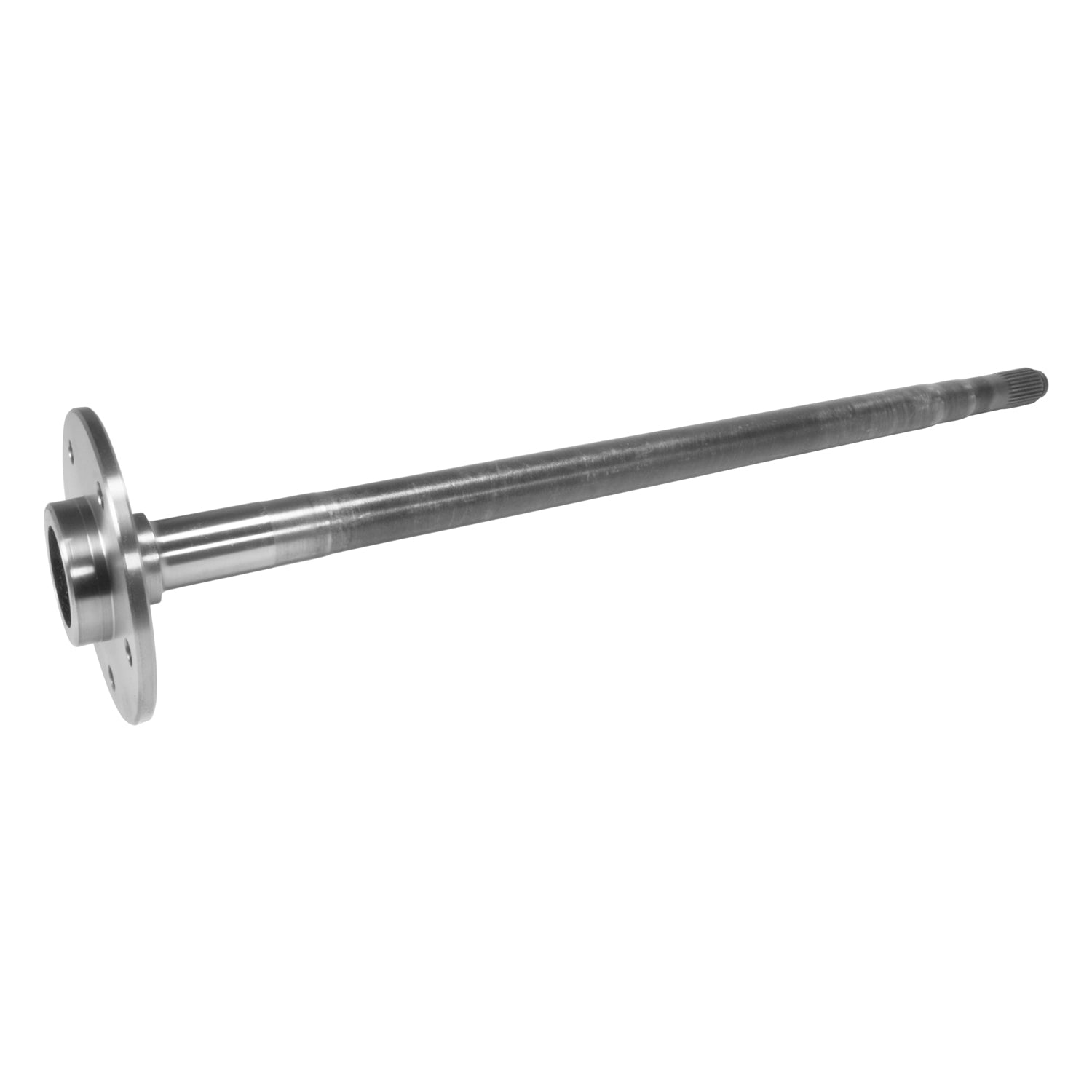

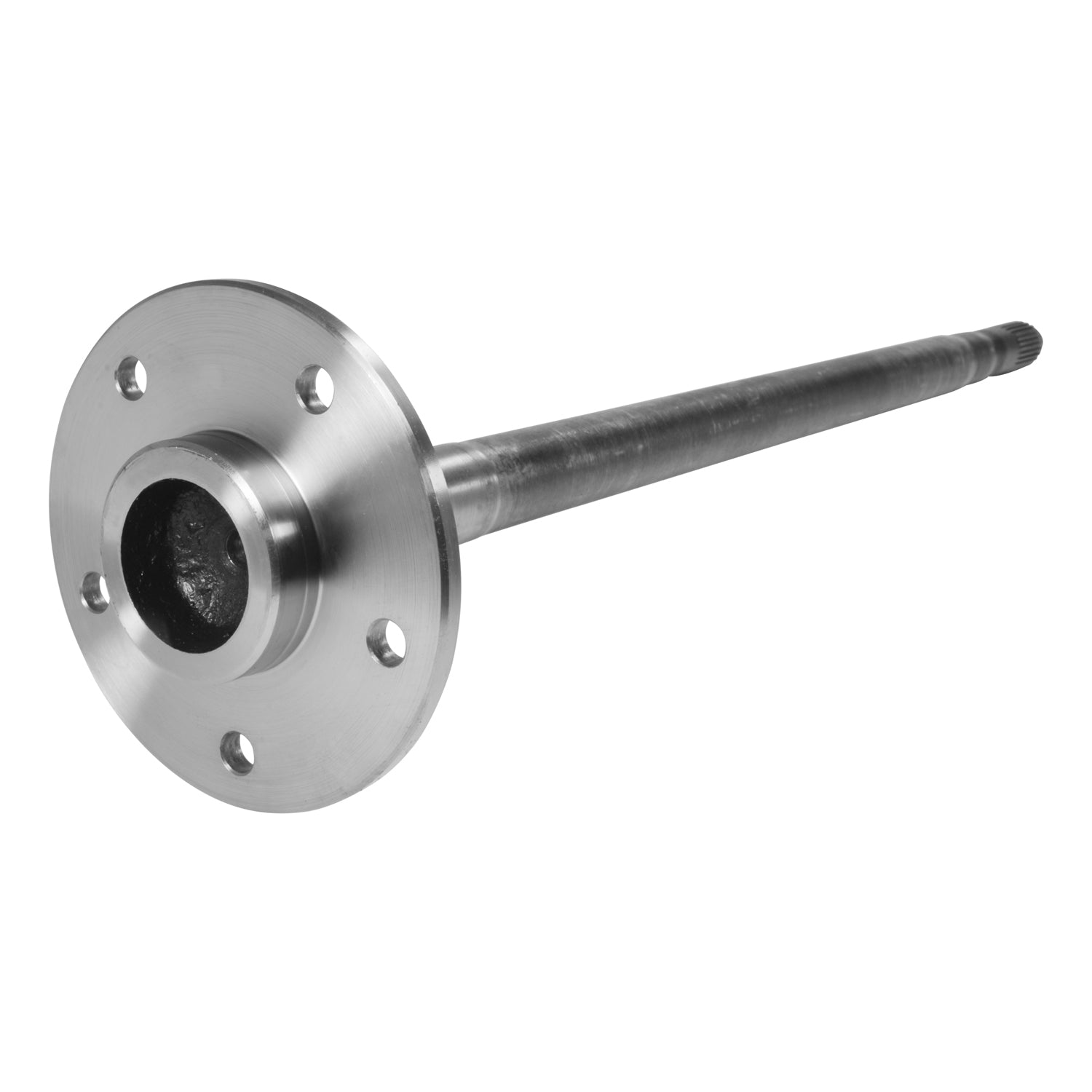

1541H Alloy Rear Axle For GM 7.625 Inch Differential USA Standard Gear

Yukon Gear & Axle uses high quality alloys and the latest in heat-treating technologies to produce a stronger-than-stock axle for off-road, on the street, or at the track.

• Fits 1998-2005 GM 7.625 inch S10 with all-wheel drive and four-wheel drive
• 28 spline
• Measures 28 13/16 long
• 5 lug

Features and Benefits:

• Fits 1998-2005 GM 7.625 inch in S10 with all-wheel drive and four-wheel drive
• 28 spline
• Measures 28 13/16 inch long
• 5 lug

Details:

• AAP UDA 4:50
• Axle Nut Included:No
• Bolt Circle Diameter:4.75 inch
• Bolt Pattern:5 x 4.75 inch
• Cv Joints Included:No
• Inboard Spline Quantity:28
• Retainer Included:no
• Rust Resistant Coating:No
• Shaft Length:28.81 inch|28.8 inch
• Wheel Bolt Pattern Size:5 x 4.75 inch

Application Summary:

1998-2005 Chevrolet Blazer (Rear) (Drive: 4WD, AWD / Note: GM 7.5 inch. and 7.6 inch.

• 28 Spline
• 28-13/16 inch. Length
• 5 Lug)
• 1998-2004 Chevrolet S10 (Rear) (Drive: 4WD / Note: GM 7.5 inch. and 7.6 inch.
• 28 Spline
• 28-13/16 inch. Length
• 5 Lug)
• 1998-2005 GMC Jimmy (Rear) (Drive: 4WD, AWD / Note: GM 7.5 inch. and 7.6 inch.
• 28 Spline
• 28-13/16 inch. Length
• 5 Lug)
• 1998-2004 GMC Sonoma (Rear) (Drive: 4WD / Note: GM 7.5 inch. and 7.6 inch.
• 28 Spline
• 28-13/16 inch. Length
• 5 Lug)
• 1997-2001 Oldsmobile Bravada (Rear) (Drive: AWD / Note: GM 7.5 inch. and 7.6 inch.
• 28 Spline
• 28-13/16 inch. Length
• 5 Lug)
