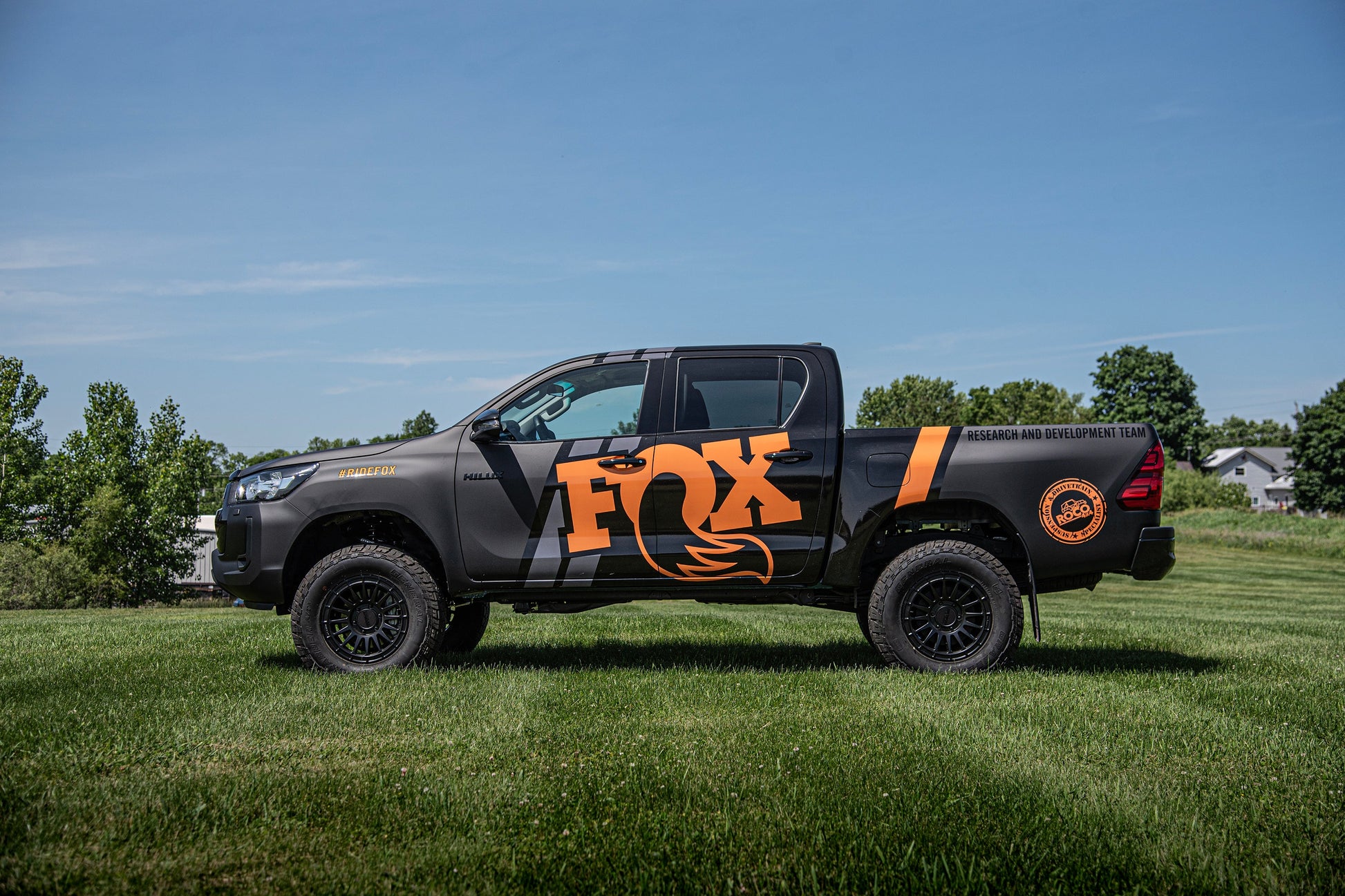

15-25 Toyota Hilux Performance Lift 2 Inch Front, 1 Inch Rear, Block - 2.0 Performance Series Snap Ring Front, 2.0 Performance Series BDS Suspension
BDS introduces a high-performance suspension upgrade for the popular Toyota Hilux, designed to deliver exceptional ride quality, strength, and off-road capability.
This system features heavy-duty BDS upper control arms paired with your choice of Fox Performance Series coil-over options:
- Fox 2.0 Snap Ring Struts
- Fox 2.5 Performance Coil-Overs
- Fox 2.5 Performance Elite Coil-Overs
Each setup is built to handle tough terrain while improving handling and control, both on and off the road. The rear of the vehicle benefits from a collaboration between BDS Engineering and Fox Ride Engineering, with rear shocks precisely tuned to work in harmony with the Hilux's aggressive factory spring rate.
This ensures a balanced, responsive ride and maximum performance under load or during spirited driving.
Whether you're loading up, heading off-road, or simply want a more composed ride, BDS delivers the suspension solution the Hilux was meant to have.
Features and Benefits:
- 2-3 inches of lift depending on the front coil over selected.
- BDS upper control arms increase strength and allow for more suspension travel.
- Your choice of Fox coil-over options for customizable performance
- Front and rear Fox shocks designed and tuned for the popular Hilux application.
- Rear shocks specifically valved for factory Hilux leaf springs
- Enhanced stability and control across all driving conditions
- Backed by BDS's No Fine Print Warranty
- Factory protection plus drivetrain warranty included.
- Easy, bolt on installation.
Recommended Tires and Wheels:
- (Trimming may be required)
- 285/70 with 16 x 8 and 4.5 in. Backspace
- 285/70 with 17 x 8 and 4.5 in. Backspace
FOX 2.0 Performance Series Snap Ring Strut:
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
- Snap Ring Spring Seat to re-use OEM spring
FOX 2.5 Performance Elite Series Coil-Over:
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
- External reservoir design separates shock oil from the high-pressure nitrogen
- DSC - Dual Speed Compression Adjuster comes standard
- Performance
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
FOX 2.5 Performance Series HTO:
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
Details:
- Finish: Powdercoat
- Color: Black
- Front Lift Height: 2.0 Inch
- Rear Lift Height: 1.0 Inch
- Lift Height: 2.0 Inch
- Lift Type: Block
- Engine Years: 2015-2025
- Shocks Included: Yes
- Series: Performance Series
- Shock Style: FOX 2.0 Performance Series Shocks
