Take your F150 to new heights with this 6 Inch lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance.
Get the look, performance, and capability your truck deserves with clearance for up to 37 Inch tires. Quick Specs:
Front Lift Height 6 Inch
Rear Lift Height 4.3 Inch5 Inch
Front Lift Method Knuckle & Strut Spacer
Rear Lift Method Cast Blocks
Lift Type Lift Kit
Wheel Size 18 x 9
Back Spacing 5.5 Inch
Max Tire Size 37 x 12.5
Wheel Size 2 20 x 9
Back Spacing 2 5.5 Inch
Max Tire Size 2 37 x 12.5
Wheel Size 3 Inch22 x 9
Back Spacing 3 5.5 Inch
Max Tire Size 3 37 x 12.5
Is Adjustable No
Finish Powdercoat
Cutting Required No
Accommodates Factory Wheels See Notes
Welding Required No

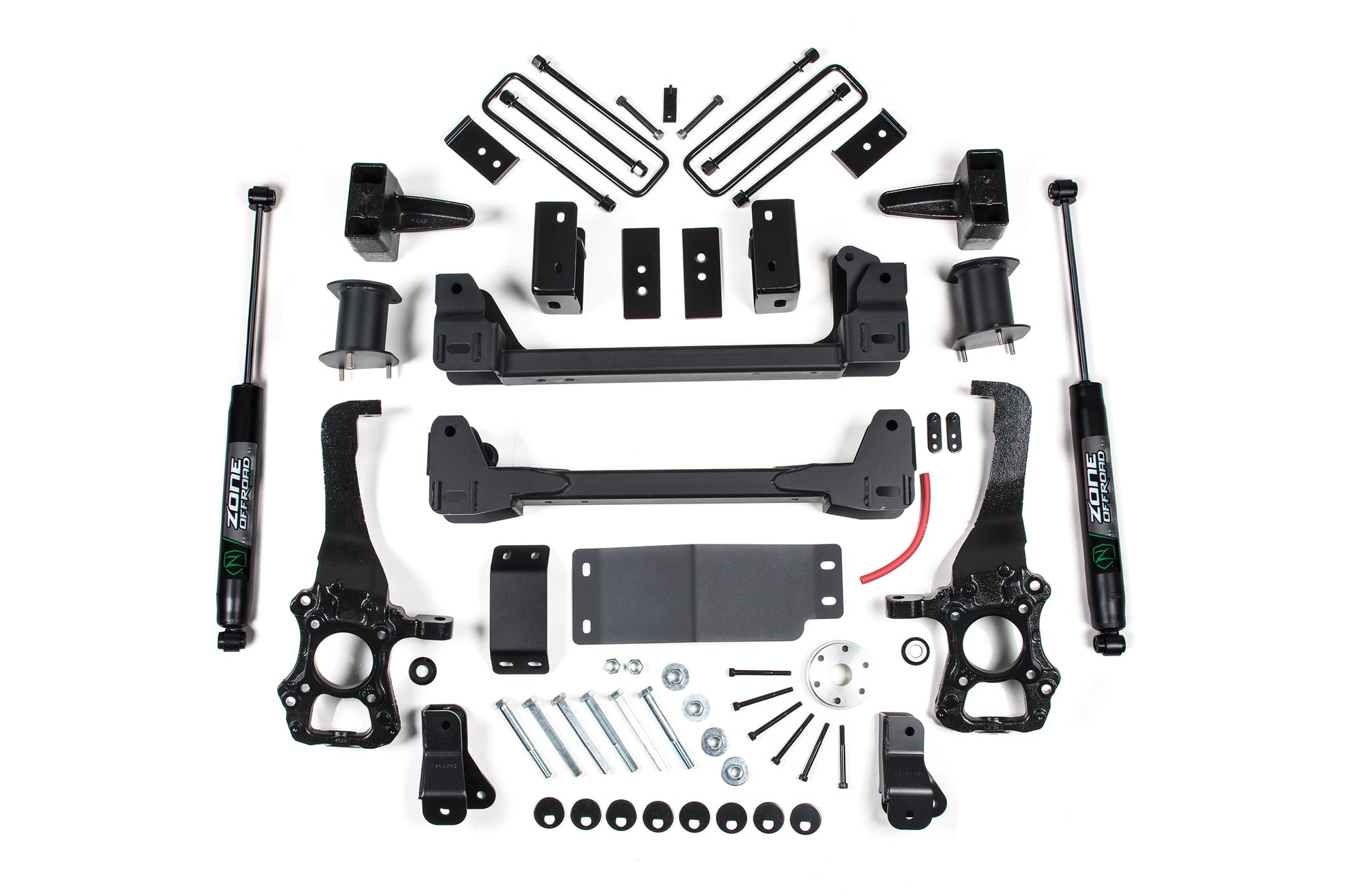

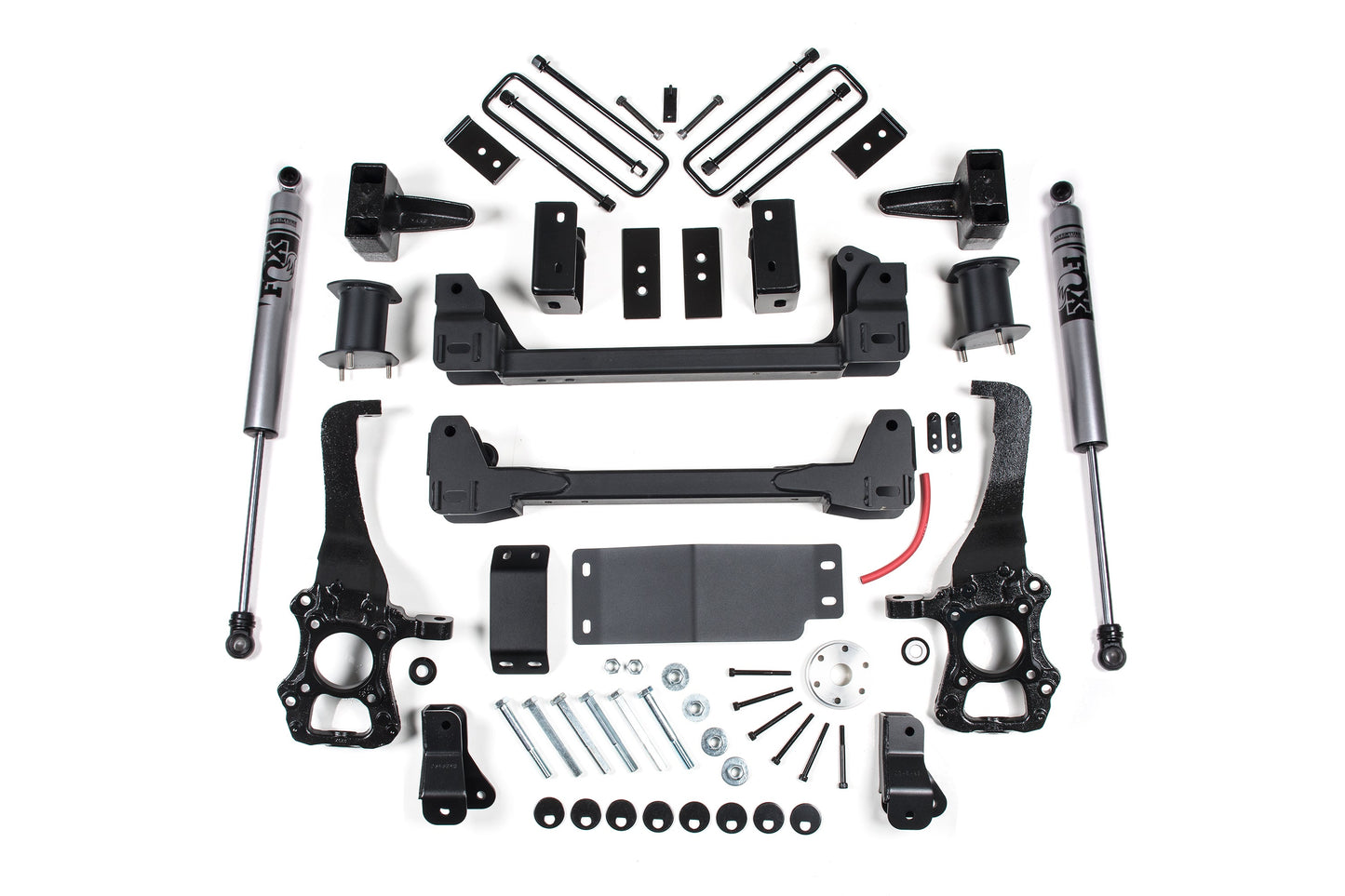

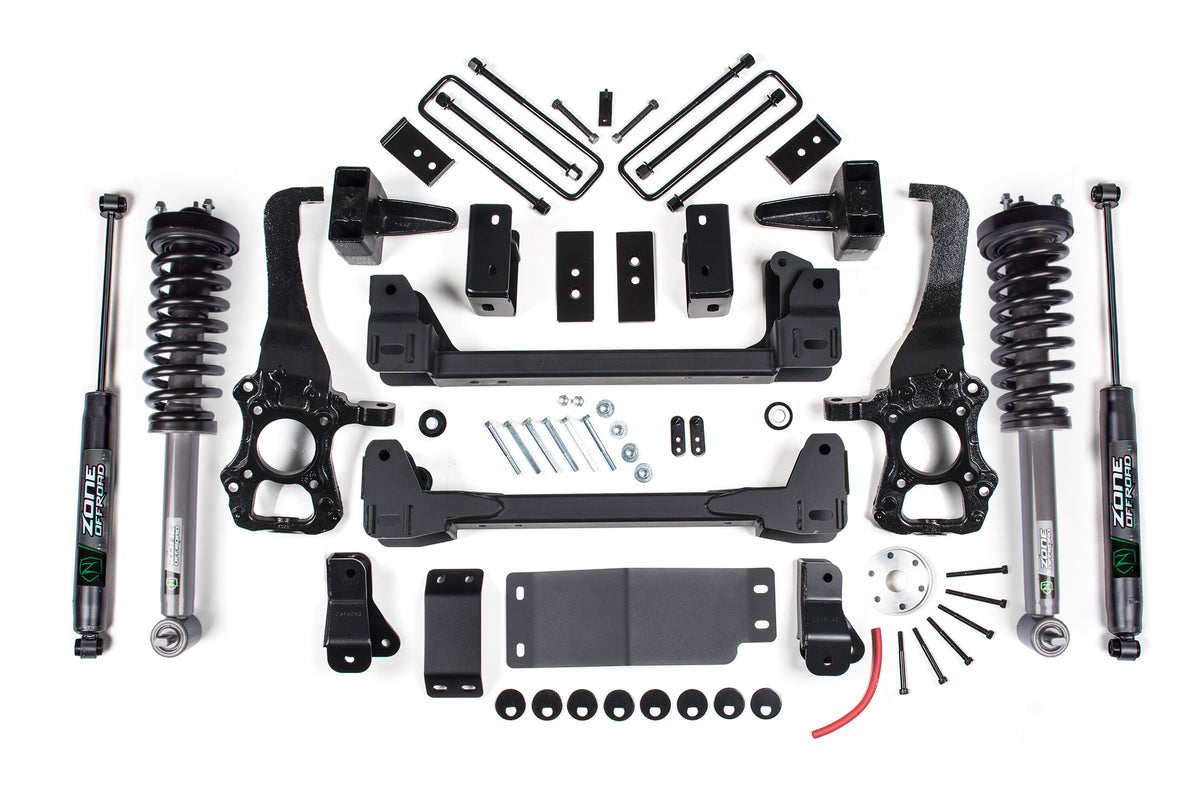

In The Box:
Crossmembers
Differential Drop Brackets
Driveshaft Spacer
Strut Spacer - Front
Sway Bar Relocation Brackets
Features:
High strength crossmembers to correct lower control arm positioning
Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
Top mounted strut spacers to provide lift and install easily
Differential skid plate for improved offroad protection
Rear lift blocks and u-bolts to lift and level the stance
Sway bar, brake line and bump stop relocation brackets to correct operating angles
Kit Components:
ZON7763 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595798
ZONF2604 2015-2024 Ford F150 6 Inch Strut Spacer Box Kit 1 711745599536
ZONF2639 2015-2020 Ford F150 4-3/8 Inch Rear Block Kit 1 711745599772
ZONF2640 2015 F150 Front Box Kit 1of4 1 711745599789
ZONF2641 2015 F150 Front Box Kit 2of4 1 711745599796
ZONF2650 2017-18 F150 Front Box Kit 3of4 1 711745599802
ZONF2651 2017-18 F150 Front Box Kit 4of4 1 711745599819
