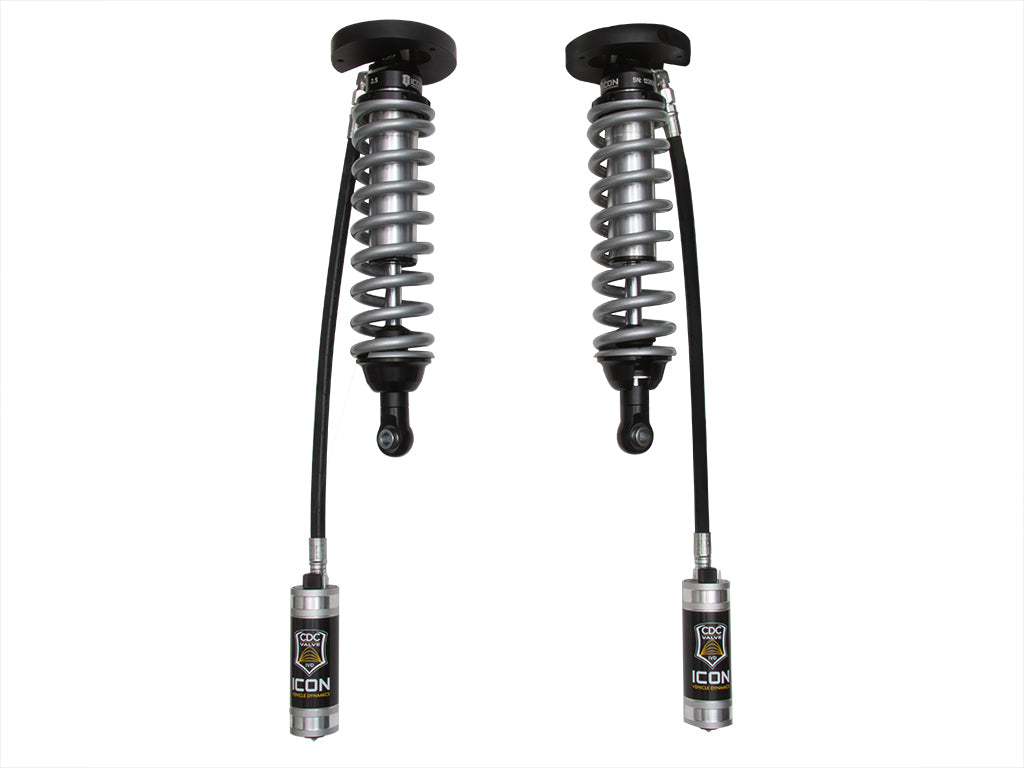

14-20 Expedition 4WD .75-2.25 Inch Rear 2.5 VS RR CDCV Coilover Kit ICON Vehicle Dynamics

The ICON Vehicle Dynamics V.S. Series 2.5 Inch remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the rear end of the 2014-2020 Ford Expedition.

ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while offering .75-2.25 Inch of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5 Inch shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.

Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings of adjustment from soft to hard.

When paired with ICON front 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Ford Expedition.

Features and Benefits:

• Increased wheel travel and ride quality over stock
• Unique valving developed specifically for the 2014-2020 Expedition and tuned for superior shock damping and control
• External reservoir to attain cooler operating temperatures during extended off-road use
• ICON CDCV equipped for external compression damping tuneability
• Adjustable for .75 Inch - 2.25 Inch of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8 Inch diameter shaft
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 100 Percent Bolt-on - cutting or welding necessary for installation

Details

• Material: Aluminum, Steel
• Active Or Passive Suspension: Passive
• Adjustable Compression: Yes
• Adjustable Damping: Yes
• Adjustable Rebound: No
• Adjustable Ride Height: Yes
• Assembled: Yes
• Body Diameter: 2.5 Inch
• Coil Over Springs Included: Yes
• Compressed Length: 14.87
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Cylinder Material: Steel
• Damping Adjustment Type: Manual
• Damping Type: Oil
• Dust Shield Included: No
• Extended Length: 20.73
• Gas Charged: Yes
• Grade Type: Performance
• Includes Bump Stop: Yes
• Internal Construction Type: Single Tube
• Lower Mount Type: Eyelet
• Maximum Lift: 2.25 Inch
• Maximum Ride Height Raising Distance: 2.25
• Minimum Lift: 0.75 Inch
• Oem Wheels & Tires Fitment: Yes
• Rear Spring Rate: 600 Inch
• Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
• Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.00 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.625 Inch Backspace / 16mm Offset
• Remote Reservoir: Yes
• Reservoir Style: Remote
• Self Leveling: No
• Service Parts: 254100G - 1 Gallon Icon Performance Shock Oil, 191016 - 7.5 Inch Finned Resi Upgrade Kit, 257338 - 7/8 Shaft 12.25 Oal, 8.00 Travel, 252001 - 2.5 Fixed Spanner Wrench, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 611019 - Coilover Hardware Kit Pair, 252003 - Seal Install Tool 2.5/3.0
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center Of Eylet
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear
• Travel Length: 5.87
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive
• Add On Part: 198001 - Billet Spanner Wrench Kit, 252012 - -4 To -10 Hose Shield Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5)
